Vacuum Generator SCV/CCV

Vacuum generator is a new, clean, economical, and small vacuum component that uses a positive pressure source to generate negative pressure.

Port Size: G1/8,Φ6,G1/4,Φ8,G1/4,Φ8,G3/8,G1/2
Operating Pressure MPa: 0.5
Air consumption L/min: 13,44,100,180,265,385
Ambient Temp: -5~60℃

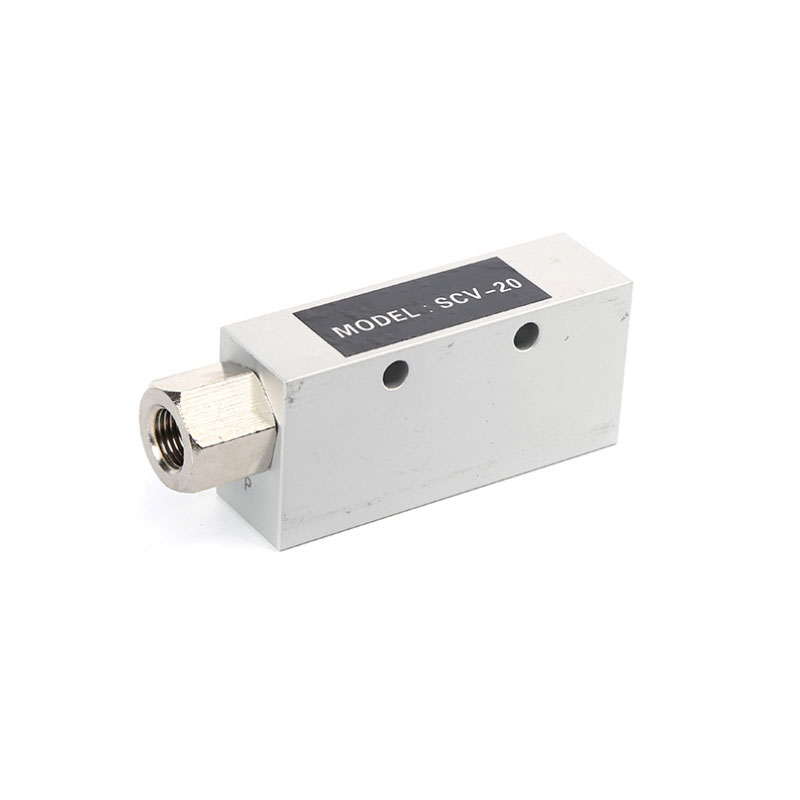

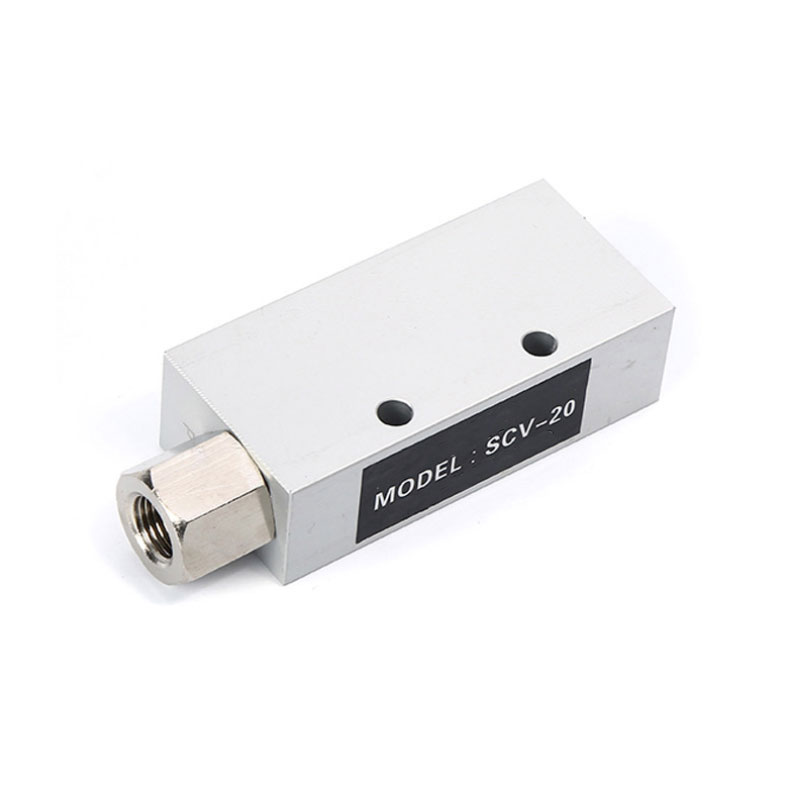

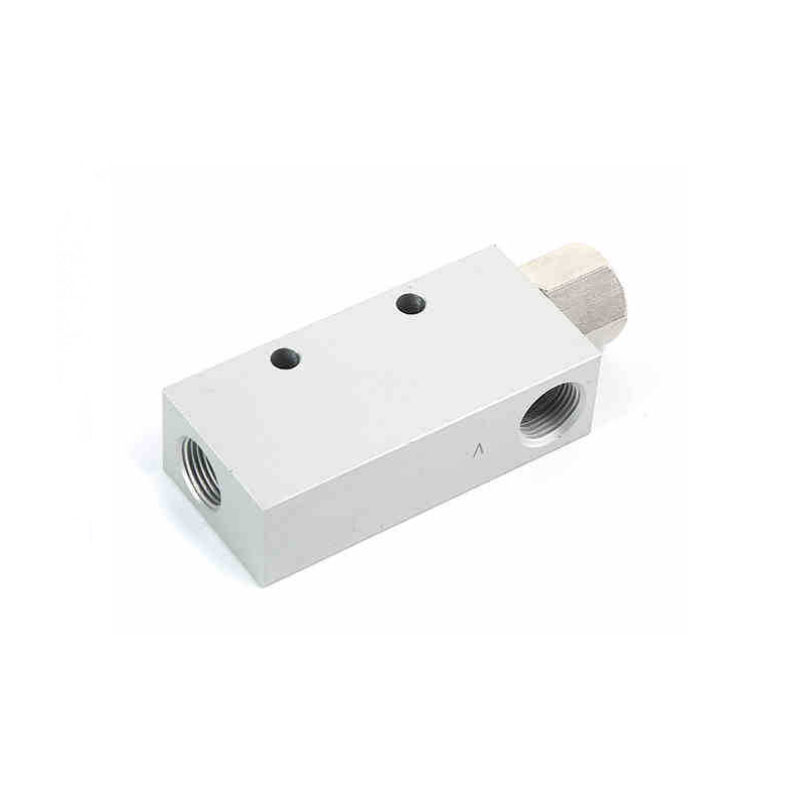

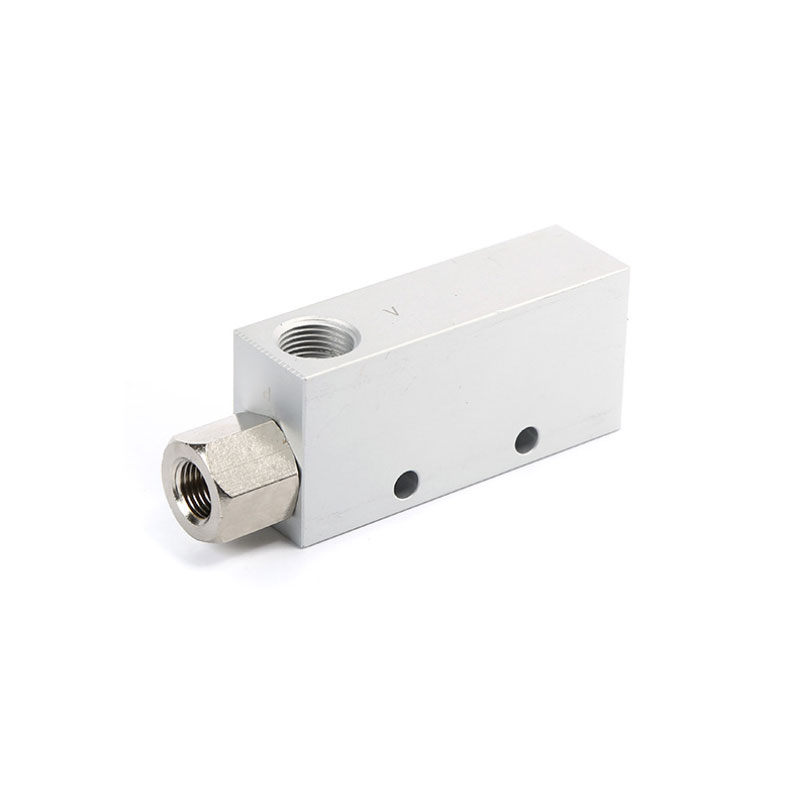

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Vacuum Generator SCV/CCV

Vacuum generator is a new, clean, economical, and small vacuum component that uses a positive pressure source to generate negative pressure. This makes it very easy and convenient to obtain negative pressure in compressed air or in a pneumatic system where both positive and negative pressure are needed. Vacuum generators are widely used in mechanical, electronic, packaging, printing, plastic and robot fields in industrial automation. Vacuum generators are traditionally used with suckers for the adsorption and handling of various materials, especially for the adsorption of fragile, soft, thin non-ferrous, non-metallic materials or spherical objects. In such applications, a common feature is that the required pumping capacity is small, vacuum requirements are not high and intermittent operation.

Technical Parameters for Vacuum Generator SCV/CCV

Port Size: G1/8,Φ6,G1/4,Φ8,G1/4,Φ8,G3/8,G1/2
Operating Pressure MPa: 0.5
Air consumption L/min: 13,44,100,180,265,385
Ambient Temp: -5~60℃

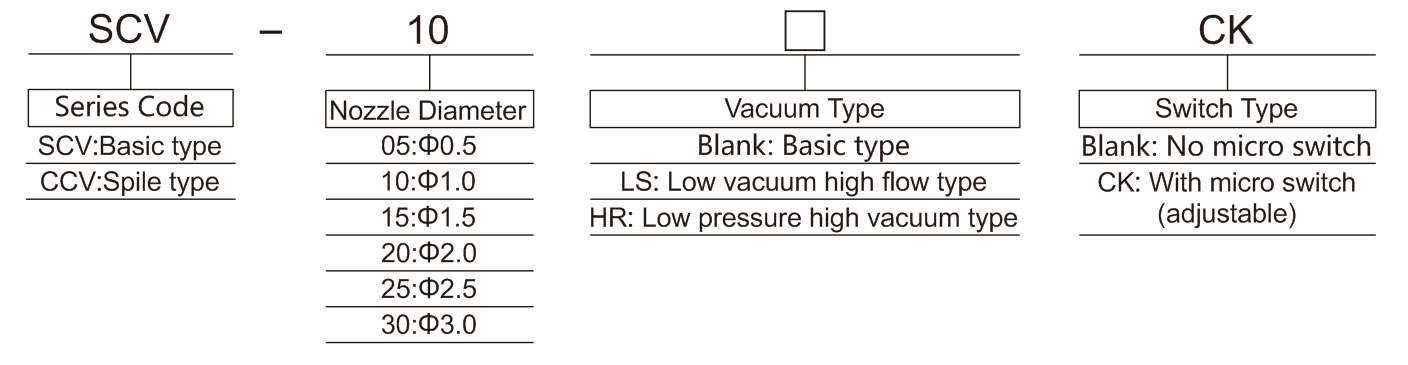

Ordering Code for Vacuum Generator SCV/CCV

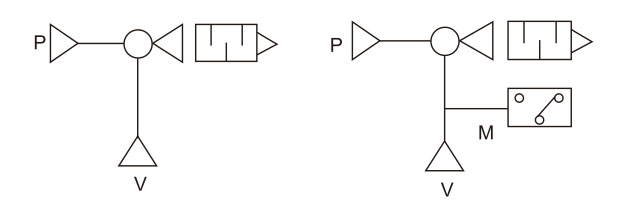

Symbol for Vacuum Generator SCV/CCV

Technical Parameter for Vacuum Generator SCV/CCV

Model SCV-05 SCV-10 CCV-10 SCV-15 CCV-15 SCV-20 CCV-20 SCV-25 SCV-30
Port Size G1/8 Φ6 G1/4 Φ8 G1/4 Φ8 G3/8 G1/2
Weight (g) 72 136 271 710
Ambient Temp. -5~60℃
Lubrication Non-lube
Working Medium Non-lube
*Signal output line Black: COM; Red: NO; Yellow: NC
*Voltage/current AC 125V: 5A / AC 250V: 3A

*Only for micro switch (CK type)

Model SCV-05 SCV-10 / CCV-10 SCV-15 / CCV-15 SCV-20 / CCV-20 SCV-25 SCV-30
Operating Pressure MPa 0.5
Air consumption L/min 13 44 100 180 265 385
Vacuum pressure kPa -88
Vacuum intake L/min 6 27 63 110 160 225
Note: the parameters in the above table are only for basic vacuum type

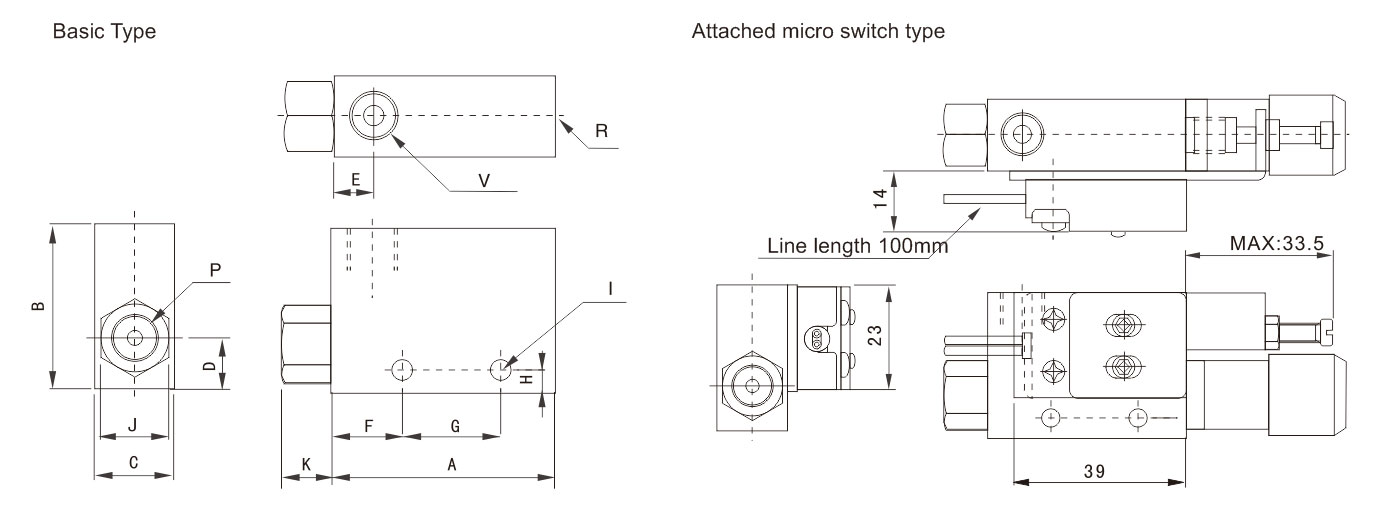

Overall Dimension

Model A B C D E F G H I J K P V R
SCV-05 45 32 16 10 8 14 20 4.5 2-Φ4.3 14 10 G1/8 G1/8 G1/8
SCV-10 45 32 16 10 8 14 20 4.5 2-Φ4.3 14 10 G1/8 G1/8 G1/8
SCV-15 63 35 20 11 10 20 25 5 2-Φ4.5 17 15 G1/4 G1/4 G1/4
SCV-20 85 40 25 15 13 28 32 7 2-Φ6 21 20 G1/4 G3/8 G3/8
SCV-25 100 60 40 20 16 20 50 5.5 2-Φ6.3 26 17 G3/8 G1/2 G3/4
SCV-30 100 60 40 20 16 20 50 5.5 2-Φ6.3 26 17 G1/2 G1/2 G3/4
