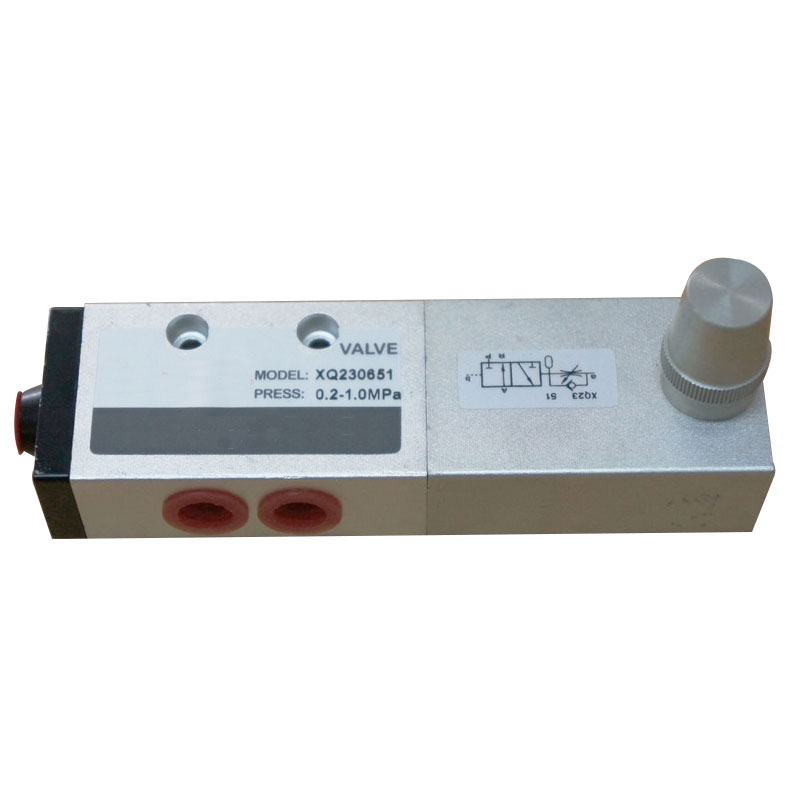

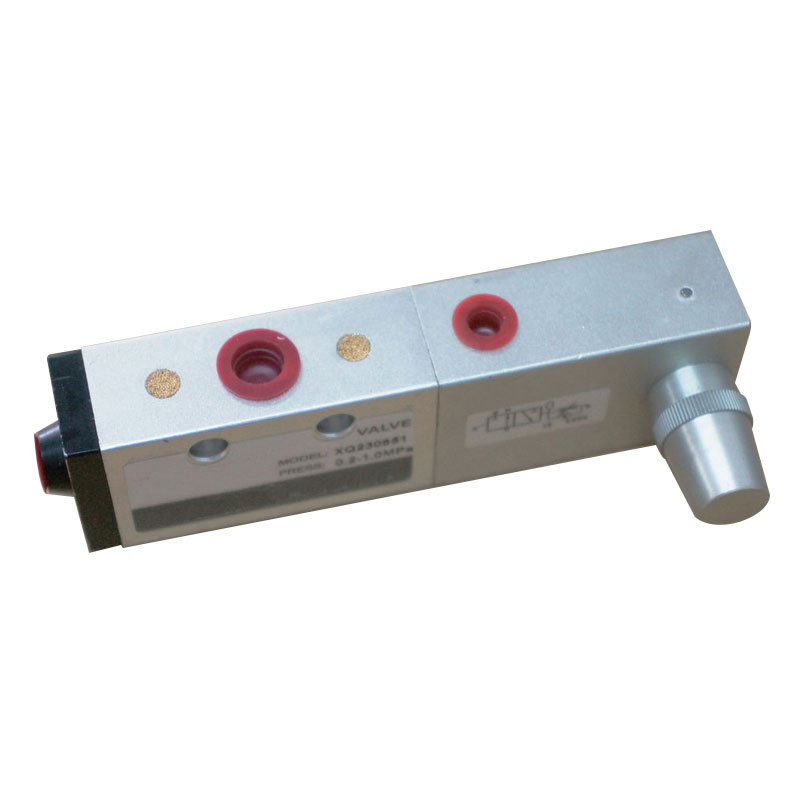

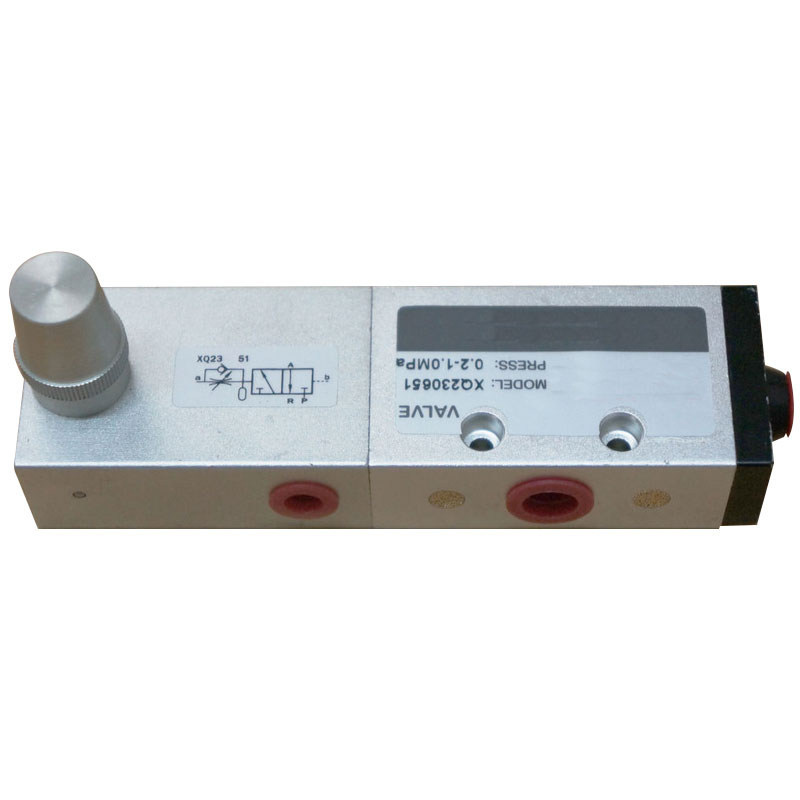

Time Delay Directional Valve XQ

Overview for XQ Time-delay Directional Valve

XQ Time-delay Directional Valve reversing valve is a kind of pneumatic operated directional valve that controls the time-delay reversing time. Adjusting the opening of the needle valve can change the time of delay. The way of reversing reset are internal air pressure reset or external spring reset, and external air

Technical Parameters for XQ Time-delay Directional Valve

Operating pressure range: 0.2-1.0MPa
Switching time: 30ms
Medium temperature: -10+60℃
Ambient temperature: 5-60℃
pressure reset.
Diameter: 6mm
Delay range: 1-30s
Delay error: 8%

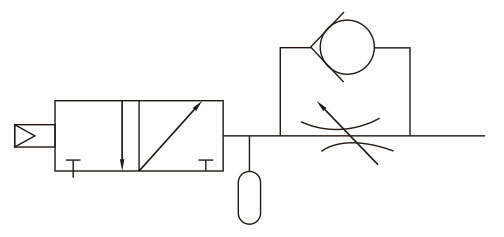

XQ Time-delay Directional Valve Symbol

XQ Time-delay Directional Valve Technical Parameter

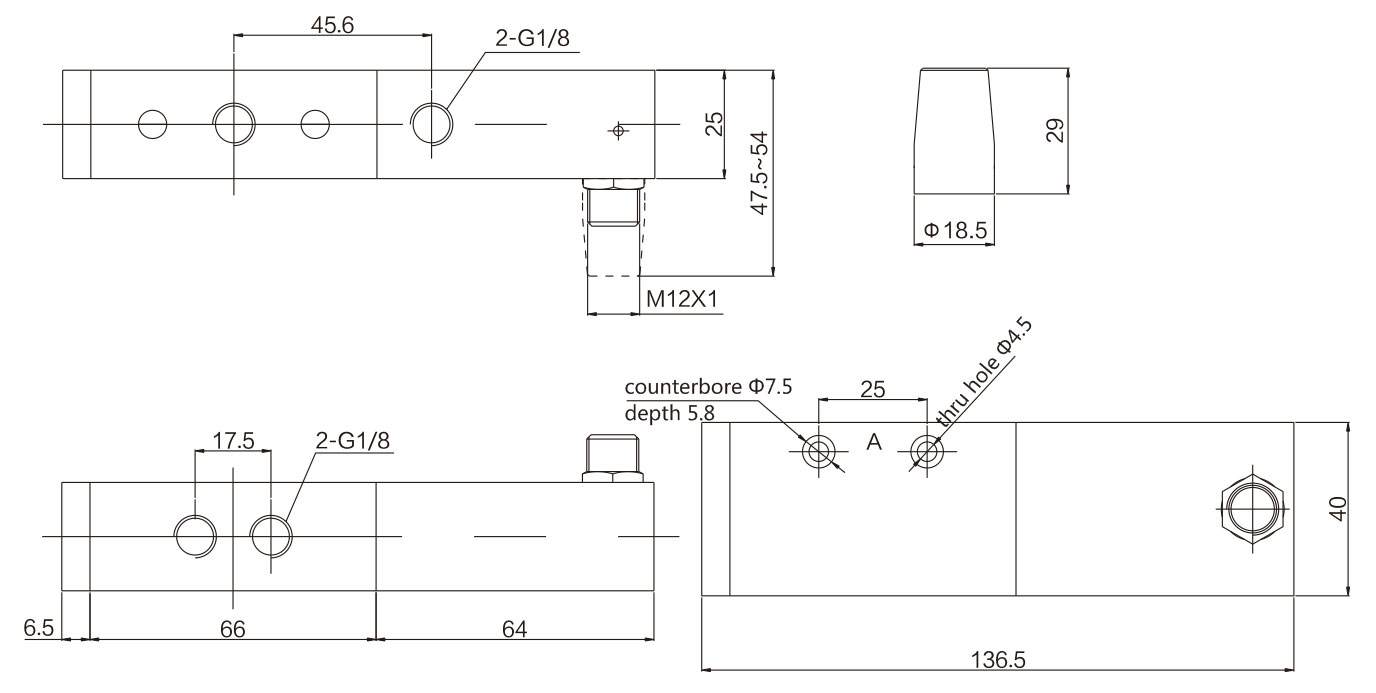

Overall Dimension
