Overview for Pressure Regulating Filter F Series

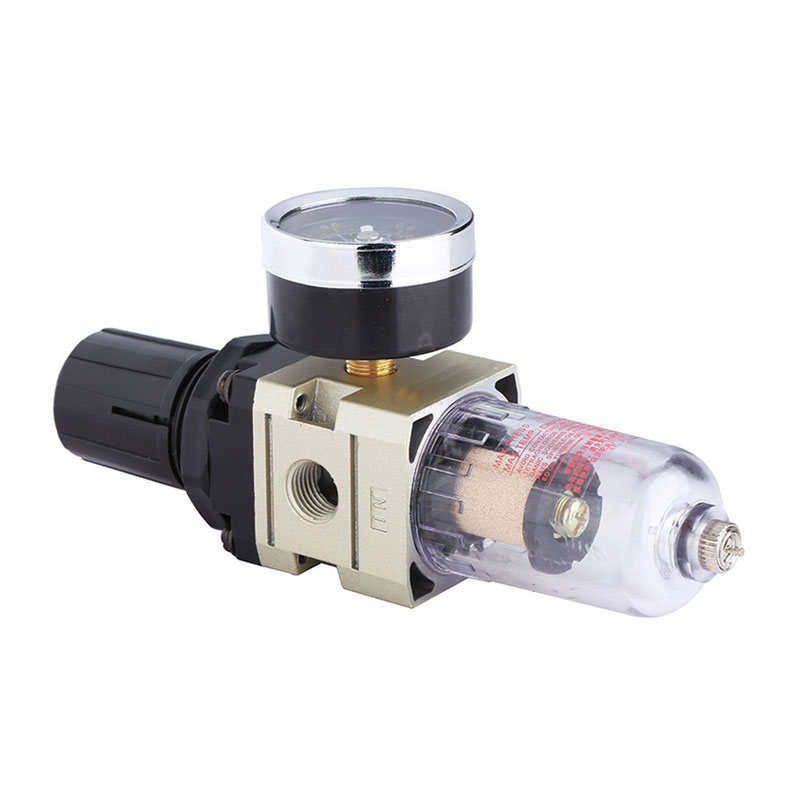

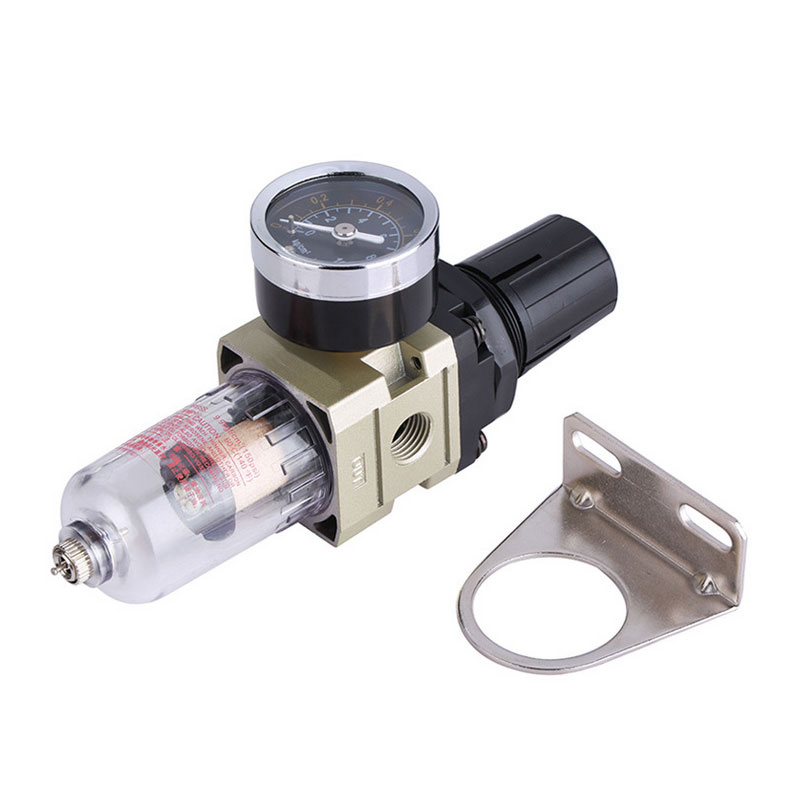

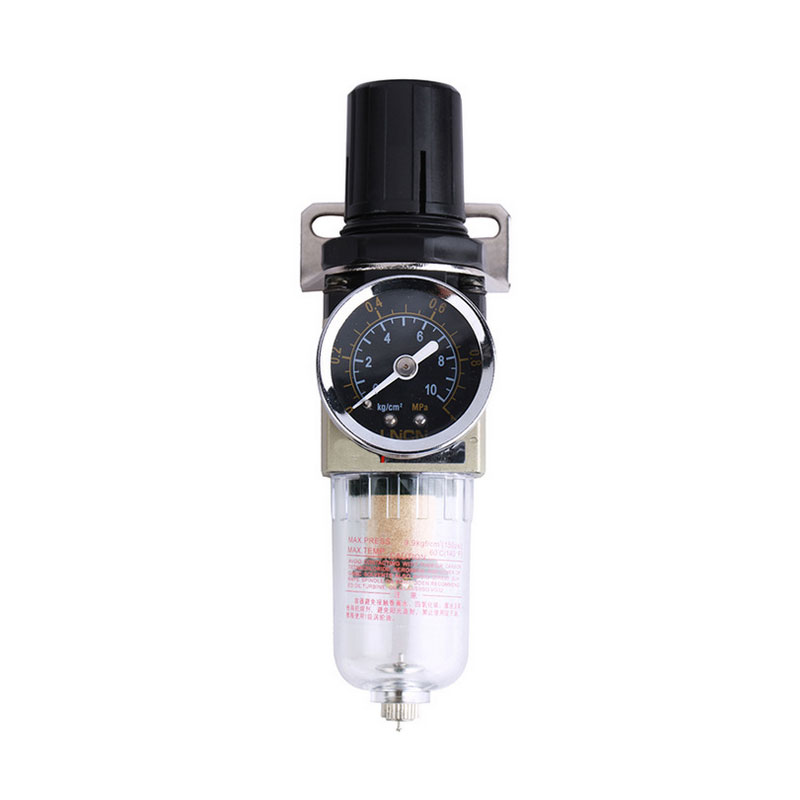

Pressure Regulating Filter F Series is a filter pressure reducing valve which adopts more commonly used port size G1/4. Pressure Regulating Filter F Series is an ideal filter decompression element. Not only effectively filter out the solid particles and moisture in the air source, but also realize the function of pressure regulation, so that customers choose the force they need, because with pressure gauges, the debugging is very convenient. Filtering pressure reducing valve, as the name suggests, plays the role of filtration and decompression.
1. Used in general pneumatic transmission system to remove solid impurities, water droplets and oil contamination in compressed air to achieve the degree of cleanliness required by pneumatic transmission systems.
2.
Pneumatic Air Regulator AR adopt intake throttle and decompression, rely on the balance of force and overflow to stabilize the pressure. To change the air pressure, pull out the handwheel first, and then obtain any pressure within the specified range by adjusting the AW2000-02 plastic handwheel. Increase pressure by clockwise and reduce pressure by counterclockwise.
Technical Parameter for Pressure Regulating Filter F Series
Input pressure
P1 max. value
P2 min. value |
16bar(Manual drain valve)
12bar(Auto drain valve)
1.5bar, 1bar(only for OR-...) |
Max. working pressure
P2 |
0.5...7bar(OR-/OFR-...-7-...)
0.5...12bar(OR-.../OFR-...) |
| Temperature range |
0~60℃ |
| Installation location |
Vertical direction (±5°) |
| Pressure gauge connection |
G1/8(OR-/OFR-...MINI-...)
G1/4(OR-/OFR-...MIDI-/MAXI-...) |
| Filtration Aperture |
40μm (routine) or 5μm (customized) |
| Working Medium |
Compressed Air |
| Material |
Shell: Die Casting Zinc; Filter bowl and Oil bowl: PC; Metal Protective Cover: Aluminum Alloy; Seal: Nitrile Rubber; Pressure Handwheel: POM |
Application for Pressure Regulating Filter F Series
OR/OFR controls the supply of compressed air to the work pressure device and the supply of air fluctuations under pressure. The OF water separator filters can filter out liquid oil, condensate and impurities in the compressed air.
Use condition for Pressure Regulating Filter F Series
* Please note whether the installation conditions meet the technical requirements (such as working pressure, temperature, etc.);
* Please note that the media or installation environment, try to avoid chlorine, carbon compounds, mango compounds and oxidation of acid and alkali, so as not to damage the water bowl, oil bowl;
* Slowly to the entire system pressurized to effectively prevent the occurrence of unexpected situations;
Under the initial conditions, this product is not allowed to modify freely.
