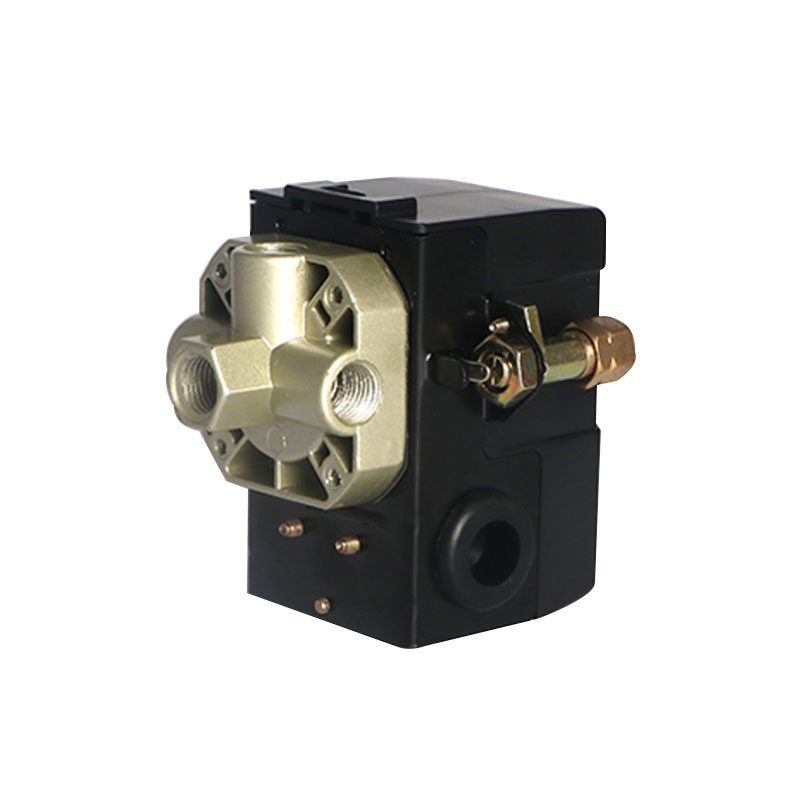

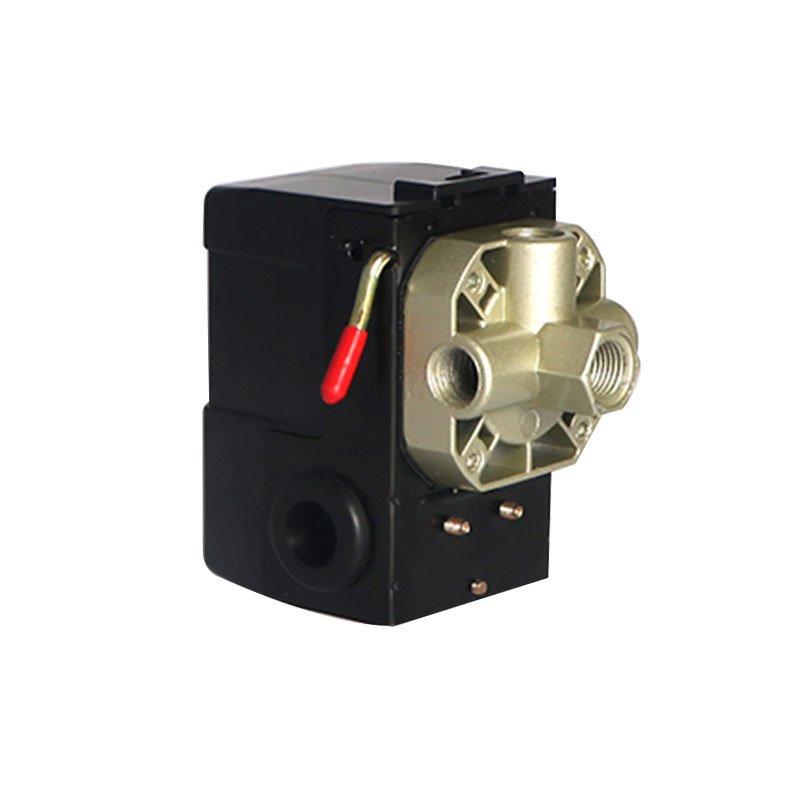

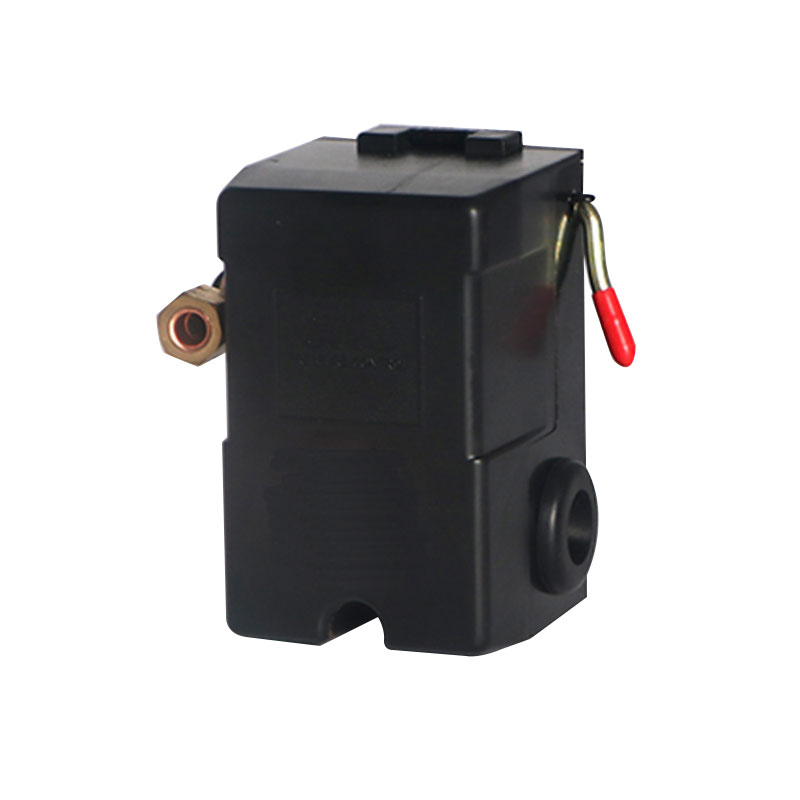

Pressure Controller PS10

Overview for Pressure Controller PS10

PS10 Pressure Controller is used to regulate the pressure in the air compressor cylinder to operate between two preset pressure values (up to 175 PSI). The pressure switch with the condenser valve can avoid overload start-up, the additional handle can be used to manually cut off the compressor. The four-way base interface makes it easier to install the exhaust valve and pressure gauge.
High anti-corrosion, easy installation, visible contact, stable performance, beautiful screw casing, large wiring space, double adjustment screws, simple adjustment, automatic overflow system, anti-shock standard.

Technical Parameters for Pressure Controller PS10

Port Standard: NPT1/4
Max breaking pressure (kfg/cm²):7.0~12.5
Rated voltage / current: 120V-20A;240V-12A
Base Hole: 1,4

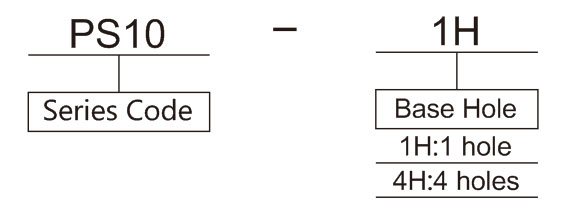

Pressure Controller PS10 Ordering Code

Description:
The PS10 pressure switch is used to adjust the pressure in the air compressor cylinders to operate between two preset pressure values (up to 175PSI). The pressure switch with an overflow valve allows the air compressor to avoid overload start, and the additional handle can be used to manually cut off the compressor. The four-way base interface makes installation of the exhaust valve and pressure gauge easier.

Features:
High corrosion resistance, easy installation, visible contact, stable operation performance, excellent shell screw, large wiring space, double adjustment screw, simple adjustment, automatic overflow system, shock proof standard.

Pressure Controller PS10 Technical Parameter

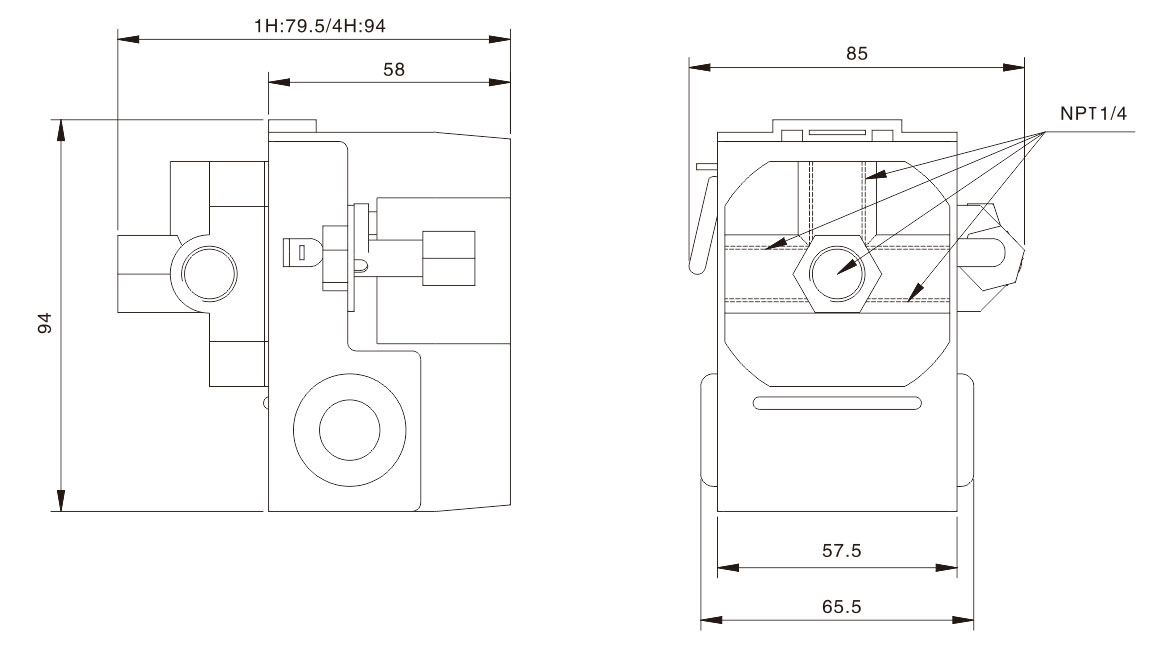

Overall Dimension
