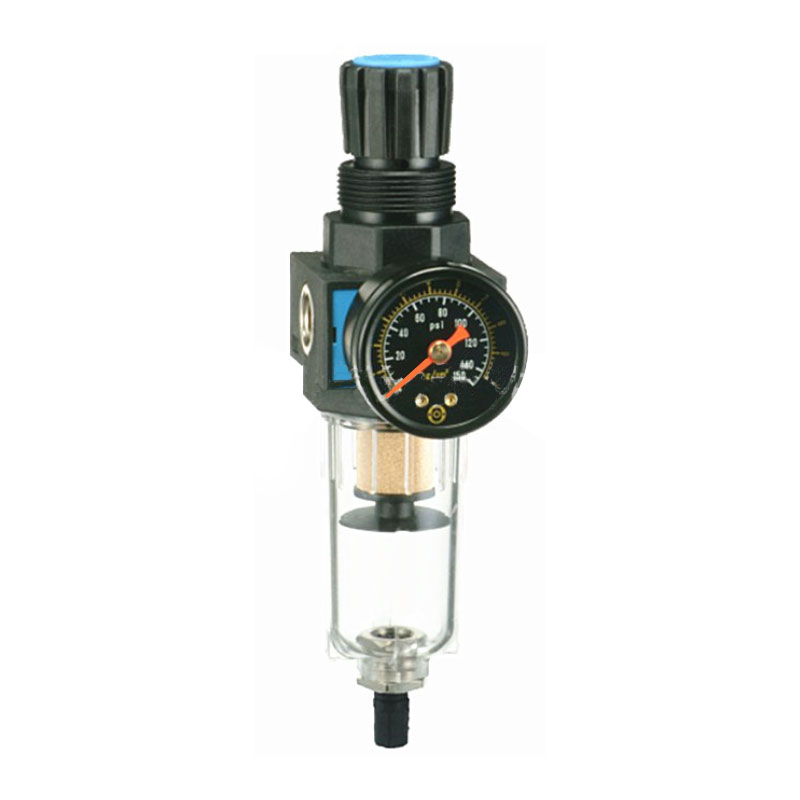

Mini Pneumatic Air Regulator FR500A

Overview for FR500A Miniature Air Filter Regulator

Miniature Air Filter Regulator can regulate the air source to keep the air source in a constant state, which can reduce the damage the valve or actuator and other hardware due to the sudden change of the air source pressure.
Pneumatic Air Regulator AR has light and compact structure, easy to install and use. The press-in self-locking mechanism prevents the setting pressure from being disturbed by external disturbances.
In order to make the pneumatic control system work normally, the following problems should be considered when selecting the Miniature Air Regulator: 1. Select the Miniature Air Regulator according to the working pressure, pressure regulation range, maximum flow rate and voltage regulation accuracy as required. 2. In the case where flammable, explosive and other people are not suitable for access, the external pilot type Air Pressure Regulator should be used. However, the remote control distance should not exceed 30m. 3. The Air Pressure Regulator is generally connected by the tube, special needs can also be connected by the plate. 4. For the convenience of operation, the FR500A Air Pressure Regulator is generally installed vertically, and the arrow is pointed to the tube according to the valve body, and the direction cannot be incorrectly installed. Do a good job of cleaning before installation. 5. When the Air Pressure Regulator is not in use, the handle should be loosened to prevent the diaphragm inside the valve from being deformed due to long-term stress.

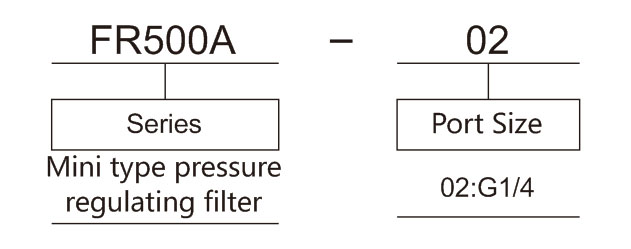

Ordering Code for FR500A Miniature Air Filter Regulator

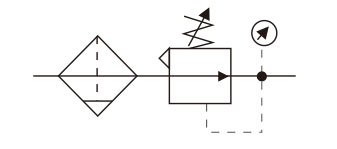

Symbol for FR500A Miniature Air Filter Regulator

Technical Parameter for FR500A Series Miniature Air Regulator

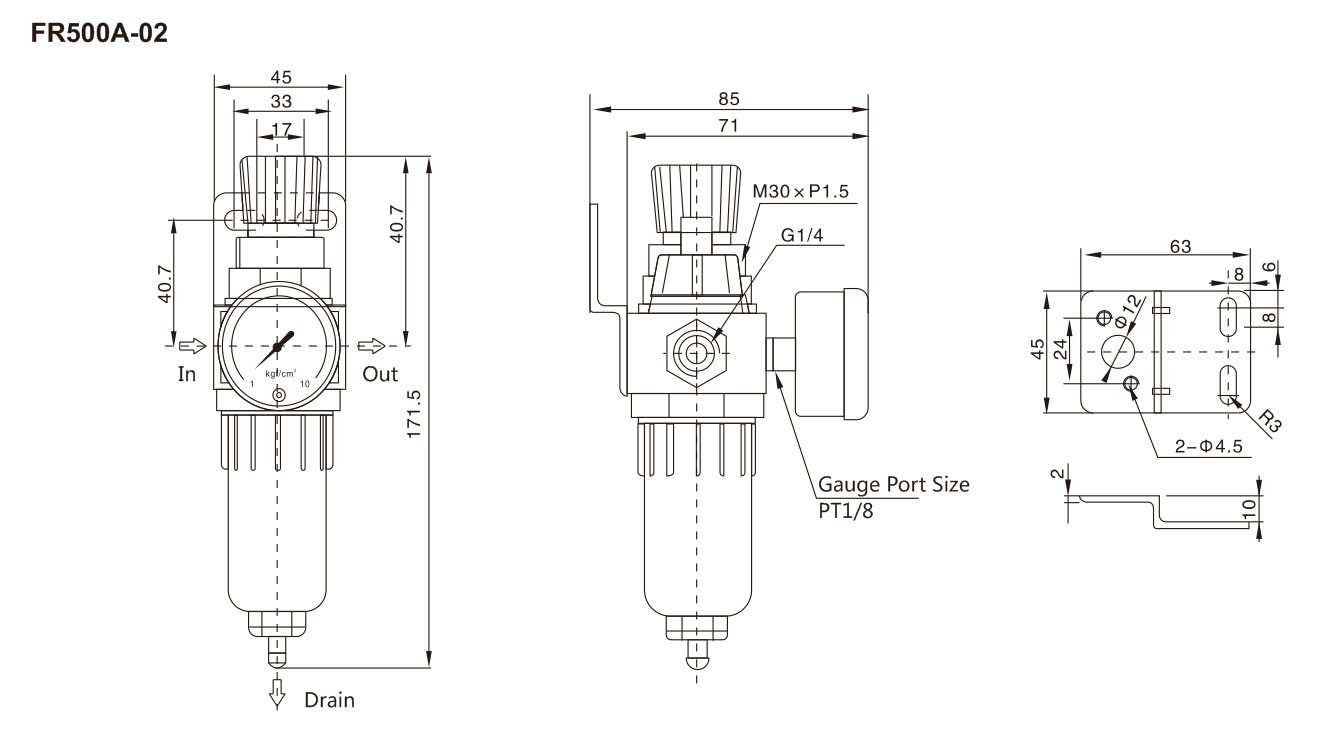

Overall Dimension for Miniature Air Regulator

Keywords:

Miniature Air Filter Regulator | FR500A | Miniature Air Regulator
