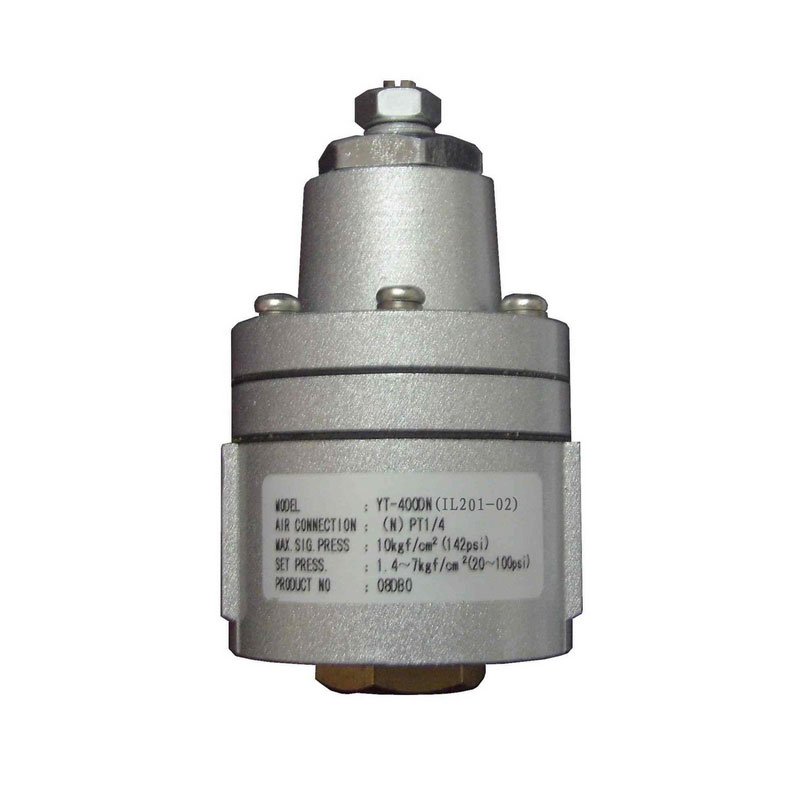

Overview for Lockout Valve IL200
Lockout Valve is an instrument auxiliary device. When the compressed gas source fails to stop gas supply, the valve control passage is cut off by the lockout valve to maintain the valve position before the gas is cut off. In order to ensure the normal process, the channel is not opened until the accident is eliminated in the system and re-supply of gas, then the normal control is resumed.
IL211-02 is double acting and IL201-02 is single acting.
Features:
1. Small size, light weight, no additional bracket needed, can be connected with metal pipe.
2. It is also sensitive to small differential pressure reaction below 0.1kgf/cm².
3. Limit switches and indicators can be added to monitor the switch status of YT-400-A/B.
4. IL201-02 Dimensions: φ60×105; IL211-02 Dimensions: φ60×137
Technical Parameters for Lockout Valve IL200
Operating Pressure: Max: 0.7MPa
Effective Sectional Area: 17mm²
Ambient and Fluid Temp: -5~60℃
Port Size: G1/4

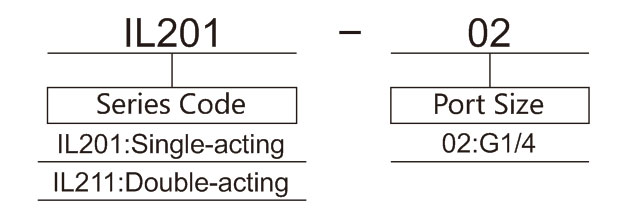

Lockout Valve IL200 Ordering Code
Lockout Valve IL200 Technical Parameter
| Model |
IL201-02 |
IL211-02 |
| Working Medium |
Compressed Air |
| Motion Pattern |
Single-acting |
Double-acting |
| Signal pressure |
0.14~0.7MPa |
| Operating Pressure |
Max: 0.7MPa |
| Hysteresis |
0.01MPa or less |
| Effective Sectional Area |
17mm² |
| Cv value |
0.9 |
| Ambient and Fluid Temp. |
-5~60℃ |
| Port Size |
G1/4 |

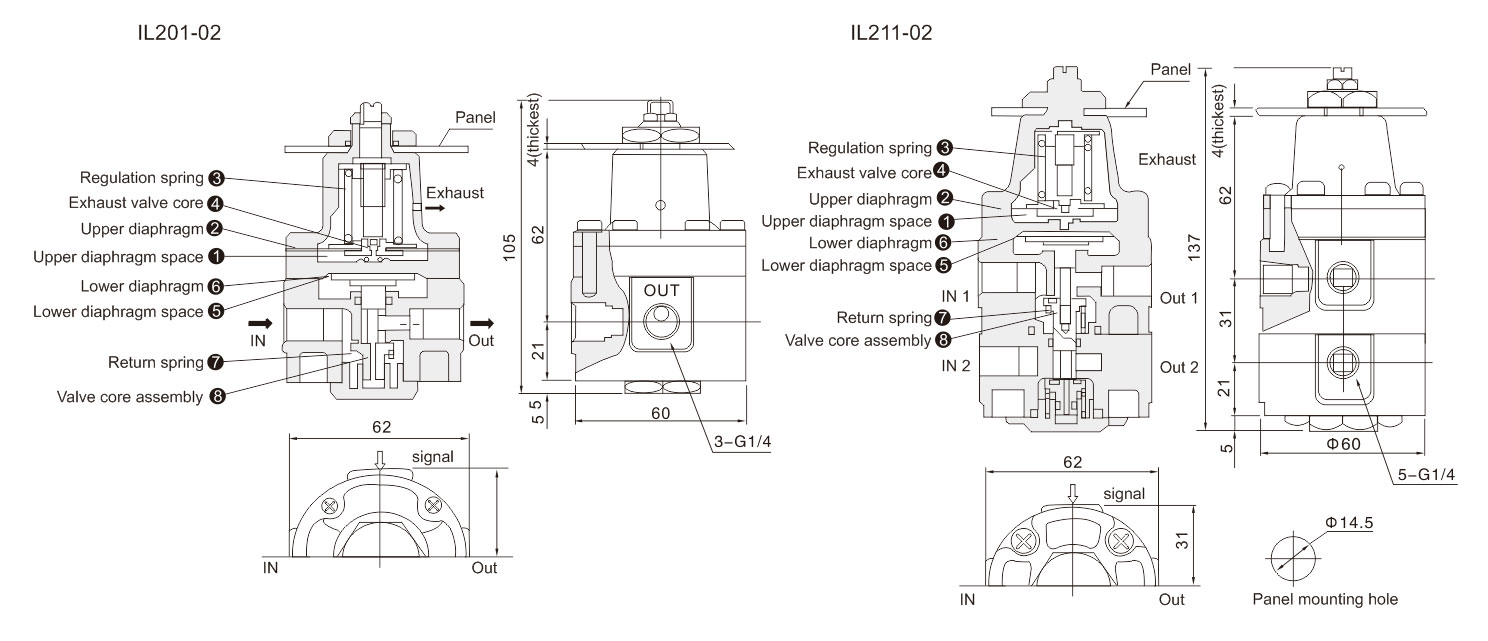

Overall Dimension
