Overview for Foot Pedal Valve FV
FV Foot Pedal Valve is widely used in a variety of pneumatic systems, operating force is small, liberating hands, R, P port of the two-position three-way can be interchangeable, so that normally closed can be charged into normally open.

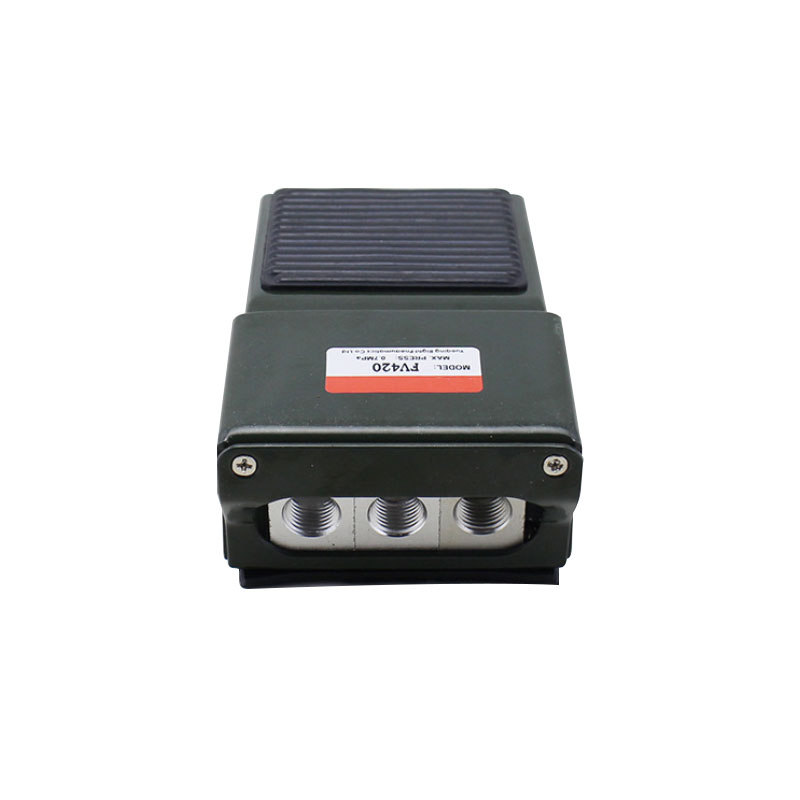

FV420 Foot Pedal Valve is a two-position four-way Foot Operated Valve, one air intake and two air outlet, and the side hole is a vent hole.
FV320 Foot Pedal Valve is a two-position three-way foot valve, one air intake and one air outlet, and the side hole is a vent hole.
4F210-08 and 4F210-08L Foot Pedal Valve Two-position five-way foot valve, one air intake and two air outlet (L means with a lock, it will be locked when it is stepped on, and it can be opened after stepping on it again).
Technical Parameters for Foot Pedal Valve FV
Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

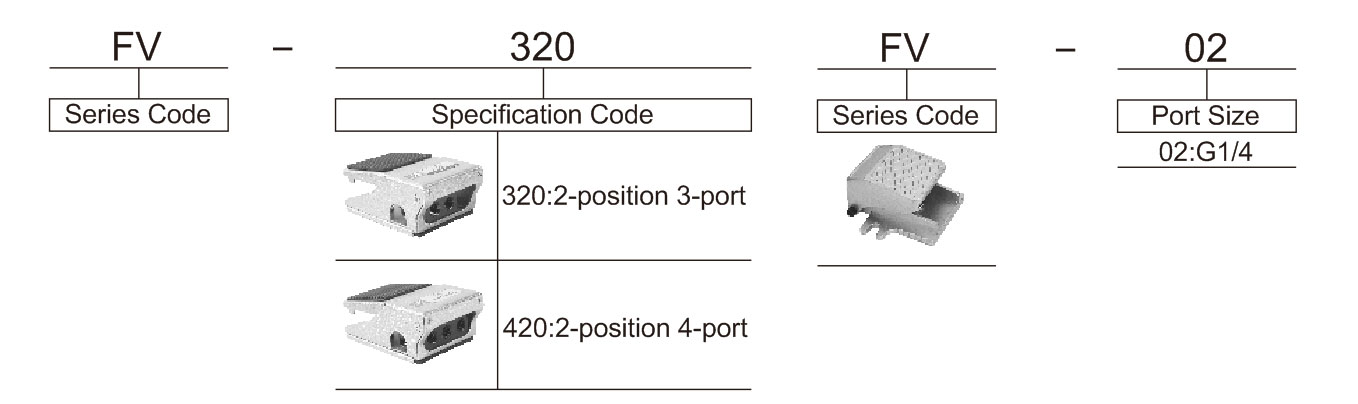

Ordering Code for Foot Pedal Valve FV

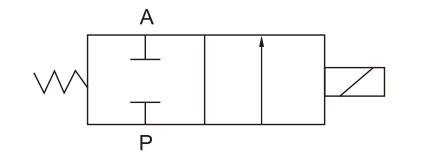

Symbol for Foot Pedal Valve FV Series
Technical Parameter for Foot Pedal Valve FV Series
| Model |
FV-320 |
FV-420 |
FV-02 |
| Working Medium |
Compressed Air |
| Max. Operating Pressure |
0.8MPa |
| Max. Proof Pressure |
1.0MPa |
| Ambient Temp. |
-20~70℃ |
| Port Size |
G1/4 |
| Valve Type |
2-position 3-port |
2-position 4-port |
2-position 3-port |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

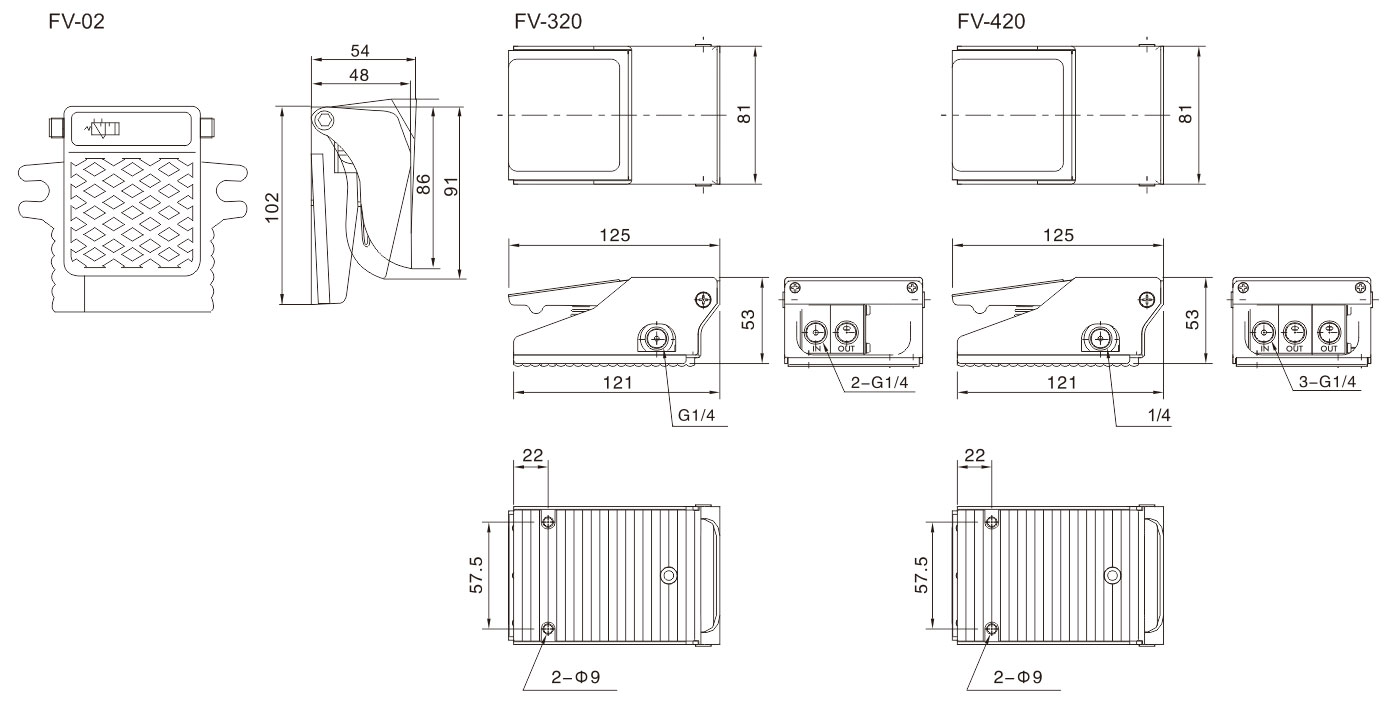

Overall Dimension
