4F Foot Operated Valve FOV

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

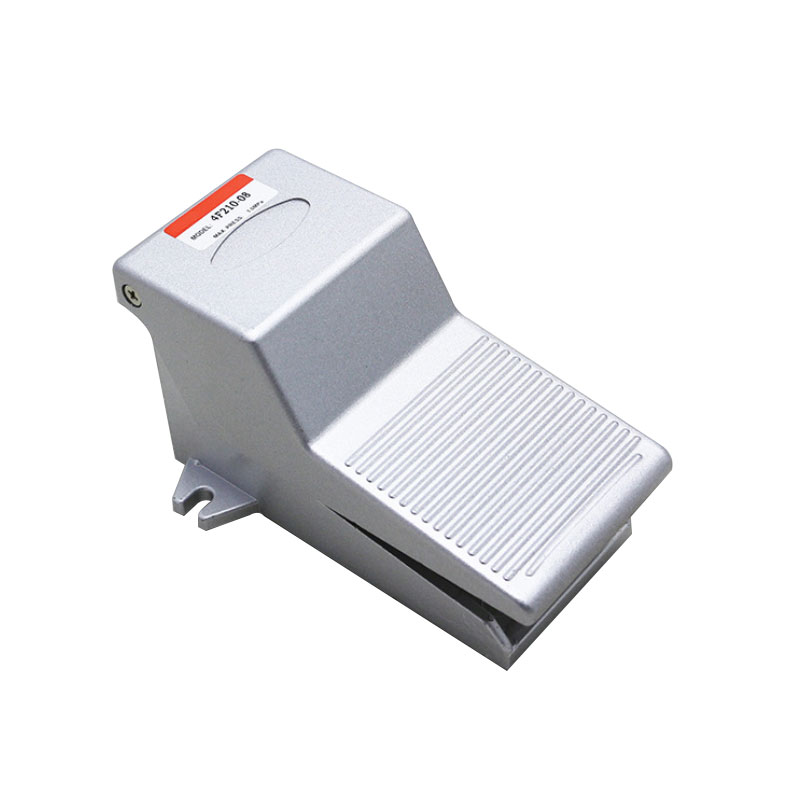

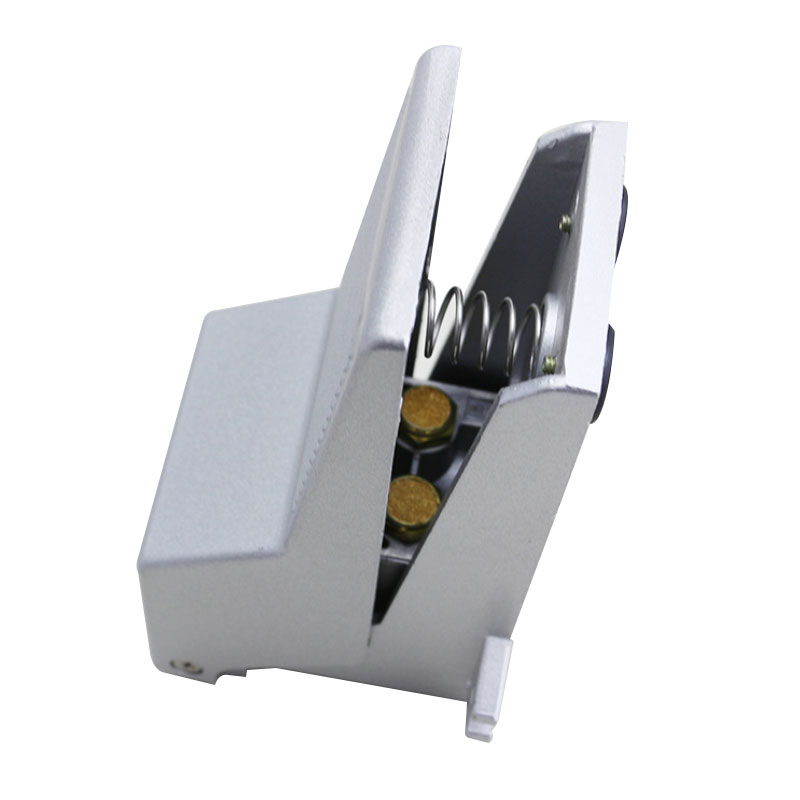

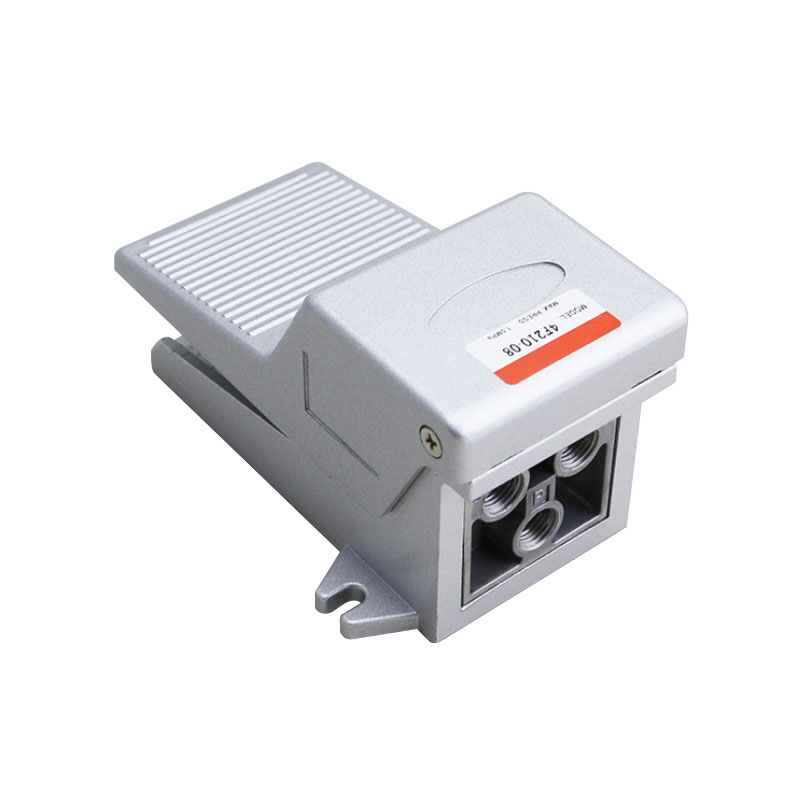

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Foot Pedal Valve FV

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

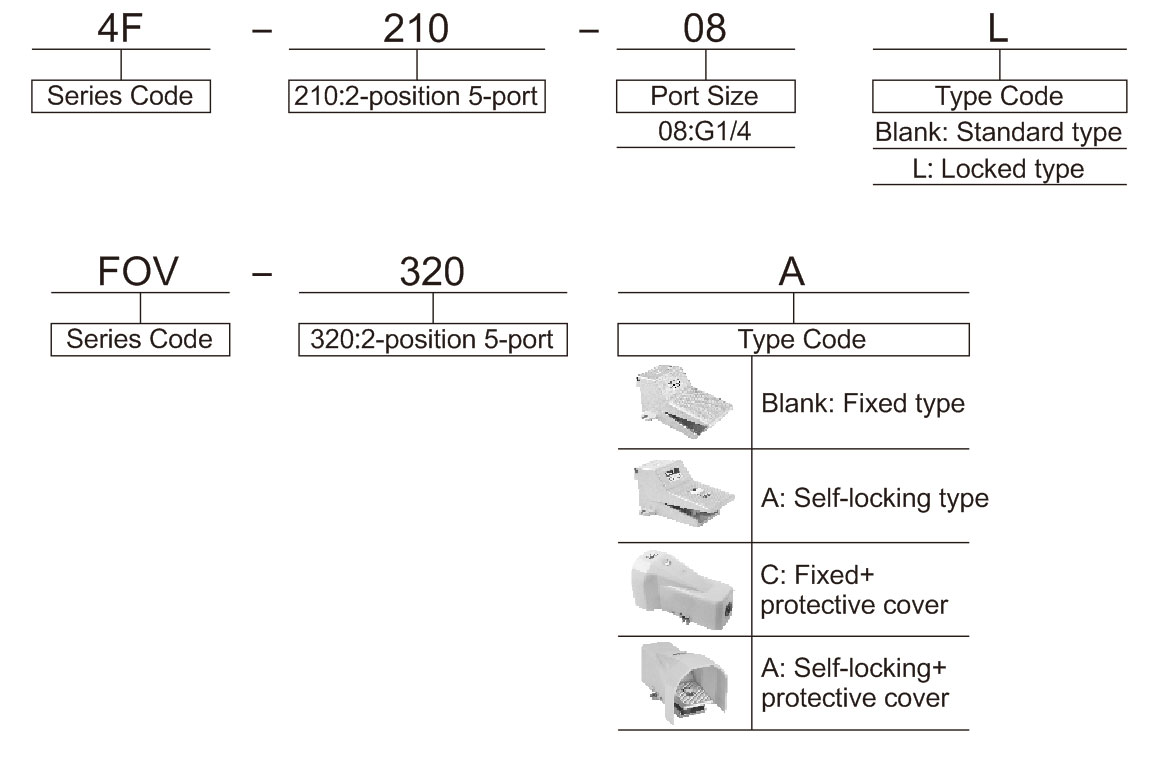

Ordering Code for Pneumatic Foot Valve 4F FOV Series

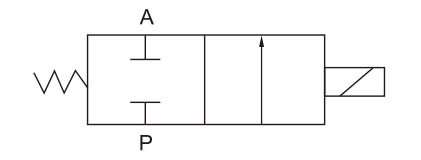

Symbol for Pneumatic Foot Valve 4F FOV Series

Technical Parameter for Pneumatic Foot Valve 4F FOV Series

Model FOV-320 FOV-320A FOV-320C FOV-320AC
Working Medium Compressed Air
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temp. -20~70℃
Port Size G1/4
Valve Type 2-position 5-port
Main parts material Body Aluminium Alloy
Sealing element NBR

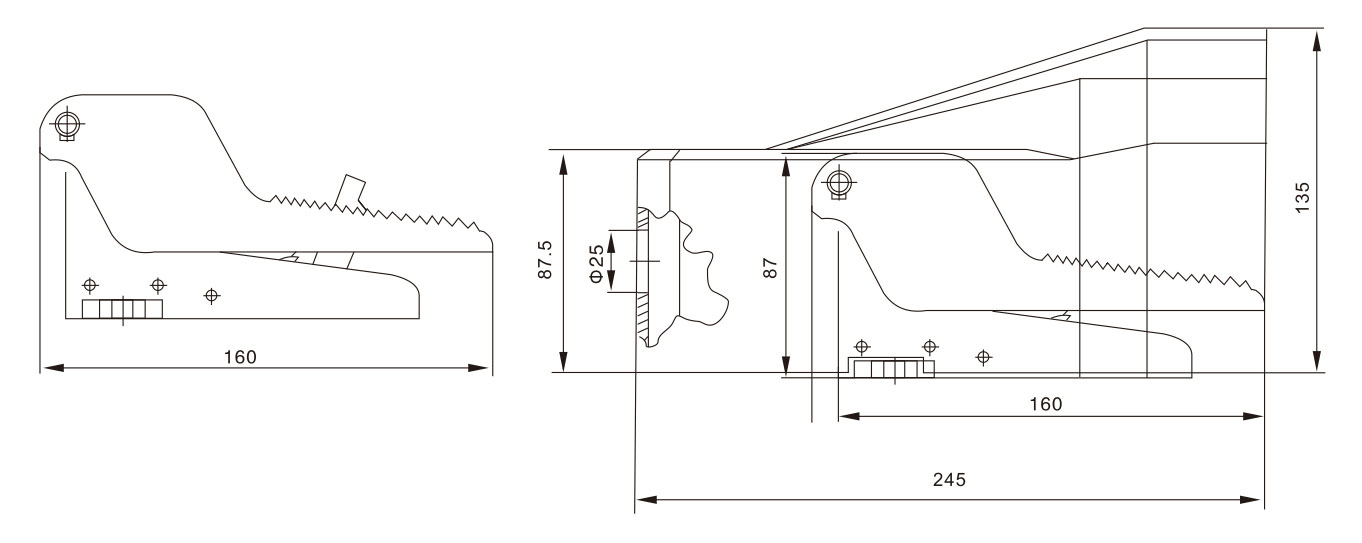

Overall Dimension
