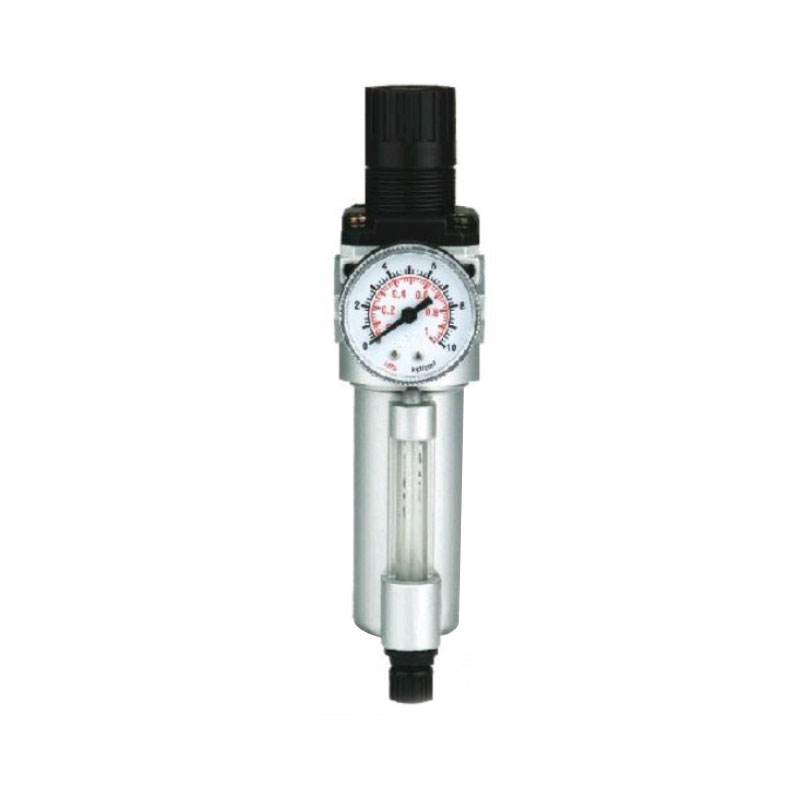

Pneumatic Air Regulator NFR (Explosion-proof)

NFR Explosion Proof Air Combination can regulate the air source to keep the air source in a constant state, which can reduce the damage the valve or actuator and other hardware due to the sudden change of the air source pressure.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. adjustable pressure: 1.0MPa

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for NFR Explosion Proof Air Combination

NFR Explosion Proof Air Combination has excellent water removal effect; Rigid piston's design life is long; Save space, Integration of filters and pressure reducing valves ; Non-lift adjustment knob; With two 1/8 "full flow pressure gauge interface; Large flow: 1/8"-450L/min, 1/4"-500L/min.
Pneumatic Air Regulator AR can regulate the air source to keep the air source in a constant state, which can reduce the damage the valve or actuator and other hardware due to the sudden change of the air source pressure.
NFR Air Regulators has light and compact structure, easy to install and use. The press-in self-locking mechanism prevents the setting pressure from being disturbed by external disturbances.

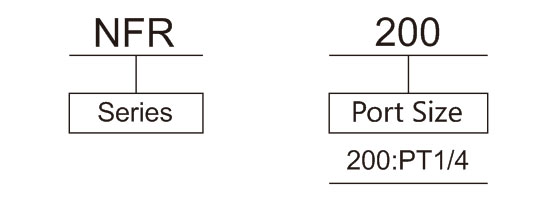

Ordering Code for NFR Explosion Proof Air Combination

Symbol for NFR Explosion Proof Air Combination

Technical Parameter for NFR Air Regulators

Model		NFR 200
Port Size		PT1/4
Working Medium		Compressed Air
Proof Pressure		1.5MPa
Max. adjustable pressure		1.0MPa
Operating Temperature Range		5~60℃
Filtration Aperture		40μm (routine) or 5μm (customized)
Main parts material	Body material	Aluminium Alloy
	Bowl material	PC
	Bowl guide	Aluminium Alloy

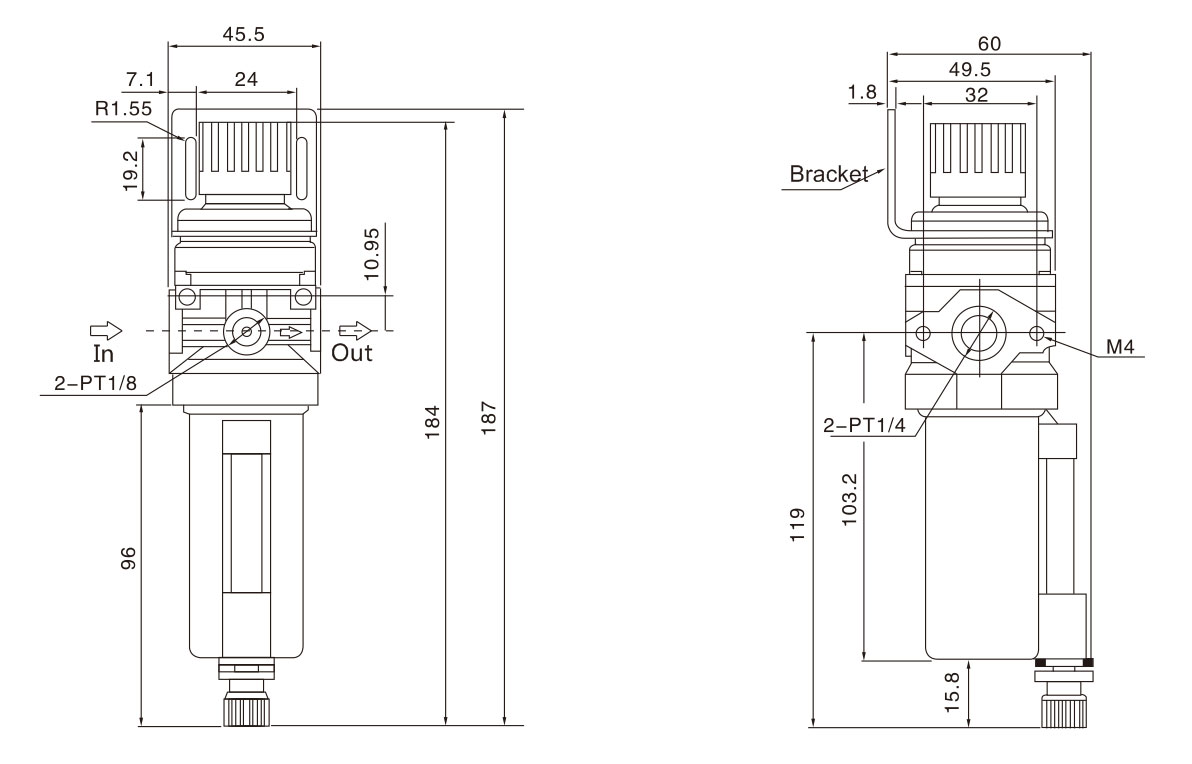

Overall Dimension for NFR Air Regulators
