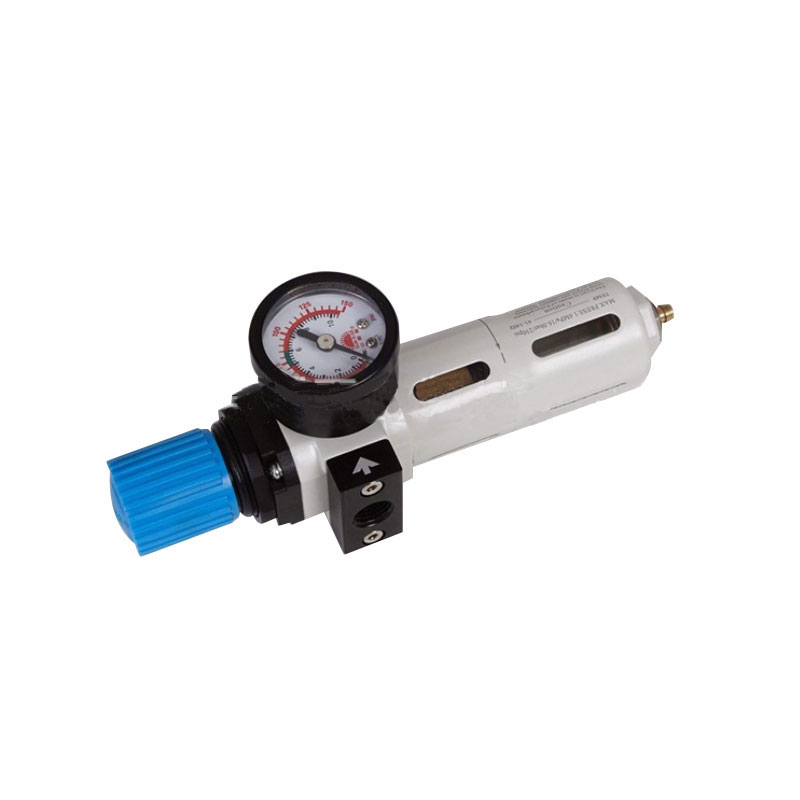

Overview for FR Air Regulator
FR Air Regulator is a small, low cost, high performance pressure regulator.
Standard Compressed Air Regulators is constructed of cast aluminium body and drip tank, fiber reinforced insulated plastic polyester bonnet, acetal resin inner wall, nitrile-butadiene rubber diaphragm, gasket and sealing ring, carbon-fluorine resin pivot seat and aluminium drain valve (iron-plated handle).
Structural materials of FR Air Regulator includes aluminum alloy body, bonnet and filter, 316 stainless steel inner wall, ferrochrome spring, nitrile rubber diaphragm (optional CFR), epoxy resin coating, 316 stainless steel valve. All metal parts fully comply with the three level standard of NACE #MR-01-75.
Standard
Compressed Air Regulators with automatic drain valves for auto removing contaminants can be provided. The universal Compressed Air Regulators provides a wide range of pressure regulation and a variety of auxiliary functions,
Pneumatic Air Regulator AR can be used in pneumatic instruments, controllers, pneumatic chucks, actuators, and other aspects, and has a variety of installation forms.

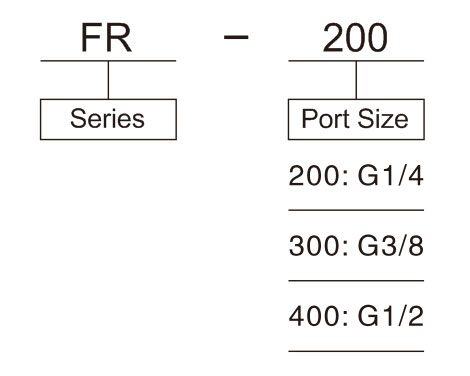

Ordering Code for FR Air Regulator

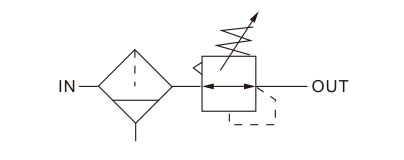

Symbol for FR Air Regulator
Technical Parameter for Compressed Air Regulators
| Model |
FR-200 |
FR-300 |
FR-400 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
| Working Medium |
Compressed Air |
| Range of pressure regulation |
0.05~1.2MPa |
| Max. Proof Pressure |
1.6MPa |
| Filtration Aperture |
40μm (routine) or 5μm (customized) |
| Rated Flow |
1400L/min |
3100L/min |
3400L/min |
| Capacity of water bowl |
22ml |
43ml |
43ml |
| Ambient temperature |
5~60℃ |
| Installation Method |
Tube mounting or bracket mounting |
| Main material |
Body: Zinc alloy; Bowl: PC; Guard: Aluminium Alloy |

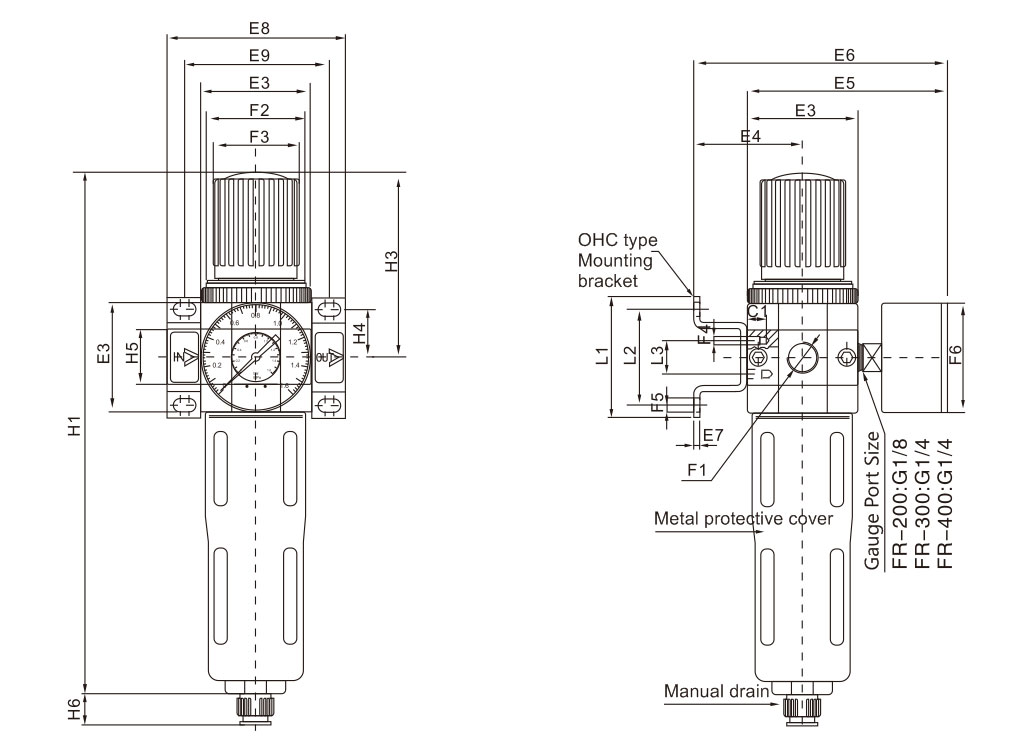

Overall Dimension
| Model |
E3 |
E4 |
E5 |
E6 |
E7 |
E8 |
E9 |
F1 |
F2 |
F3Φ |
F4 |
F5Φ |
F6Φ |
L1 |
L2 |
L3 |
H1 |
H3 |
H4 |
H5 |
H6 |
| FR-200 |
40 |
39 |
76 |
95 |
2 |
64 |
52 |
G1/4 |
M36×1.5 |
31 |
M4 |
4.5 |
40 |
44 |
35 |
11 |
194 |
69 |
17.5 |
20 |
15 |
| FR-300 |
55 |
47 |
93 |
112 |
3 |
85 |
70 |
G3/8 |
M52×1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
250 |
98 |
24.5 |
32 |
15 |
| FR-400 |
55 |
47 |
93 |
112 |
3 |
85 |
70 |
G1/2 |
M52×1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
250 |
98 |
24.5 |
32 |
15 |
