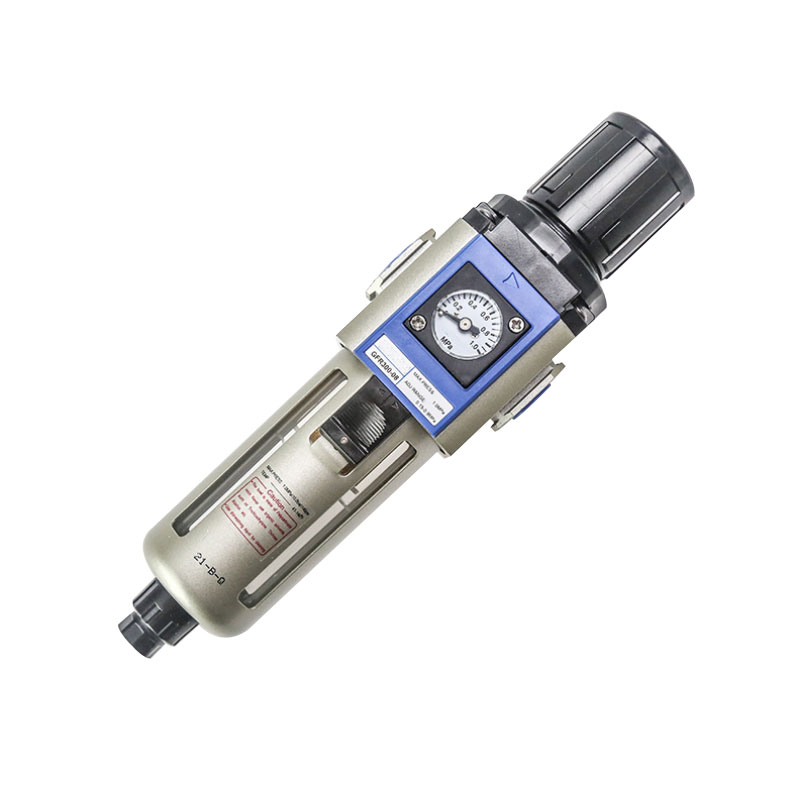

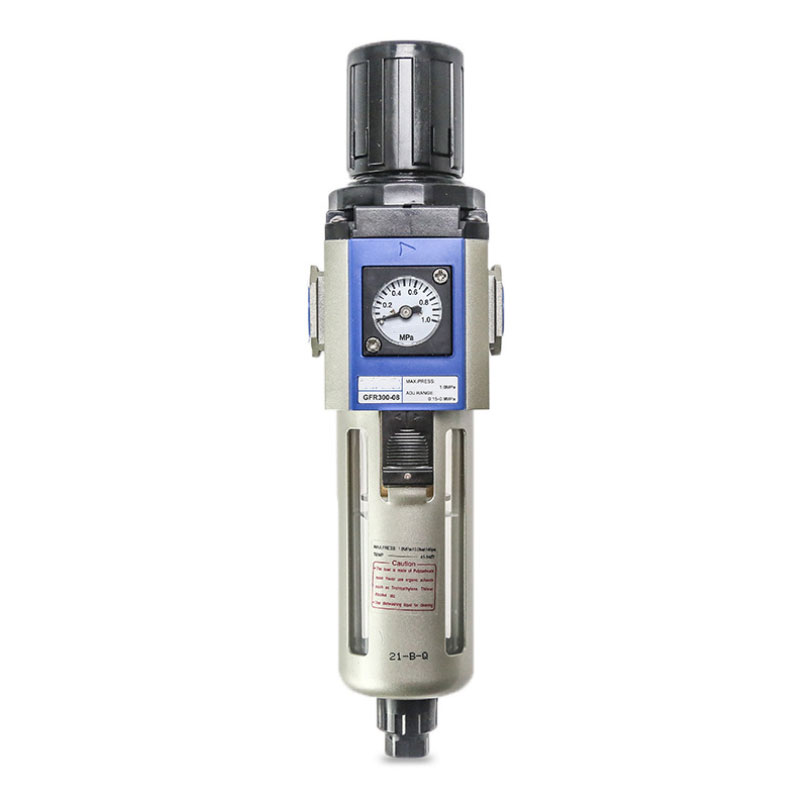

Combination Air Regulator, GFR 200 pressure regulator, GFR 300 filter pressure regulator, GFR 400 pressure regulator filter, GFR 600 filter regulator integrated valve. Product characteristics of GFR series pressure regulating filter:
1.
Pneumatic Air Regulator AR use embedded type square pressure gauge, saving installation space (External circular pressure gauges can also be selected).
2. Press-in self-locking mechanism can prevent the setting pressure from being disturbed by external disturbance.
3. Pressure regulation mechanism adopts balanced design, which makes pressure regulation more stable, drift less and pressure characteristics better.
4. In addition to the standard type, there is the low pressure type available (Max. adjustable pressure is 0.4MPa)
5. Unique diversion structure makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.
6. The filtration accuracy has 5um and 40um for selection.
7. There are three forms of drainage, such as manual, differential pressure and automatic drainage.

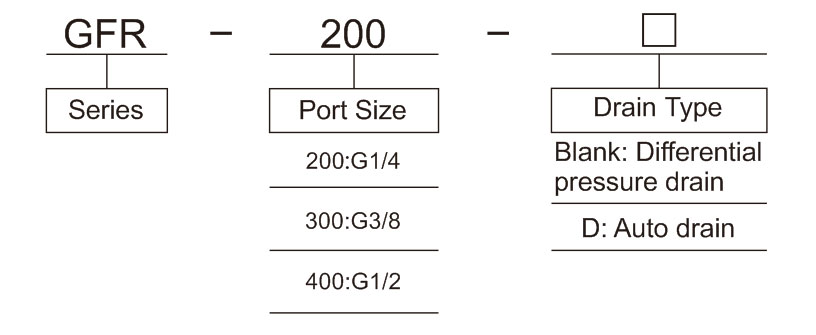

Ordering Code for GFR Series Combination Air Regulator

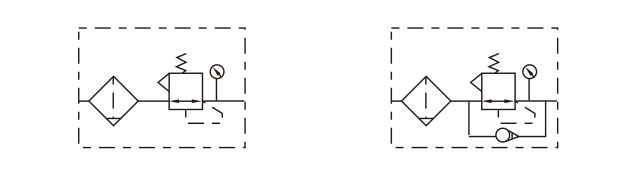

Symbol
Technical Parameter for GFR Series Combination Air Regulator
| Model |
GFR-200 |
GFR-300 |
GFR-400 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
| Working Medium |
Compressed Air |
| Range of pressure regulation |
0.05~0.85MPa |
| Max. Proof Pressure |
1.5MPa |
| Filtration Aperture |
40μm (routine) or 5μm (customized) |
| Capacity of water bowl |
10ml |
40ml |
80ml |
| Ambient temperature |
-20~70℃ |
| Main material |
Body: Zinc alloy; Bowl: PC |

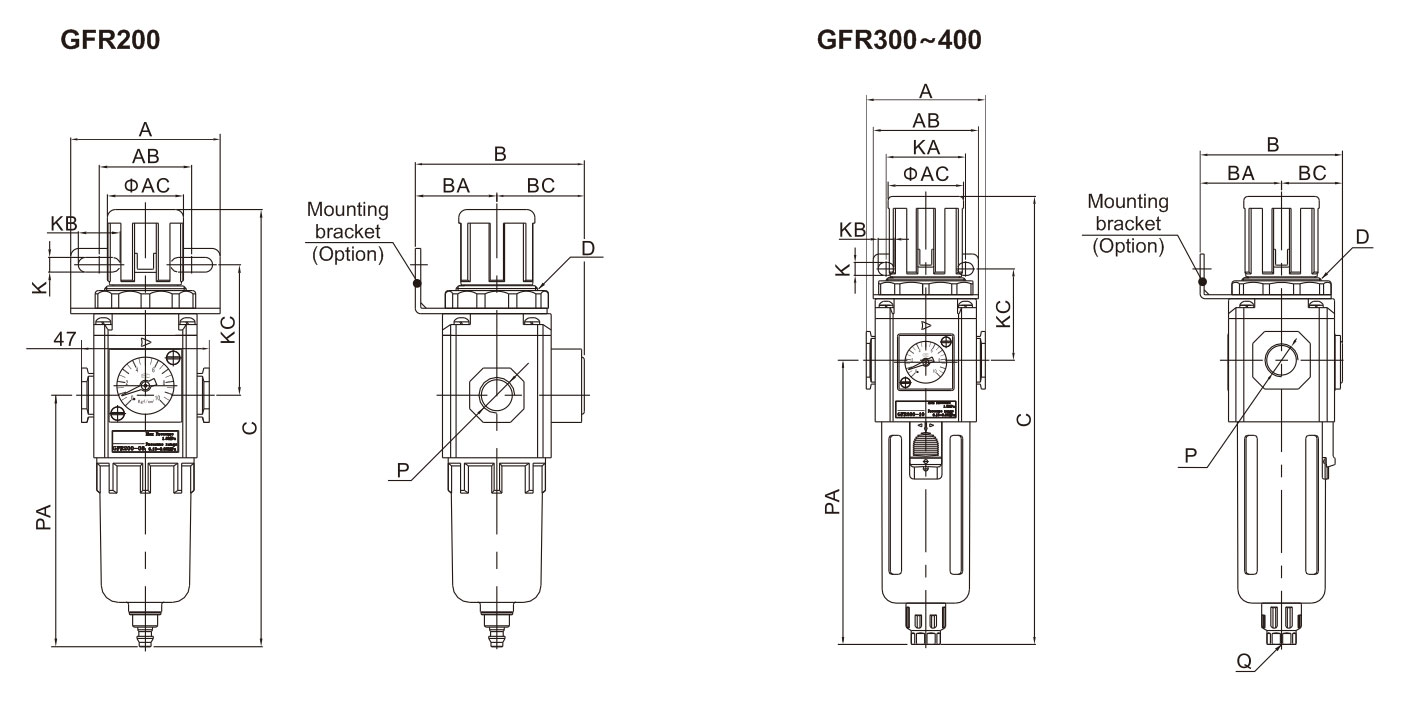

Overall Dimension for GFR Series Combination Air Regulator
| Model |
A |
AB |
AC |
B |
BA |
BC |
C |
D |
K |
KA |
KB |
KC |
P |
PA |
Q |
| GFR200 |
55 |
34 |
28 |
62 |
30 |
32 |
161 |
M30×1.5 |
5.5 |
27 |
8.4 |
48 |
G1/4 |
93 |
G1/8 |
| GFR300 |
80 |
72 |
52 |
90 |
50 |
40 |
270.5 |
M55×2.0 |
6.5 |
52 |
11 |
53 |
G3/8 |
165.5 |
G1/4 |
| GFR400 |
80 |
72 |
52 |
90 |
50 |
40 |
270.5 |
M55×2.0 |
6.5 |
52 |
11 |
53 |
G1/2 |
165.5 |
G1/4 |
Note: due to the different drainage components, the C values in the table will be slightly different. If necessary, please contact the sales department.
