Custom Airtac ACK Rotary Clamp Cylinder

The cylinder surface of the ACK Rotary Clamp Cylinder is fully hard oxidized, and the appearance is more resistant to corrosion; The cylinder is strong and durable: the cylinder is fully reinforced and durable.

Bore: 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.15~1.0MPa
Piston speed: 30~300mm/s
Ambient and fluid temperature: -20~+80°C

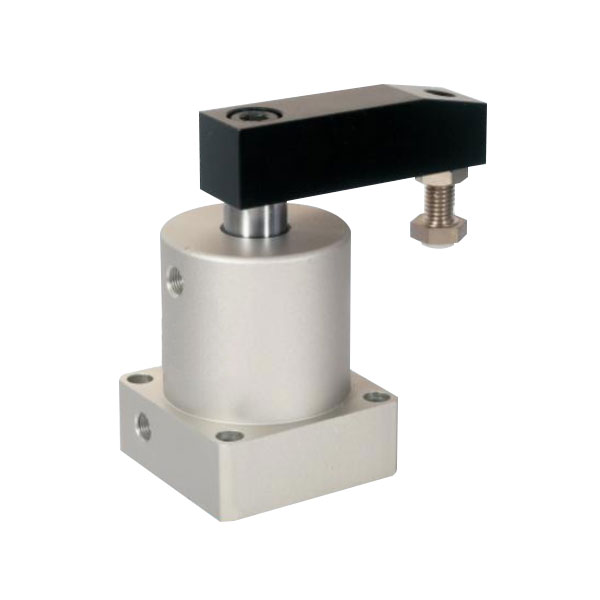

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for ACK Rotary Clamp Cylinder

The cylinder surface of the ACK Rotary Clamp Cylinder is fully hard oxidized, and the appearance is more resistant to corrosion;
The cylinder is strong and durable: the cylinder is fully reinforced and durable;
Imported sealing ring: Carefully produce precision thread, precise and durable, better sealing performance;
Precise inlet and outlet: The inlet and outlet holes are manufactured with advanced equipment and have a longer service life;
High-quality circlip: Custom Pneumatic Actuators are formed once by the cylinder machining center and the hole spacing is precise.

Product Feature for ACK Rotary Clamp Cylinder

1. The sealing material ensures the reliable performance of the cylinder under various conditions;
2. Three guide groove structure, high precision;
3. Working methods are unilateral and bilateral (90 °);
4. Rotation mode has left and right, 90 ° and 180 °;
5. Piston rod material is the special alloy steel, after heat treatment, to ensure a longer life.

Specification for ACK Rotary Clamp Cylinder

Bore (mm)
25
32
40
50
63
Motion Pattern
Double-acting
Working Medium
Air
Operating Pressure Range
0.15~1.0MPa(23~148Psi)
Proof Pressure
1.5MPa(215Psi)
Working temperature
-20~80℃
Operating Speed Range
30~300 mm/s
Stroke Tolerance Range
+1.0
0
Buffer
No
Port Size
M5×0.8
PT1/8

Stroke for ACK Rotary Clamp Cylinder

Bore (mm)
Stroke category
90°
180°
Total Stroke (90°/180°)
25, 32
Rotation Stroke
14
20
26
Clamping Stroke
12
6
40
Rotation Stroke
15
21
27
Clamping Stroke
12
6
50, 63
Rotation Stroke
15
21
29
Clamping Stroke
14
8

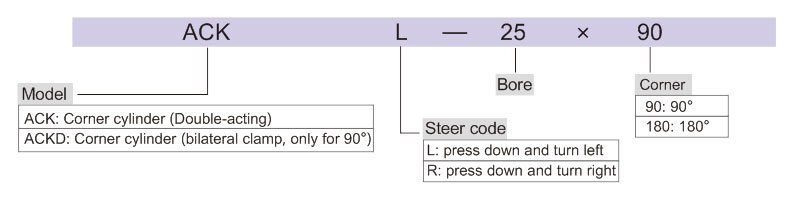

Ordering Code

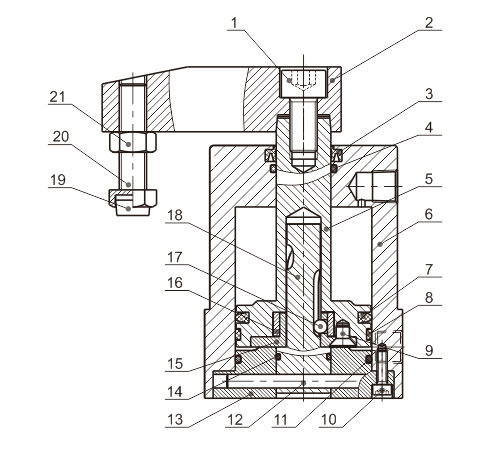

Internal structure and material of main parts

No.
Item
Material
No.
Item
Material
1
Hexagon socket screw
Medium carbon steel
12
Fixed pin
S45C
2
Swing arm
Free machining steel
13
Back Cover
Aluminium alloy
3
Special-shaped O-ring
NBR
14
O-ring
NBR
4
O-ring
NBR
15
Briquette
SCr440
5
Piston Rod
S45C durionise grinding rod
16
Shaft sleeve
SCr440
6
Body
Aluminium alloy
17
Steel ball
Carbon steel
7
Piston O-ring
NBR
18
Rotation shaft
SCr440
8
Wear ring (pad)
PTFE + graphite
19
Crash Cushion
PTFE
9
Hex Socket Screw
Medium carbon steel
20
Screw
Medium carbon steel
10
Hex Socket Screw
Medium carbon steel
21
Hex nut
Medium carbon steel
11
O-ring
NBR

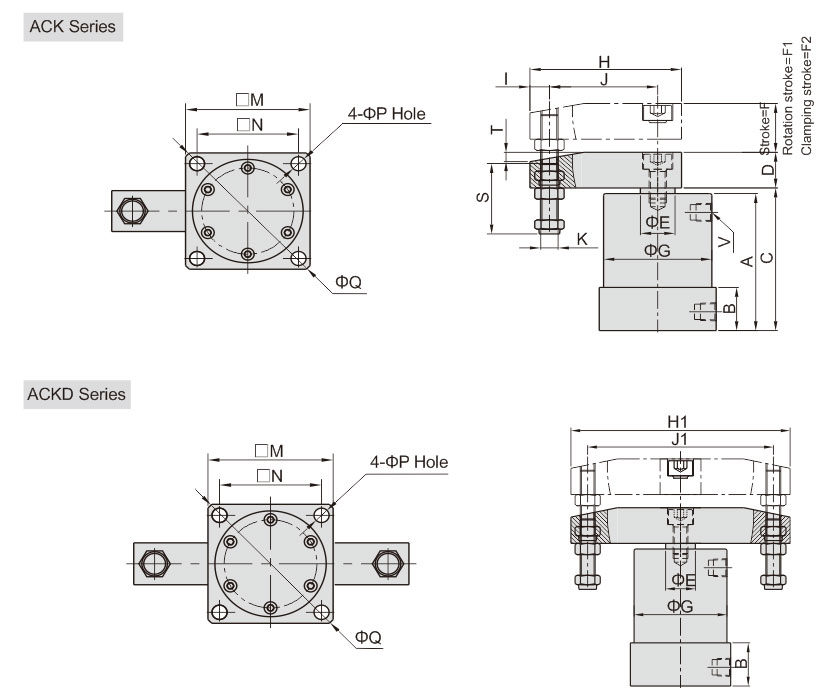

Overall Dimension

Bore/Symbol
A
B
C
D
E
G
H
H1
I
J
J1
K
M
N
P
Q
25
65
23
69
16
14
35
48
76
8
30
60
M6×1.0
40
30
4.5
52
32
73
23
76
19
16
50
70
118
9
50
100
M8×1.25
54
44
6.5
74
40
74
26
78
19
16
55
70
118
9
50
100
M8×1.25
58
48
6.5
79
50
80
26
84
25.4
20
60
93
160
10
70
140
M8×1.25
68
55
8.5
91
63
86
30
90
25.4
20
70
93
160
10
70
140
M8×1.25
80
64
8.5
108

Bore/Symbol
F(90°/180°)
F1(90°)
F2(90°)
F1(180°)
F2(180°)
S
V
25
26
14
12
20
6
29.5
M5×0.8
32
26
14
12
20
6
37.5
PT1/8
40
27
15
12
21
6
37.5
PT1/8
50
29
15
14
21
8
45
PT1/8
63
29
15
14
21
8
45
PT1/8
