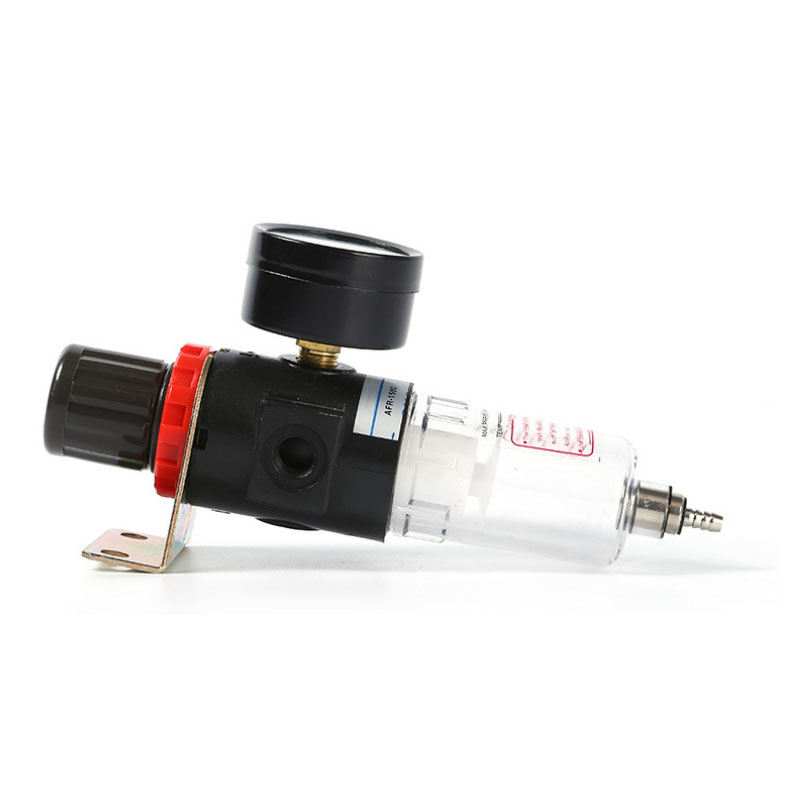

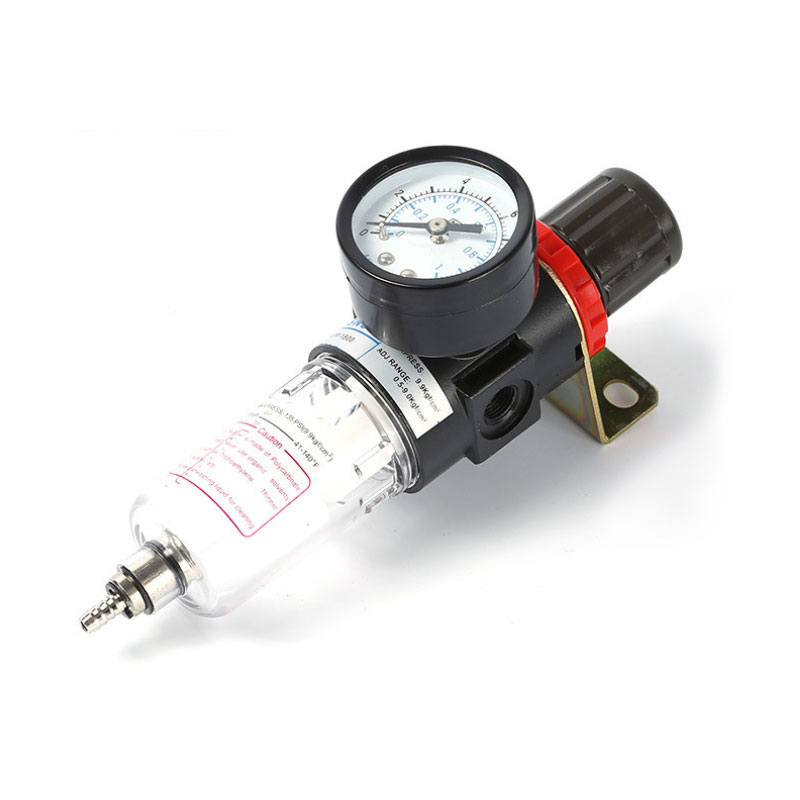

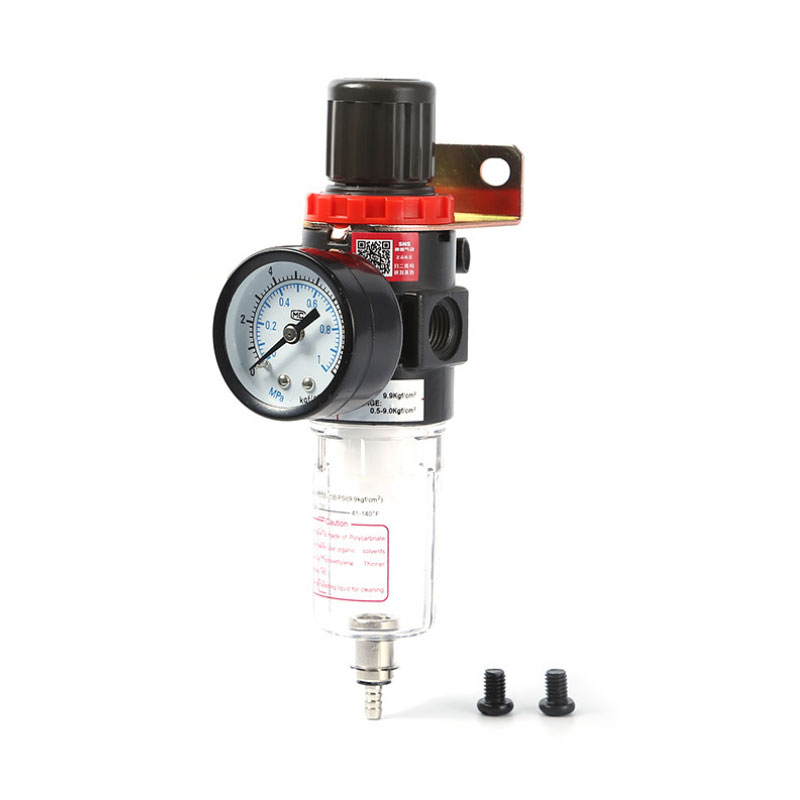

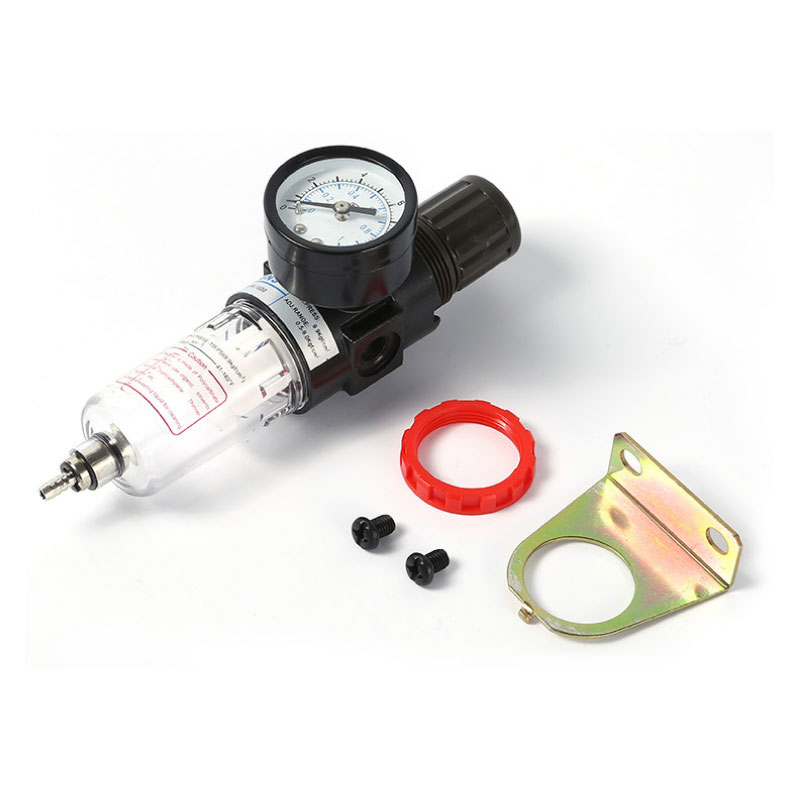

Overview for A/B Series Air Combination
Modular connection is adopted between the components, which is easy to realize standardization and serialization,
A/B Series Air Combination save space and piping, facilitate maintenance and centralized management. Different combination modes can be selected according to the needs, and different filter cups and filtering accuracy can be selected according to the different use environment.
1.The hand wheel adopts pressing self locking mechanism, which can prevent the setting pressure from being disturbed by external disturbances.
2.The pressure regulating mechanism of Air Pressure Regulators adopts balanced design, and the pressure regulation is more stable and the pressure characteristic is good.
3. Special diversion structure of
Pneumatic Air Regulator AR makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.
4. The filtration accuracy of
Air Pressure Regulators has 5um and 40um for selection.
5. There are two forms of drainage, such as manual and differential pressure drainage.

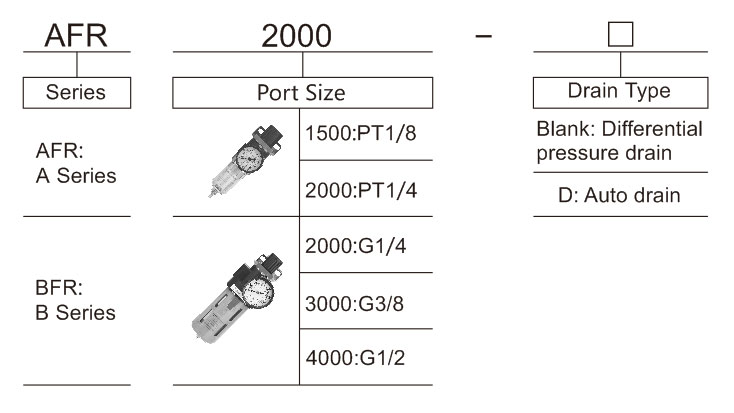

Ordering Code for A/B Series Air Combination
Symbol for A/B Series Air Combination
Technical Parameter for Air Pressure Regulators
| Model |
AFR1500 |
AFR2000 |
BFR2000 |
BFR3000 |
BFR4000 |
| Port Size |
PT1/8 |
PT1/4 |
G1/4 |
G3/8 |
G1/2 |
| Working Medium |
Compressed Air |
| Proof Pressure |
1.5MPa |
| Range of pressure regulation |
0.05~0.85MPa |
| Operating Temperature Range |
5~60℃ |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Drain bowl capacity |
15ml |
60ml |
| Main parts material |
Body material |
Aluminium Alloy |
| Bowl material |
PC |
| Bowl Guide |
AFR1500~AFR2000: no; BFR2000~BFR4000: yes (Plastics) |

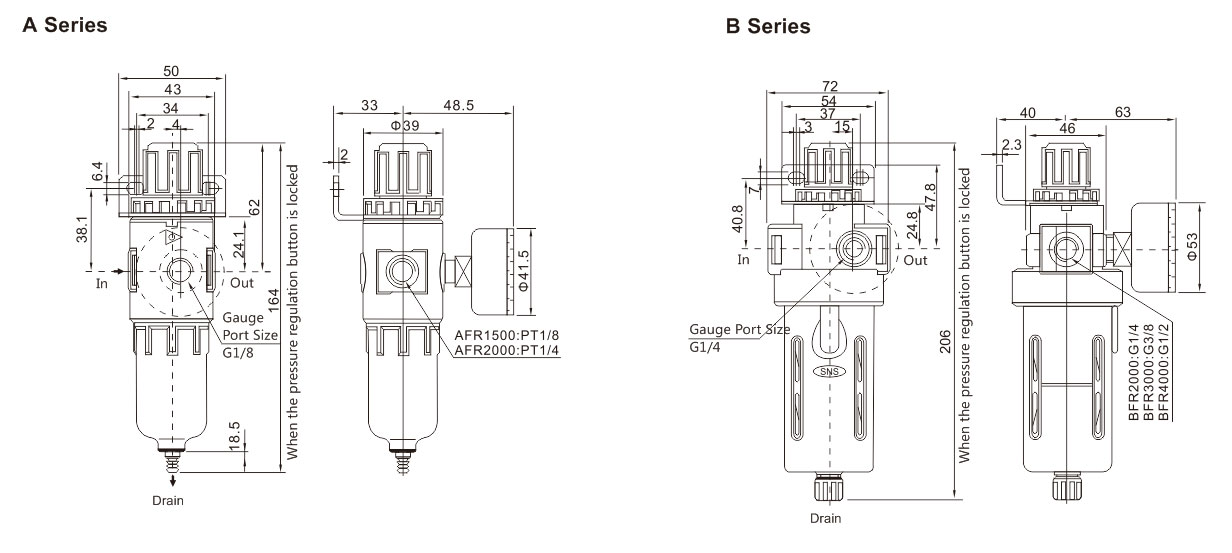

Overall Dimension for Air Pressure Regulators
