Air Foot Valve ST

Port Size: G1/4,G3/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

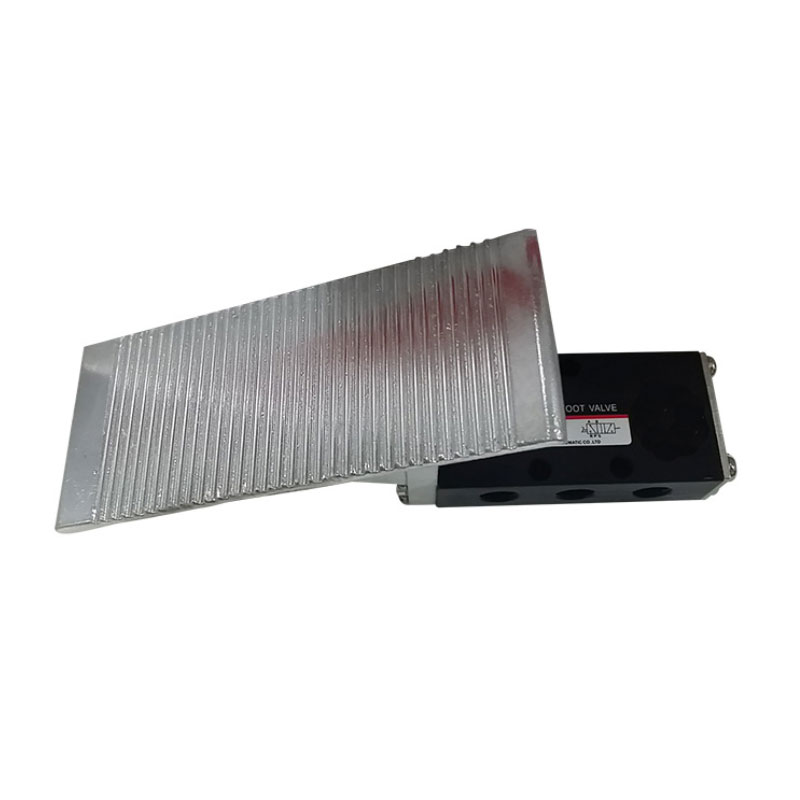

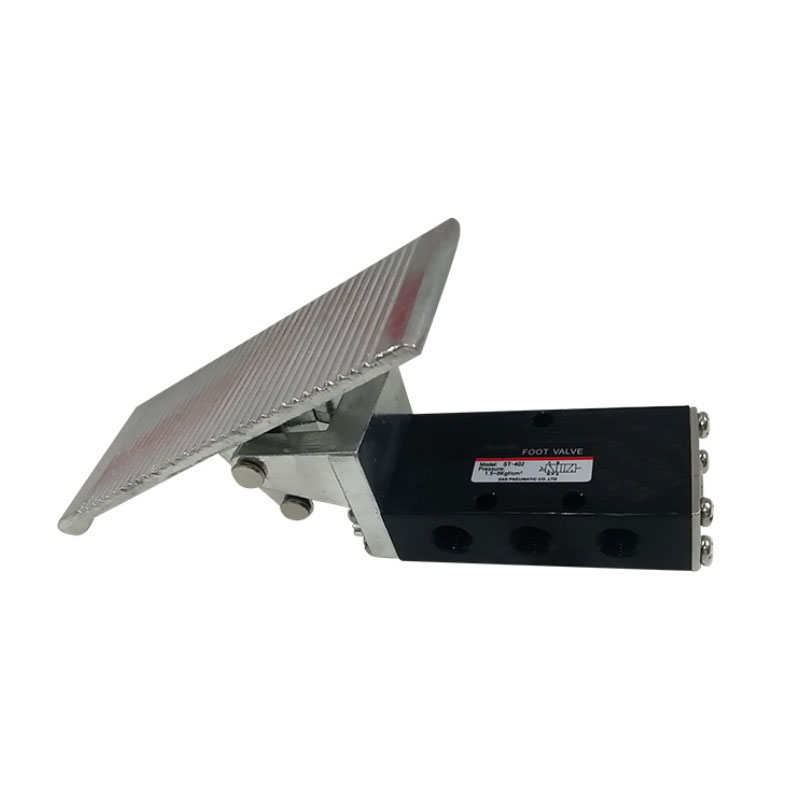

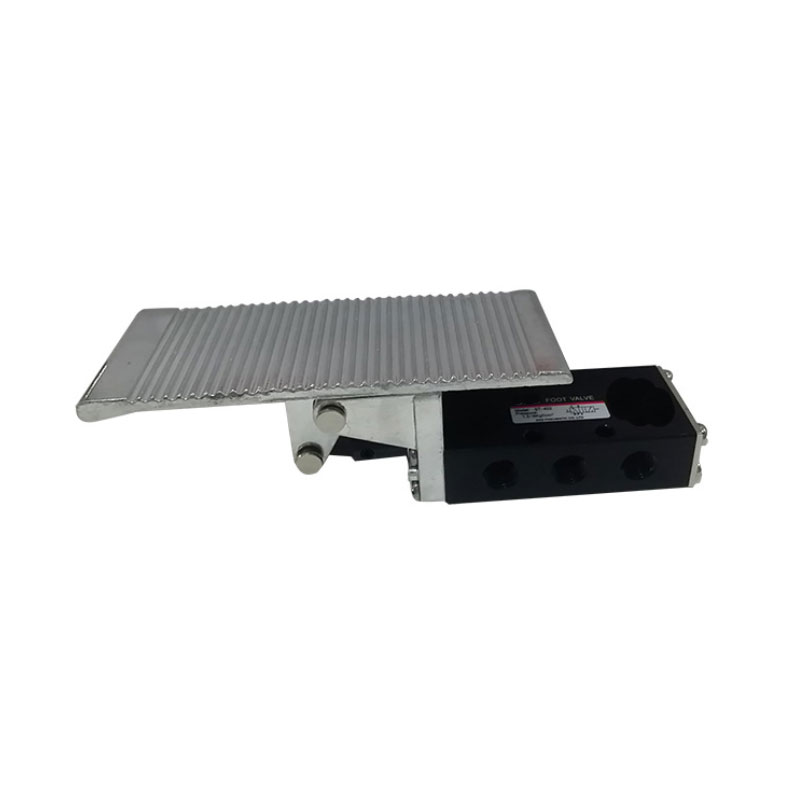

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Air Foot Valve ST

Port Size: G1/4,G3/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

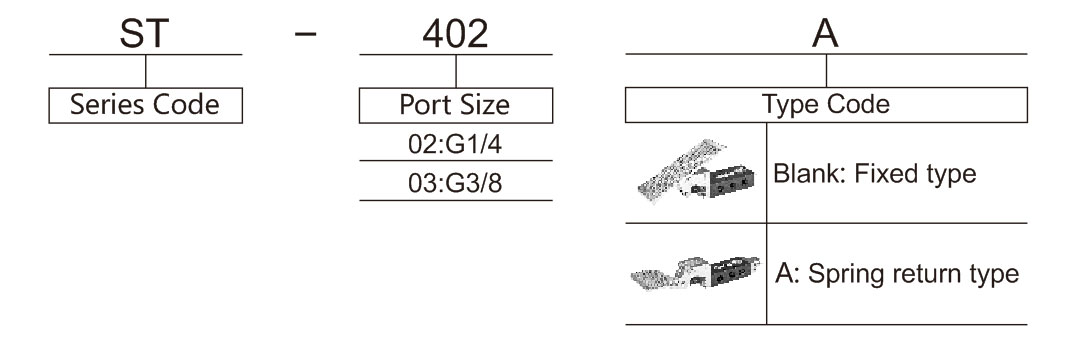

Ordering Code forAir Foot Valve ST

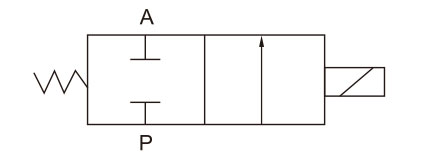

Symbol for Air Foot Valve ST

Technical Parameter for Air Foot Valve ST

Model ST-402 ST-402A ST-403 ST-403A
Working Medium Compressed Air
Motion Pattern Pedal direct-acting type
Port Size G1/4 G3/8
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temp. 0~60℃
Lubrication Non-lube
Main parts material Body Aluminium Alloy
Sealing element NBR

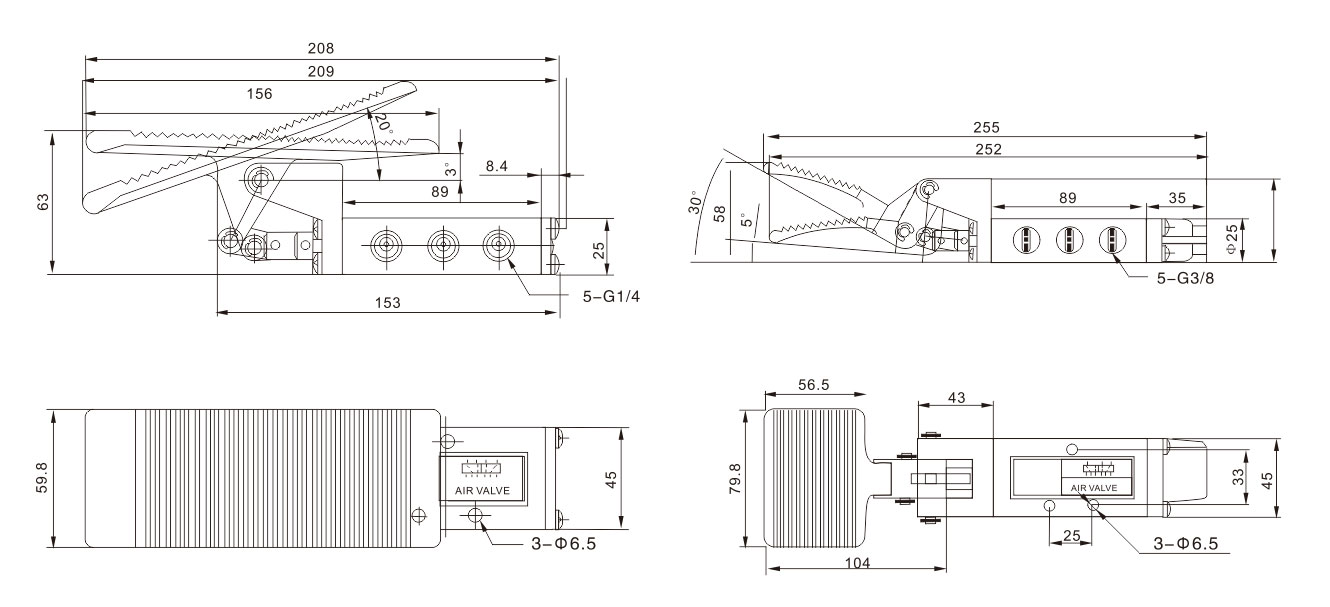

Overall Dimension
