3/2 Way Foot Operated Valve 3F

3F series aluminum Foot Operated Valve, 3FM series is plastic Foot Pedal Valve, direct-acting and horizontal structure is compact.

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

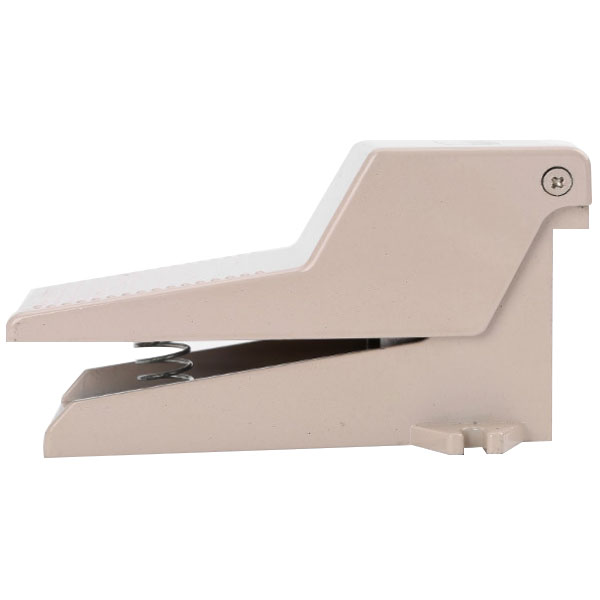

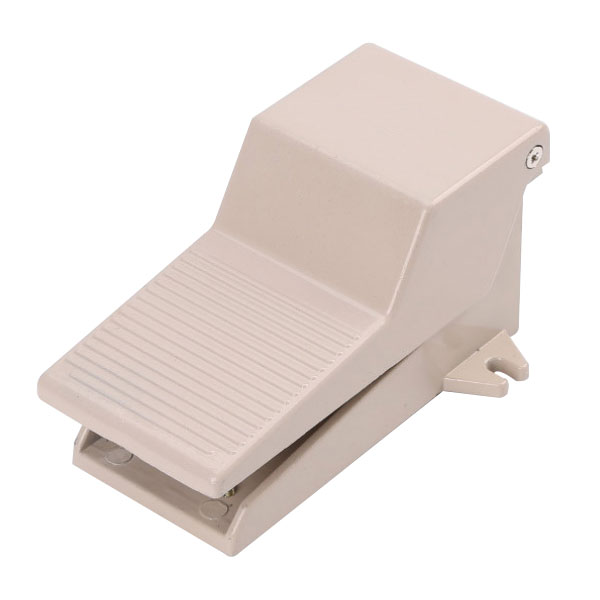

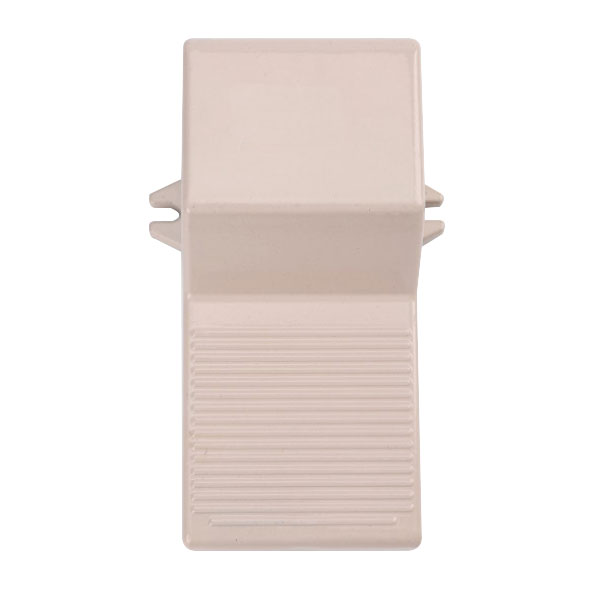

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for 3/2 Way Foot Operated Valve

Direct-acting normally closed type;
3F series aluminum Foot Operated Valve, 3FM series is plastic Foot Pedal Valve, direct-acting and horizontal structure is compact.
If the reversing time is longer, the lock type can be selected;
The locking mechanism is stable and reliable, and the unlock is fast and easy. Limited by the size of the structure, it can not withstand frequent strong impact.

Technical Parameters for 3/2 Way Foot Operated Valve

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

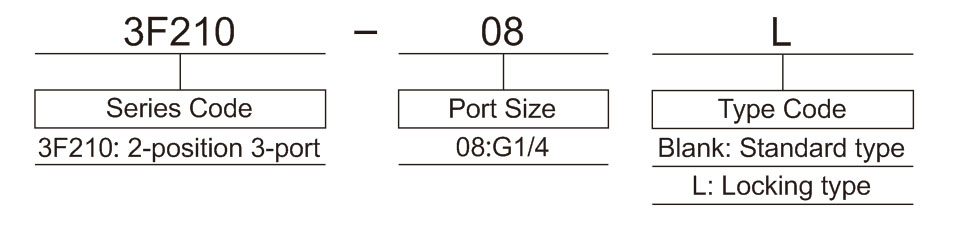

Ordering Code for 3/2 Way Foot Operated Valve

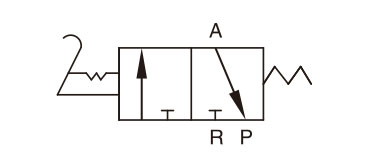

Symbol for 3/2 Way Foot Operated Valve

Technical Parameter for 3/2 Way Foot Operated Valve

Model 3F210
Working Medium Compressed Air
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Operating temperature range 0~70℃
Port Size G1/4
Valve Type 2-position 3-port
Main parts material Body Aluminium Alloy
Sealing element NBR

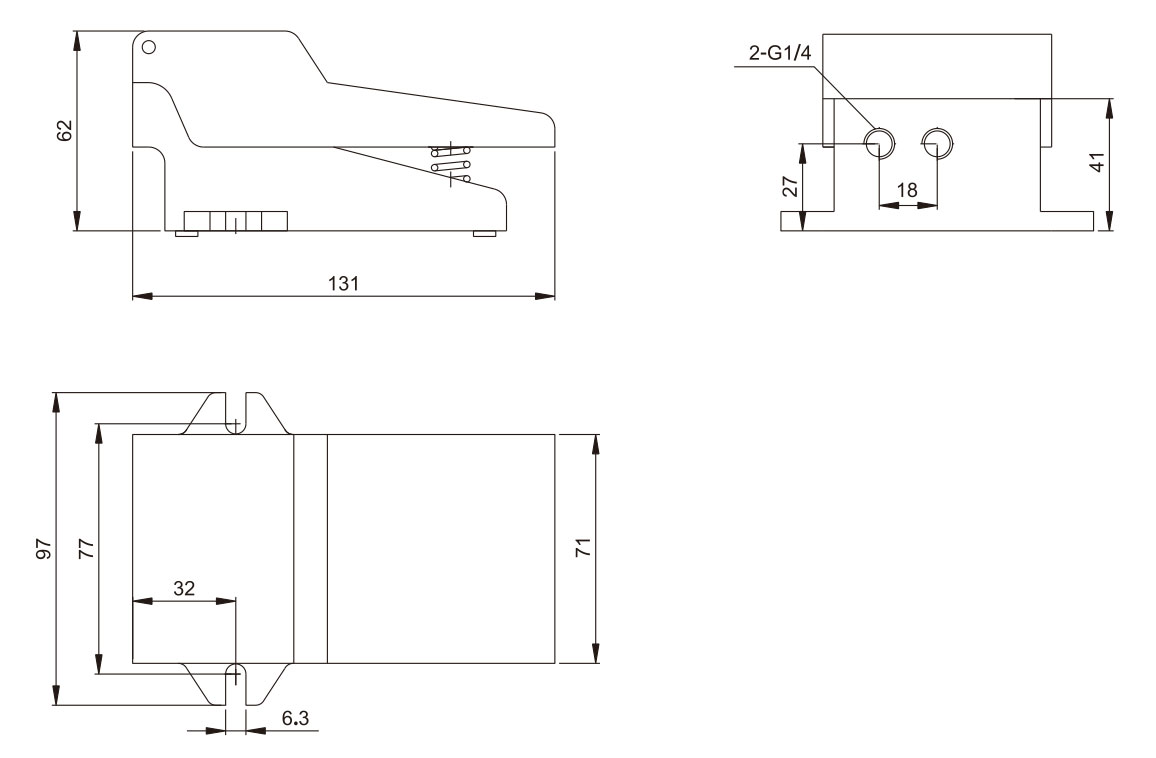

Overall Dimension
