Y Series T-type Spacer Attachment

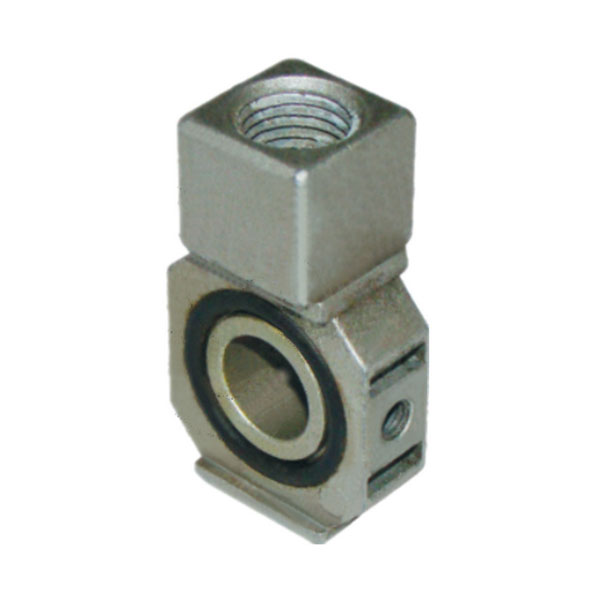

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

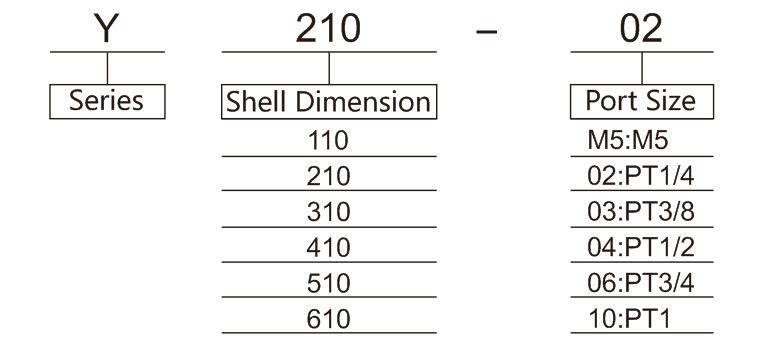

Ordering Code for Y Series T-type Spacer Attachment

Technical Parameter for Y Series T-type Spacer Attachment

Model Port Size A B C D E Applicable Model
Y110-M5 M5×0.8 11 19 12 14 8 AC10 · AC10B
Y210-□01 PT1/8
PT1/4		 15 42 32 28 19 AC20 · AC20B · AR20C
Y210-□02
Y310-□01 PT1/8
PT1/4		 15 53 39 30 19 AC25 · AC25B · AC25C · AC30 · AC30B · AC30C
Y310-□02
Y410-□02 PT1/4
PT3/8		 19 62 44 36 24 AC40 · AC40B · AR40C
Y410-□03
Y510-□02 PT1/4
PT3/8		 19 66 46 44 24 AC40-06 · AC40B-06 · AC40C-06
Y510-□03
Y610-□03 PT3/8
PT1/2		 22 81 57 53 30 AC50 · AC55 · AC60 · AC50B · AC55B · AC60B
Y610-□04

Note) In the model, □ indicates the type of connection thread, Rc is recorded as "Blank", NPT is recorded as "N", G is recorded as "F"

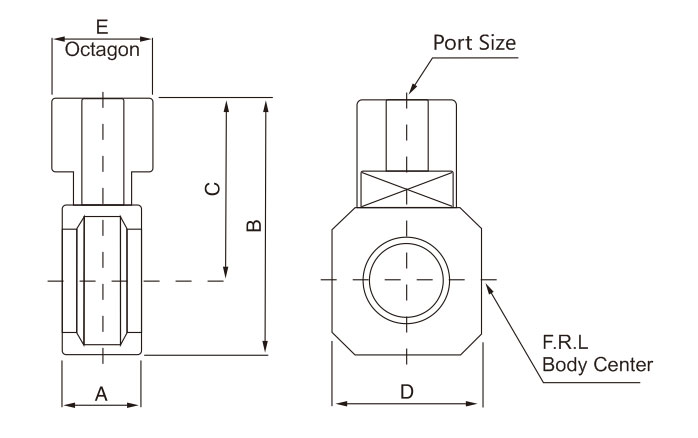

Overall Dimension for Y Series T-type Spacer Attachment
