Pneumatic Solenoid Valve 2WS (Waterproof)

Port Size: G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Brass,EPDM

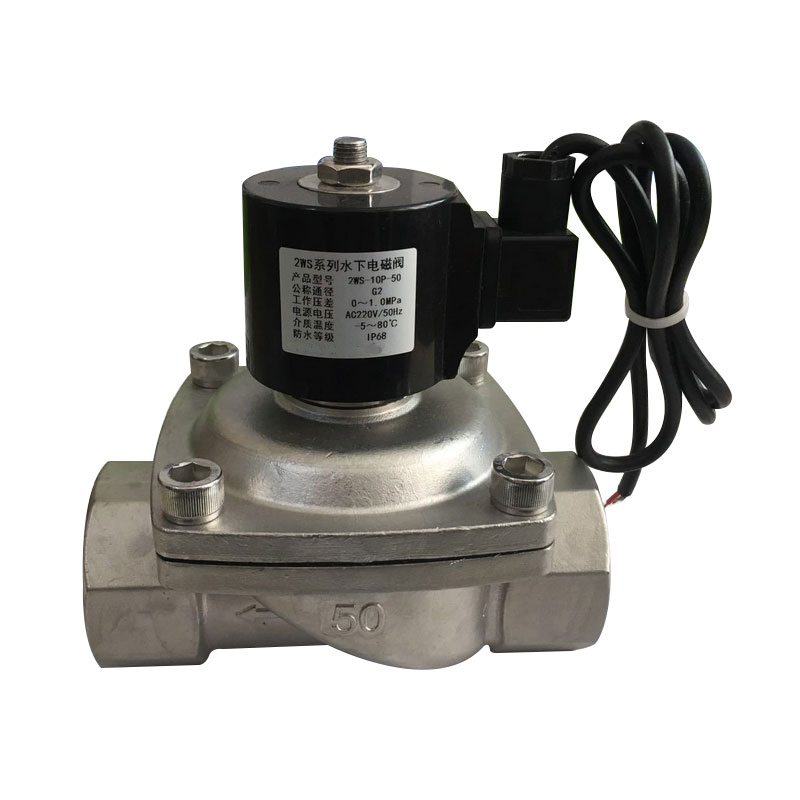

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Waterproof Pneumatic Solenoid Valve 2WS

Port Size: G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Brass,EPDM

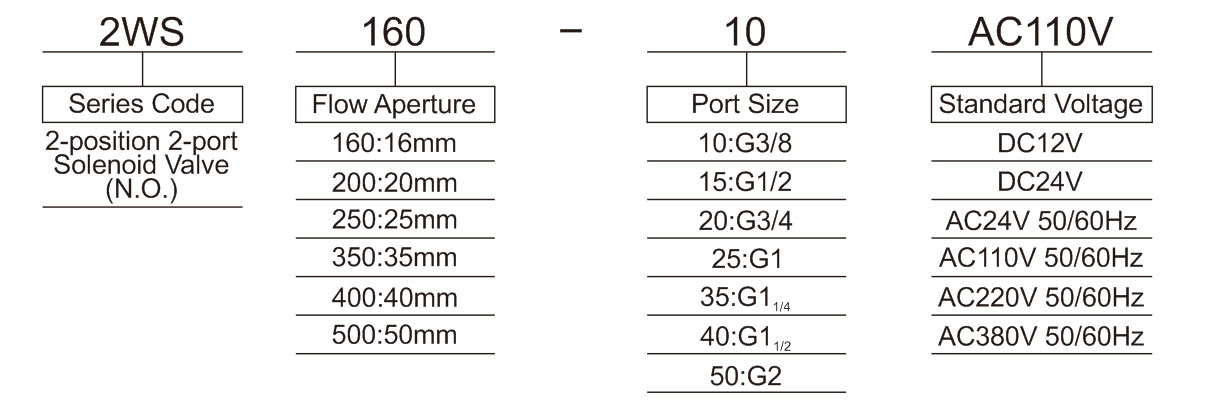

Ordering Code for Waterproof Pneumatic Solenoid Valve 2WS

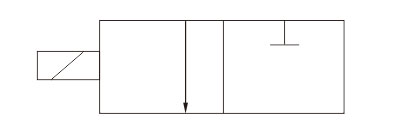

Symbol for Waterproof Pneumatic Solenoid Valve 2WS

Technical Parameter for Waterproof Pneumatic Solenoid Valve 2WS

Model 2WS160-10 2WS160-15 2WS200-20 2WS250-25 2WS350-35 2WS400-40 2WS500-50
Working Medium Air, water, oil
Motion Pattern Pilot type
Type Normally open type
Flow Aperture (mm²) 16 16 20 25 35 40 50
Cv value 4.8 4.8 7.6 12 24 29 48
Port Size G3/8 G1/2 G3/4 G1 G1(1/4) G1(1/2) G2
Fluid Viscosity Under 20CS
Operating Pressure Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm²
Max. Proof Pressure 10kgf/cm²
Ambient and Fluid Temp. -5~85℃
Operating Voltage ±10%
Main parts material Body Brass
Sealing element NBR
Coil Power 20VA

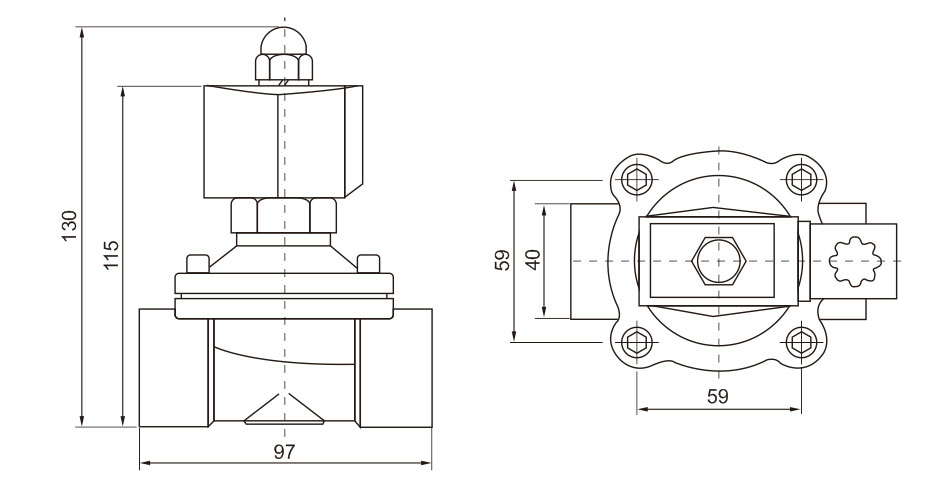

Overall Dimension
