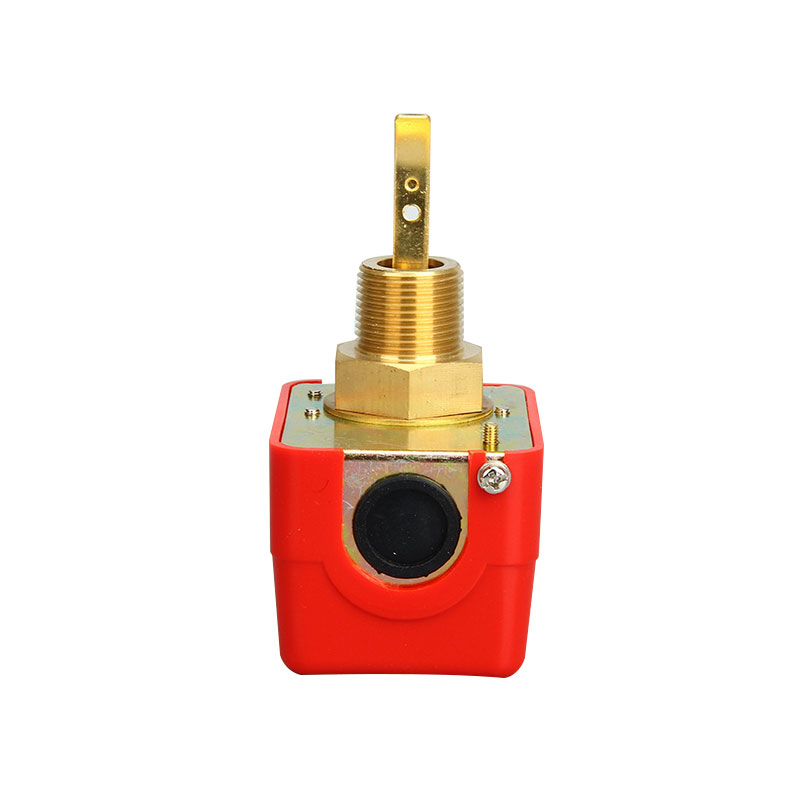

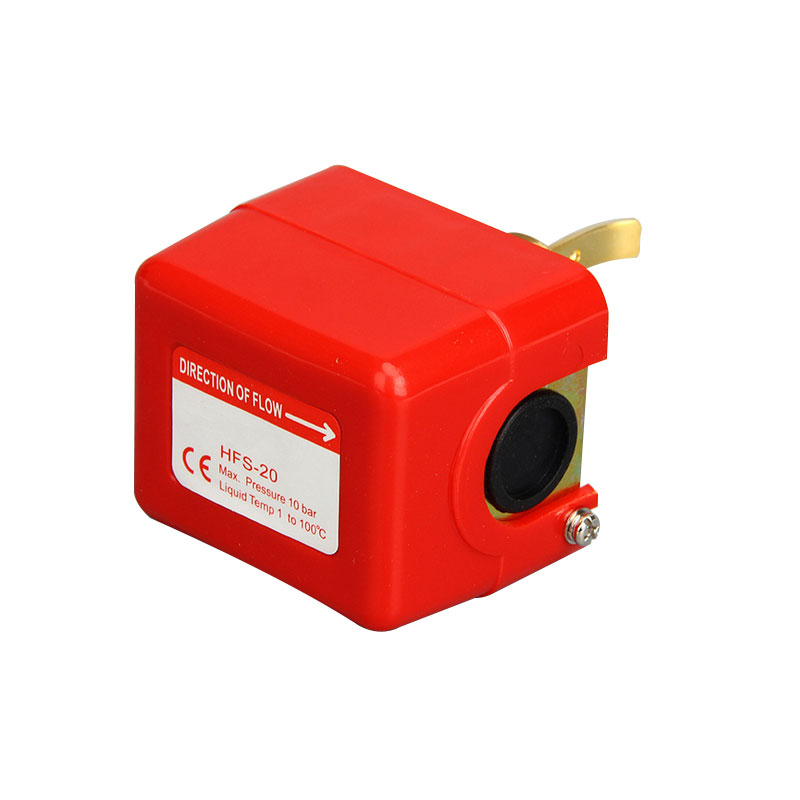

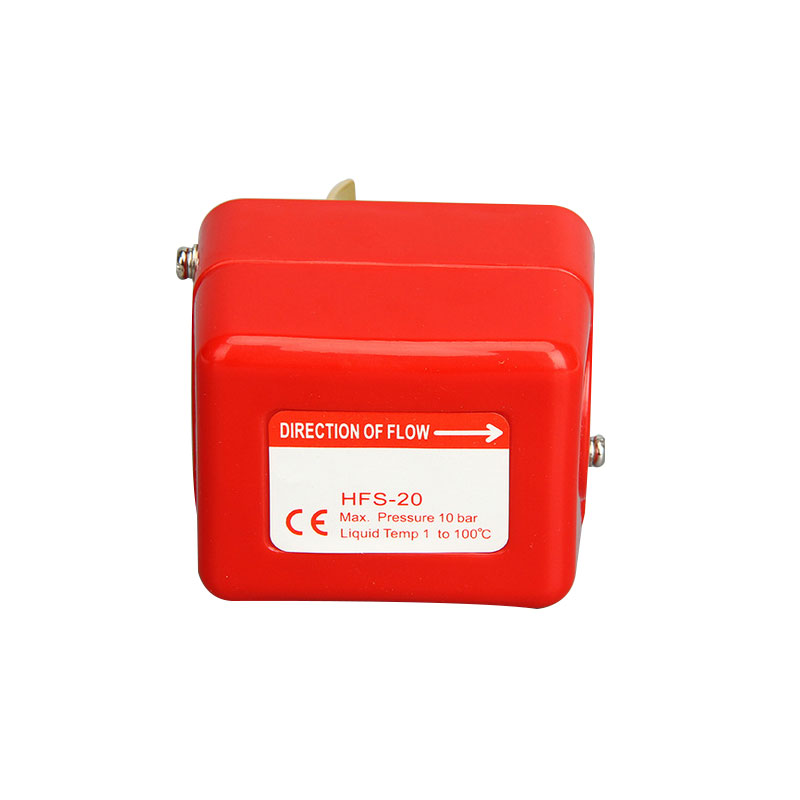

Water Flow Control Switch HFS

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

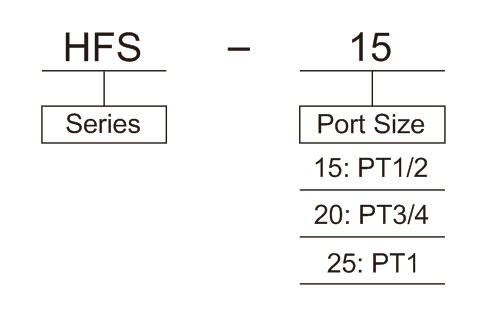

Ordering Code for Water Flow Control Switch HFS Series

Technical Parameter for Water Flow Control Switch HFS Series

Model HFS-15 HFS-20 HFS-25
Control mode Switch
Maximum static pressure 10kgf/cm², 20kgf/cm²
Ambient temperature range 0~60℃
Maximum liquid temperature 100℃
Electronic switch Single-machine double-throw value: 220VAC, 15A
Connector Screw terminal
Packing Plastic shell and 1/2 conductive pipe

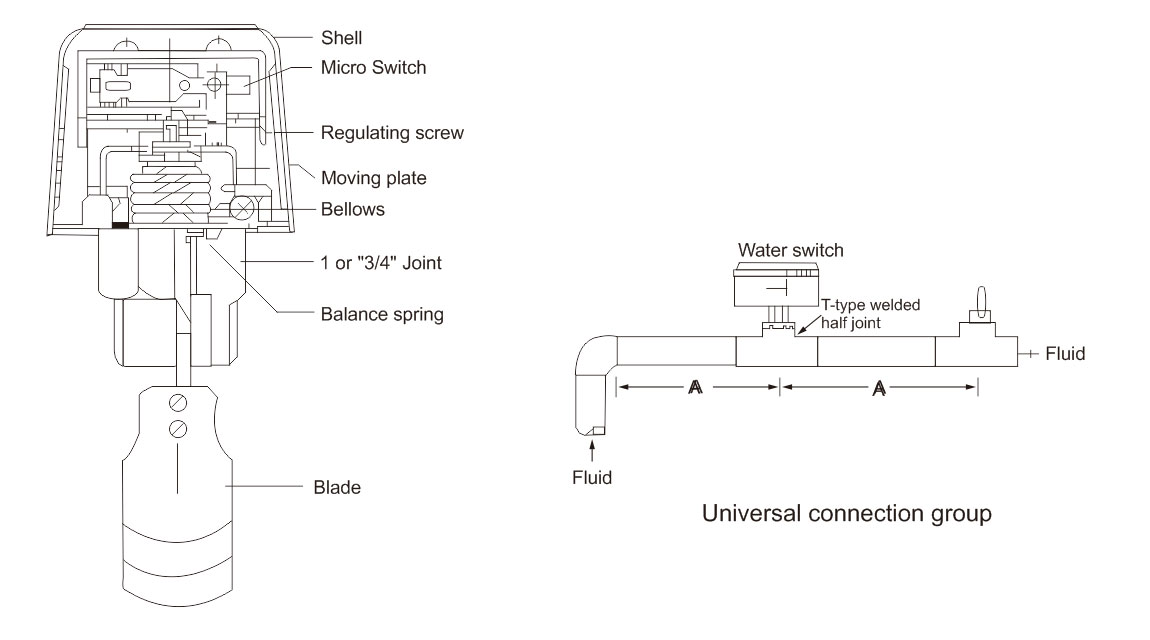

Overall Dimension for Water Flow Control Switch HFS Series

Keywords:

Water Flow Switch | Water Flow Control Switch
