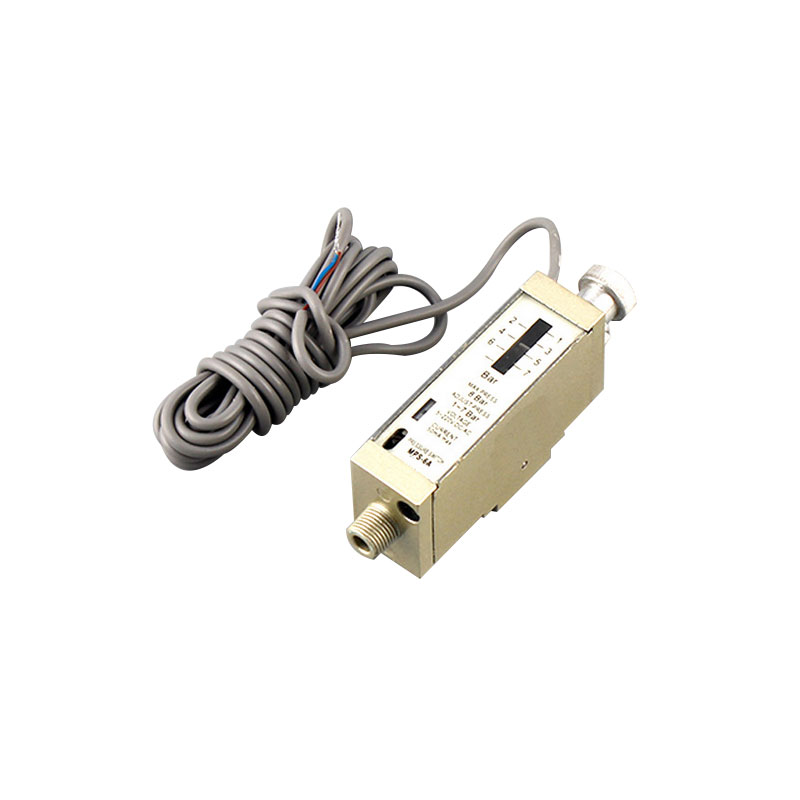

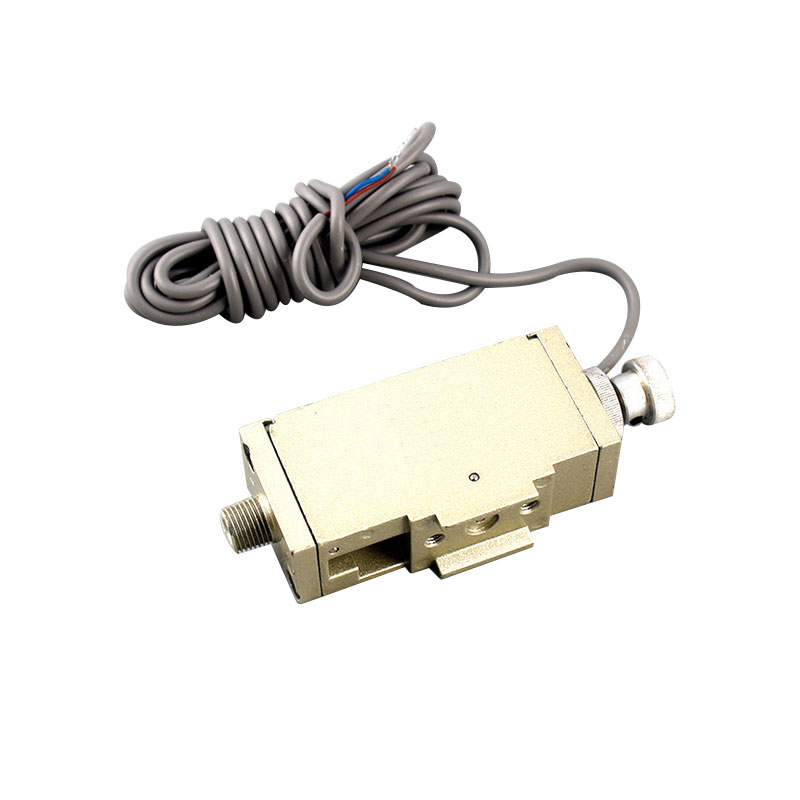

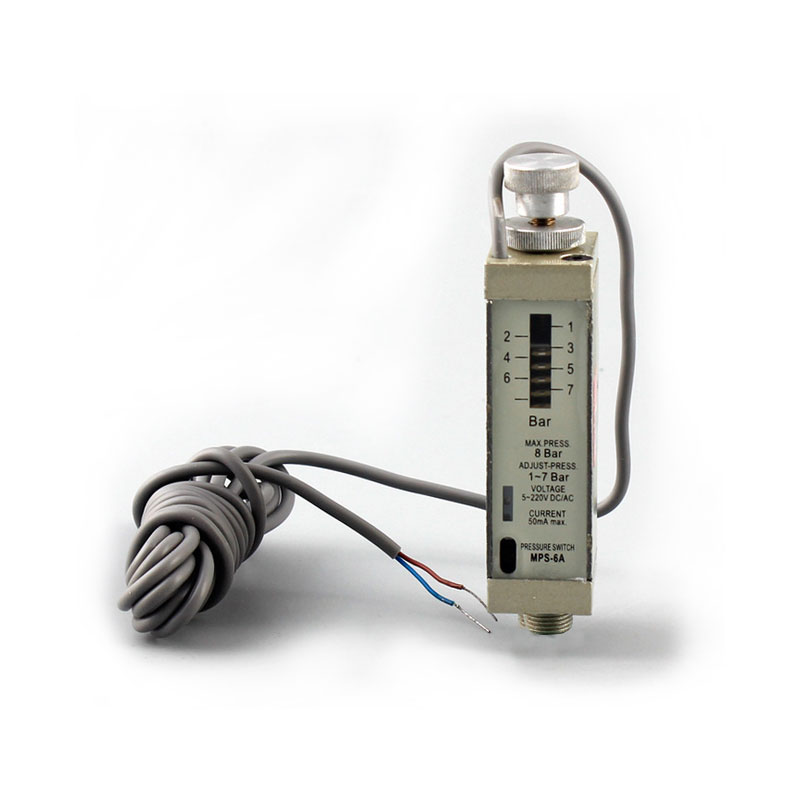

Pressure sensitive switch MPS-6A Series

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

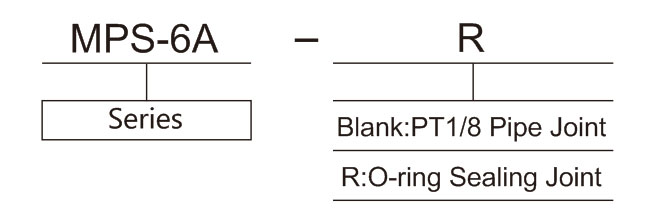

Ordering Code for Pressure Sensitive Switch MPS-6A Series

Technical Parameter for Pressure Sensitive Switch MPS-6A Series

Pipe connection mode PT1/8(Pipe Joint), O-ring: S4(O-ring Sealing Joint)
Ambient temperature -5~+60℃(No Freezing)
Max. Operating Pressure 8Bar(8.16kgf/cm²)
Proof Pressure 10Bar(10.2kgf/cm²)
Pressure setting range 1~7Bar(1.02~7.14kgf/cm²)
LED signal output N.O. type→When the pressure reaches the set value, LED is on
Pressure sensitive switch type RCE-type Reed operating type /N.O. type; Load voltage range: 5~220V DC/AC; Allowable load current: 50mA

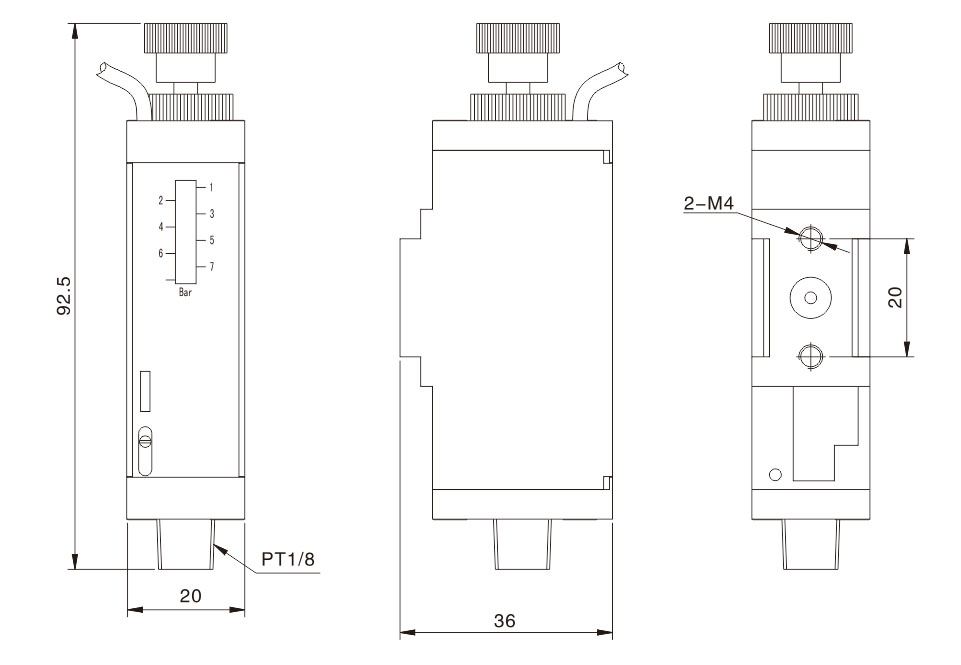

Overall Dimension for Pressure Sensitive Switch MPS-6A Series
