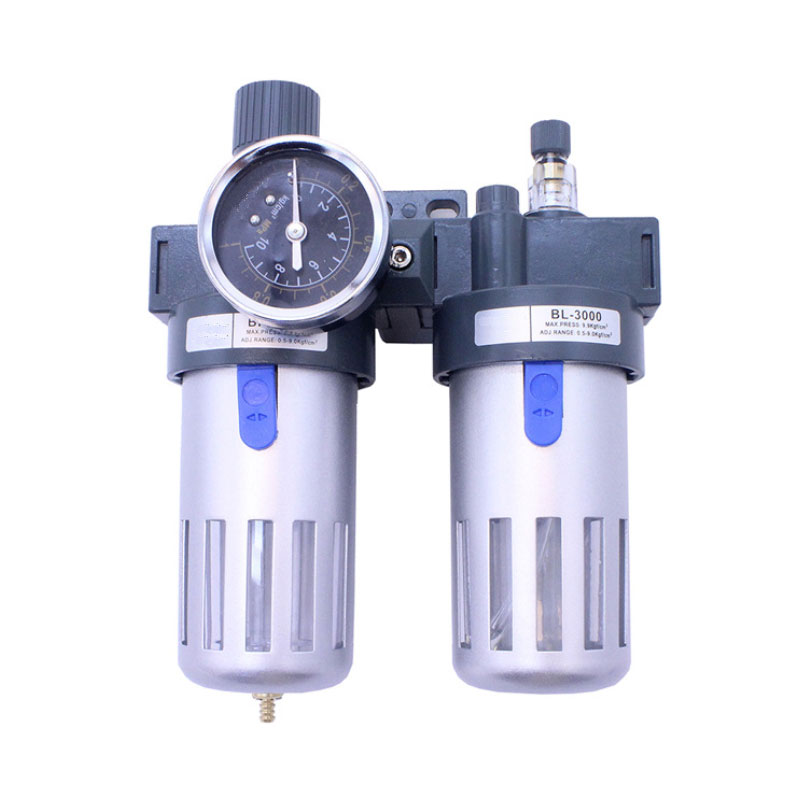

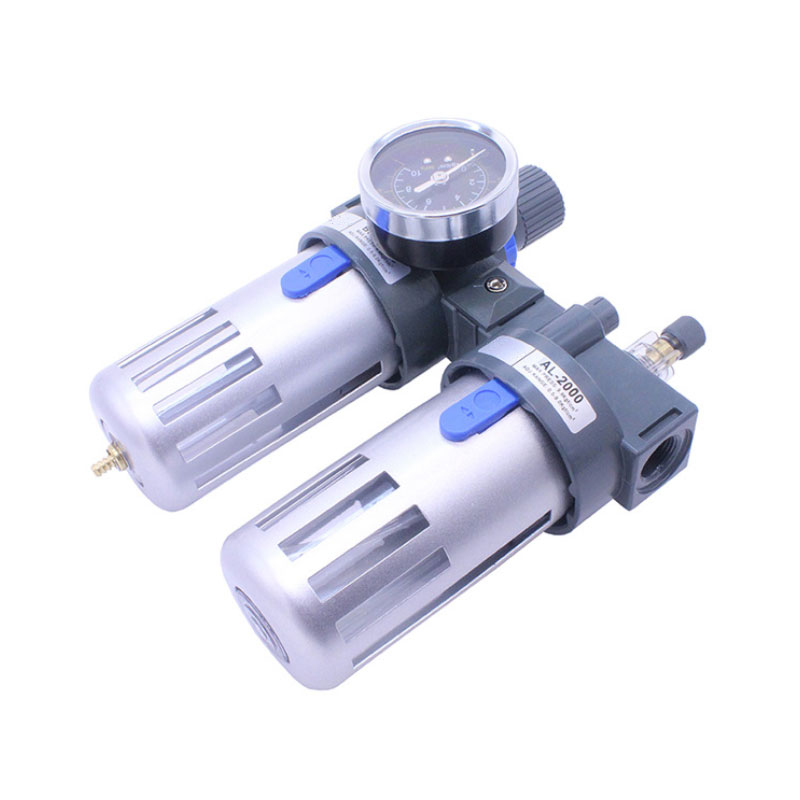

Air Filter Regulator AFC/BFC

Product Features for A/B Series Filter Regulator

A/B Series Filter Regulator uses high precision CNC equipment to process, the main parts are made of aluminum die casting, the oil cup is polycarbonate, compact structure, beautiful appearance.
The size of Two Units Air Combination is the same as the AirTAC type equal specification, and can be replaced.
Two Units Air Combination adopts standardized modular design, can be combined and decomposed arbitrarily, product design is reasonable, easy to use, and can meet the requirements of various pneumatic systems.
The transparent inspection cover can directly observe the amount of oil and water accumulation.
High strength resin (polycarbonate) protective cover of Pneumatic Air Filter Regulator AFR is safe and reliable.

Installation and use for A/B Series Filter Regulator

When installing the filter, the drainage mechanism should be vertical downward, and keep a certain distance from the ground to drain and replace the filter element. Filters are used to filter solid impurities and water droplets in compressed air. They do not filter out aerosols and water vapor. Therefore, the filter position should be located behind the air dryer, as close as possible to the required air supply pneumatic components. The condensate in filter glass should be regularly discharged. If manual operation is inconvenient, you should consider selecting a filter with automatic mechanism. The blockage of the filter element should be checked regularly. When the pressure drop is greater than 0.05MPa, it should be replaced in time. The filter element can be cleaned and can be used after cleaning. Cleaning of filter cups should be cleaned with neutral detergent and strictly prohibited with organic solvents.

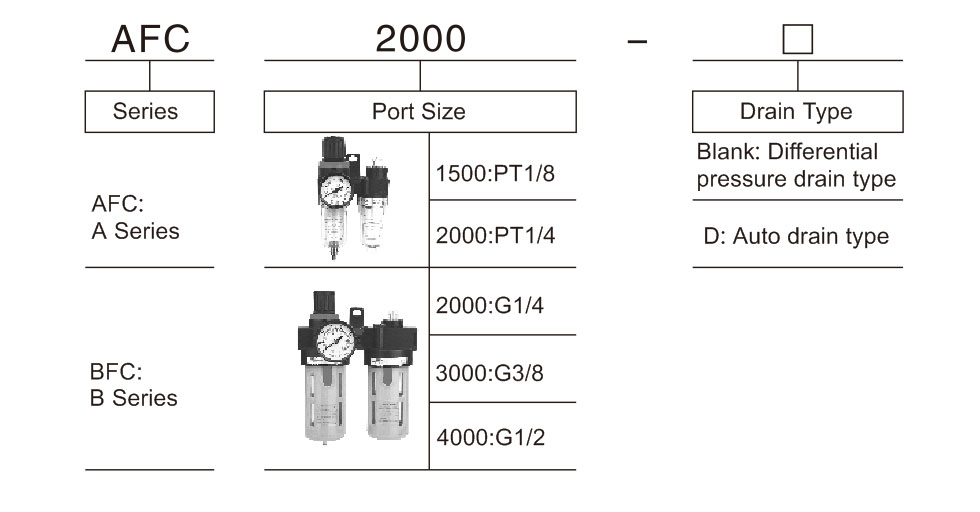

Ordering Code for A/B Series Filter Regulator

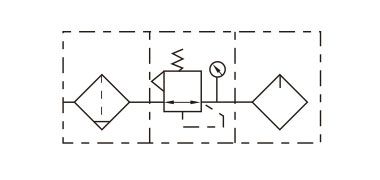

Symbol for Two Units Air Combination

Technical Parameter for Two Units Air Combination

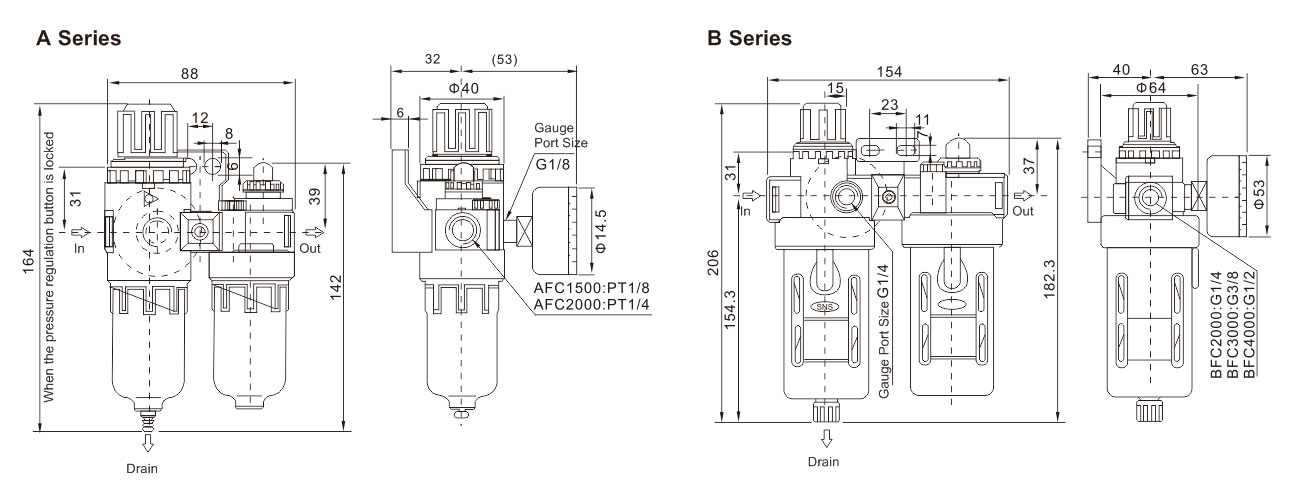

Overall Dimension

Note: due to the different drainage components, the total height of the product will be slightly different. If necessary, please contact the sales department.
