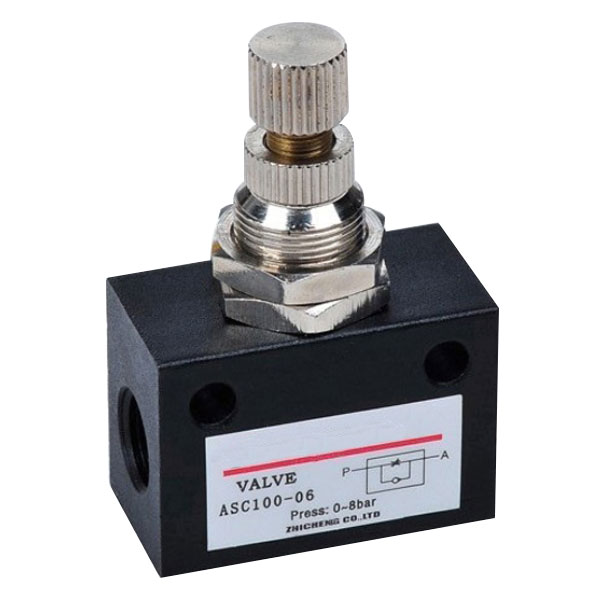

Overview for Gas Flow Control Valve
Applicable fluid: Air (filtered through 40um filter)
ASC-100 Throttle Gas Flow Control Valve Instructions for use and maintenance
1. Check the components before use, whether they are damaged during transportation, and then install and use.
2. When installing, please pay attention to the gas flow direction and check whether the connection is correct, and reserve enough operating space.
3. When using, strictly observe all technical requirements, such as working pressure, working temperature and paying attention to dust prevention.
4. When connecting the pipeline, pay attention to the winding of the stop strip not exceeding the thread end surface, and pay attention to eliminating the metal particles, dust and oil stains in the pipe joint and pipe.
Technical Parameters for Gas Flow Control Valve
Port Size: M5,G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0.05-0.95Mpa (0.5-9.5bar) (7-135psi)
Working Environment Temperature: -5~60°C
Material: Aluminum Alloy,NBR

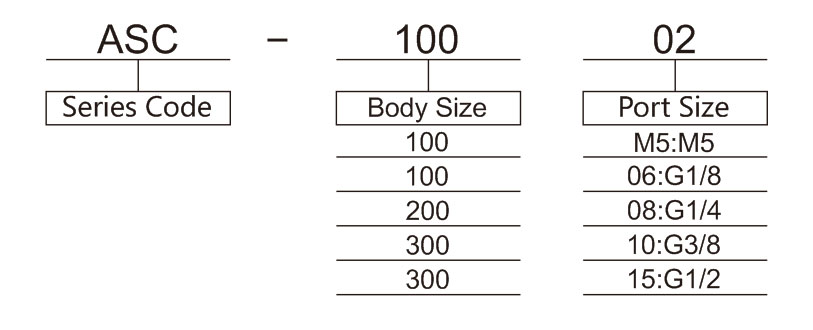

Ordering Code for Throttle Gas Flow Control Valve
Symbol for Throttle Gas Flow Control Valve
Technical Parameter for Throttle Gas Flow Control Valve
| Model |
ASC100-M5 |
ASC100-06 |
ASC200-08 |
ASC300-10 |
ASC300-15 |
| Working Medium |
Air |
| Port Size |
M5 |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
| Max. Operating Pressure |
0.9MPa |
| Proof Pressure |
1.5MPa |
| Ambient Temp. |
-5~60℃ |
| Standard rated flow |
throttle valve |
|
200L/min |
450L/min |
1250L/min |
1650L/min |
| check valve |
|
400L/min |
800L/min |
1500L/min |
2500L/min |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

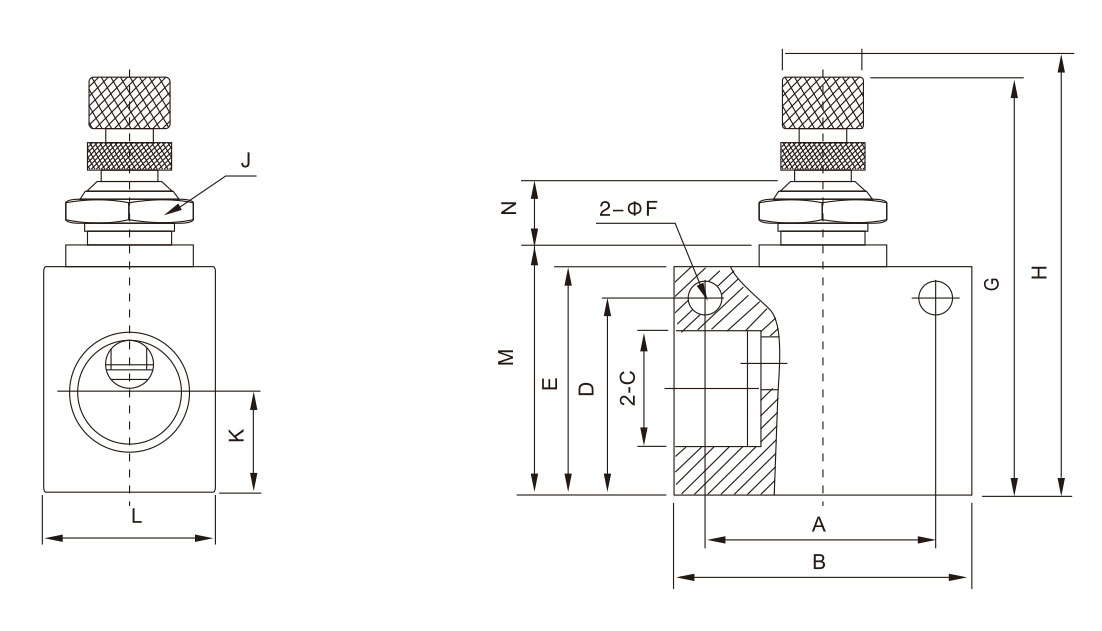

Overall Dimension
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
| ASC100-06 |
22 |
32 |
G1/8 |
18 |
23 |
4.3 |
46.8 |
52.3 |
M12×0.75 |
10 |
18 |
26 |
8.6 |
| ASC200-08 |
26 |
36 |
G1/4 |
23 |
27 |
4.3 |
50.8 |
56.3 |
M12×0.75 |
13.5 |
18 |
30 |
8.6 |
| ASC300-10 |
35 |
50 |
G3/8 |
32 |
37 |
5.3 |
65 |
74 |
M16×1 |
17.5 |
28 |
40.5 |
10.2 |
| ASC300-15 |
35 |
50 |
G1/2 |
32 |
37 |
5.3 |
65 |
74 |
M16×1 |
17.5 |
28 |
40.5 |
10.2 |
