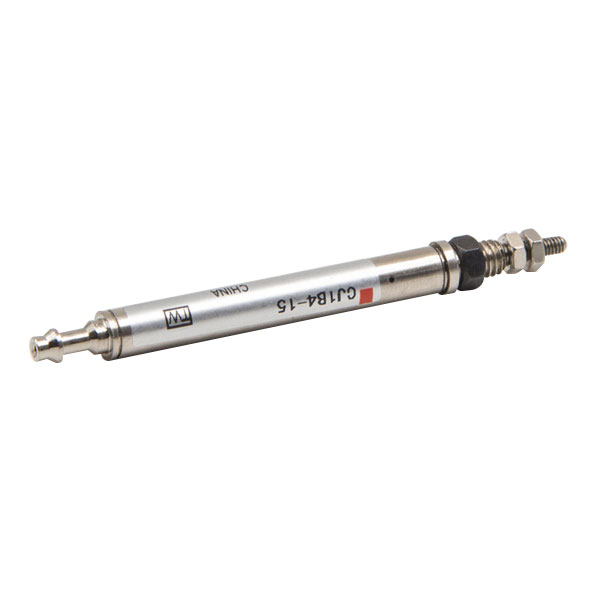

Mini Pneumatic Cylinder CJ1 (Stainless Steel)

CJ1 Stainless Steel Cylinder is double-acting type, and the piping direction of the side pipe joint can be changed within ±90º. It is miniature compact cylinder (Stainless Steel Cylinder) with compact structure, small size and light weight;

Bore Sizes: 2.5,4mm
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.3-0.7 MPa
Speed:50~500mm/s;
Working Environment Temperature: -10 to 70°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CJ1 Air Cylinder

CJ1 Stainless Steel Cylinder is double-acting type, and the piping direction of the side pipe joint can be changed within ±90º.
It is miniature compact cylinder (Stainless Steel Cylinder) with compact structure, small size and light weight;
The piston rod has high guiding precision, and the guiding bearing does not need additional lubricating oil;
Stainless steel piston rod and cylinder can adapt to the corrosive working environment;
Various specifications of Stainless Steel Cylinder and cylinder installation accessories are available for customers to choose;
The Stainless Steel Cylinder bore is small and the response is fast, suitable for higher frequency working environment.

Technical Parameters for CJ1 Air Cylinder

Bore Sizes: 2.5,4mm
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.3-0.7 MPa
Speed:50~500mm/s;
Working Environment Temperature: -10 to 70°C

Symbol for CJ1 Air Cylinder

Ordering Code for CJ1 Mini Pneumatic Cylinder

Specification for CJ1 Mini Pneumatic Cylinder

Bore (mm) 2.5 4
Working Medium Air
Maximum Operating Pressure 0.7MPa
Minimum Operating Pressure 0.3MPa (Double-acting: 0.2MPa)
Ambient and fluid temperature -10~70°C (No Freezing)
Piston velocity 50~500mm/s
Buffer No
Stroke Tolerance (mm) +0.5/0

CJ1 Air Cylinder Stroke /Applicable Pipe

Bore (mm) Standard Stroke (mm) Size of Applicable Pipe (mm) Pipe Material
Outer Diameter Inner Diameter
2.5 5,10 4 2.5 Soft Nylon or Polyurethane
4 5,10,15,20

CJ1 Air Cylinder Dimension (mm)

CJ1B4-□U4

Bore / Stroke S Z
5 10 15 20 5 10 15 20
4 18 23 28 33 51 56 61 66

CJ1B2-□SU4

Bore / Stroke S Z
5 10 5 10
4 16.5 25.5 29 38

CJ1B4-□SU4

Bore / Stroke S Z
5 10 15 20 5 10 15 20
4 19.5 28.5 37.5 46.5 40 49 58 67
