Mini Pneumatic Cylinder MI (Stainless Steel)

MI Mini cylinder, front and rear cover with fixed anti-collision pad, can reduce the reversing impact of the cylinder; a variety of back cover forms, so that the installation of the cylinder more convenient.

Bore: 8, 10, 12, 16, 20, 25mm
Stroke length: 0~500mm
Operating pressure: 0.1~1.0MPa(Double-acting); 0.2~1.0MPa(Single-acting)
Piston speed: 50~750mm/s
Ambient and fluid temperature: -20~+70°C

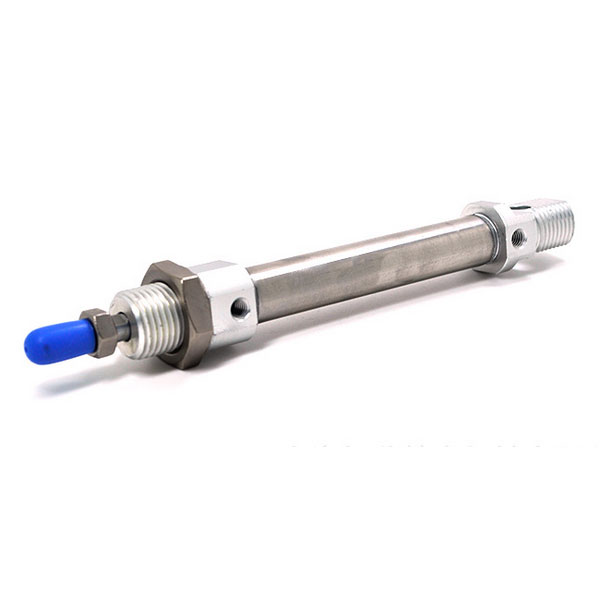

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MI Cylinder

MI Mini Cylinder, front and rear cover with fixed anti-collision pad, can reduce the reversing impact of the cylinder; a variety of back cover forms, so that the installation of the cylinder more convenient; The front and rear cover and stainless steel are riveted with roller pack structure, and the connection is reliable; Stainless steel piston rod and cylinder body make the cylinder adapt to the general corrosive working environment; A variety of MI Cylinder and cylinder installation accessories are available for customers to choose.

Installation and use for MI Cylinder

When the load changes, the MI Stainless Steel Cylinder with sufficient output power is selected. Under high temperature or corrosive conditions, the corresponding high temperature or corrosive cylinder should be used.
In the case of high humidity, dust, or water droplets, oil dust, welding slag, the cylinder should take necessary protective measures.
Before the MI Cylinder is connected to the pipeline, the dirt in the pipeline must be removed to prevent debris from entering the cylinder.
MI stainless steel mini cylinders are allowed to use after the working medium should be filtered by the filter of 40μm or more.
In the low temperature environment, anti-freezing measures should be taken to prevent the water in the system from freezing.
Before use, it should be tested in no-load operation. Before operation, the buffer should be reduced and gradually relaxed, so as to avoid excessive impact and damage to the cylinder.
In order to maintain the normal operation and prolong the service life of the cylinder, the cylinder should avoid the lateral load as far as possible.
After MI Cylinder removed is not used for a long time, surface rust prevention should be paid attention, and dust inlet and outlet should be added to prevent dust blockage.

Product Feature for MI Mini Cylinder

1. Cylinder body for high-strength stainless steel tube by surface strengthening treatment, corrosion resistance, wear resistance;
2. Front and rear cover and cylinder with roller package connection, good strength, beautiful appearance;
3. Axial dust seal with polyurethane material, strength and wear resistance, long life;
4. Piston seal structure is small, smooth operation, dynamic friction and static friction resistance is low;
5. A variety of back cover form, easy to install the cylinder;
6. There are fixed anti-collision pad and adjustable air cushion, user-friendly choice;
7. The MI Mini Cylinder conforms to ISO6432 standard.

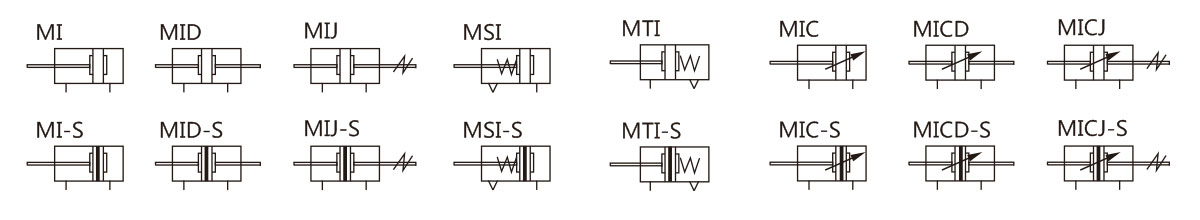

Symbol for MI Mini Cylinder

Specification for MI Mini Cylinder

Bore (mm) 8 10 12 16 20 25
Motion Pattern Double-acting Cushion Buffer, Single-acting Double-acting Cushion Buffer, Double-acting Air Buffer,Single-acting
Working Medium Air (Filtered by 40 μm filter mesh)
Working pressure range Double-acting 0.1~1.0MPa (14~145Psi)
Single-acting 0.2~1.0MPa (28~145Psi)
Proof Pressure 1.5MPa (215Psi)
Operating temperature range -20~70℃
Operating speed range Double-acting: 30~800 mm/s; Single-acting: 50~800 mm/s
Stroke Tolerance Range 0~100: +1.0/0; >100: +1.4/0
Buffer Type MIC: Adjustable Air Buffer Others:Cushion Buffer
Port Size M5×0.8 G1/8

Standard Stroke

Bore (mm) Standard Stroke Max. Stroke Allowable Stroke
Double-acting 8,10 10 15 20 25 30 40 50 75 100 125 150 150 200
12 10 15 20 25 30 40 50 75 100 125 150 175 200 200 300

Double-acting
Double-acting Air Buffer

16 10 15 20 25 30 40 50 75 100 125 150 175 200 200 300
20,25 10 15 20 25 30 40 50 75 100 125 150 175 200 250 300 350 400 450 500 500 650
Single-acting 8,10,12 10 15 20 25 30 40 50 50 -
16,20,25 10 15 20 25 30 40 50 75 100 100 -

Note: please contact us for other special stroke.

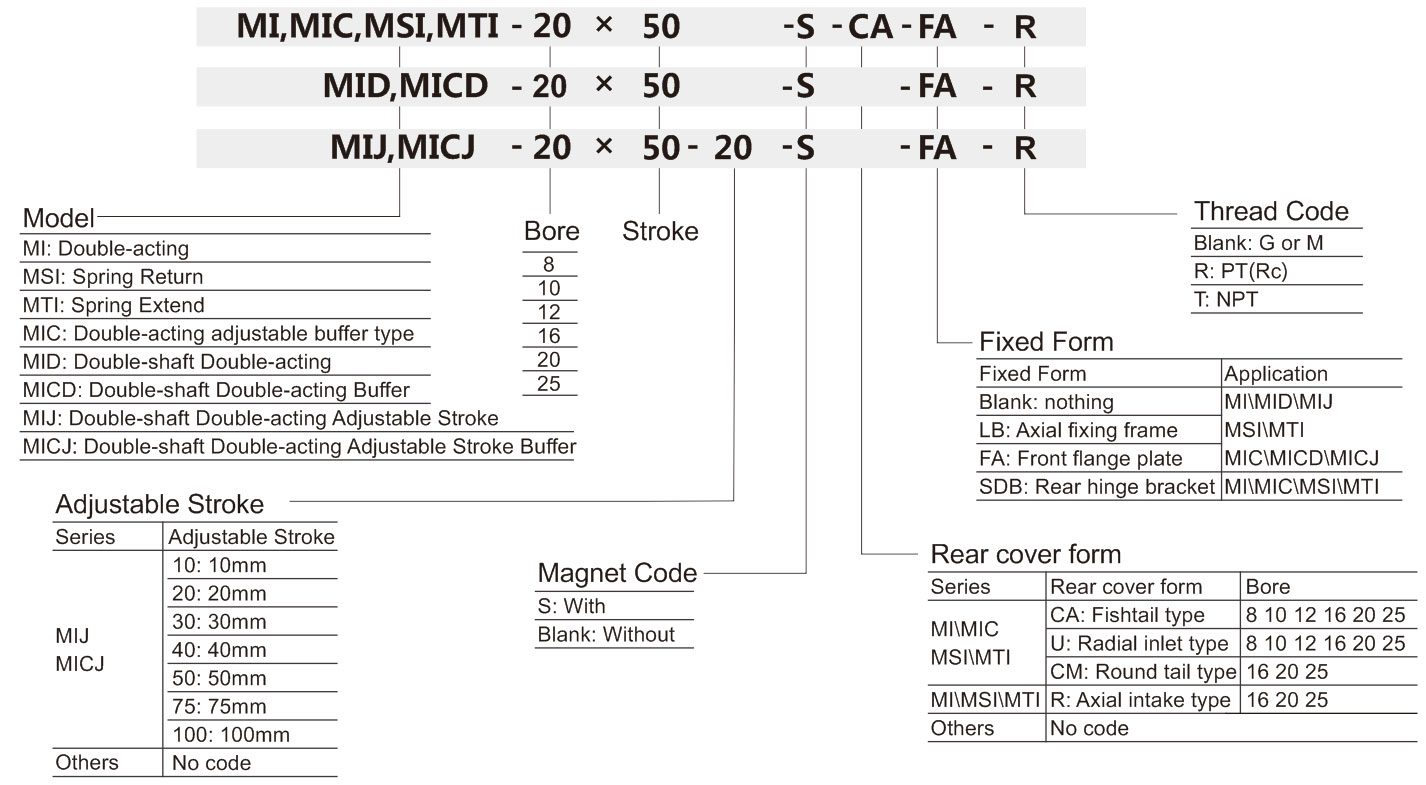

Ordering Code

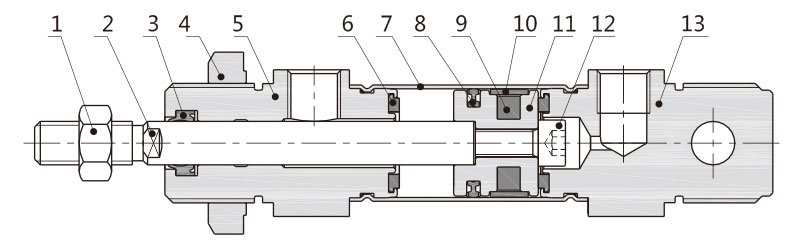

Internal Structure

No. Item Material No. Item Material No. Item Material
1 Hex nut Carbon Steel 2 Piston rod Durionise Grinding Rod 3 Dust-proof ring TPU
4 Hex nut Carbon Steel 5 Front cover Aluminium Alloy 6 Crash Cushion Elastic material
7 Cylinder Barrel Stainless steel 8 Piston Seal NBR 9 Magnet ring Magnetic material
10 Wearing ring Wear Material 11 Piston Aluminium Alloy 12 Hex socket cap screw Carbon Steel
13 Rear cover Aluminium Alloy

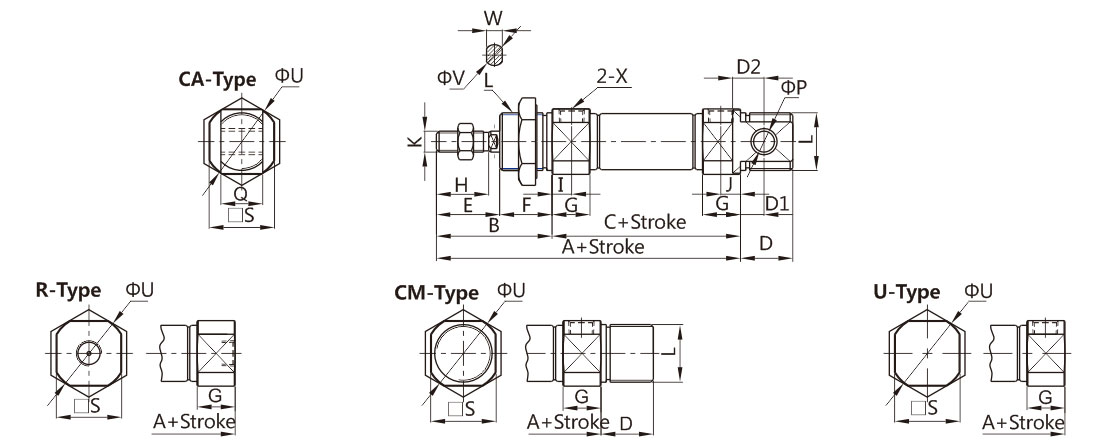

Overall and Dimensions

MI (Φ8~Φ25), MIC (Φ16、Φ20、Φ25)

Bore/Symbol A B C D D1 D2 E F G H I J K L P Q S U V W X
8 74 28 46 12 2 6 16 12 10 12 6 6 M4×0.7 M12×1.25 4 8 15 17 4 - M5×0.8
10 74 28 46 12 2 6 16 12 10 12 6 6 M4×0.7 M12×1.25 4 8 15 17 4 - M5×0.8
12 88 38 50 17 3 9 21 17 10 16 6 6 M6×1.0 M16×1.5 6 12 18 20 6 5 M5×0.8
16 94 38 56 17 4 9 21 17 10 16 6 6 M6×1.0 M16×1.5 6 12 20 22 6 5 M5×0.8
20 106 44 62 20 9 12 24 20 14 20 7.5 7.5 M8×1.25 M22×1.5 8 16 25 29 8 6 G1/8
25 115 50 65 22 11 12 28 20 15 22 8 8 M10×1.25 M22×1.5 8 16 30 33.5 10 8 G1/8

Note: both magnetic and non magnetic have the same dimensions. MIC series have no R type back cover.

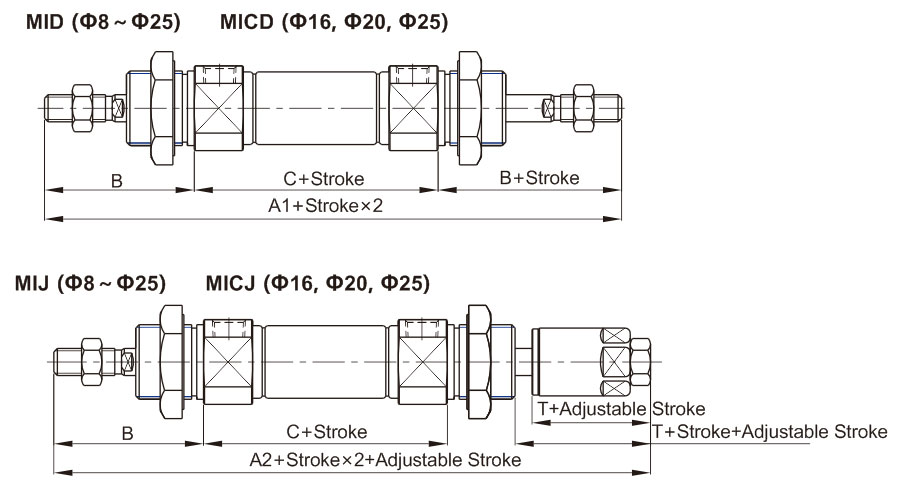

Bore/Symbol A1 A2 B C T
8 102 103 28 46 15
10 102 103 28 46 15
12 126 126 38 50 21
16 132 132 38 56 21
20 150 150 44 62 24
25 165 164 50 65 27

Note: both magnetic and non magnetic have the same dimensions. Other sizes are the same as standard cylinder MI/MIC.

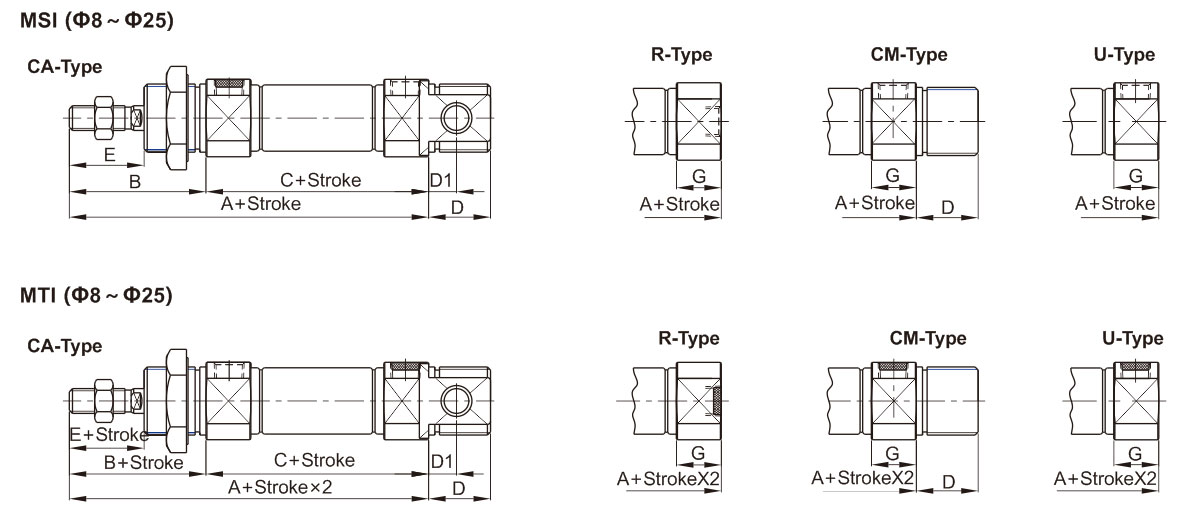

Bore/Symbol A B C D D1 E
Stroke 0~50 51~100 0~50 51~100
8 101 - 28 71 - 12 2 16
10 101 - 28 71 - 12 2 16
12 116 - 38 75 - 17 3 21
16 123 148 38 81 106 17 4 21
20 140 165 44 87 112 20 9 24
25 151 176 50 90 115 22 11 28

Note: both magnetic and non magnetic have the same dimensions. Other sizes are the same as standard Stainless Steel Cylinder MI/MIC.
