Port Size: G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Stainless steel 304,NBR

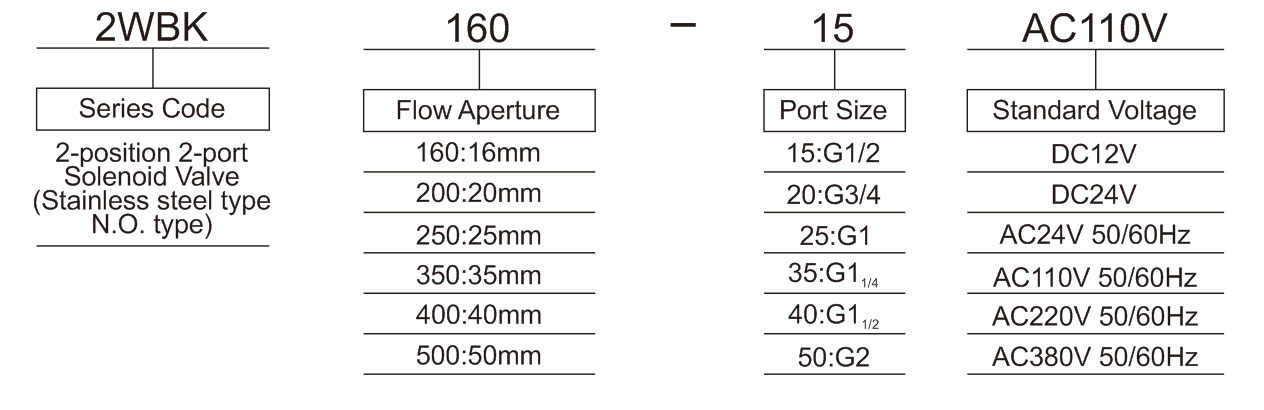

Ordering Code for Stainless Steel 304 Solenoid Valve 2WBK

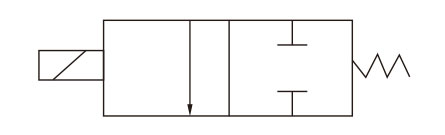

Symbol for Stainless Steel 304 Solenoid Valve 2WBK
Technical Parameter for Stainless Steel 304 Solenoid Valve 2WBK
| Model |
2WBK160-25 |
2WBK200-20 |
2WBK250-25 |
2WBK350-35 |
2WBK400-40 |
2WBK500-50 |
| Working Medium |
Air, water, oil |
| Motion Pattern |
Pilot type |
| Type |
Normally open type |
| Flow Aperture (mm²) |
16 |
20 |
25 |
35 |
40 |
50 |
| Cv value |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Port Size |
G1/2 |
G3/4 |
G1 |
G1(1/4) |
G1(1/2) |
G2 |
| Fluid Viscosity |
Under 20CS |
| Operating Pressure |
Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm² |
| Max. Proof Pressure |
10kgf/cm² |
| Ambient and Fluid Temp. |
-5~85℃ |
| Operating Voltage |
±10% |
| Main parts material |
Body |
Stainless steel 304 |
| Sealing element |
NBR |
| Coil Power |
20VA |

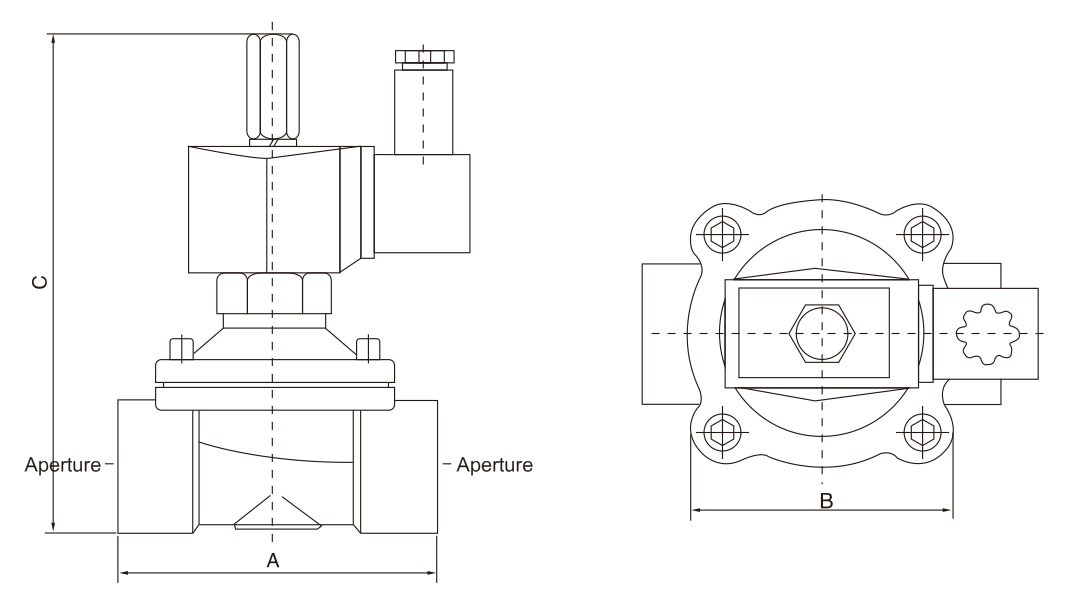

Stainless Steel 304 Solenoid Valve 2WBK Overall Dimension
| Model |
Aperture |
A |
B |
C |
| 2WBK160-15 |
G1/2 |
69 |
56 |
125 |
| 2WBK200-20 |
G3/4 |
74 |
56 |
131 |
| 2WBK250-25 |
G1 |
98 |
76 |
140 |
| 2WBK350-35 |
G1(1/4) |
116 |
87 |
146 |
| 2WBK400-40 |
G1(1/2) |
122 |
94 |
158 |
| 2WBK500-50 |
G2 |
129 |
95 |
170 |
