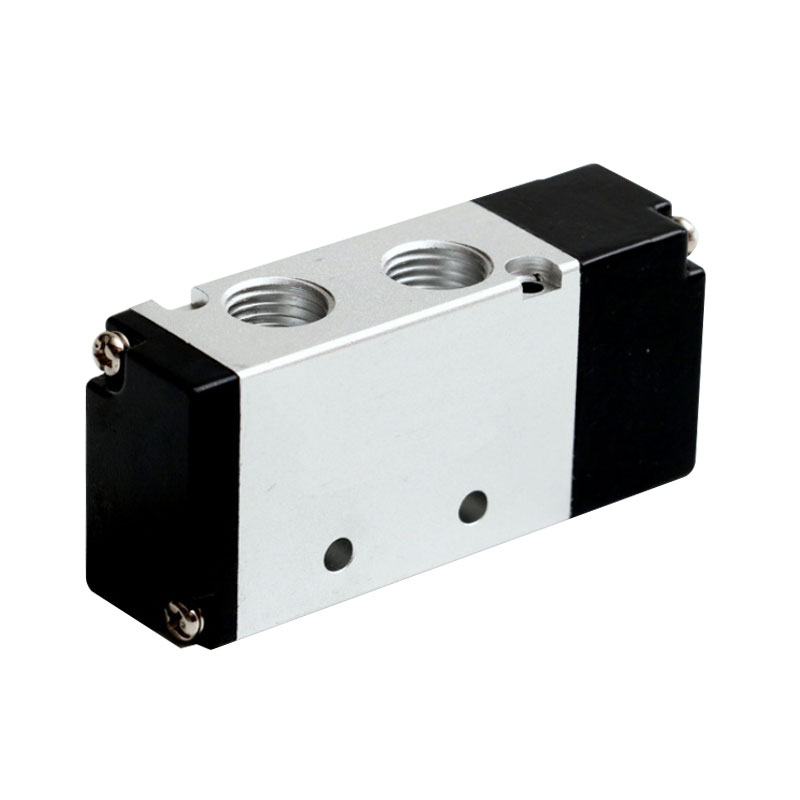

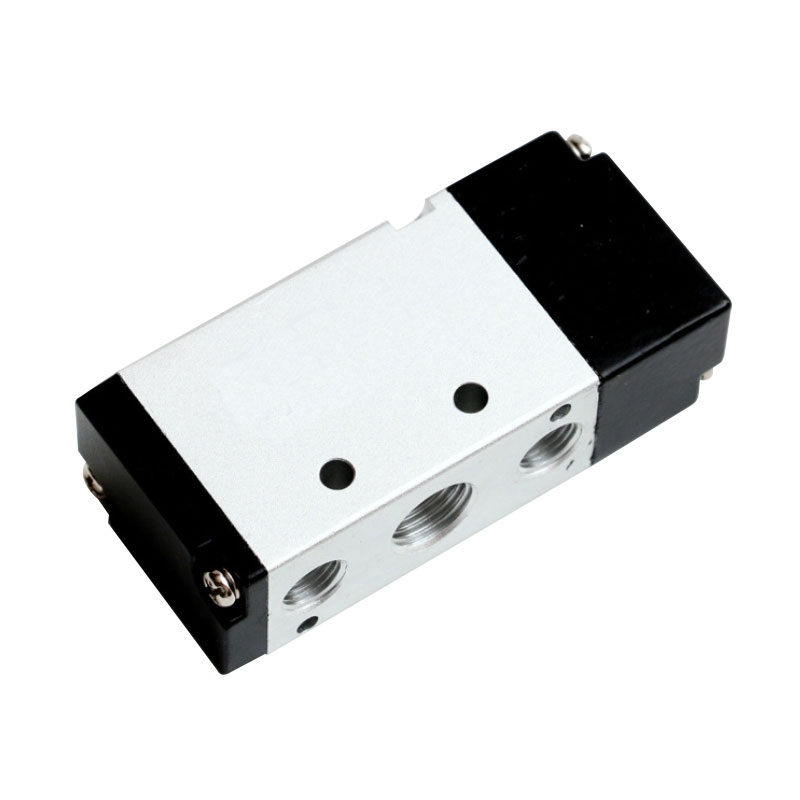

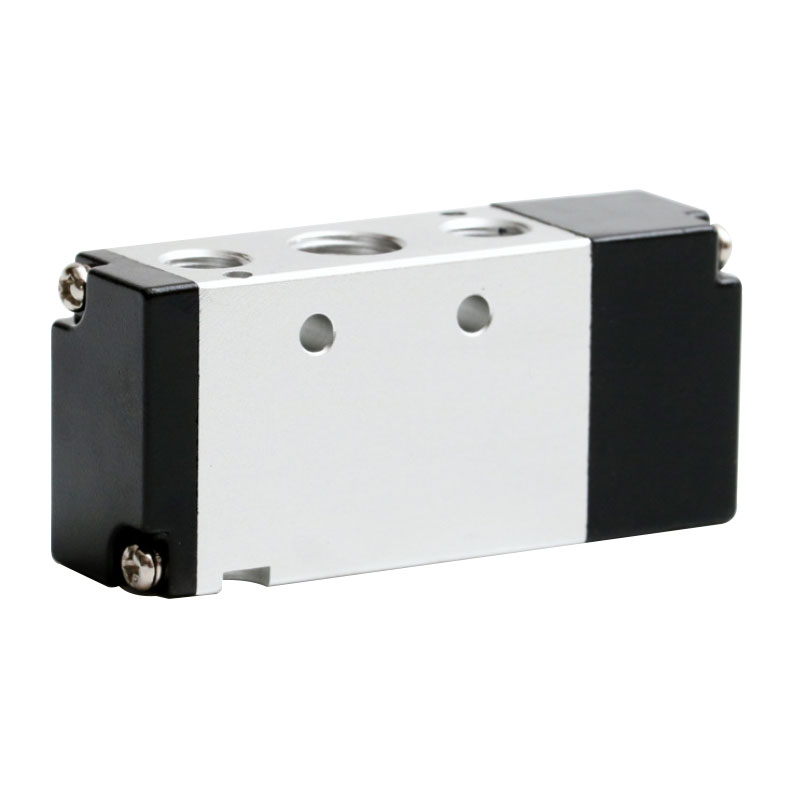

Technical Parameters for Solenoid Valve Double Pilot 4A
Port Size: G1/4, G1/8
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

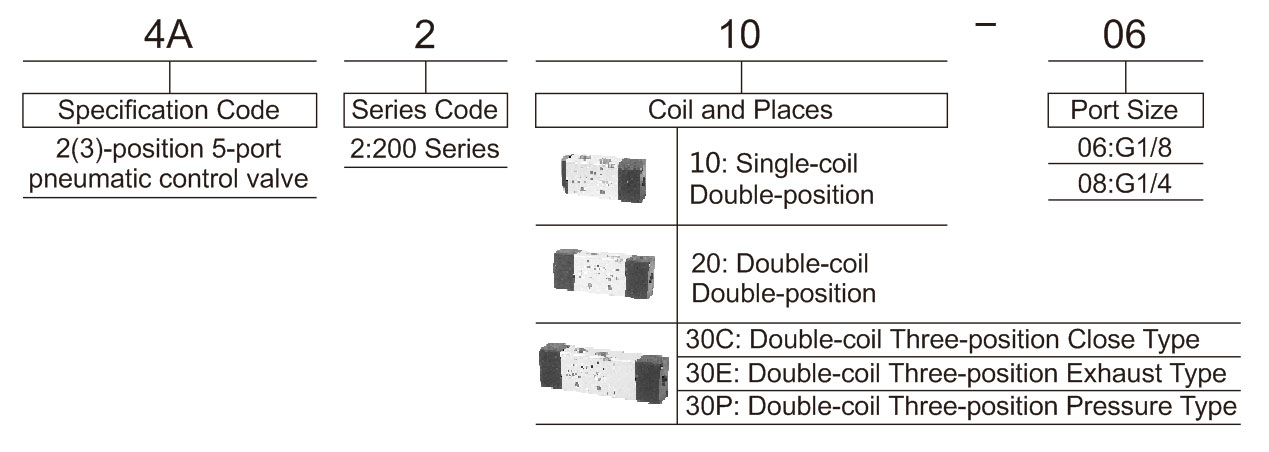

Ordering Code for Solenoid Valve Double Pilot 4A

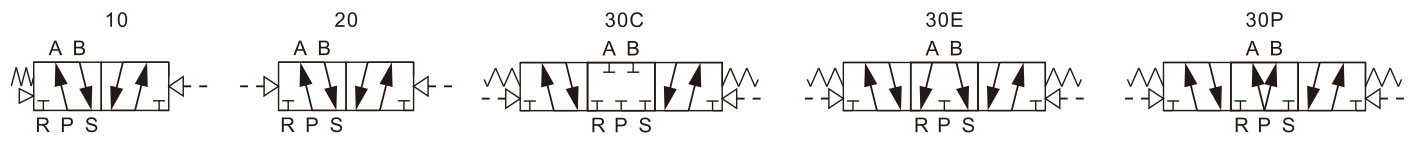

Symbol for Solenoid Valve Double Pilot 4A
Technical Parameter for Solenoid Valve Double Pilot 4A
| Model |
4A210-06 |
4A220-06 |
4A230C-06 |
4A230E-06 |
4A230P-06 |
4A210-08 |
4A220-08 |
4A230C-08 |
4A230E-08 |
4A230P-08 |
| Working Medium |
Air |
| Motion Pattern |
External pneumatic control type |
| Valve Type |
2-position 5-port |
3-position 5-port |
2-position 5-port |
3-position 5-port |
| Effective sectional area |
14.0mm²(Cv=0.78) |
12.0mm²(Cv=0.67) |
16.0mm²(Cv=0.89) |
12.0mm²(Cv=0.67) |
| Port Size |
Intake=Outlet=Exhaust=G1/8 |
Intake=Outlet=G1/4 ; Exhaust=G1/8 |
| Lubrication |
Non-lube |
| Operating Pressure |
0.15~0.8MPa |
| Max. Proof Pressure |
1.0MPa |
| Operating Temp. |
0~60℃ |
| Max. operating frequency |
5 times/s |
3 times/s |
5 times/s |
3 times/s |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

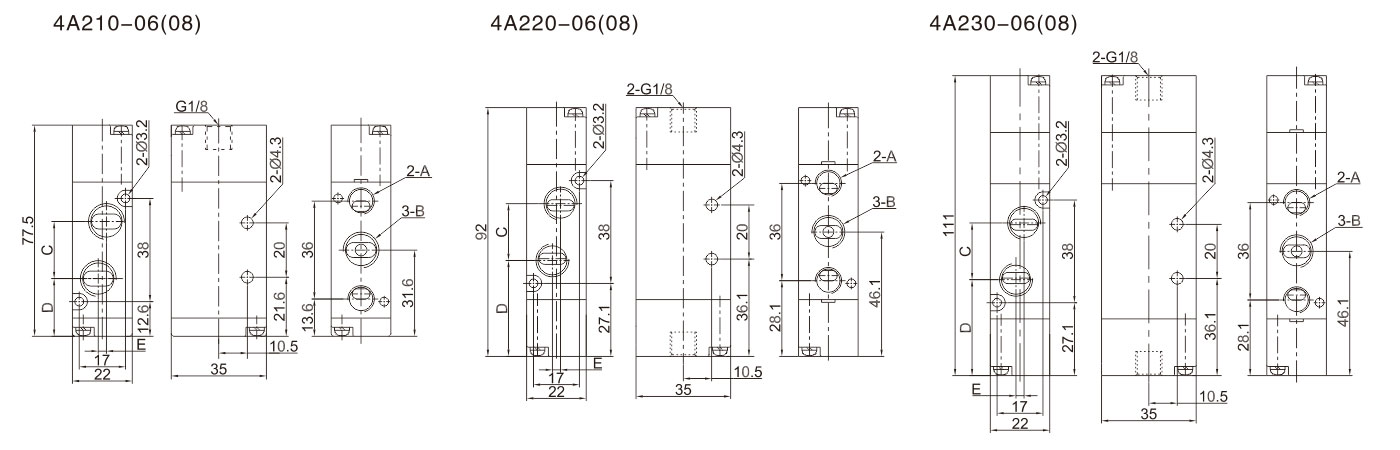

Overall Dimension
| Model |
A |
B |
C |
D |
E |
| 4A210-06 |
G1/8 |
G1/8 |
18 |
22.6 |
0 |
| 4A210-08 |
G1/8 |
G1/4 |
21 |
21 |
3 |
| 4A220-06 |
G1/8 |
G1/8 |
18 |
37.1 |
0 |
| 4A220-08 |
G1/8 |
G1/4 |
21 |
35.5 |
3 |
| 4A230-06 |
G1/8 |
G1/8 |
18 |
37.1 |
0 |
| 4A230-08 |
G1/8 |
G1/4 |
21 |
35.5 |
3 |
Keywords:
Solenoid Valve Double Pilot | 4A2 Solenoid Valve
