Pneumatic Solenoid Valve 2WBF

Port Size: G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: N.C.:0~10Mpa;N.O.:0~6Mpa
Working Environment Temperature: -5~80℃
Material: Stainless steel SUS304 Flange, SUS316 is Customizable

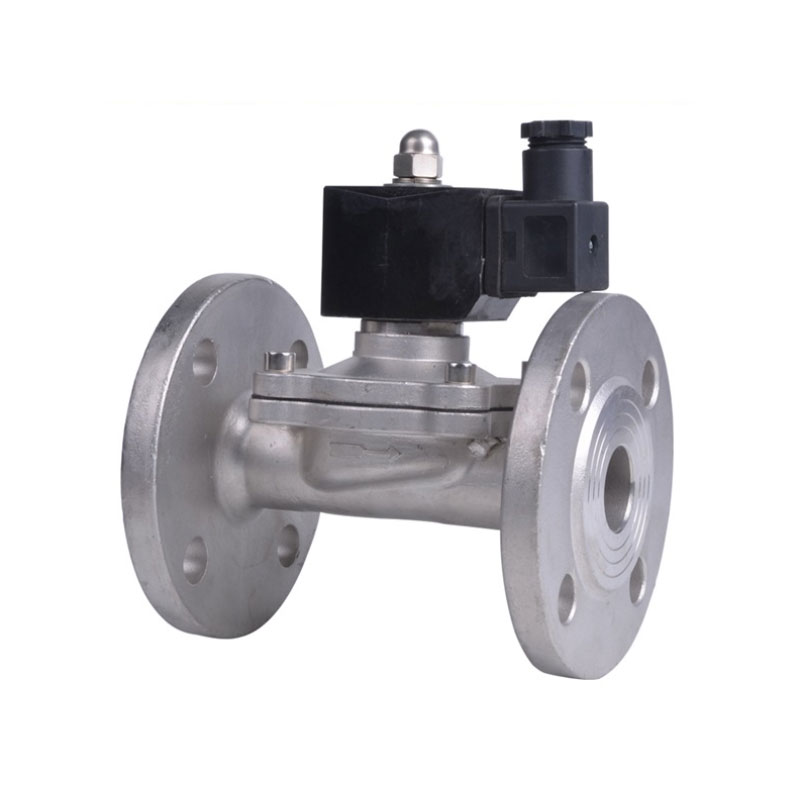

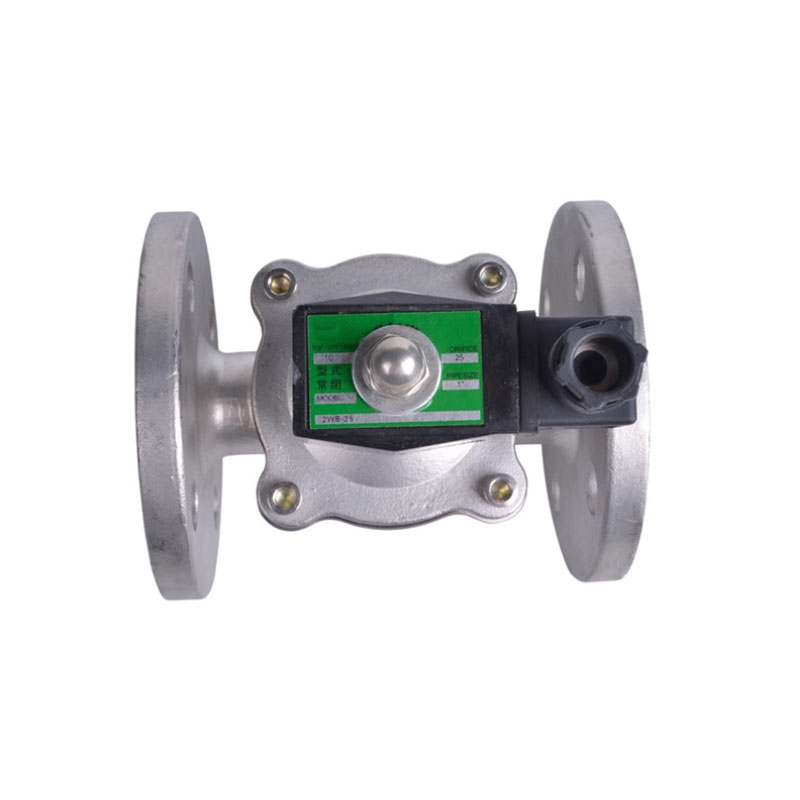

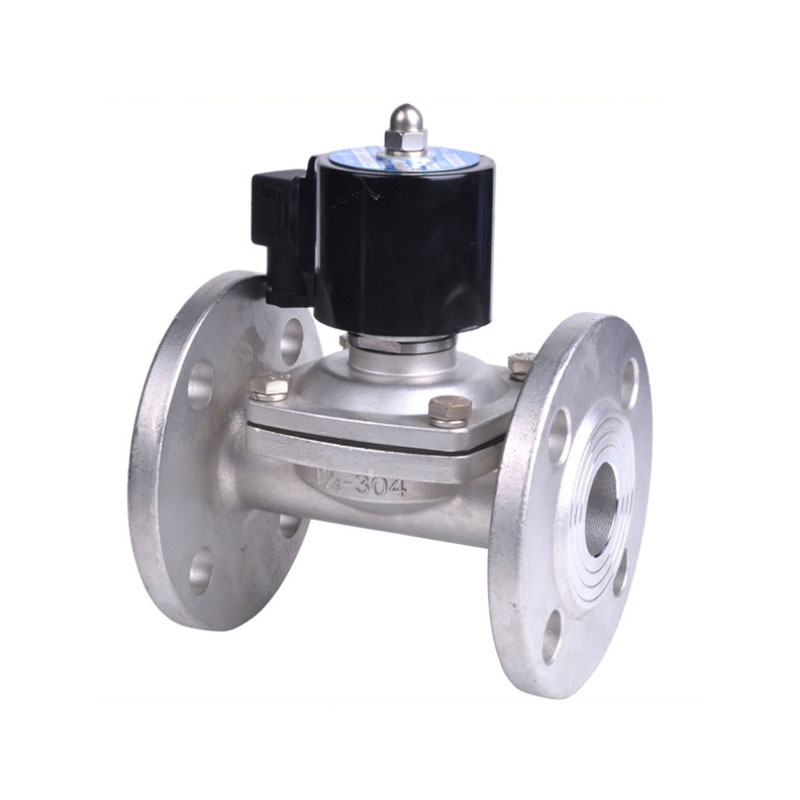

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pneumatic Solenoid Valve 2WBF

Port Size: G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: N.C.:0~10Mpa;N.O.:0~6Mpa
Working Environment Temperature: -5~80℃
Material: Stainless Steel SUS304 Flange, SUS316 is Customizable

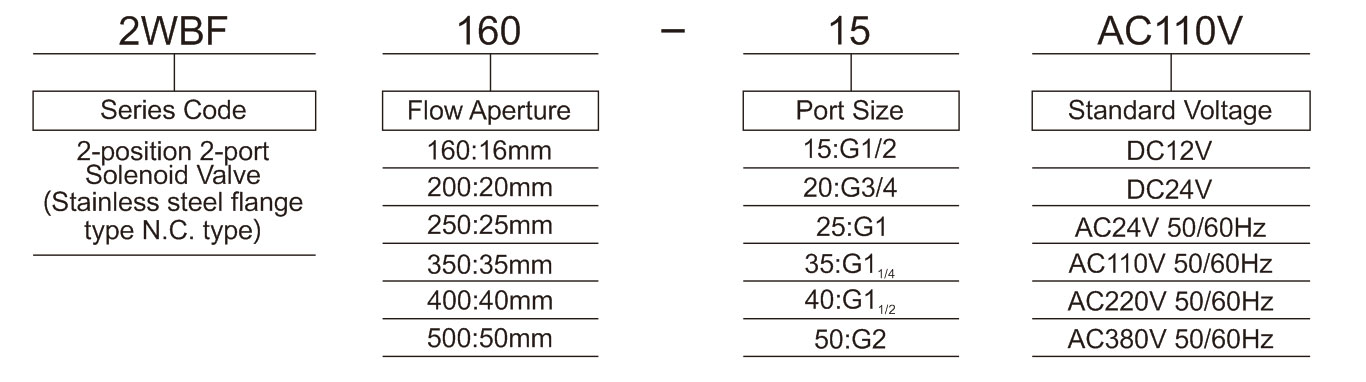

Ordering Code for Solenoid Operated Valve 2WBF Series

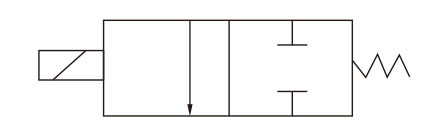

Symbol for Solenoid Operated Valve 2WBF Series

Technical Parameter for Solenoid Operated Valve 2WBF Series

Model Length Height Flange D Flange D1 Flange D2 Cv Body Material Working Medium Medium Temp. Operating pressure
(differential pressure)

mm mm bar bar
2WBF160-15 106 141 90 Φ14 Φ65 3.6 Stainless steel
SUS304 Flange
SUS316 is customizable		 Water, neutral gas or liquid,
alcohol, oil, organic solvent,
water vapor,
weak acid or weak base solution		 -5~80℃

N.C.:
0~10

N.O.:
0~6

 10 DC12V
DC24V
AC24V 50/60Hz
AC110V 50/60Hz
AC220V 50/60Hz
AC380V 50/60Hz
2WBF200-20 106 143 100 Φ14 Φ75 6
2WBF250-25 135 155 115 Φ14 Φ85 12
2WBF350-35 150 194 135 Φ18 Φ100 24
2WBF400-40 152 204 145 Φ18 Φ110 29
2WBF500-50 195 226 157 Φ18 Φ125 48

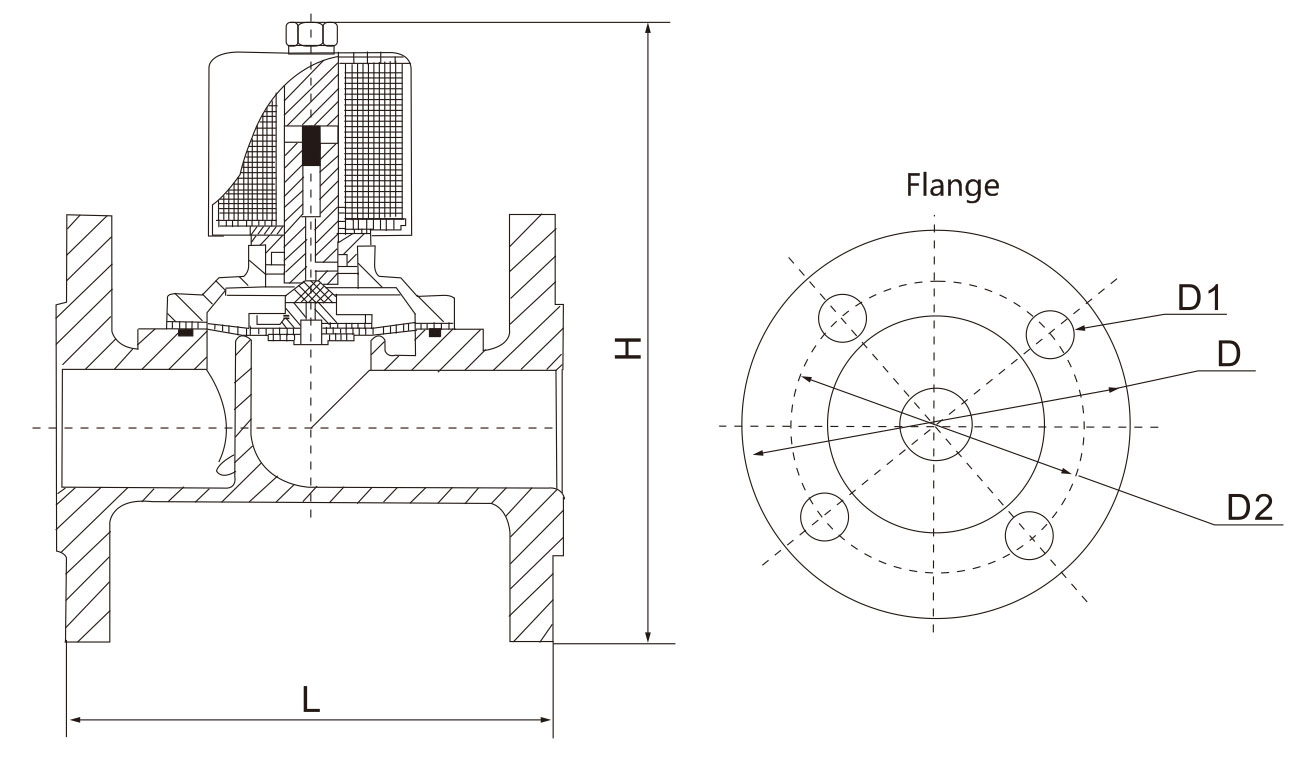

Overall Dimension
