Shuttle Valve KV

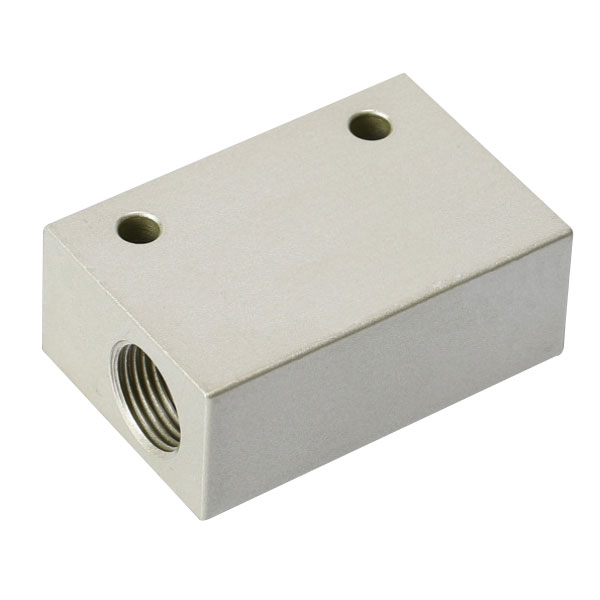

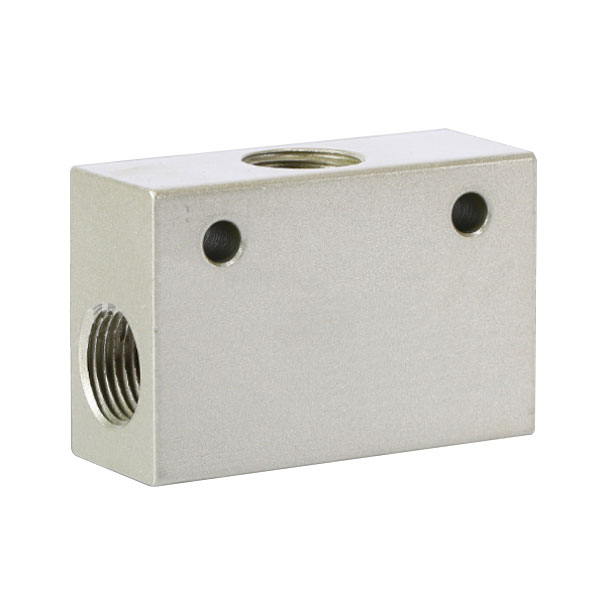

KV Pneumatic Shuttle Valve is equivalent to two check valves. It has two input ports and one output port. In the pneumatic system, it can be used in both the execution loop and the control loop to make a logical "or". effect.

Port Size: G1/8,G1/4,G3/8,G1/2,G3/4,G1
Proof Pressure: 0.9~1.5MPa
Working Environment Temperature: -5~60℃
Material: Aluminum Alloy

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Pneumatic Shuttle Valve KV

KV Pneumatic Shuttle Valve is equivalent to two check valves. It has two input ports and one output port. In the pneumatic system, it can be used in both the execution loop and the control loop to make a logical "or". effect.

Technical Parameters for Pneumatic Shuttle Valve KV

Port Size: G1/8,G1/4,G3/8,G1/2,G3/4,G1
Proof Pressure: 0.9~1.5MPa
Working Environment Temperature: -5~60℃
Material: Aluminum Alloy

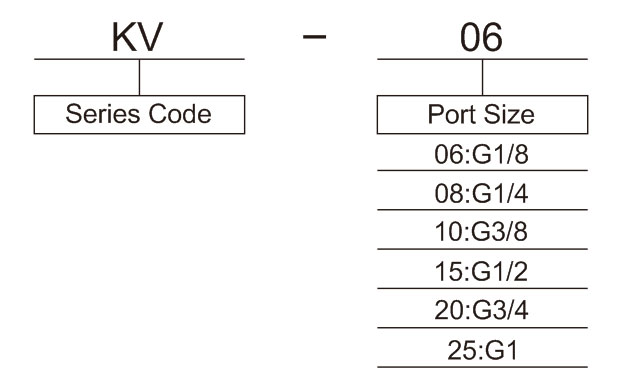

Ordering Code for Pneumatic Shuttle Valve KV

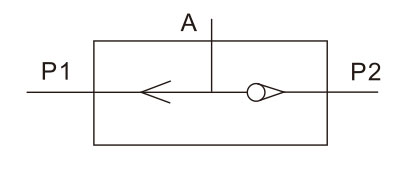

Symbol for Pneumatic Shuttle Valve KV

Technical Parameter for Pneumatic Shuttle Valve KV

Model KV-06 KV-08 KV-10 KV-15 KV-20 KV-25
Working Medium Compressed Air
Port Size G1/8 G1/4 G3/8 G1/2 G3/4 G1
Effective sectional area (mm²) 10 10 21 21 47 47
Cv value 0.56 0.56 1.17 1.17 2.6 2.6
Max. Operating Pressure 0.9MPa
Proof Pressure 1.5MPa
Operating temp. range -5~60℃
Main parts material Aluminium Alloy

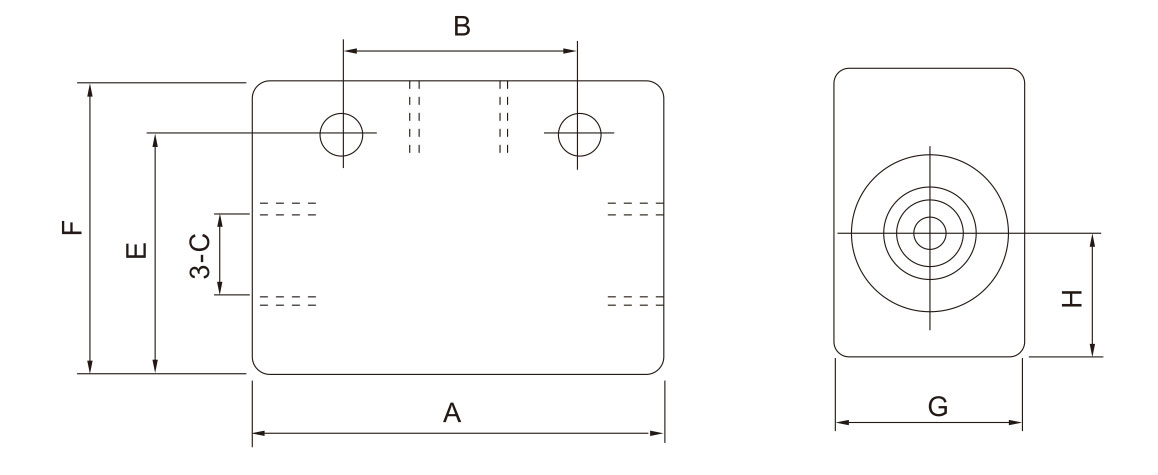

Overall Dimension

Model A B C E F G H
KV-06 40 25 G1/8 21 26 16 8
KV-08 52 35 G1/4 25 35 22 11
KV-10 70 48 G3/8 40 50 30 18
KV-15 75 48 G1/2 40 50 30 18
KV-20 110 72 G3/4 58 70 40 22
KV-25 110 72 G1 58 70 40 22
