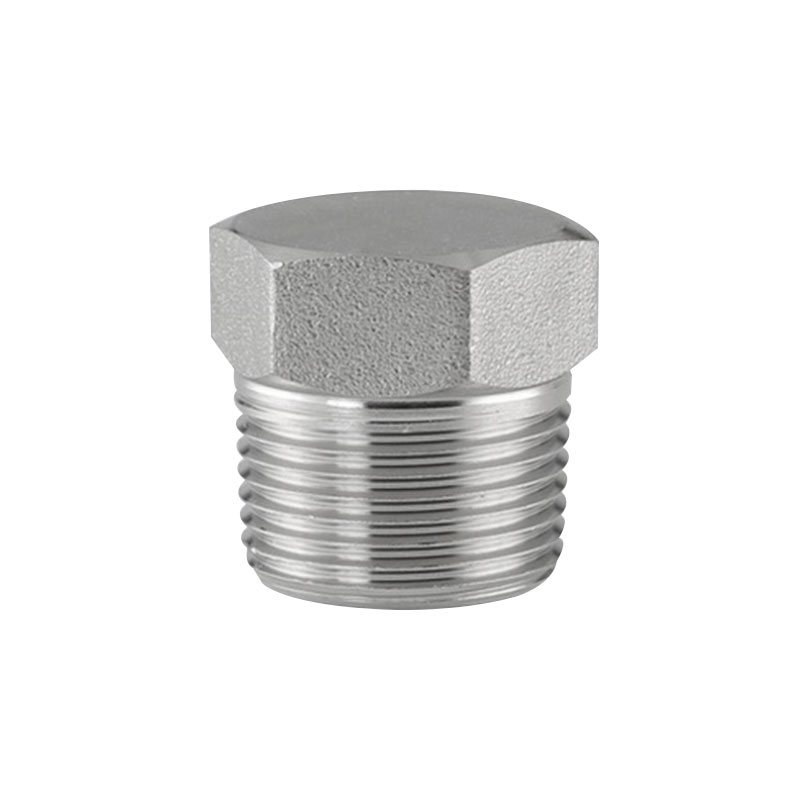

Plug: DT for Shoes Machinery Joint
| Model |
A |
B |
C |
D |
| DT-5 |
M5 |
4.5 |
3.5 |
8 |
| DT-01S |
1/8" |
8 |
3 |
12 |
| DT-02S |
1/4" |
12 |
3 |
14 |
| DT-03S |
3/8" |
12 |
3 |
17 |
| DT-04S |
1/2" |
14 |
4 |
22 |
| DT-06S |
3/4" |
16 |
4 |
27 |
Thread Reducing Joint (Shoes Machinery Thickening Joint): H□-F□ (big male and small female)
| Model |
A |
B |
C |
D |
E |
| H01S-F5 |
1/8" |
M5 |
7 |
4 |
12 |
| H02S-F01 |
1/4" |
1/8" |
10 |
5 |
17 |
| H03S-F01 |
3/8" |
1/8" |
10 |
5 |
19 |
| H03S-F02 |
3/8" |
1/4" |
10 |
5 |
19 |
| H04S-F01 |
1/2" |
1/8" |
12 |
7 |
22 |
| H04S-F02 |
1/2" |
1/4" |
12 |
7 |
22 |
| H04S-F03 |
1/2" |
1/8" |
12 |
7 |
22 |
Thread Reducing Joint (Shoes Machinery Thickening Joint): H□-F□ (small male and big female)
| Model |
A |
B |
C1 |
C2 |
D |
E |
| H5-F01 |
M5 |
1/8" |
8 |
5 |
10 |
12 |
| H01S-F02 |
1/8" |
1/4" |
11 |
7 |
13 |
17 |
| H02S-F03 |
1/4" |
3/8" |
12 |
9 |
15 |
19 |
| H03S-F04 |
3/8" |
1/2" |
12 |
11 |
15 |
24 |
| H04S-F06 |
1/2" |
3/4" |
13 |
12 |
16 |
32 |
Shoes Machinery Joint Double Female Thread Joint: F□-F□
| Model |
A |
L |
S |
| F5-F5 |
M5 |
11 |
8 |
| F01-F01 |
1/8" |
15 |
14 |
| F02-F02 |
1/4" |
22 |
17 |
| F03-F03 |
3/8" |
24 |
22 |
| F04-F04 |
1/2" |
30 |
26 |
Shoes Machinery Joint Double Male Thread Joint: H□-H□
| Model |
A |
B |
C |
D |
E |
Hex across flats H |
| H5-H5 |
M5×0.8 |
M5×0.8 |
5 |
5 |
4 |
8 |
| H5-H01S |
M5×0.8 |
1/8" |
5 |
7 |
5 |
12 |
| H01S-H01S |
1/8" |
1/8" |
7 |
7 |
4 |
12 |
| H01S-H02S |
1/8" |
1/4" |
7 |
10 |
5 |
14 |
| H01S-H03S |
1/8" |
3/8" |
7 |
10 |
5 |
19 |
| H02S-H02S |
1/4" |
1/4" |
10 |
10 |
5 |
14 |
| H02S-H03S |
1/4" |
3/8" |
10 |
10 |
5 |
19 |
| H02S-H04S |
1/4" |
1/2" |
10 |
12 |
6 |
22 |
| H03S-H03S |
3/8" |
3/8" |
10 |
10 |
6 |
19 |
| H03S-H04S |
3/8" |
1/2" |
10 |
12 |
7 |
22 |
| H04S-H04S |
1/2" |
1/2" |
12 |
12 |
7 |
22 |
| H04S-H06S |
1/2" |
3/4" |
12 |
15 |
8 |
27 |
| H06S-H06S |
3/4" |
3/4" |
12 |
15 |
8 |
27 |
*We can customize non-standard products
