Precision Slide Table Pneumatic Cylinder STM

STM Slide Table Cylinder is miniature cylinder with guide rods which have a wide range of installation freedom and product types. STM Slide Table Cylinder is available in two types sliding bearings and rolling bearings suitable for different uses.

Bore: 10, 16, 20, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~500mm/s
Ambient and fluid temperature: -20~+70°C

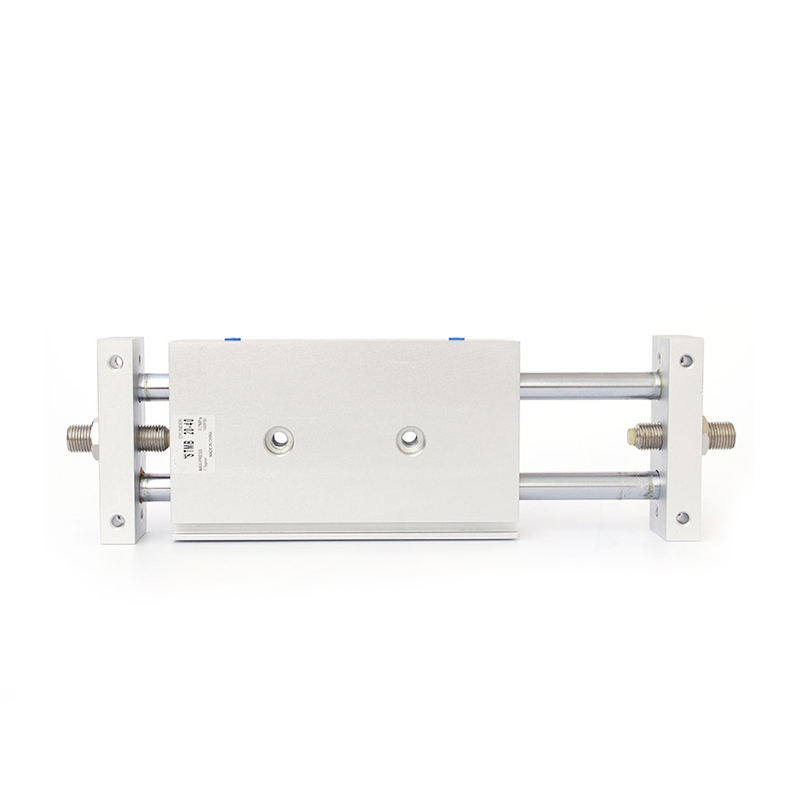

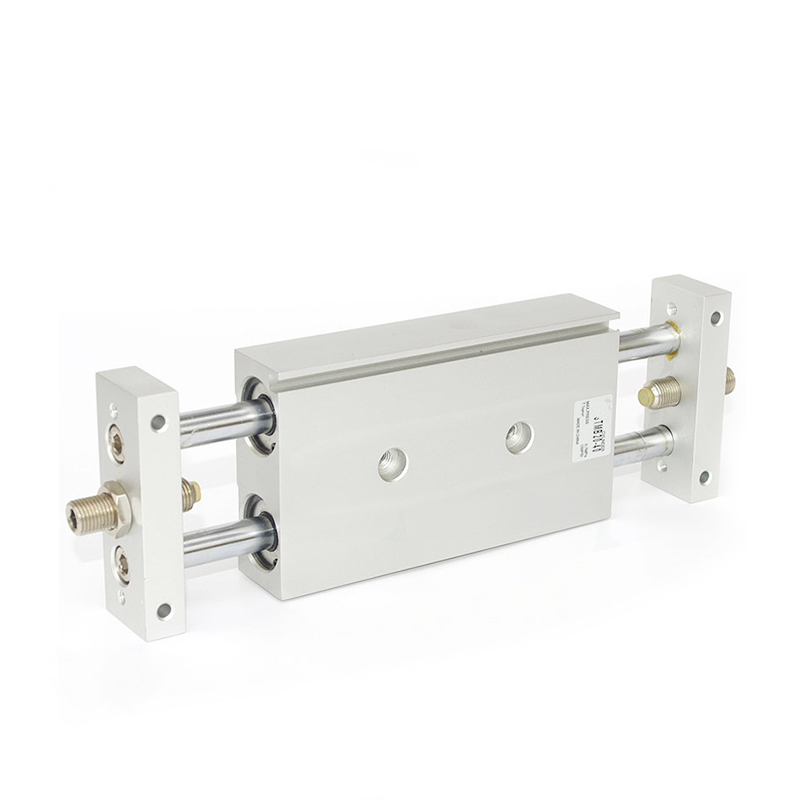

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for STM Slide Table Cylinder

STM Slide Table Cylinder is miniature cylinder with guide rods which have a wide range of installation freedom and product types, and taking into account the ease of use and ease of selection.
STM Slide Table Cylinder is available in two types sliding bearings and rolling bearings suitable for different uses. The non-rotation accuracy of the piston rod of the rolling bearing type (STM-B) is ±0.08mm. STM Slider has a structure with high rigidity and excellent lateral load resistance.
As a STM Slide Table Cylinder, it is very space-saving. In addition to the front side, the piping direction can be concentrated from the rear end. The piping is simple, the cylinder switch has higher visibility and can be mounted to the side of the cylinder. Even in a narrow space, multiple cylinders can be arranged side by side. STM Slider is most suitable for small parts conveying production lines, as well as positioning, clamping, pressing, lifting, pushing and other purposes.

Product Feature for STM Slide Table Cylinder

1. 2 mounting forms: body mounting or slider mounting;
2. Double piston rod structure makes the STM Slider have better bending and torsion resistance, and can bear larger movement load and lateral load;
3. Ends cushion or hydraulic buffer and other buffer device, can effectively slow down the impact speed, extend the service life of the cylinder;
4. Choose high temperature sealing material, to ensure that the Precision Slide Table at 150 degrees of normal work.

Specification for STM Slide Table Cylinder

Bore (mm) 10 16 20 25
Motion Pattern Double-acting
Working Medium Air
Operating Pressure Range 0.1~1.0MPa(14~145Psi)
Proof Pressure 1.5MPa(215Psi)
Ambient Temp. -20~70℃
Operating Speed Range 30~500mm/s
Stroke tolerance range +1.0/0
Buffer Type NO Crash pad or hydraulic buffer (optional)
Non-rotation Accuracy ±0.1° ±0.05°
Port Size M5×0.8 PT1/8

Stroke for STM Slider

Bore (mm) Standard Stroke (mm) Max Stroke Allowable Stroke
10 25 50 75 100 100 150
16 25 50 75 100 125 150 175 200 200 250
20, 25 25 50 75 100 125 150 175 200 250 250 300

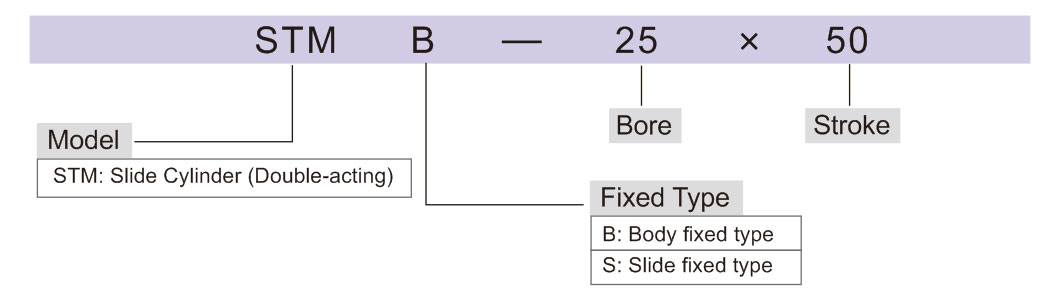

Ordering Code for STM Slider

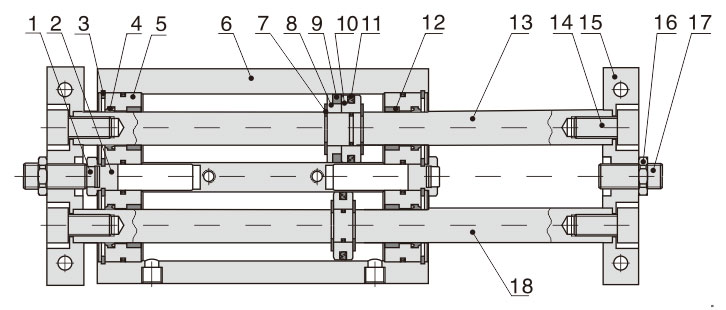

Inner structure and material of major parts

(Take STMB for example)

No. Item Material No. Item Material No. Item Material
1 Crash pad NBR 7 E-Retaining Ring Spring Steel 13 Piston Rod Stainless Steel
2 Screw Medium Carbon Steel 8 Magnet Base Aluminium Alloy 14 Hex Socket Screw Medium Carbon Steel
3 C-Retaining Ring Spring Steel 9 Magnet Terres Rares 15 Fixed plate Medium Carbon Steel
4 Front Cover O-ring NBR 10 Piston Aluminium Alloy 16 Hex Nut Medium Carbon Steel
5 Front Cover Aluminium Alloy 11 Piston O-ring NBR 17 Set Screw Medium Carbon Steel
6 Body Aluminium Alloy 12 Bushing Wear Material 18 Piston Rod Medium Carbon Steel

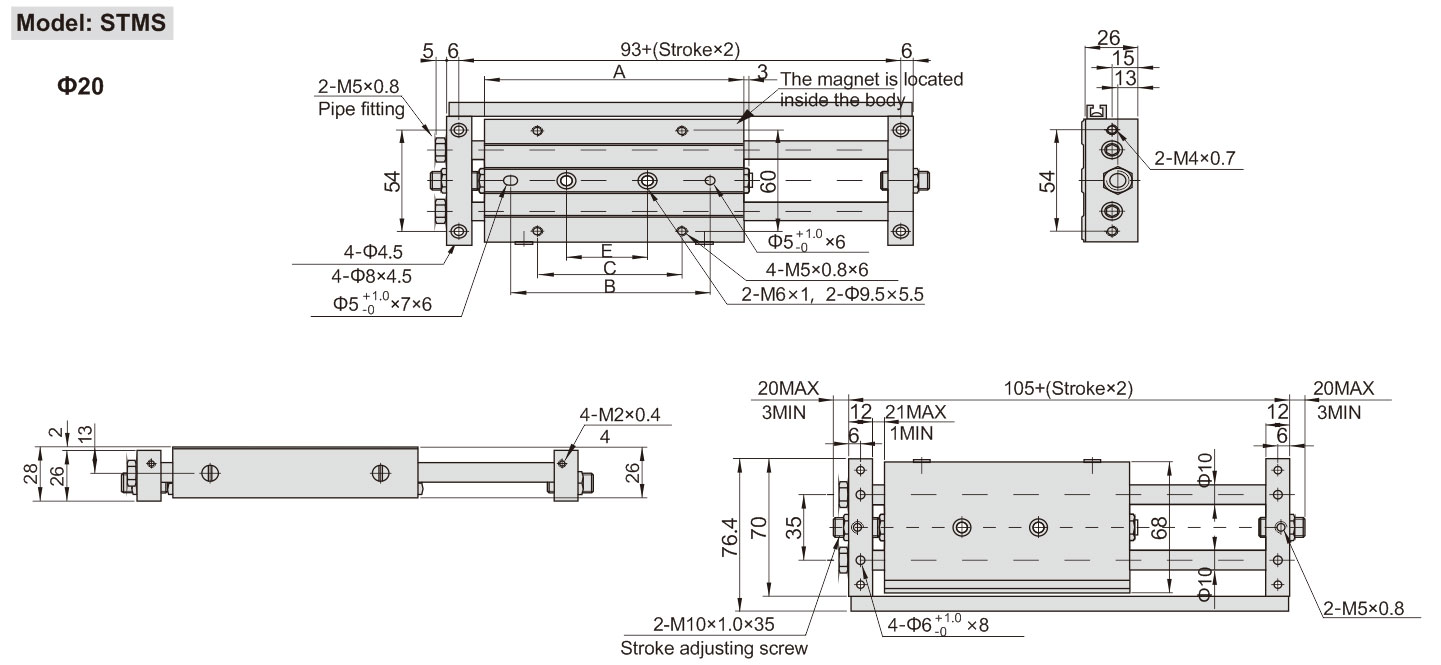

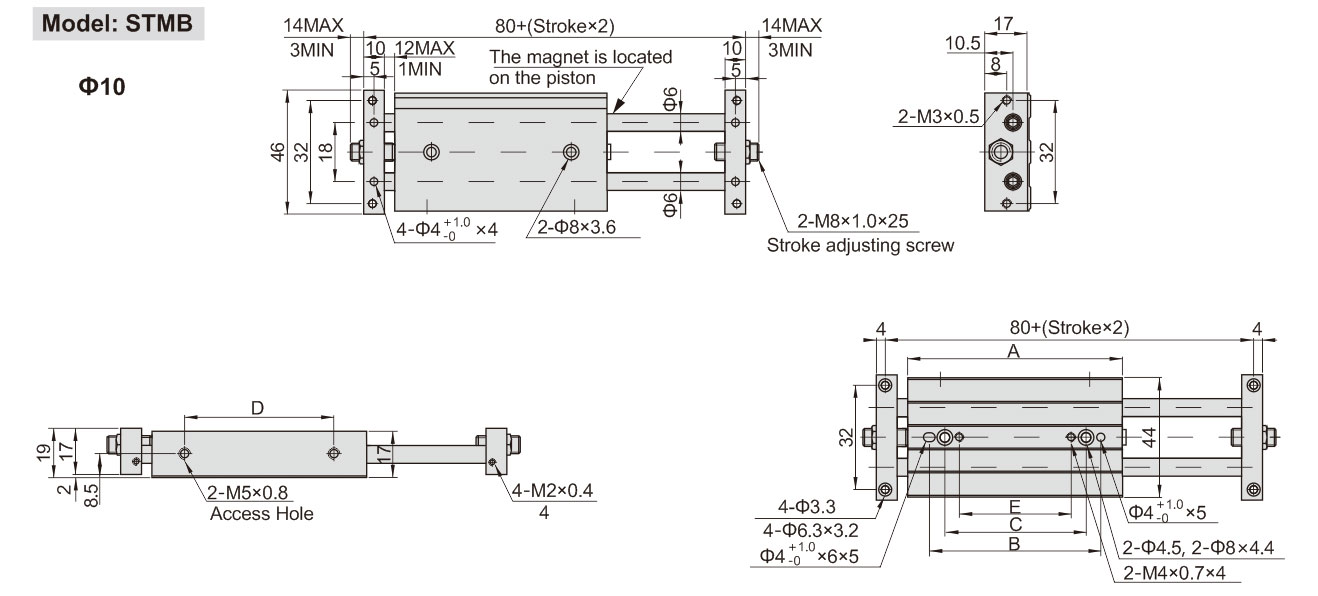

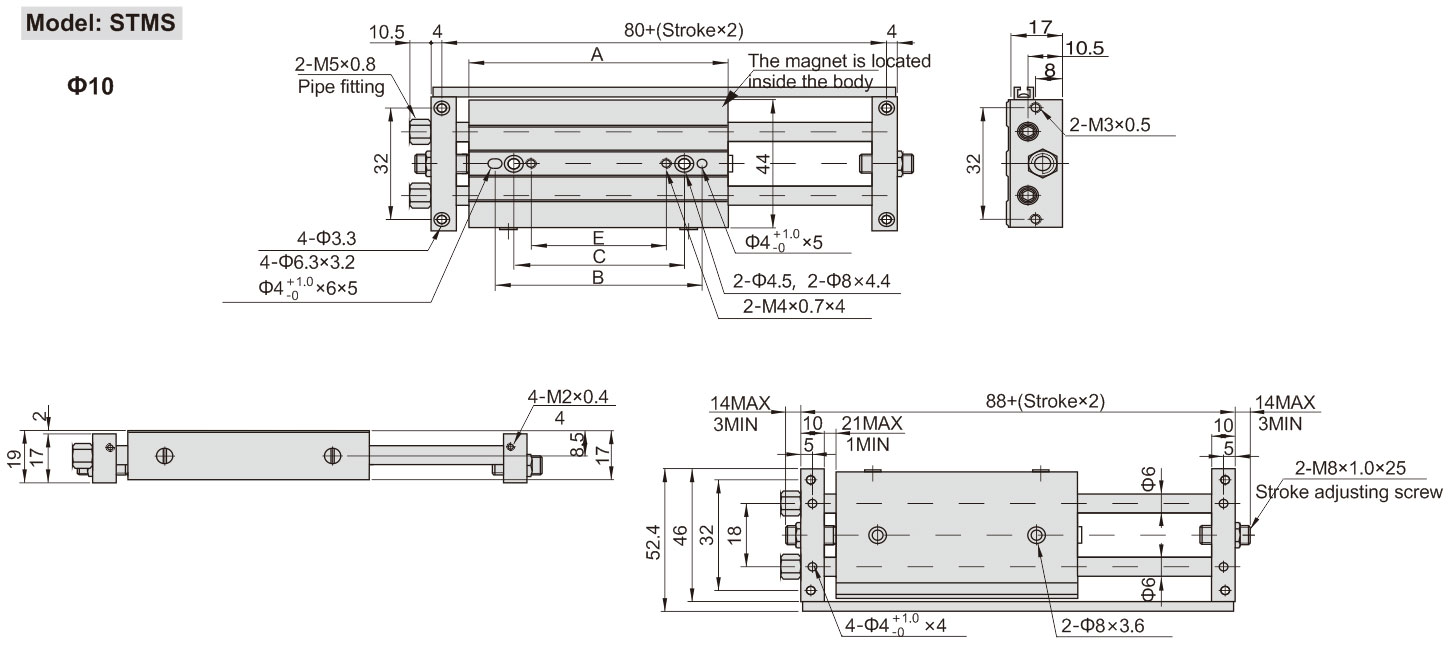

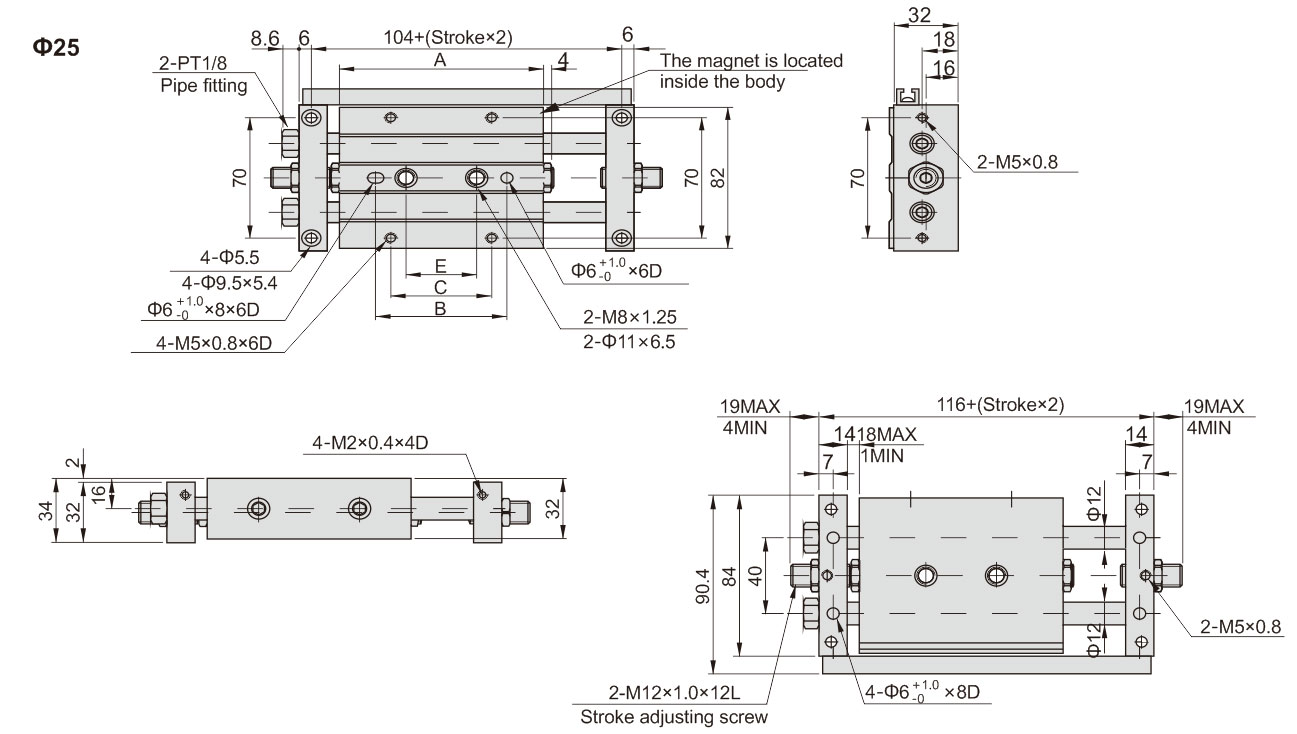

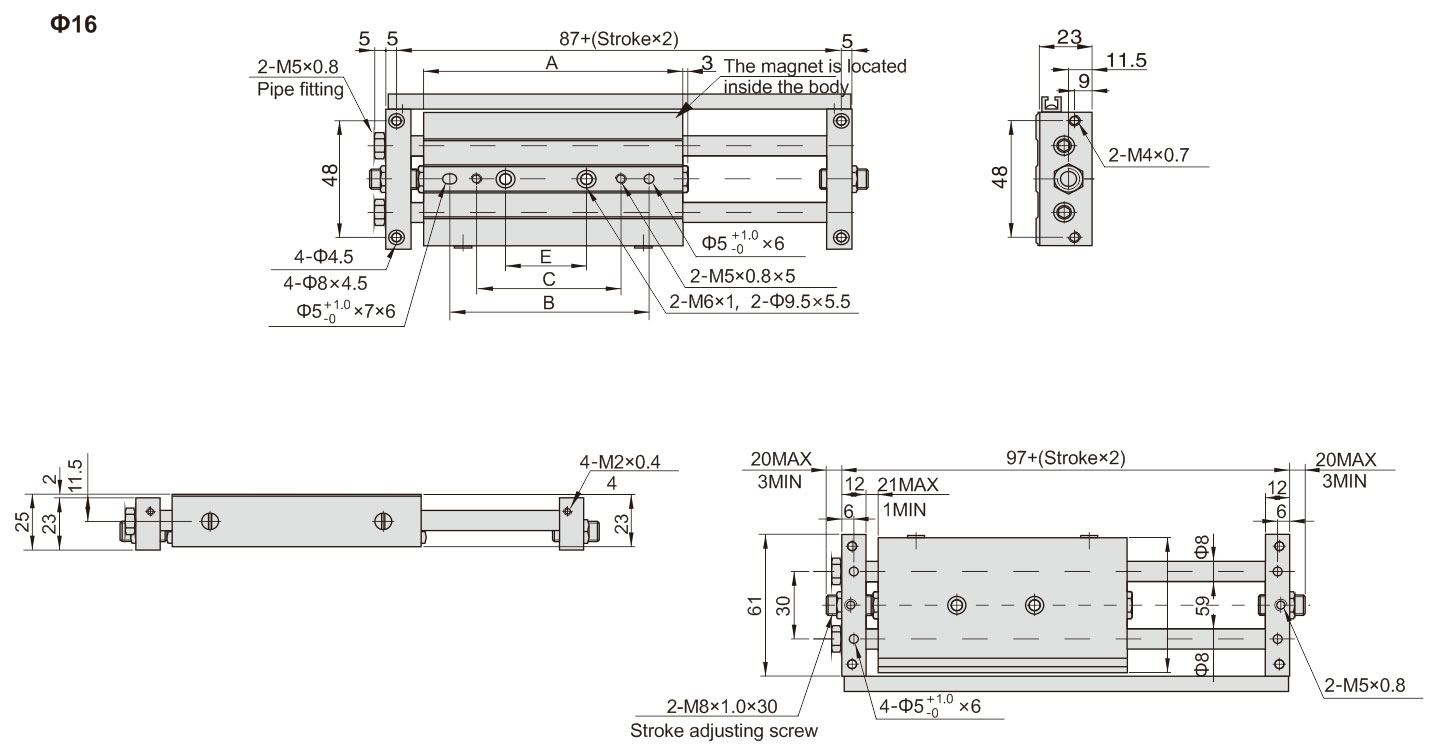

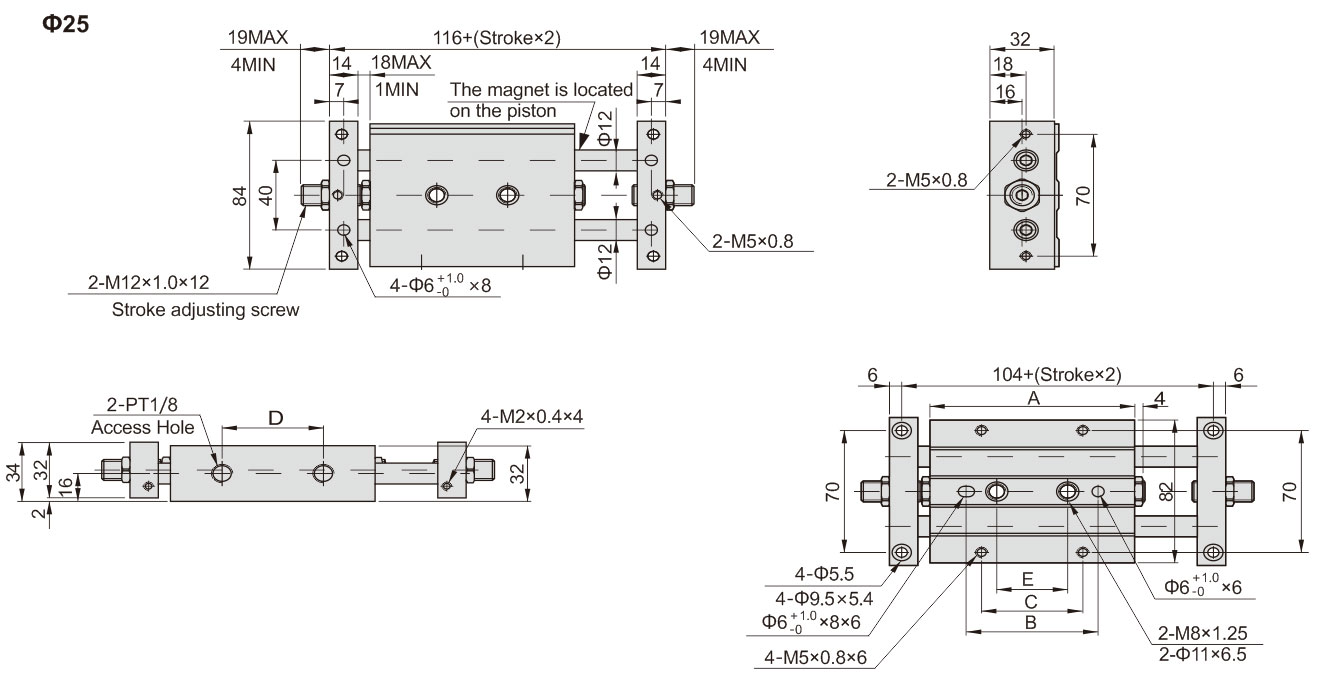

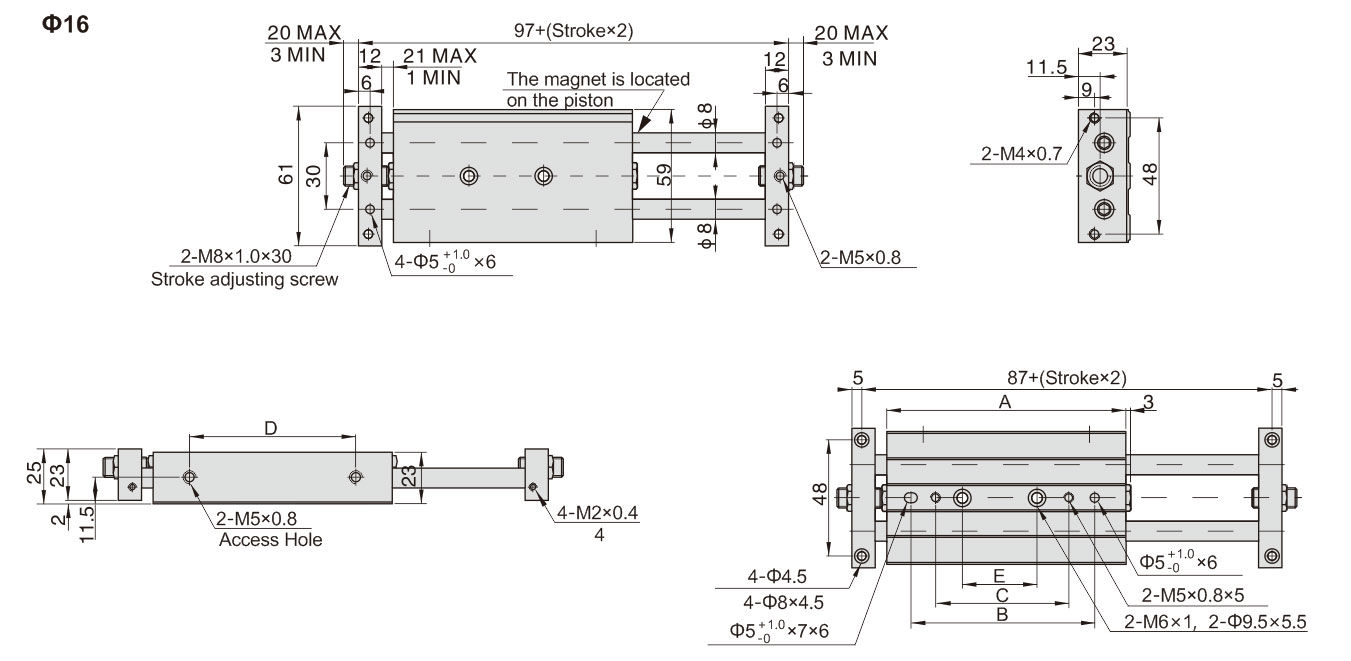

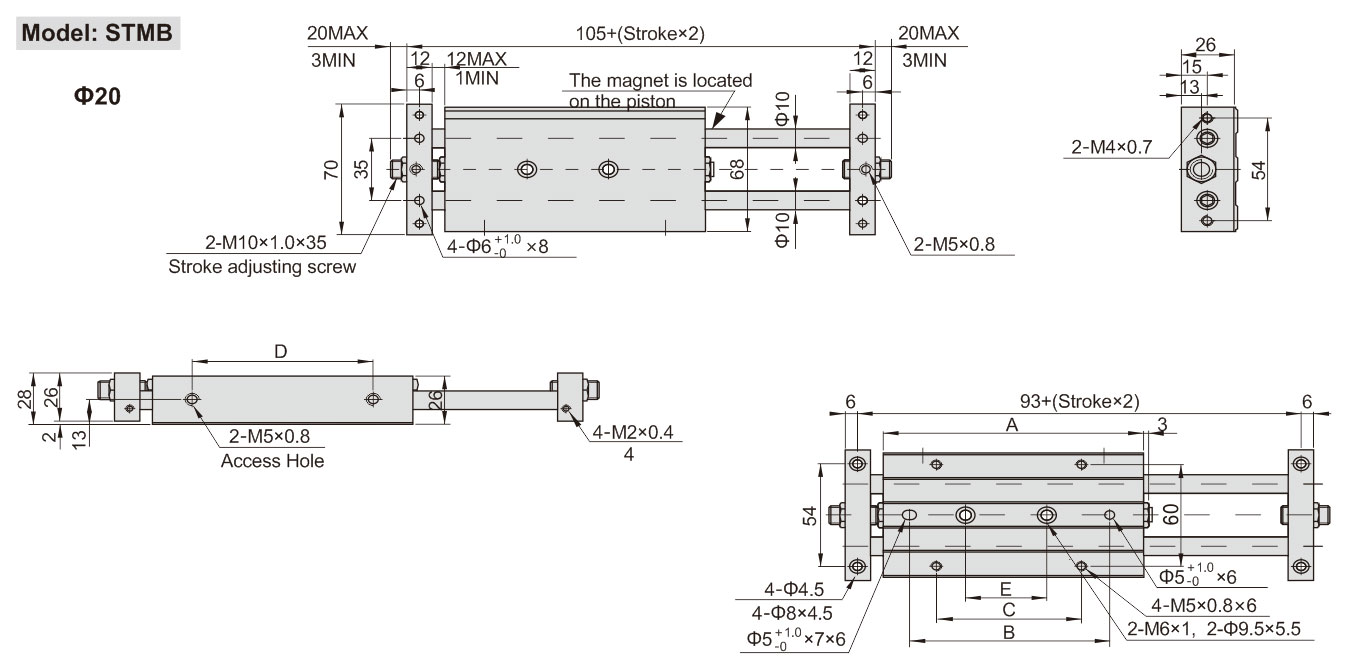

External Specification

Bore/Symbol 25 50 75 100
A 81 106 131 156
B 65 85 85 85
C 35 60 60 60
D 46 71 96 121
E 15 40 40 40

Bore/Symbol A B C D E
25 86 55 - 48 25
50 111 80 - 73 50
75 136 105 75 98 45
100 161 130 100 123 70
125 186 150 120 148 90
150 211 150 120 173 90
175 236 150 120 198 90
200 261 150 120 223 90

Bore/Symbol A B C D E
25 94 60 50 53 25
50 119 85 50 78 45
75 144 110 75 103 45
100 169 135 100 128 70
125 194 150 120 153 90
150 219 150 120 178 90
175 244 150 120 203 90
200 269 150 120 228 90
250 319 150 120 278 90

Bore/Symbol A B C D E
25 101 65 50 50 35
50 126 90 50 75 45
75 151 115 75 100 45
100 176 140 100 125 70
125 201 140 100 150 95
150 226 140 100 175 100
175 251 140 100 200 100
200 276 140 100 225 100
250 326 140 100 275 100

Bore/Symbol A B C D E
25 81 65 35 46 15
50 106 85 60 71 40
75 131 85 60 96 40
100 156 85 60 121 40

Bore/Symbol A B C D E
25 86 55 - 48 25
50 111 80 - 73 50
75 136 105 75 98 45
100 161 130 100 123 70
125 186 150 120 148 90
150 211 150 120 173 90
175 236 150 120 198 90
200 261 150 120 223 90

Bore/Symbol A B C E
25 94 60 50 25
50 119 85 50 45
75 144 110 75 45
100 169 135 100 70
125 194 150 120 90
150 219 150 120 90
175 244 150 120 90
200 269 150 120 90
250 319 150 120 90

Bore/Symbol A B C E
25 101 65 50 35
50 126 90 50 45
75 151 115 75 45
100 176 140 100 70
125 201 140 100 95
150 226 140 100 100
175 251 140 100 100
200 276 140 100 100
250 326 140 100 100
