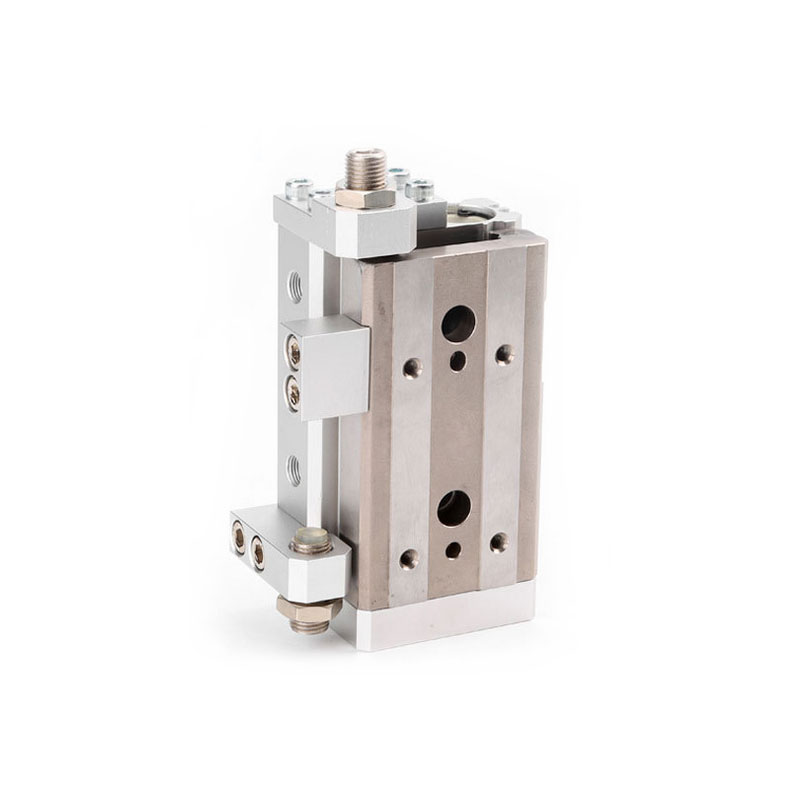

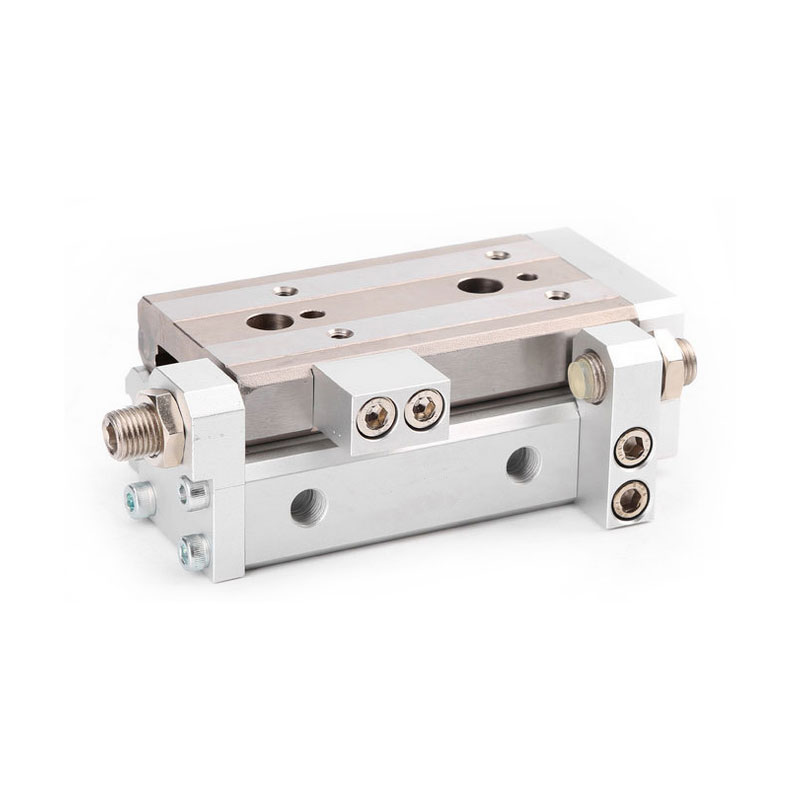

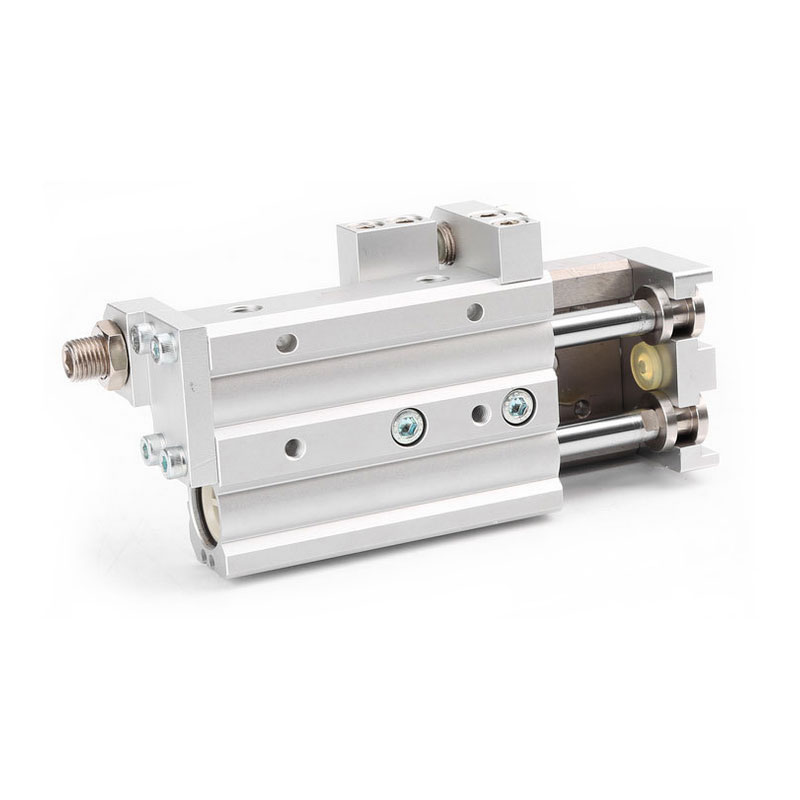

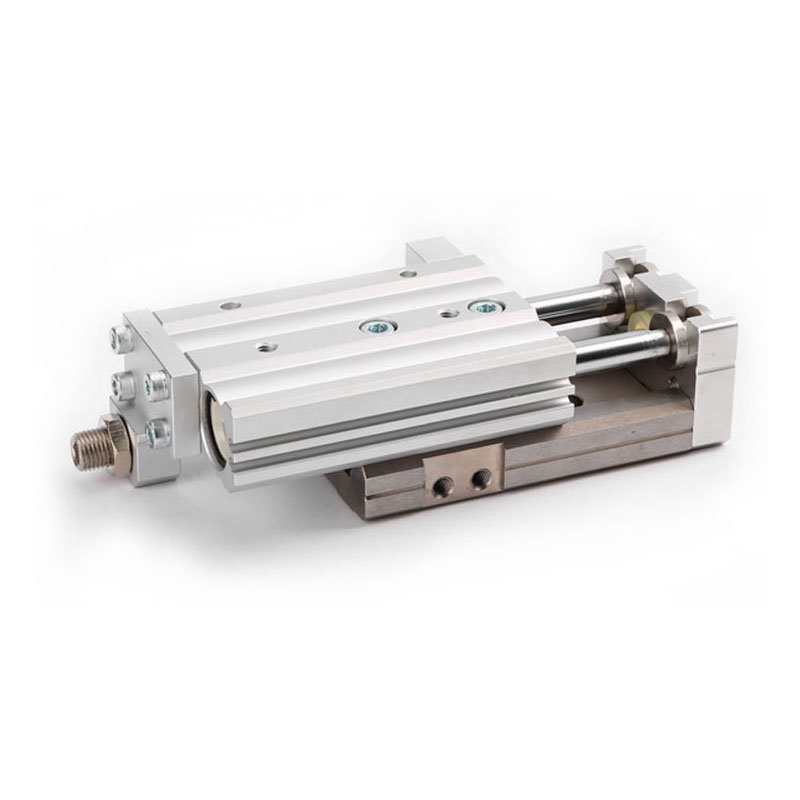

Precision Slide Table Pneumatic Cylinder MXQ

MXQ Slide Tables, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, Precision Slide Table friction is small.

Bore sizes: 6, 8, 12, 16, 20, 25 mm
Height interchangeable with legacy style MXQ
Repeatable positioning accuracy: +/-0.05 mm
Stroke adjuster options: rubber, metal stopper or shock absorber
End lock option in the event of air pressure loss

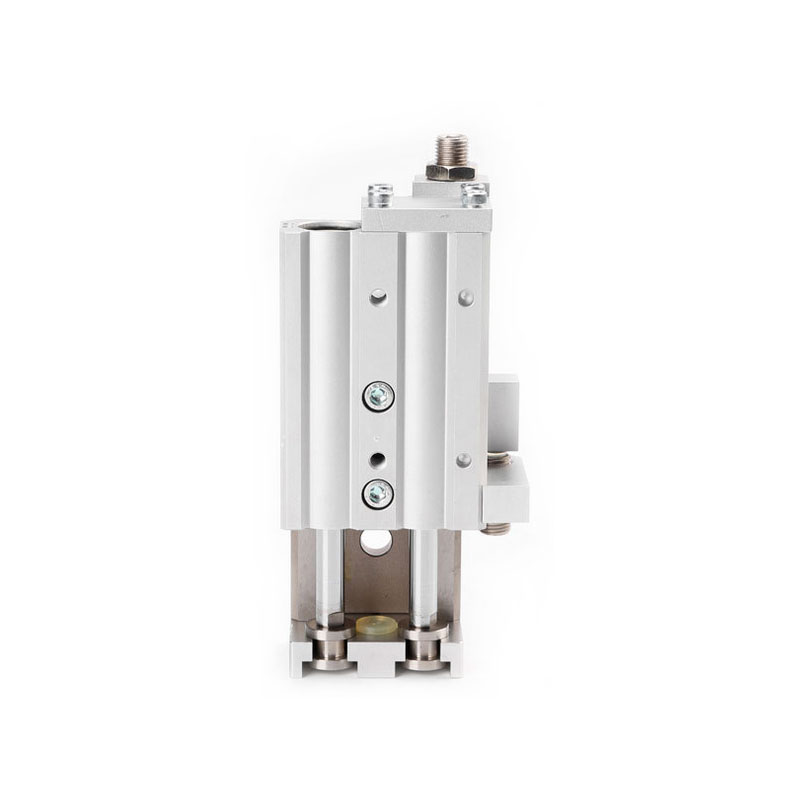

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MXQ Slide Tables

MXQ Slide Tables, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, Precision Slide Table friction is small, there is no gap between the cylinder and workbench, Air Slide Table is suitable for precision assembly; can be installed from three sides. Built in magnetic rings, magnetic switches can be installed.

Product Feature for MXQ Slide Tables

* Small size, strong and high accuracy
* Air Slide Table is the combination of small cylinder and recirculating linear guide rail
* Parallelism: 30 μm, perpendicularity: 50 μm
* Double cylinder design, 2 times output force
* Load torque is large
* Adjustable stroke (with stroke adjustment device)
* Magnetic switches can be installed in the Air Slide Table

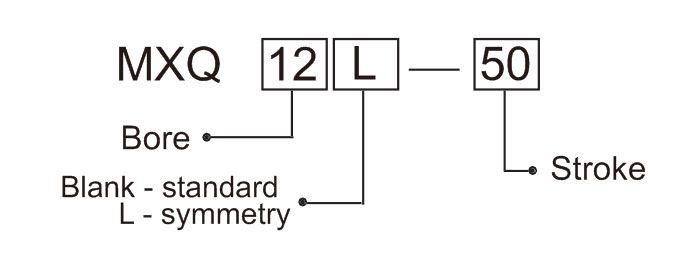

Ordering Code for MXQ Slide Tables

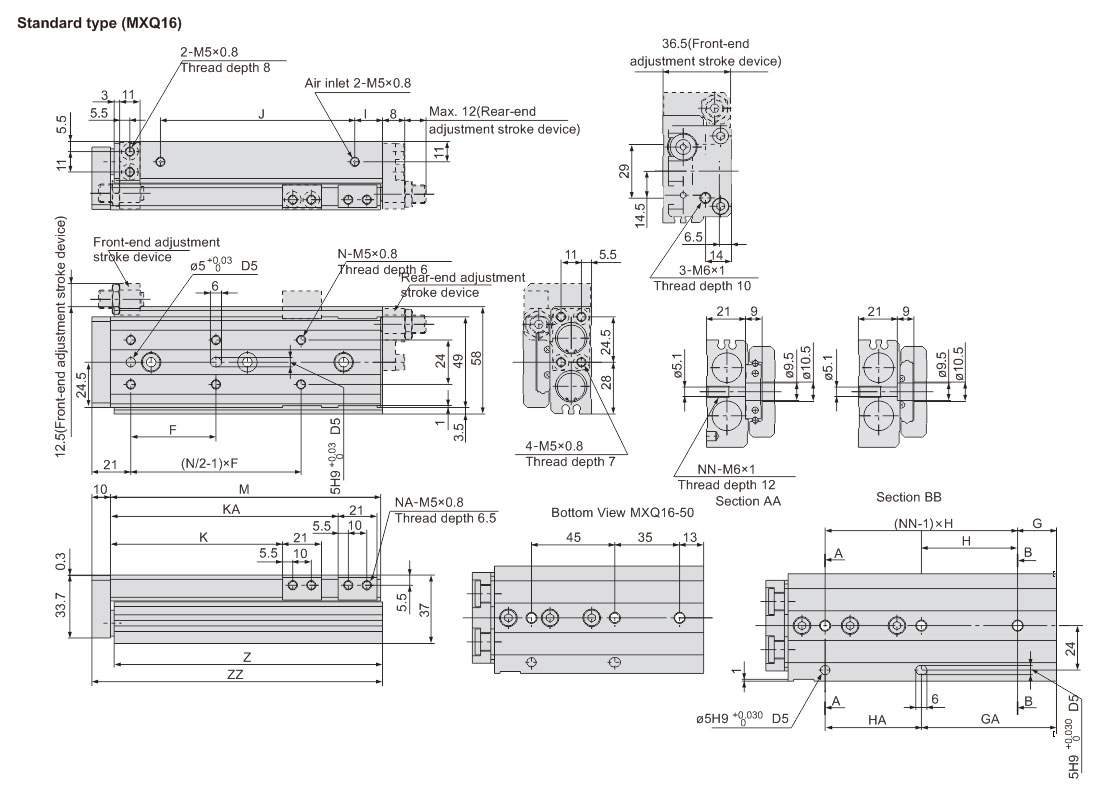

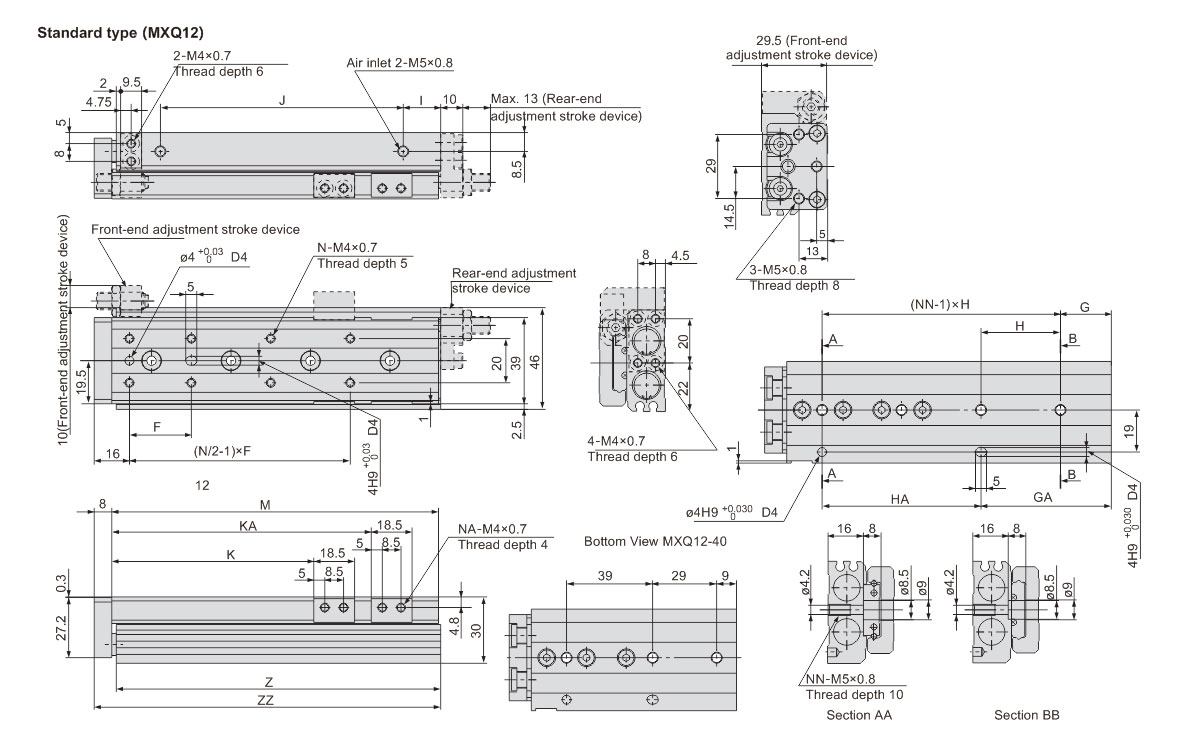

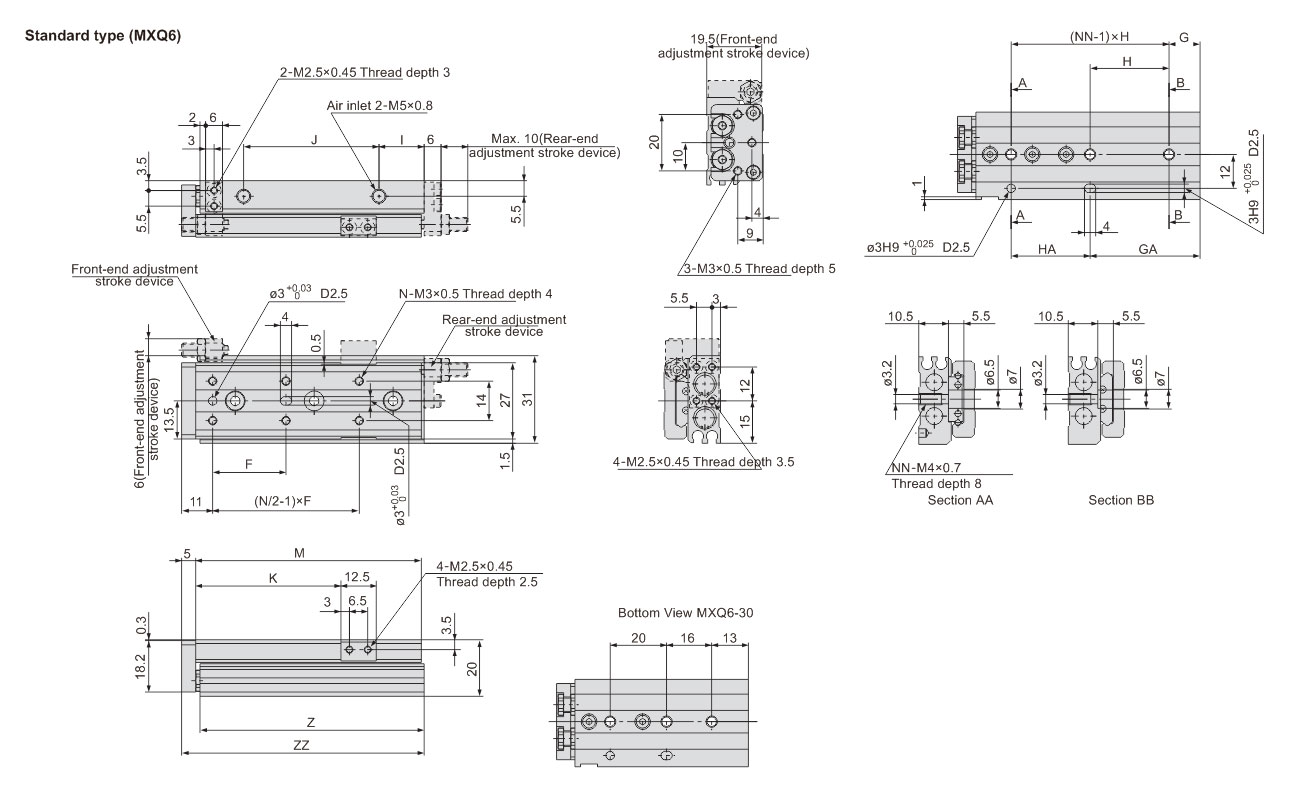

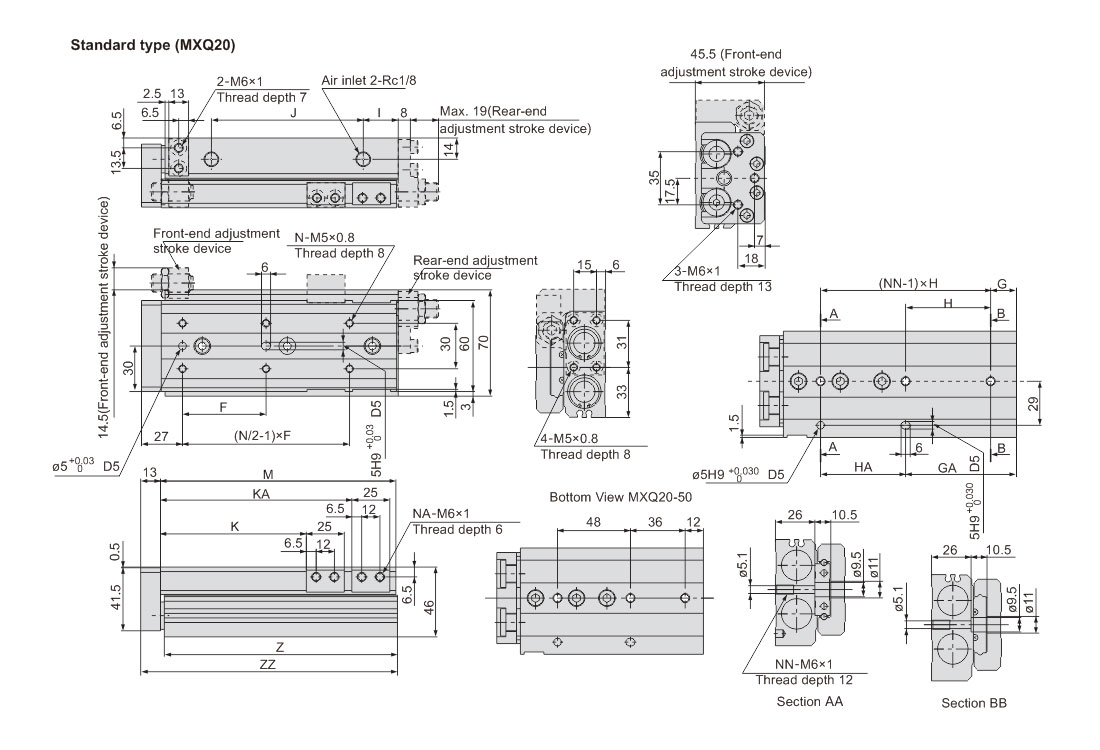

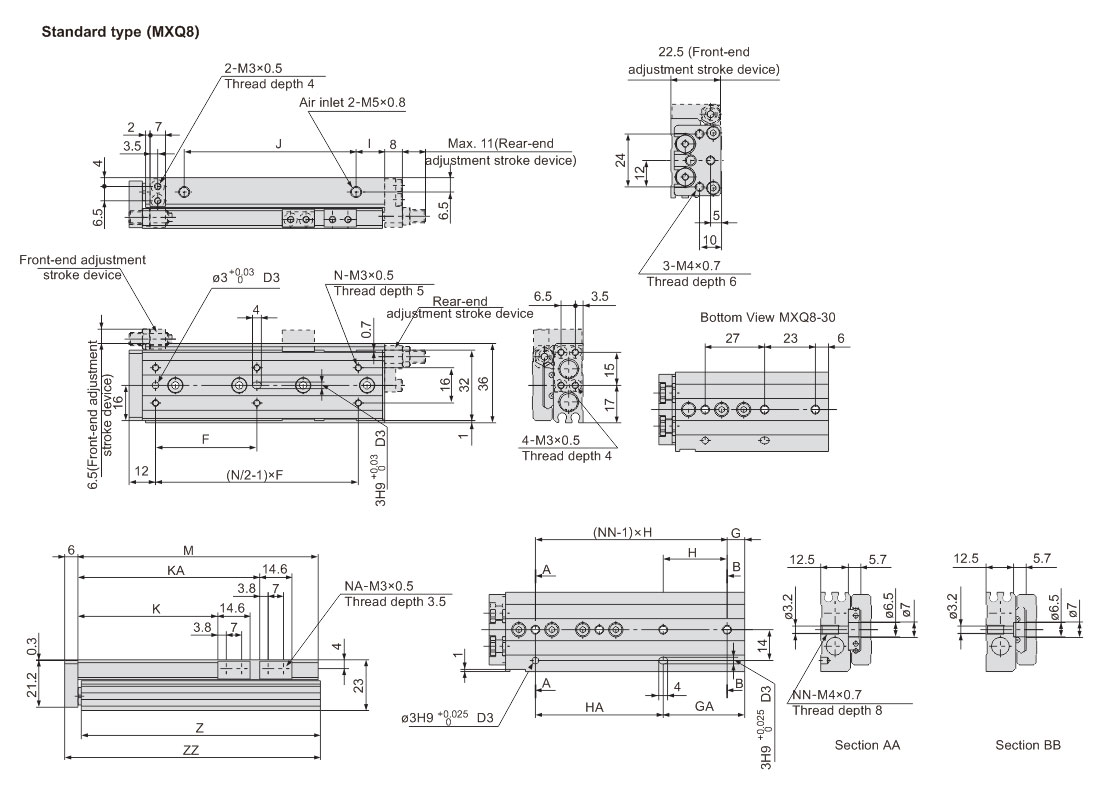

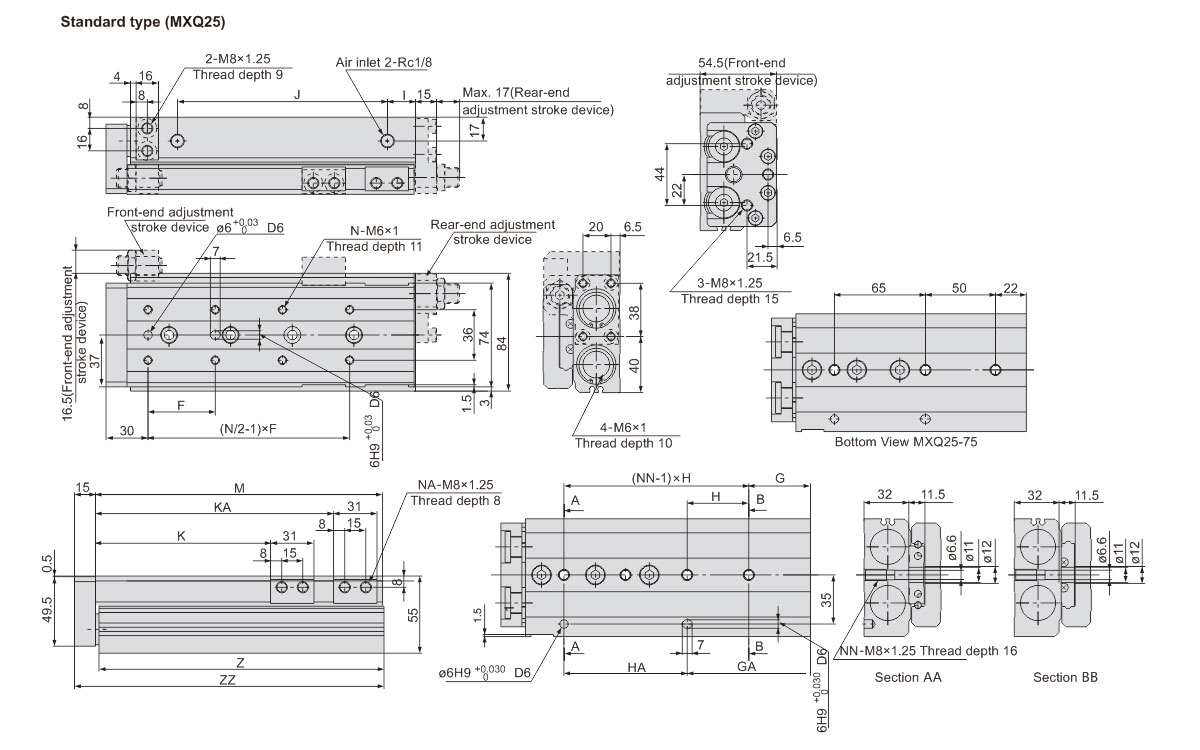

Dimension (mm) for MXQ Air Slide Table

Model F N G H NN GA HA I J K M Z ZZ
MXQ6-10 22 4 6 23 2 13 16 9 17 21.5 42 41.5 48
MXQ6-20 25 4 13 26 2 13 26 9 27 31.5 52 51.5 58
MXQ6-30 21 6 - - 3 29 20 9 37 41.5 62 61.5 68
MXQ6-40 26 6 11 28 3 39 28 16 48 51.5 80 79.5 86
MXQ6-50 27 6 21 28 3 49 28 9 65 61.5 90 89.5 96

Model F N G H NN GA HA I J K KA NA M Z ZZ
MXQ8-10 25 4 7 25 2 13 19 11 17 23.5 - 4 46 45.5 53
MXQ8-20 25 4 14 28 2 14 28 10 28 33.5 - 4 56 55.5 63
MXQ8-30 26 6 - - 3 29 27 12 40 43.5 - 4 70 69.5 77
MXQ8-40 32 6 8 31 3 39 31 14 52 53.5 - 4 84 83.5 91
MXQ8-50 46 6 8 29 4 37 58 13 78 63.5 82.5 8 109 108.5 116
MXQ8-75 50 6 31 30 4 61 60 12 105 88.5 112.5 8 135 134.5 142

Model F N G H NN GA HA I J K KA NA M Z ZZ
MXQ12-10 28 4 18 32 2 18 32 12 34 26.5 - 4 67 66 76
MXQ12-20 28 4 18 32 2 18 32 12 34 36.5 - 4 67 66 76
MXQ12-30 38 4 20 40 2 20 40 14 42 46.5 - 4 77 76 86
MXQ12-40 34 6 - - 3 38 39 15 58 56.5 - 4 94 93 103
MXQ12-50 34 6 9 39 3 48 39 13 70 66.5 - 4 104 103 113
MXQ12-75 36 8 23 36 4 59 72 17 110 91.5 117.5 8 148 147 157
MXQ12-100 36 10 12 36 5 84 72 17 135 116.5 142.5 8 173 172 182

Model F N G H NN GA HA I J K KA NA M Z ZZ
MXQ16-10 38 4 18 39 2 18 39 12 40 28 - 4 78 77 89
MXQ16-20 38 4 18 39 2 18 39 12 40 38 - 4 78 77 89
MXQ16-30 48 4 19 48 2 19 48 12 50 48 - 4 88 87 99
MXQ16-40 58 4 19 58 2 19 58 12 60 58 - 4 98 97 109
MXQ16-50 40 6 - - 3 48 45 20 68 68 91 8 114 113 125
MXQ16-75 46 6 21 52 3 73 52 15 105 93 123 8 146 145 157
MXQ16-100 44 8 36 44 4 80 88 18 145 118 166 8 189 188 200
MXQ16-125 44 10 17 44 5 105 88 23 165 143 191 8 214 213 225

Model F N G H NN GA HA I J K KA NA M Z ZZ
MXQ20-10 45 4 22 46 2 18 50 16 46 31 - 4 94 92.5 108
MXQ20-20 40 4 22 46 2 18 50 16 46 41 - 4 94 92.5 108
MXQ20-30 48 4 22 46 2 18 50 16 46 51 - 4 94 92.5 108
MXQ20-40 58 4 22 56 2 22 56 16 56 61 - 4 104 102.5 118
MXQ20-50 42 6 - - 3 48 48 18 72 71 - 4 122 120.5 136
MXQ20-75 55 6 17 56 3 73 56 23 100 96 126 8 155 153.5 169
MXQ20-100 50 8 18 56 4 74 112 25 155 121 183 8 212 210.5 226
MXQ20-125 55 8 37 59 4 96 118 18 190 146 211 8 240 238.5 254
MXQ20-150 62 8 56 62 4 118 124 21 215 171 239 8 268 266.5 282

Model F N G H NN GA HA I J K KA NA M Z ZZ
MXQ25-10 55 4 23 55 2 23 55 16 56 35 - 4 107 105.5 123
MXQ25-20 46 4 23 55 2 23 55 16 56 45 - 4 107 105.5 123
MXQ25-30 55 4 23 55 2 23 55 16 56 55 - 4 107 105.5 123
MXQ25-40 65 4 23 65 2 2 65 16 66 65 - 4 117 115.5 133
MXQ25-50 75 4 32 70 2 32 80 16 90 75 - 4 141 139.5 157
MXQ25-75 60 6 - - 3 72 65 31 100 100 - 4 166 164.5 182
MXQ25-100 48 8 44 44 4 88 88 20 125 125 170 8 205 203.5 221
MXQ25-125 60 8 31 66 4 97 132 18 150 150 223 8 258 256.5 274
MXQ25-150 65 8 56 66 4 122 132 18 175 175 248 8 283 281.5 299

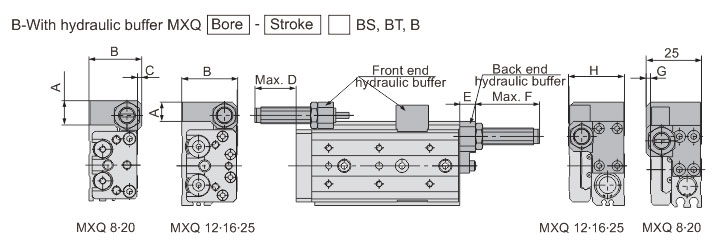

With hydraulic buffer

Model Range of stroke adjustment A B C D E F G H
Front Back
MXQ8 20 20 11.5 25 2 23 8 32 2 25
MXQ12 18 18 10 29.5 - 18 10 30 - 29.5
MXQ16 22 22 12.5 36.5 - 20 12 34 - 36.5
MXQ20 35 35 16 46.5 0.5 35 13 54 0.5 46.5
MXQ25 35 35 16.5 54.5 - 29 15 52 - 54.5

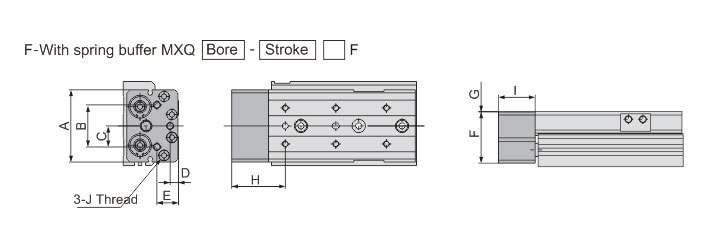

With spring buffer

Model A B C D E F G H I J
MXQ6 30 16 8 4 8 19.2 0.3 28 22 M3×0.5,5
MXQ8 34 24 12 5 10 22.2 0.3 28.5 22.5 M4×0.7,8
MXQ12 43 29 14.5 5 13 29.2 0.3 37 29 M5×0.8,8
MXQ16 54 42 21 6.5 15.5 35.7 0.3 41 30 M6×1,10
MXQ20 60 35 17.5 7 18 42.5 0.5 44.5 30.5 M6×1,12
MXQ25 74 44 22 6.5 21.5 49.5 0.5 50 35 M8×1.25,15

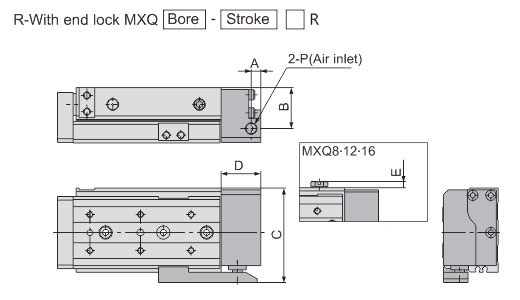

With end lock

Model A B C D E P
MXQ8 4 17.5 40.5 16 3 M5×0.8
MXQ12 5 22 51 22 3 M5×0.8
MXQ16 6 29 65.5 25 3 M5×0.8
MXQ20 8 34 78.5 33 - Rc1/8
MXQ25 8 40 94 37 - Rc1/8

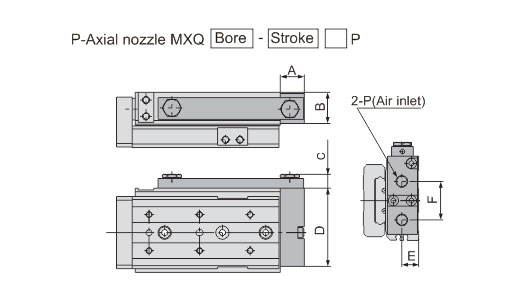

Axial nozzle

Model A B C D E F P
MXQ6 12 12.5 6.3 26 5.5 12 M5×0.8
MXQ8 12 14.5 6.3 31 6.5 15 M5×0.8
MXQ12 13 16.5 6.3 41 8.5 20 M5×0.8
MXQ16 14 21 6.3 52 11 26 M5×0.8
MXQ20 20 26 11.5 65 14 32 Rc1/8
MXQ25 20 32 11.5 79 17 40 Rc1/8
