Precision Slide Table Pneumatic Cylinder CX2

CX2 Pneumatic Slide can be arbitrarily set the buffer equipment absorbing the impact noise, Guide Cylinders are most suitable for conveying work with position accuracy requirements. Wiith magnetic switch, high non-rotation accuracy, smooth operation, large thrust.

Bore: 10, 15, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~200mm/s(Adjusting bolt); 30~500mm/s(Oil Buffer)
Ambient and fluid temperature: +5~+60°C

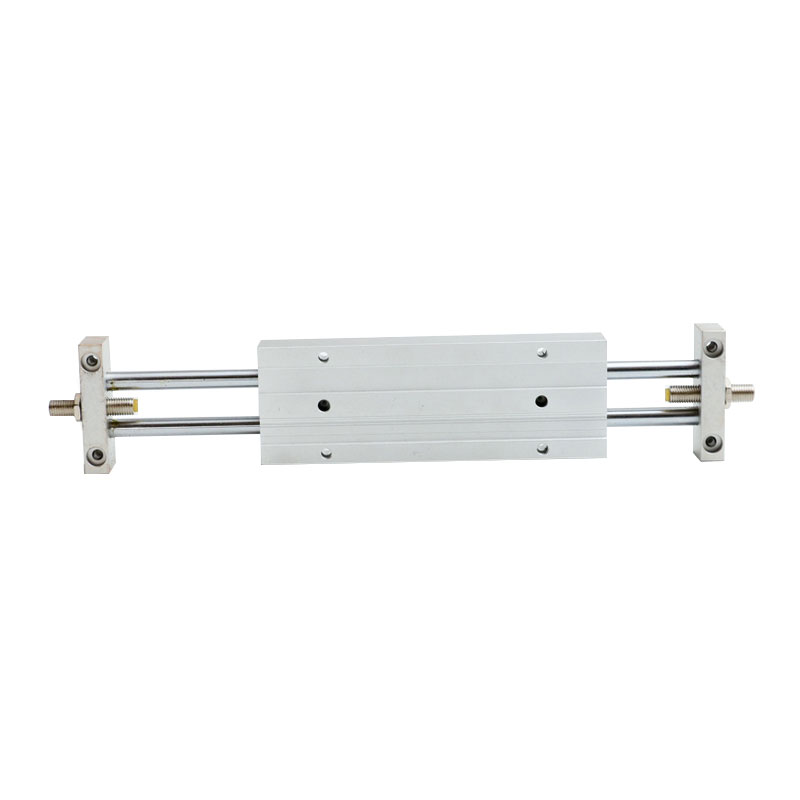

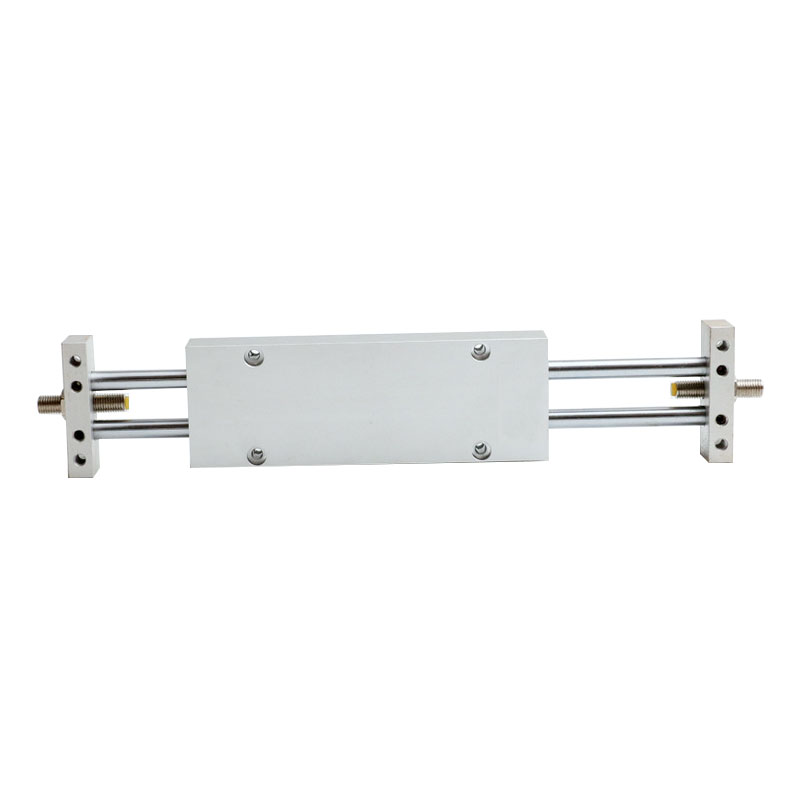

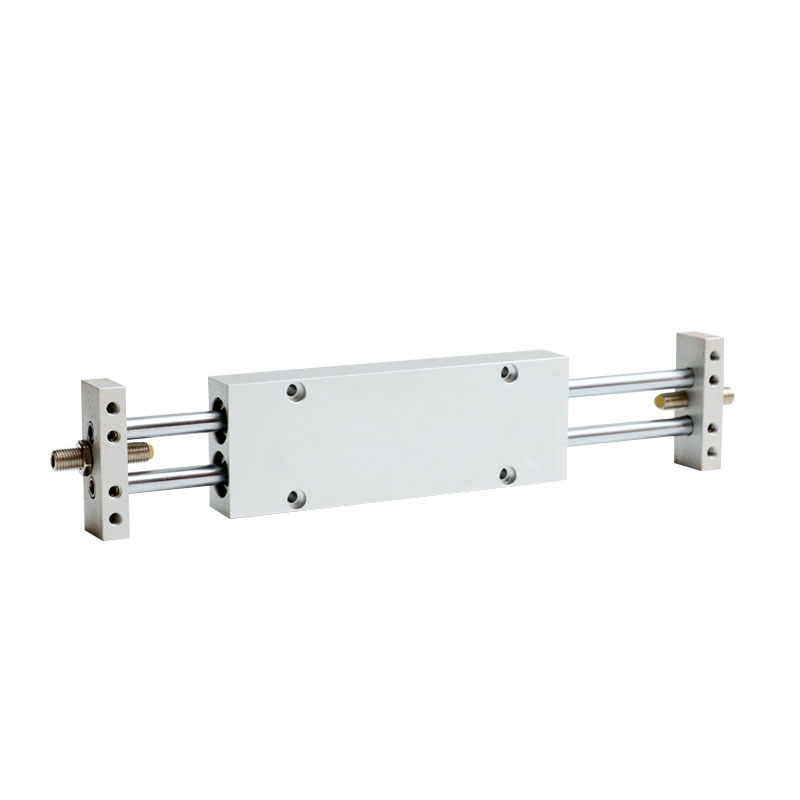

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for CX2 Pneumatic Slide

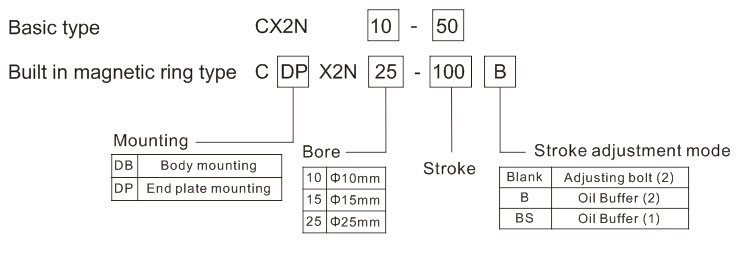

Ordering Code for CX2 Pneumatic Slide

Specification for CX2 Pneumatic Slide

Bore (mm)		10	15	25
Working Medium		Air
Motion Pattern		Double-acting
Proof Pressure		15kgf/cm² (1.5MPa)
Max. Operating Pressure		9.9kgf/cm² (0.99MPa)
Min. Operating Pressure		1.5kgf/cm² (0.15MPa)		1kgf/cm² (0.1MPa)
Ambient and Fluid Temp.		5~60℃
Piston velocity	Adjusting bolt	30~200mm/s
	Oil Buffer	30~500mm/s
Buffer		Oil Buffer (Optional)
Maximum Load		1kgf	3kgf	6kgf
*Lubrication		Non-lube
Bearing		Sliding Bearing
Non-rotating accuracy		±0.1°	±0.04°	±0.02°
Port Size Rc(PT)		M5×0.8		1/8

*For Lubrication, please use ISOVG32.

Stroke / magnetic switch selection

Bore (mm)	* Standard Stroke (mm)	** Magnetic switch
		Cylinder body mounting	End plate mounting
10	25, 50, 75, 100	D-E73AL, D-E76AL, D-E80AL	D-A72L, D-A73L, D-A76L D-A80L, D-F79L, D-J79L
15	25, 50, 75, 100, 125, 150, 175, 200	D-A72L, D-A73L, D-A76L D-A80L, D-F79L, D-J79L
25

* Φ15, Φ25, the longest stroke of the cylinder can be made to 300mm.
** Magnetic switch specifications and characteristics can refer to the series of magnetic switches.

Theoretical output table for CX2 Guide Cylinders

Model	Piston rod diameter (mm²)	Piston compression area (mm²)	Working pressure (kgf/cm²)
Model	Piston rod diameter (mm²)	Piston compression area (mm²)	2	3	4	5	6	7	8	9
CX2N10	6	1.01	2.0	3.0	4.0	5.0	6.0	7.0	8.0	9.0
CX2N15	8	2.07	4.1	6.2	8.3	10.4	12.4	14.5	16.6	18.6
CX2N25	14	5.97	11.9	17.9	23.9	29.9	35.8	41.8	47.8	53.7

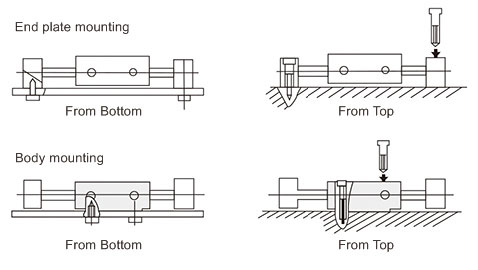

Installation method for CX2 Guide Cylinders

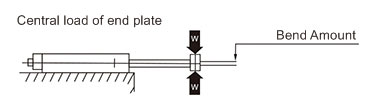

Piston rod deformation for CX2 Guide Cylinders

Model	Load (kgf)	Stroke
Model	Load (kgf)	100	200
CX2N10	1	0.07	-
CX2N15	3	0.08	0.28
CX2N25	6	0.02	0.08

Model	Load (kgf)	Stroke
Model	Load (kgf)	50	100	150	200
CX2N10	0.3	0.06	0.30	-	-
CX2N15	0.5	0.09	0.22	0.50	1.0
CX2N25	1.0	0.03	0.09	0.16	0.25

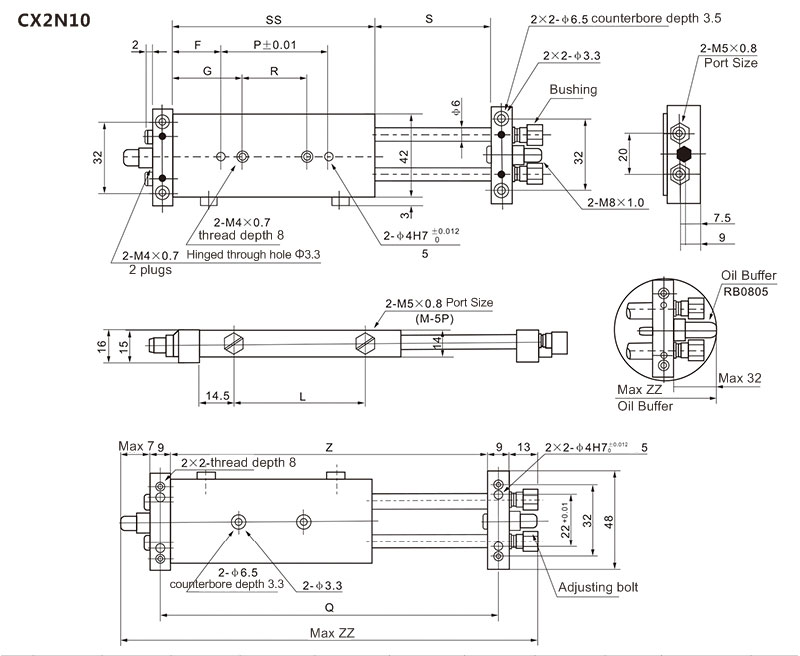

Dimension (mm): CX2N10

Model	F	G	L	P	Q	R	S	SS	Z	Adjusting bolt	Oil Buffer
Model	F	G	L	P	Q	R	S	SS	Z	ZZ	ZZ
CX2N10-25	9.5	19.5	38	48	103	28	27	67	94	132	176
CX2N10-50	20	30	63	52	153	32	52	92	144	182	226
CX2N10-75	25	35	88	67	203	48	77	117	194	232	276
CX2N10-100	25	35	113	92	253	72	102	142	244	282	326

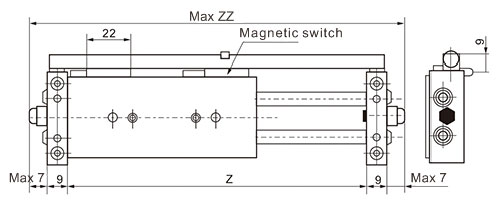

CDBX2N10 with magnetic switch, Cylinder body mounting type

Model	Z	Adjusting bolt	Oil Buffer
Model	Z	ZZ	ZZ
CDBX2N10-25	94	126	176
CDBX2N10-50	144	176	226
CDBX2N10-75	194	226	276
CDBX2N10-100	244	276	326

*This figure is based on the D-E7 or D-E8 type magnetic switch

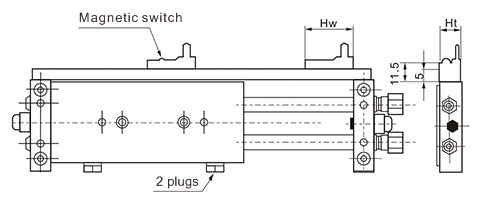

CDPX2N10 with magnetic switch, End plate mounting type

Magnetic switch type	Hw	Ht
D-A7, D-A8	22	14
D-F7, D-J7	24	15

*This figure is only for D-A7 or D-A8

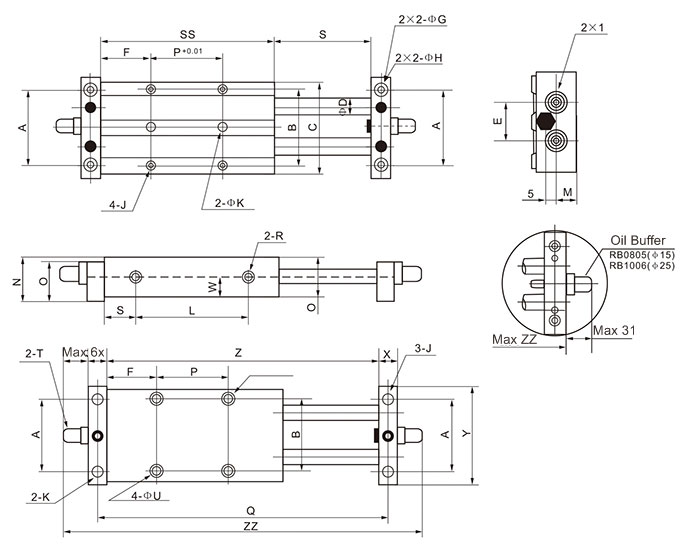

Dimension (mm): CX2N15 · 25

Model	A	B	C	ΦD	E	F	ΦG	ΦH	I	J	K	L	M	N	O	P	Q	R	S	SS	T	ΦU	ΦV	W	X	Y	Z	Adjusting bolt	Oil Buffer
Model	A	B	C	ΦD	E	F	ΦG	ΦH	I	J	K	L	M	N	O	P	Q	R	S	SS	T	ΦU	ΦV	W	X	Y	Z	ZZ	ZZ
CX2N15-25□	40	41	50	8	20	24.5	Φ8 depth 4	Φ4.3 Through hole	M5×0.8 Plug	M5×0.8 depth 10	Φ5 H7 depth 6	37	11	22	21	20	106	M5×0.8 Port Size	27	69	M8×1.0	Φ7.6 depth 4.4	Φ4.2Through hole	10	10	55	96	128	178
CX2N15-50□						24.5						62				45	156		52	94							146	178	228
CX2N15-75□						27						87				65	206		77	119							196	228	278
CX2N15-100□						27						112				90	256		102	144							246	278	328
CX2N15-125□						39.5						137				90	306		127	169							296	328	378
CX2N15-150□						52						162				90	356		152	194							346	378	428
CX2N15-175□						64.5						187				90	406		177	219							396	428	478
CX2N15-200□						77						212				90	456		202	244							446	478	528
CX2N25-25□	67	67	79	14	35	28.5	Φ9.5 depth 5	Φ5.2 Through hole	1/8 Plug	M6×1.0 depth 12	Φ6 H7 depth 8	44	18	34	32	25	125	1/8 Port Size	27	82	M10×1.0	Φ7.6 depth 5.4	Φ5.2Through hole	16	16	84	109	153	203
CX2N25-50□						31						65				45	175		52	107							159	203	253
CX2N25-75□						33.5						90				65	225		77	132							209	253	303
CX2N25-100□						33.5						115				90	275		102	157							259	303	353
CX2N25-125□						46						140				90	325		127	182							309	353	403
CX2N25-150□						58.5						165				90	375		152	207							359	403	453
CX2N25-175□						71						190				90	425		177	232							409	453	503
CX2N25-200□						83.5						215				90	475		202	257							459	503	553

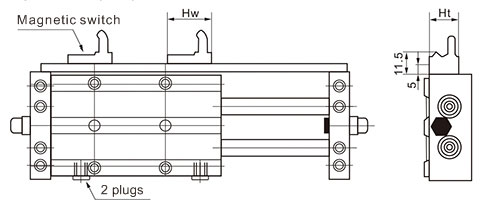

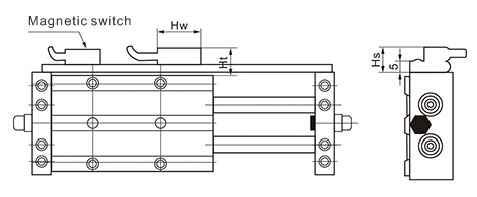

With magnetic switch, cylinder body mounting type: CDBX2N15 · 25

Magnetic switch type	Hw	Hs	Ht
D-A7, D-A8	22	11.5	14
D-F7, D-J7	24	12.5	15

With magnetic switch, end plate mounting type: CDBX2N15 · 25

Magnetic switch type	Hw	Ht
D-A7, D-A8	22	14
D-F7, D-J7	24	15
