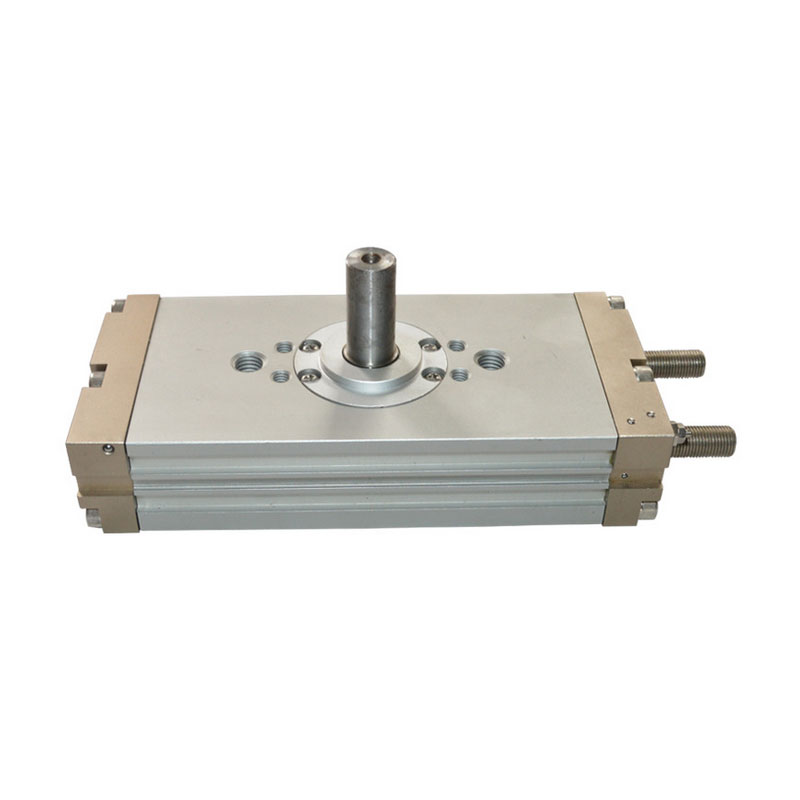

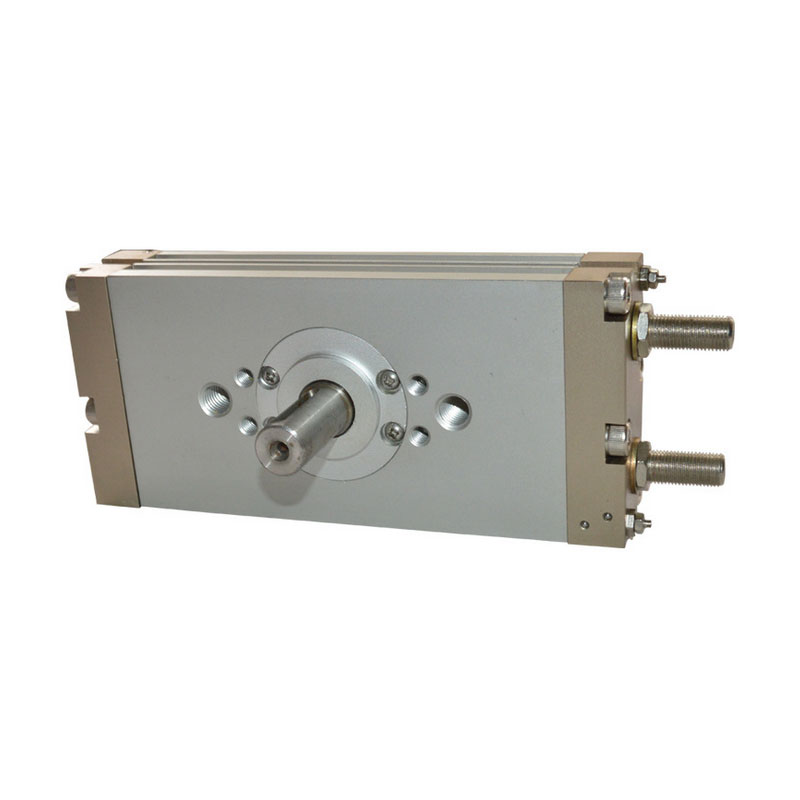

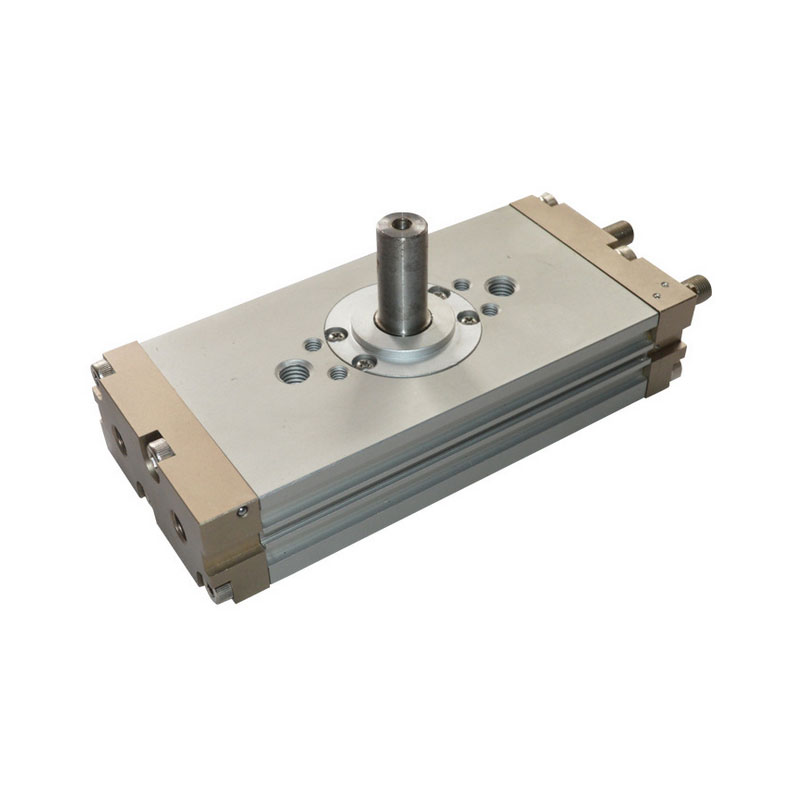

Pneumatic Rotary Actuator CRQ2

CRQ2 Rotary Actuator is a kind of pneumatic actuator which uses compressed air to drive the output shaft to make a reciprocating rotary motion within a certain angle range. CDRQ2 Rotary Actuator has the advantages of small volume, large force, space saving.

Bore: 10, 15, 20, 30, 40mm
Motion Pattern: Double-acting
Operating pressure: 0.15~0.7(bore:10, 15); 0.1~1.0(bore:20, 30, 40)
Adjustable Angle range: ±5°
Ambient and fluid temperature: 0~+60°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CRQ2 Rotary Actuator

CRQ2 Rotary Actuator is a kind of pneumatic actuator which uses compressed air to drive the output shaft to make a reciprocating rotary motion within a certain angle range. The Rotary Air Cylinder is used for the object's pulling, clamping, opening and closing of the valve, and arm movement of the robot. CDRQ2 Rotary Actuator has the advantages of small volume, large force, space saving, fast clamping speed and accurate positioning. It can basically be regarded as a kind of clamping manipulator. Used on machine tools., the machine can quickly clamp and open the workpiece. CRQ2 Rotary Actuator is suitable for the occasion where the production rhythm is fast and the workpiece processing precision is high.

Product Features for CRQ2 Rotary Actuator

* The main difference between the swing cylinder and the CRQ series is that the cylinder color is silver-white, matching the clean environment.
* Pipe can take a direction.
* With double rack, no indentation.
* The body can be used as the flange.
* The positioning hole on the body, easy to center.
* 2 magnetic switches can be mounted on the same side.

Specification for CDRQ2 Rotary Actuator

Bore (mm) 10 15 20 30 40
Working Medium Air (No Lubrication)
Motion Pattern Double-acting
Pressure Range MPa 0.15~0.7 0.1~1.0
Ambient and fluid temperature 0~60℃ (No Freezing)
Cushion Bumper Cushion No / Air Cushion
Swing Angle 80°~100°, 170°~190°
Adjustable Angle range ±5°
Output Torque (N·m) 0.3 0.75 1.8 3.1 5.3
Allowable Kinetic Energy No Cushion - - 0.025 0.048 0.081
Bumper Cushion 0.25×10-3 0.39×10-3 - - -
Air Cushion - - 0.12 0.25 0.40
Swing speed adjustable range (s/90°) 0.2~0.7 0.2~1.0

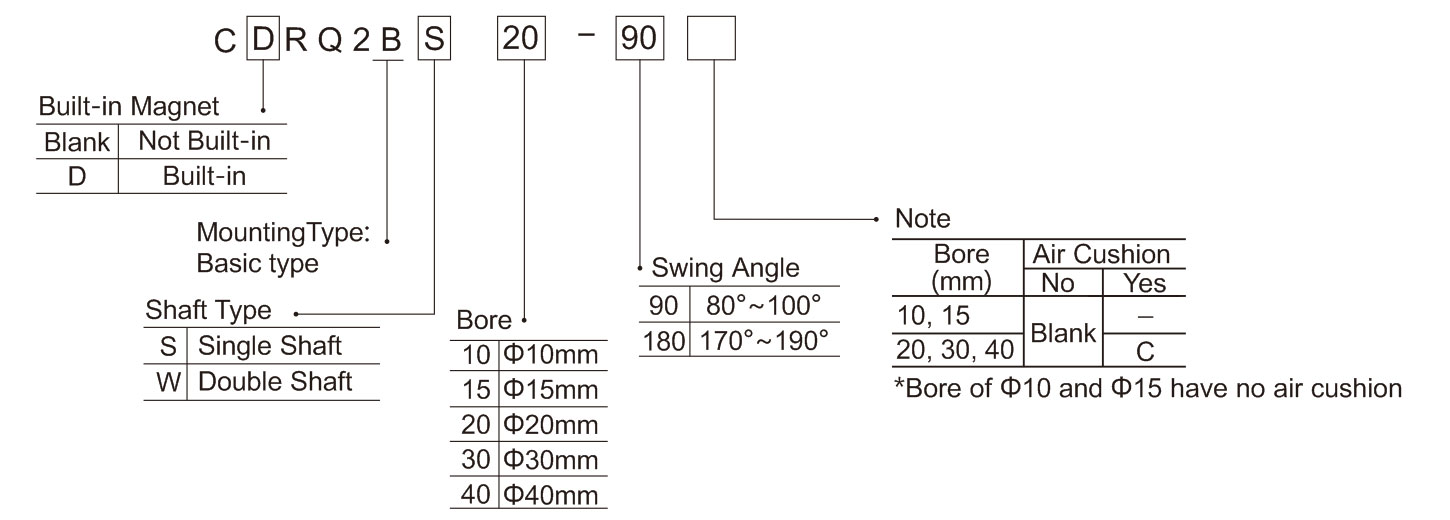

Ordering Code for CDRQ2 Rotary Actuator

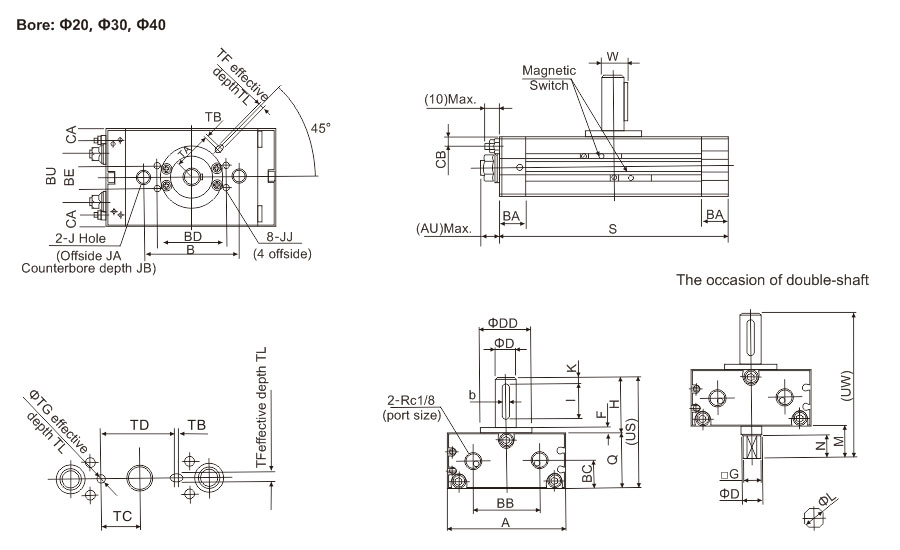

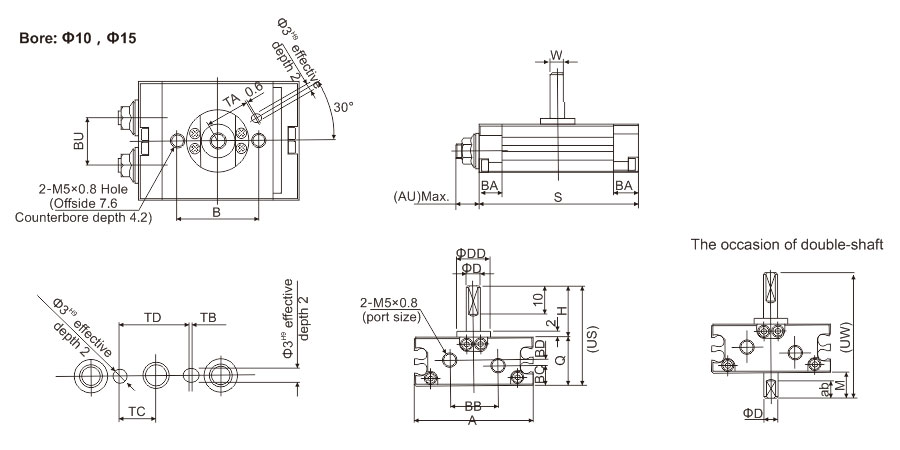

Dimension (mm) for CDRQ2 Rotary Actuator

Bore Swing angle A AU B BA BB BC BD BU D (g6) DD (h9) H W Q S US UW ab M TA TC TD
10 90° 42 (8.5) 29 8.5 17 6.7 2.2 16.7 5 12 18 4.5 17 56 35 44 6 9 15.5 8 15.4
180° 69
15 90° 53 (9.5) 31 9 26.4 10.6 - 23.1 6 14 20 4.5 20 65 40 50 7 10 16 9 17.6
180° 82

Bore Swing angle A AU B BA BB BC BD BE BU CA CB D (g6) DD (h9) F H J JA JB
20 90°, 180° 63 (11) 50 14 34 14.5 - - 30.4 7 4.7 10 25 2.5 30 M8×1.25 11 6.5
30 90°, 180° 69 (11) 68 14 39 16.5 49 16 34.7 8.1 4.9 12 30 3 32 M10×1.5 14 8.5
40 90°, 180° 78 (13) 78 16 47 18.5 55 16 40.4 8.3 5.2 15 32 3 36 M10×1.5 14 8.6


Bore Swing angle JJ K Q S W Key size US TA TB TC TD TF (H9) TG (H9) TL UW G M N L
b l
20 90° - 3 29 104 11.5 4(-0.03) 20 59 24.5 1 13.5 27 4 4 35 74 8 15 11 9.6
180° 130
30 90° M5×0.8 D6 4 33 122 13.5 4(-0.03) 20 65 27 2 19 36 4 4 40 83 10 18 13 11.4
180° 153
40 90° M6×1 D7 5 37 139 17 5(-0.03) 25 73 32.5 2 20 39.5 5 5 40 93 11 20 15 14
180° 177
