Overview for CJP Mini Air Cylinder
Single-acting CJP

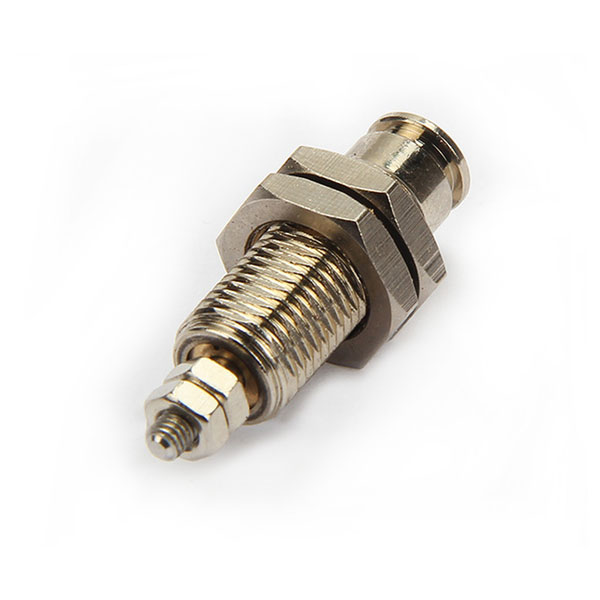

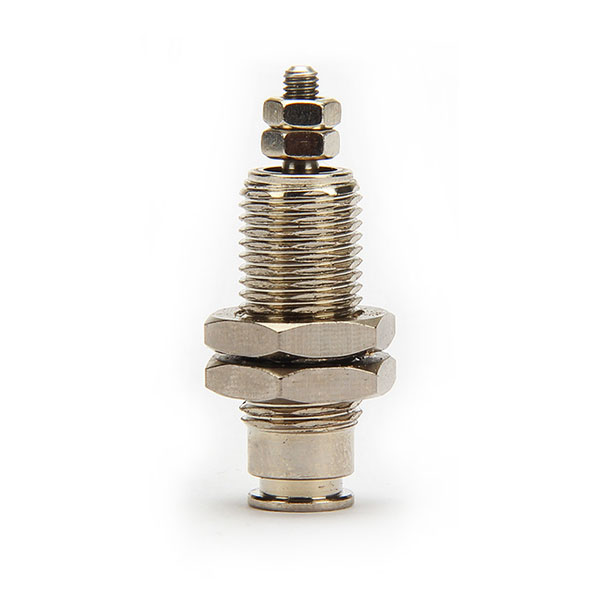

Pin Cylinder has a compact brass body with an unthreaded stainless-steel piston rod, and it has panel mounting for installation through walls or panels. The

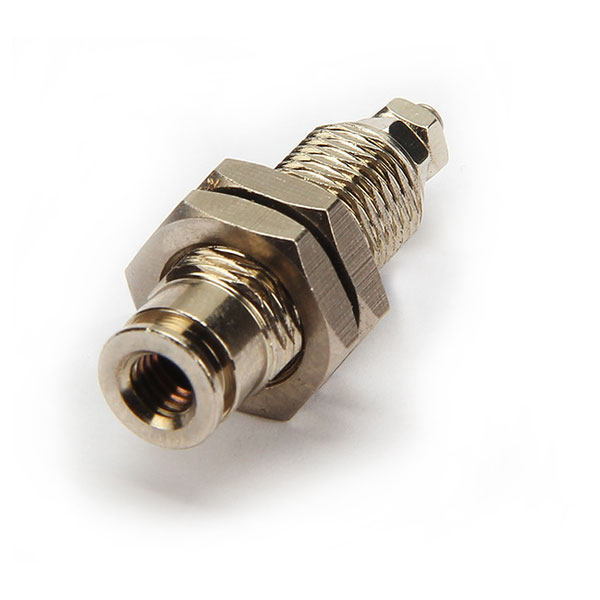

CJP Mini Air Cylinder (also called pneumatic cylinder) has a pin-style compact body and a single unthreaded piston rod for linear movement applications with tight space restrictions. The
CJP Cylinder's body is crafted in nickel-plated brass for higher corrosion resistance than regular brass, and its piston rod is made of stainless steel to resist corrosion and scaling. The single-acting
Mini Pneumatic Cylinder uses airflow through its single air port for rod extension and an internal spring in the cylinder barrel's rod end for rod retraction to produce continued movement. It has nitrile butadiene rubber (NBR) seals to contain air and protect the barrel and piston rod. This CJP Cylinder has panel mounting and comes with both mounting and rod end nuts for installations through walls or panels.

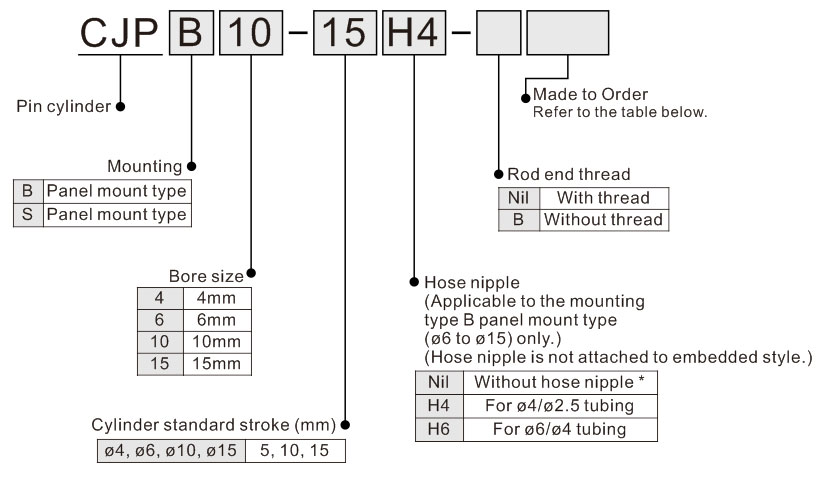

Ordering Code for CJP Mini Air Cylinder (Pin Cylinder)
Specification for CJP Mini Air Cylinder (Pin Cylinder)

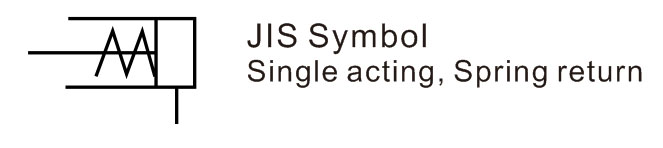

| Motion Pattern |
Single acting, Spring return |
| Maximum operating pressure |
0.7 MPa |
Minimum operating
pressure |
ø4 |
0.3 MPa |
| ø6 |
0.2 MPa |
| ø10, ø15 |
0.15 MPa |
| Proof pressure |
1 MPa |
| Ambient and fluid temperature |
–10 ~ 70°C (No freezing) |
| Lubrication |
Not required (Non-lube) |
| Piston speed |
50 ~ 500 mm/s |
| Cushion |
None |
| Stroke length tolerance |
+1.0/0 |
| Rod end style |
With thread/Without thread |
| Mounting |
Panel mount type |
Embedded type |
Accessory
(Standard equipment) |
Standard equipment |
Mounting nut (2), Rod end nut (2) * |
Mounting nut (1), Gasket (1), Rod end nut (2) * |
| Option |
Hose nipple (Except ø4) |
— |
* When rod end is threaded.

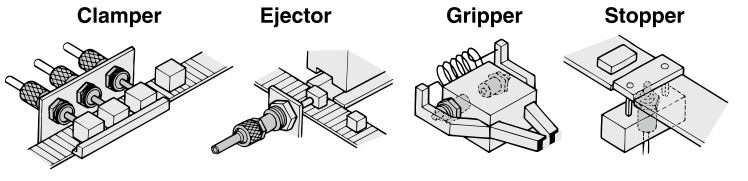

Application Examples for CJP Mini Air Cylinder (Pin Cylinder)
A short stroke miniature cylinder with a shorter overall length.
The installation space can be significantly reduced because this CJP Cylinder can be recessed directly into a machine body or installed on a panel. Thus, the machine can be made more compact.
Made to Order (ø6 to ø15)
| Symbol |
Specifications |
| XC17 |
Pin cylinder with rod quenched |
| XC22 |
Fluororubber seals |

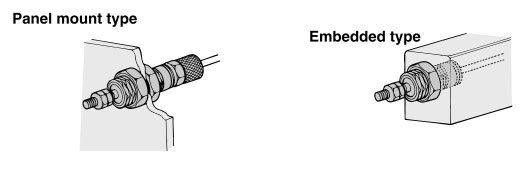

Mounting
Standard Stroke
| Bore size (mm) |
Stroke (mm) |
| 4 |
5, 10, 15 |
| 6 |
5, 10, 15 |
| 10 |
5, 10, 15 |
| 15 |
5, 10, 15 |
Mass
| Model |
Stroke (mm) |
| 5 |
10 |
15 |
| CJP□4 |
10 |
13 |
15 |
| CJP□6 |
10.5 |
13.1 |
15.6 |
| CJP□10 |
28 |
33 |
38 |
| CJP□15 |
71 |
82 |
92 |
* Mass of hose nipple (4g) for panel mounting is excluded
Theoretical Output
Bore size
(mm) |
Operating
direction |
Operating pressure (MPa) |
| 0.3 |
0.5 |
0.7 |
| 4 |
OUT |
0.97 |
3.48 |
6.00 |
| IN |
1.0 |
| 6 |
OUT |
4.56 |
10.2 |
15.9 |
| IN |
1.42 |
| 10 |
OUT |
17.6 |
33.3 |
49.0 |
| IN |
2.45 |
| 15 |
OUT |
42.2 |
77.5 |
113 |
| IN |
4.41 |
Spring Reaction Force
| Bore size (mm) |
Stroke (mm) |
Retracted side |
Extended side |
| 4 |
5, 10, 15 |
2.80 |
1.00 |
| 6 |
5, 10, 15 |
3.92 |
1.42 |
| 10 |
5, 10, 15 |
5.98 |
2.45 |
| 15 |
5, 10, 15 |
10.80 |
4.41 |
* Same spring force for each stroke.

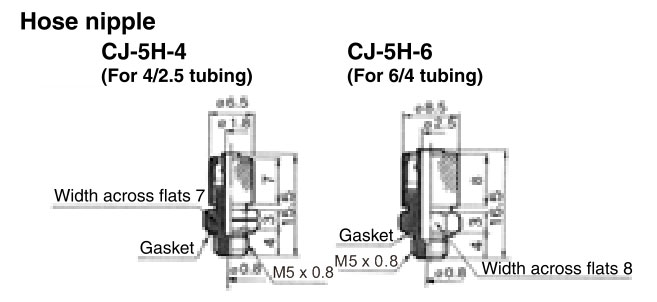

Hose Nipple Dedicated for Panel Mount Type (With fixed orifice)
| Applicable tubing |
Part no. |
| For ø4/ø2.5 tubing |
CJ-5H-4 |
| For ø6/ø4 tubing |
CJ-5H-6 |

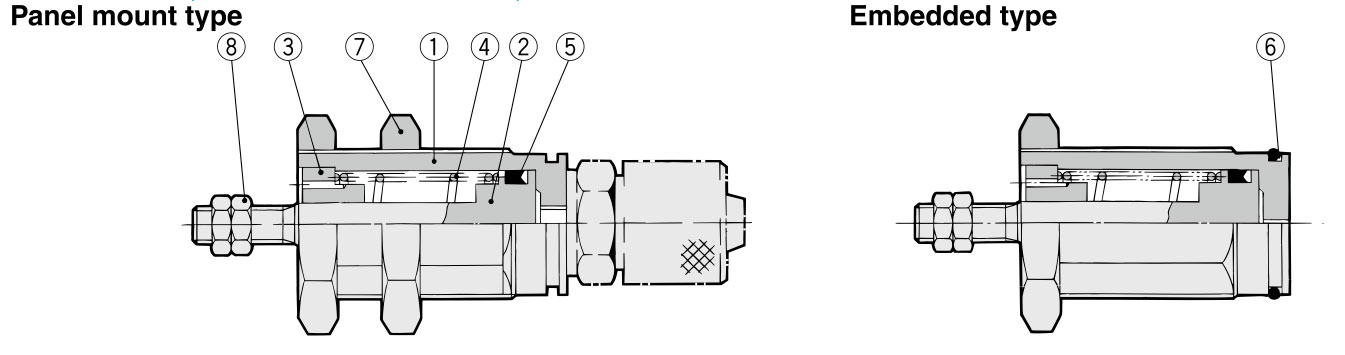

Construction
Component Parts of CJP Cylinder
| No. |
Description |
Material |
Note |
| 1 |
Cover |
Brass |
Electroless nickel plated |
| 2 |
Piston |
Stainless steel |
|
| 3 |
Collar |
Oil-impregnated sintered alloy |
ø4 |
Brass + Electroless nickel plated |
| ø6, ø10 |
Bronze |
| 4 |
Return spring |
Steel wire |
Zinc chromated |
| 5 |
Piston seal |
NBR |
|
| 6 |
Gasket |
NBR |
Special product (O-ring) embedded type only |
| 7 |
Mounting nut |
Brass |
Electroless nickel plated |
| 8 |
Rod end nut |
Stee |
Nickel plated |

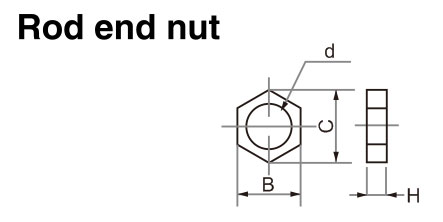

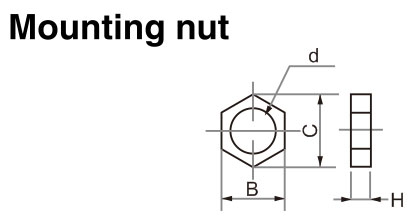

Dedicated Nut / Part No.
| Description / Bore |
4 |
6 |
10 |
15 |
| Mounting nut |
SNPS-004 |
SNPS-006 |
SNPS-010 |
SNPS-015 |
| Rod end nut |
NTJ-004 |
NTP-006 |
NTP-010 |
NTP-015 |
Replacement Parts / Gasket
| Bore size(mm) |
Order no. |
Contents |
| 4 |
CJPS4-G |
Above no.⑥ |
| 6 |
CJPS6-G |
| 10 |
CJPS10-G |
| 15 |
CJPS15-G |
* Dedicated for the embedded type.
* For the plug mounting style
* Since gaskets (10 pcs./set) do not include a grease pack (10 g), order it separately.
Grease pack part number: GR-S-005 (5g)
| Part no. |
Bore (mm) |
d |
H |
B |
C |
| SNPS-004 |
4 |
M8 x 1.0 |
3 |
10 |
11.5 |
| SNPS-006 |
6 |
M10 x 1.0 |
3 |
12 |
13.9 |
| SNPS-010 |
10 |
M15 x 1.0 |
4 |
19 |
22 |
| SNPS-015 |
15 |
M22 x 1.0 |
5 |
27 |
31 |
| Part no. |
Bore (mm) |
d |
H |
B |
C |
| NTJ-004 |
4 |
M2 x 0.4 |
1.6 |
4 |
4.6 |
| NTP-006 |
6 |
M3 x 0.5 |
1.8 |
5.5 |
6.4 |
| NTP-010 |
10 |
M4 x 0.7 |
2.4 |
7 |
8.1 |
| NTP-015 |
15 |
M5 x 0.8 |
3.2 |
8 |
9.2 |
Allowable Kinetic Energy
Caution
When driving an inertial load, operate a cylinder with kinetic energy within the allowable value. The range in the chart below that is delineated by bold solid lines indicates the relation between load mass and maximum driving speeds.
Bore size (mm)
|
4 |
6 |
10 |
15 |
| Piston speed (m/s) |
0.05 ~ 0.5 |
| Allowable kinetic energy (J) |
0.5 x10-3 |
3x10-3 |
8x10-3 |
19x10-3 |

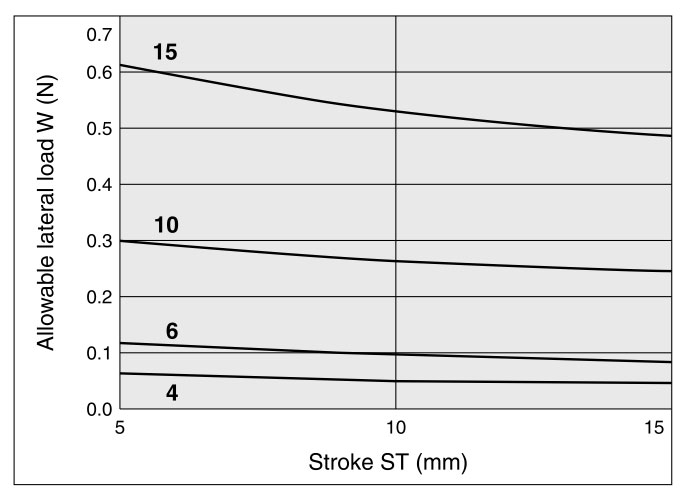

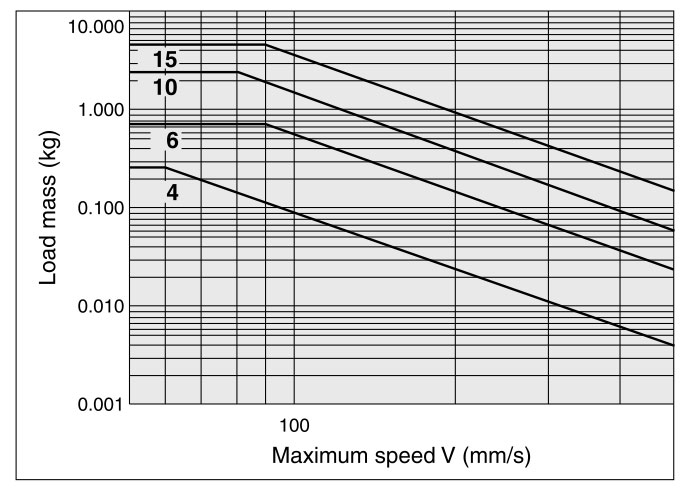

Allowable Lateral Load
Strictly observe the limiting range of lateral load on a piston rod. (Refer to the below graph.) If CJP Cylinder is used beyond the limits, it may shorten the machine life or cause damage.
Dimension (mm)

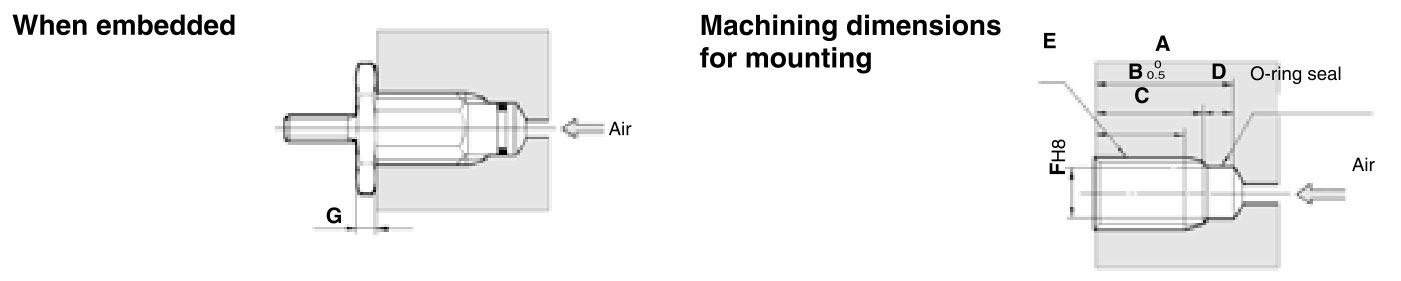

Recommended Mounting Hole Dimensions for Embedded Type
| Bore (mm) |
Stroke |
A |
B |
C |
D |
E |
F |
G |
| 4 |
5 |
12 |
8.5 |
6 |
3.5 |
M8 x 1.0 |
6.5 |
3 |
| 10 |
20 |
16.5 |
14 |
| 15 |
28 |
24.5 |
22 |
| 6 |
5 |
16 |
12.5 |
10 |
3.5 |
M10 x 1.0 |
8.5 |
3 |
| 10 |
23 |
19.5 |
17 |
| 15 |
30 |
26.5 |
24 |
| 10 |
5 |
17 |
13.5 |
10.5 |
3.5 |
M15 x 1.0 |
12 |
4 |
| 10 |
23.5 |
20 |
17 |
| 15 |
30.5 |
27 |
24 |
| 15 |
5 |
19 |
14.5 |
11.5 |
4.5 |
M22 x 1.0 |
19 |
5 |
| 10 |
25 |
20.5 |
17.5 |
| 15 |
31.5 |
27 |
24 |
Note) E and øF should be machined in a concentric manner.

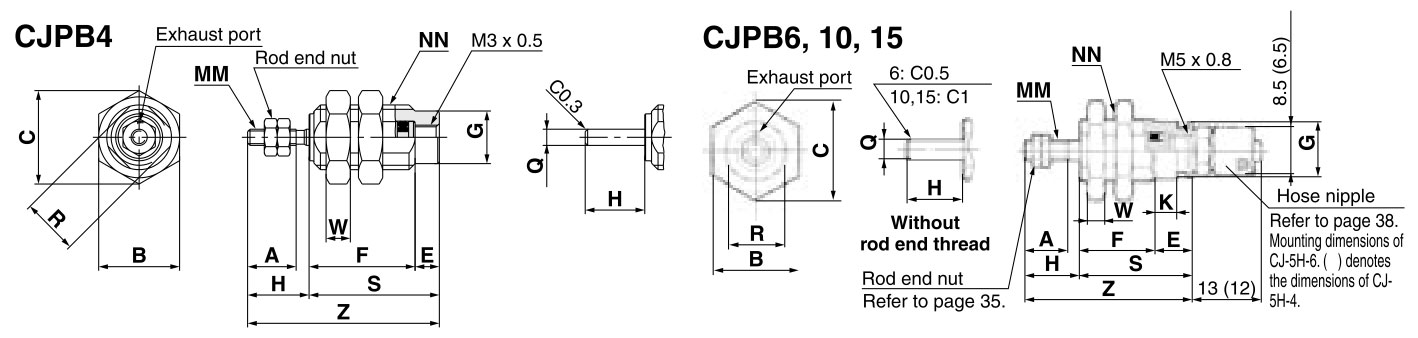

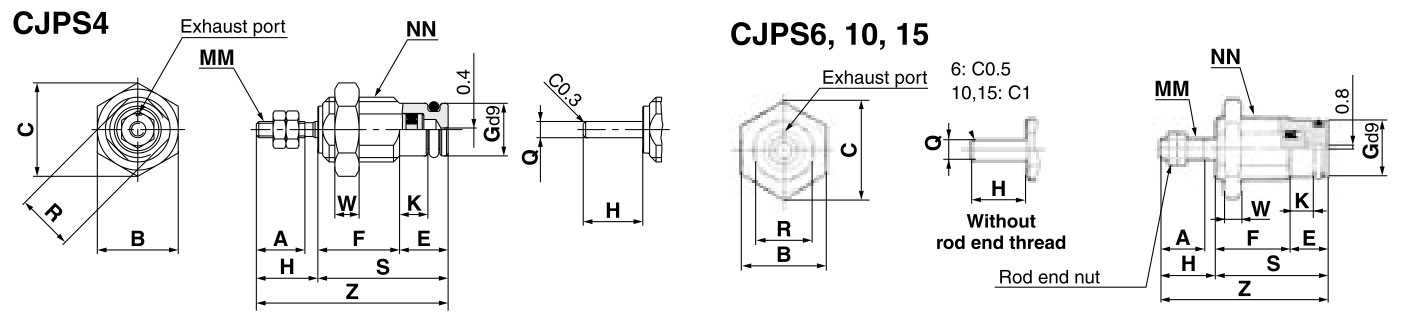

Dimensions: Panel Mount Type
Bore size
(mm) |
A |
B |
C |
E |
F |
G |
H |
K |
MM |
NN |
R |
S |
W |
Z |
Q |
| 5st |
10st |
15st |
5st |
10st |
15st |
5st |
10st |
15st |
| 4 |
6 |
10 |
11.5 |
3 |
13 |
21 |
29 |
6.5 |
7.5 |
- |
M2×0.4 |
M8×1.0 |
7 |
16 |
24 |
32 |
3 |
23.5 |
31.5 |
39.5 |
2 |
| 6 |
7 |
12 |
13.9 |
6 |
12.5 |
19.5 |
26.5 |
8.5 |
9 |
3.5 |
M3×0.5 |
M10×1.0 |
9 |
18.5 |
25.5 |
25.5 |
3 |
27.5 |
34.5 |
41.5 |
3 |
| 10 |
10 |
19 |
22 |
6 |
14.5 |
21 |
28 |
12 |
12 |
3.5 |
M4×0.7 |
M15×1.0 |
13 |
20.5 |
27 |
34 |
4 |
32.5 |
39 |
46 |
5 |
| 15 |
12 |
27 |
31 |
7 |
16.5 |
22.5 |
29 |
19 |
14 |
4.2 |
M5×0.8 |
M22×1.0 |
20 |
23.5 |
29.5 |
36 |
5 |
37.5 |
43.5 |
50 |
6 |
Dimensions: Embedded Type
Bore size
(mm) |
A |
B |
C |
E |
F |
G |
H |
K |
MM |
NN |
R |
S |
W |
Z |
Q |
| 5st |
10st |
15st |
5st |
10st |
15st |
5st |
10st |
15st |
| 4 |
6 |
10 |
11.5 |
3 |
13 |
21 |
29 |
6.5 |
7.5 |
- |
M2×0.4 |
M8×1.0 |
7 |
16 |
24 |
32 |
3 |
23.5 |
31.5 |
39.5 |
2 |
| 6 |
7 |
12 |
13.9 |
6 |
12.5 |
19.5 |
26.5 |
8.5 |
9 |
3.5 |
M3×0.5 |
M10×1.0 |
9 |
18.5 |
25.5 |
25.5 |
3 |
27.5 |
34.5 |
41.5 |
3 |
| 10 |
10 |
19 |
22 |
6 |
14.5 |
21 |
28 |
12 |
12 |
3.5 |
M4×0.7 |
M15×1.0 |
13 |
20.5 |
27 |
34 |
4 |
32.5 |
39 |
46 |
5 |
| 15 |
12 |
27 |
31 |
7 |
16.5 |
22.5 |
29 |
19 |
14 |
4.2 |
M5×0.8 |
M22×1.0 |
20 |
23.5 |
29.5 |
36 |
5 |
37.5 |
43.5 |
50 |
6 |
Piping
Caution
The following fittings are recommended for this cylinder connection. However, there may be a case where the piston speed exceeds 500 mm/sec. even with the recommended fittings for this CJP Cylinder. Use a speed controller in such cases.
| Bore size |
Applicable bore size |
Fitting type |
Connection thread |
Model |
| ø4 |
2 |
One-touch fitting |
M3 x 0.5 |
KJ□02-M3 |
| Miniature fitting |
M-3AU-2 |
ø6
ø10
ø15 |
One-touch fitting |
M5 x 0.8 |
KJ□02-M5 |
| Miniature fitting |
M-5AU-2 |
| 4/2.5 |
Dedicated hose nipple
(with fixed orifice) |
CJ-5H-4 |
| 6/4 |
CJ-5H-6 |
* Please be aware that cylinder speed may slow down on the retracting side when using the above one-touch fittings and miniature fittings with a cylinder bore size of ø15.
Hose nipple
In addition to the above fittings and hose nipples, the below fittings can also be attached to the cylinder. When using the below fittings be sure to provide a speed controller after adjusting it to 500 mm/s or less.
| Cylinder bore size |
Applicable bore size |
Fitting type |
Connection thread |
Model |
| ø4 |
3.2 |
One-touch fitting |
M3 x 0.5 |
KJ□23-M3 |
| 4 |
KJ□04-M3 |
ø6
ø10
ø15 |
3.2 |
M5 x 0.8 |
KJ□23-M5 |
| 4 |
KJ□04-M5 |
| 6 |
KJ□06-M5 |
Recommended Speed Controller
| Applicable bore size (mm) |
Connection
thread |
Elbow type meter-in |
Universal type
meter-in |
In-line type meter-in |
| 2 |
M3 |
AS1211F-M3-02 |
- |
AS1001F-02 |
| M5 |
AS1211F-M5-02 |
- |
| 3.2 |
M3 |
AS1211F-M3-23 |
AS1311F-M3-23 |
AS1001F-23 |
| M5 |
AS1211F-M5-23 |
AS1311F-M5-23 |
| 4 |
M3 |
AS1211F-M3-04 |
AS1311F-M3-04 |
AS1001F-04 |
| M5 |
AS1211F-M5-04 |
AS1311F-M5-04 |
| 6 |
M5 |
AS1211F-M5-06 |
AS1311F-M3-04 |
AS1001F-06 |
* For details about one-touch fittings, miniature fittings and speed controllers (applicable tubing O.D. ø2 only), refer to the catalog ES50-25 (B edition or later).
Also, for details about speed controllers (applicable tubing O.D. ø3.2 to ø6), refer to Best Pneumatics No. 6.
* Refer to the Fittings and Tubing Precautions (Best Pneumatics No. 6) for how to handle one-touch fittings.
Mounting
Caution
Do not use it in such a way that a load could be applied to the piston rod during the retraction. The spring that is built into the CJP Mini Air Cylinder provides only enough force to retract the piston rod. Thus, if a load is applied, the piston rod may not be able to retract to the end of the stroke.
