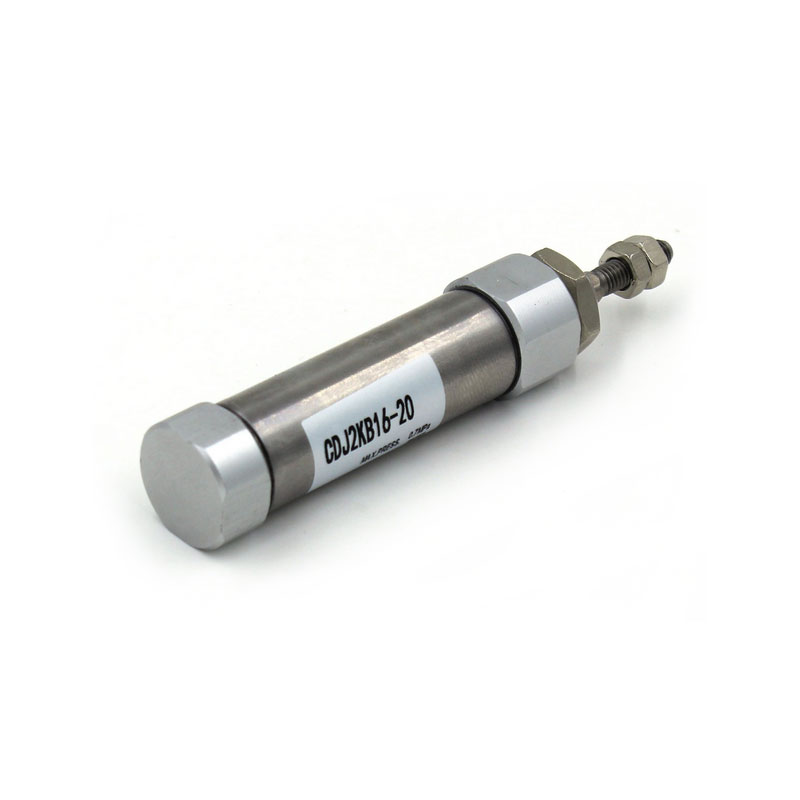

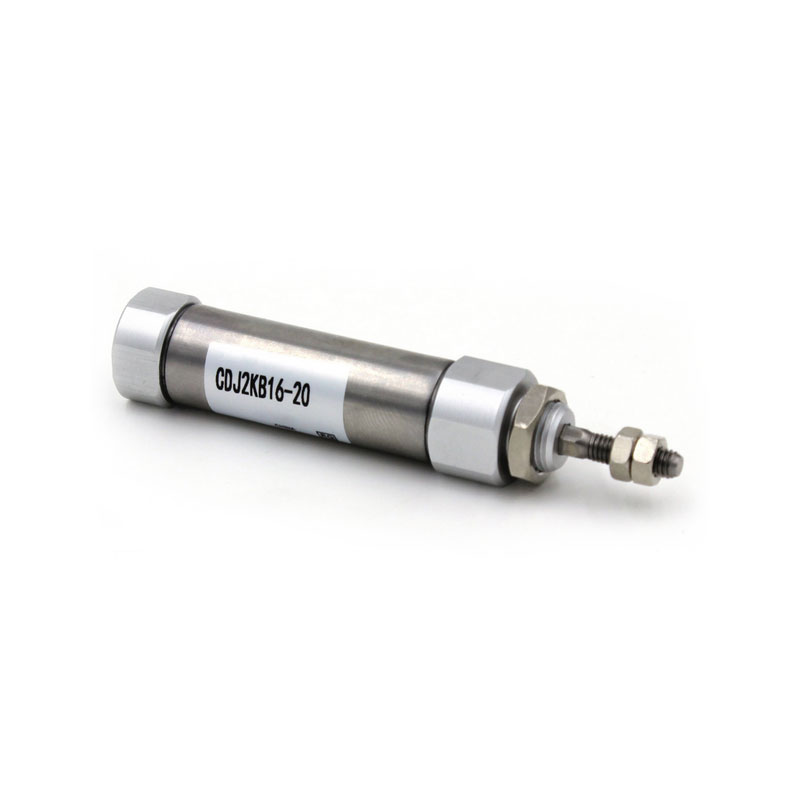

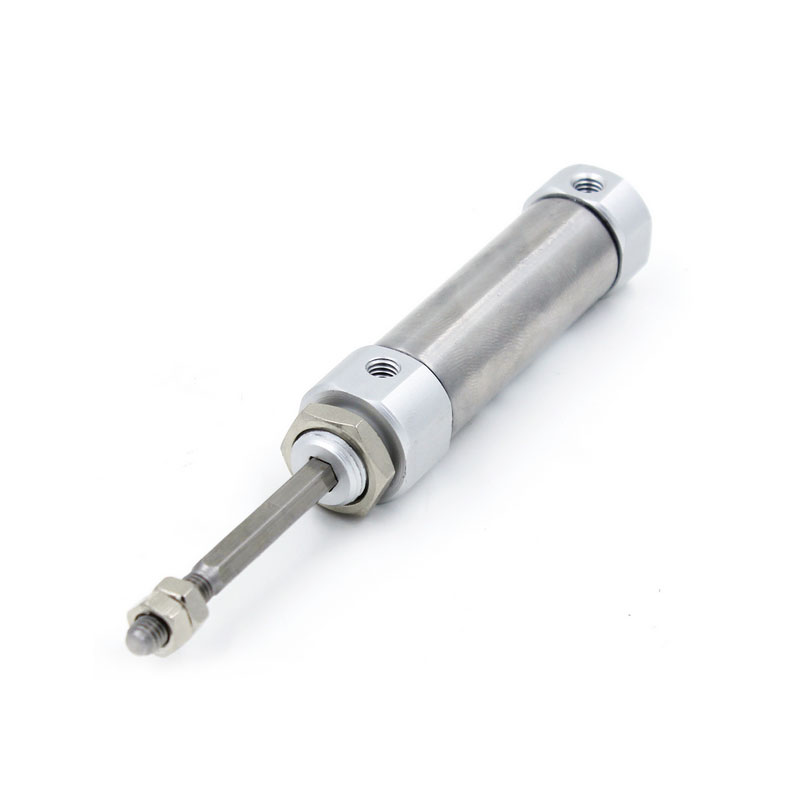

Mini Pneumatic Cylinder CJ2 (Stainless Steel)

CJ2 Cylinder is a kind of double acting cylinders, various installation forms are available. With Rubber bumper or air cushion. No lubrication is needed. Cylinder material is 304, 316 stainless steel.

Bore: 6, 10, 16mm
Motion Pattern: double-acting, single-acting
Working Medium: Air, Non-lube
Operating pressure: 0.06~0.7MPa
Ambient and fluid temperature: -10~70°C (No Freezing);
Piston speed: 50~750mm/s

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for CJ2 Air Cylinder

CJ2 Cylinder is a kind of double acting cylinders, various installation forms are available. With Rubber bumper or air cushion. CJ2 Air Cylinder has no lubrication is needed.

Technical Parameters for CJ2 Air Cylinder (CJ2 Miniature Cylinder)

CJ2 Air Cylinder material: 304, 316 stainless steel
CJ2 Cylinder Bore: 6, 10, 16mm
CJ2 Miniature Cylinder Motion Pattern: double-acting, single-acting
Working Medium: Air, Non-lube
Max. operating pressure: 0.7MPa
Min. operating pressure: 0.06MPa
Ambient and fluid temperature: -10~70°C (No Freezing);
Piston speed: 50~750mm/s
CJ2 Cylinder Port Size: M5*0.8

Specification for CJ2 Cylinder (CJ2 Miniature Cylinder)

Bore (mm)	6	10	16
Working Medium	Air
Motion Pattern	Double-acting
Max. Operating Pressure	0.7MPa
Min. Operating Pressure	0.12MPa	0.06MPa
Ambient and Fluid Temp.	Non-magnetic switch: -10℃~+70℃, Magnetic switch: -10℃~+60℃
Piston velocity	50~750mm/s
Buffer	Rubber buffer / Air buffer
Stroke Tolerance mm	+1.0/0
Lubrication	Non-lube
Port Size	M5×0.8

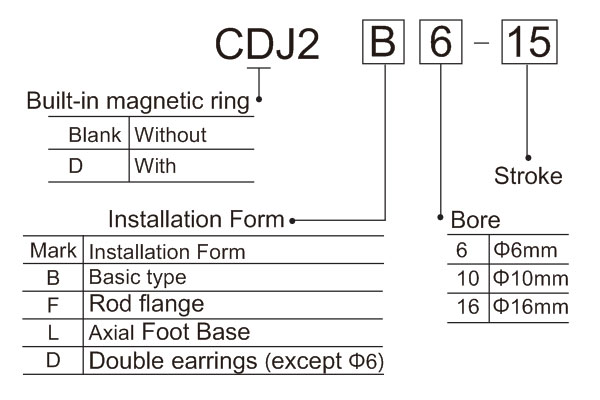

Ordering Code for CJ2 Miniature Cylinder (CJ2 Miniature Cylinder)

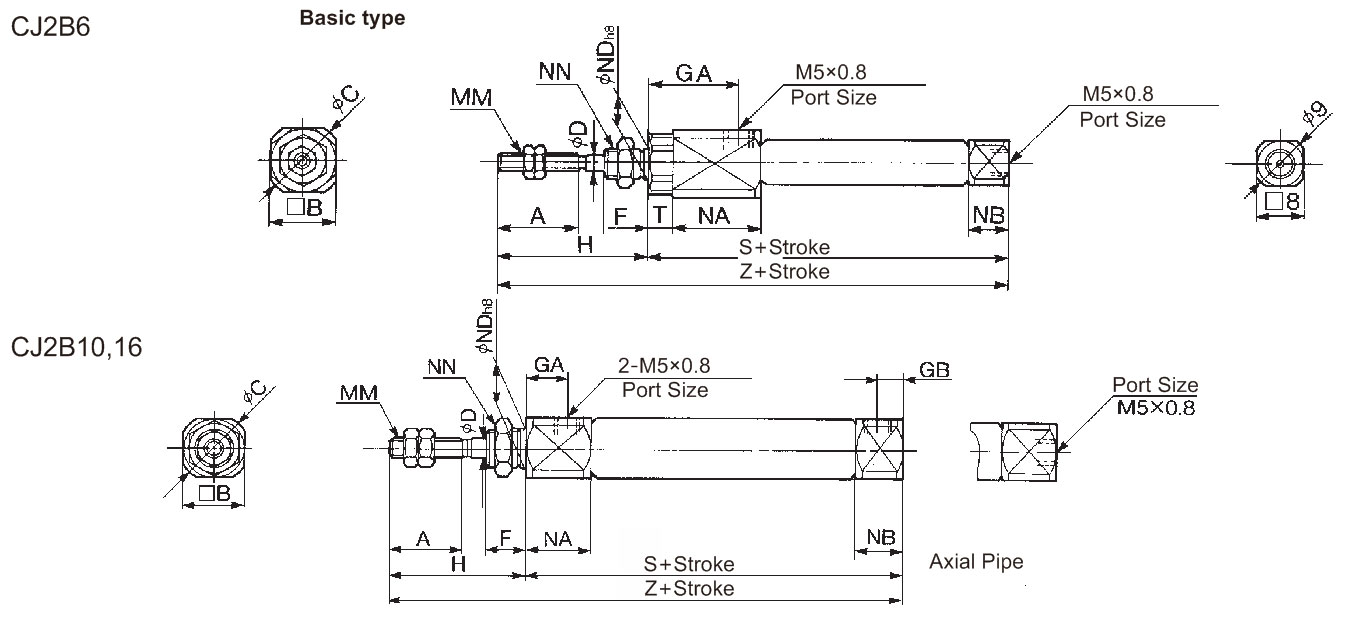

Dimension (mm) for CJ2 Cylinder (equivalent to CJ2 Mini Pneumatic Cylinder)

Bore (mm)	A	B	C	D	F	GA	GB	H	MM	NA	NB	NDh8	NN	S	T	Z
6	15	12	14	3	8	14.5	-	28	M3×0.5	16	7	6	M6×1.0	49	3	77
10	15	12	14	4	8	8	5	28	M4×0.7	12.5	9.5	8	M8×1.0	46	-	74
16	15	18.3	20	5	8	8	5	28	M5×0.8	12.5	9.5	10	M10×1.0	47	-	75
