Miniature Pneumatic Cylinder CG1

The CG1 Mini Air Cylinder tube is made of high-strength aluminum alloy and is anodized on the surface, corrosion resistance and wear resistance;

Standard CDG1-Z single-rod double-acting (new) 20,25,32,40,50,63,80,100
Single-acting (telescopic) 20, 25, 32, 40; CG1W-Z double-rod double-acting 20, 25, 32, 40, 50, 63, 80, 100
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,110,120,130mm
Operating Pressure: 0.05-1.0 MPa
Speed:30~700mm/s；50~1000mm/s；
Working Environment Temperature: -10 to 60°C

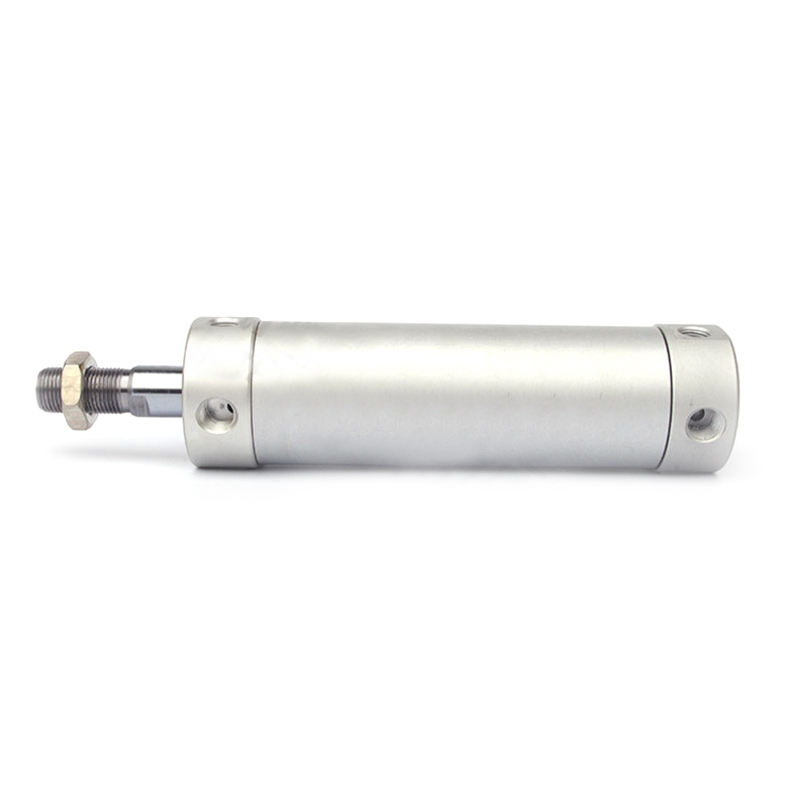

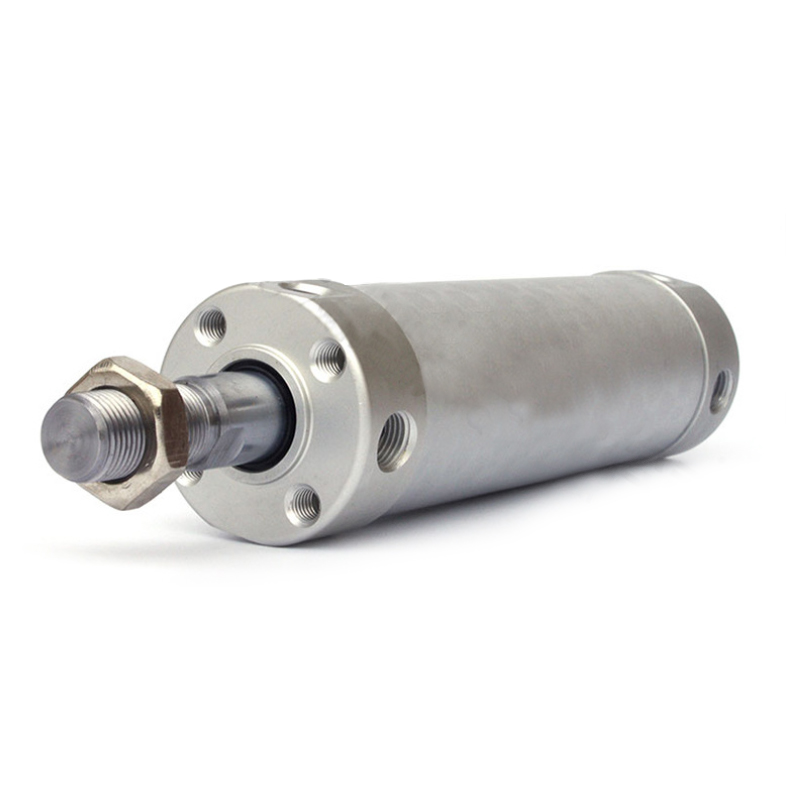

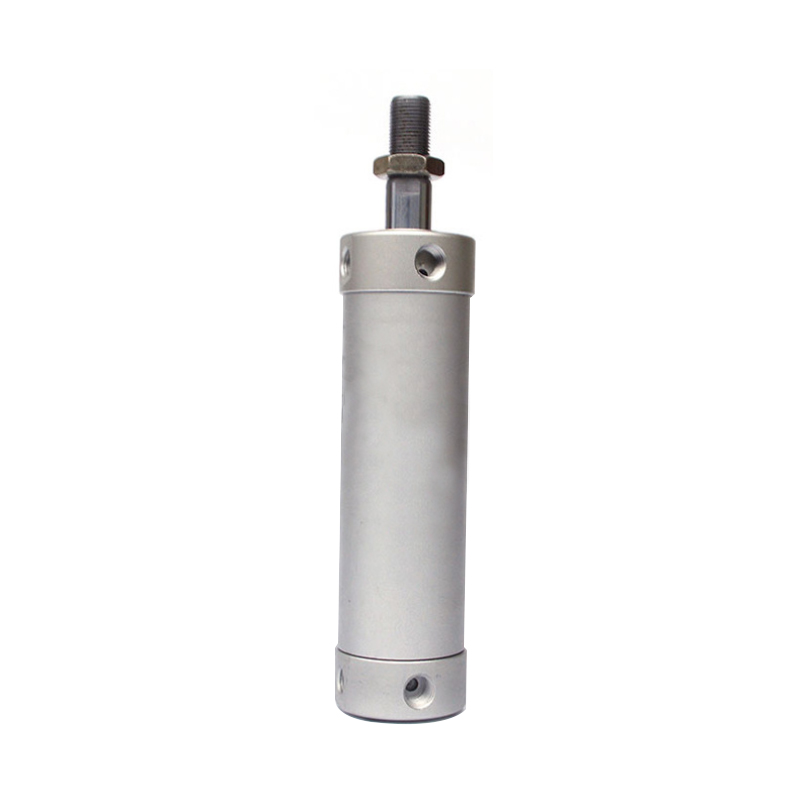

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CDG1 Miniature Pneumatic Cylinder

The female thread of the rod end has been standardized;
The operation of magnetic switch is improved, and it is easier to fine-tune the position;
No-trunnion mounting screw hole is added to the basic type;
Set the model of the rod end installation parts and the swing base installation parts
Magnetic switch type (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)
Standard CG1-Z single-rod double-acting (new) 20,25,32,40,50,63,80,100
Single-acting (telescopic) 20, 25, 32, 40; CG1W-Z double-rod double-acting 20, 25, 32, 40, 50, 63, 80, 100
Rod non-rotating type CG1K-Z Single-rod double-acting 20,25,32,40,50,63; CG1KW-Z Double-rod double-acting, direct mounting type CG1R-Z Single-rod double-acting
Rod non-rotating directly mounted type (not changed) CG1KR single-rod double-acting, low friction type (not changed) CG1□Q single-rod double-acting 20,25,32,40,50,63,80,100, end lock type (not changed) CBG1 single-rod double-acting
The rodless side end cover is integrated with the cylinder tube, and the total length is shortened and the weight is light.

Features for CG1 Mini Air Cylinder

1. The CG1 Mini Air Cylinder tube is made of high-strength aluminum alloy and is anodized on the surface, corrosion resistance and wear resistance;
2. The front and rear covers and the cylinder tube are connected by fine thread, which is convenient to assemble;
3. The dustproof sealing ring is made of polyurethane material, with good strength and wear resistance, long service life;
4. The piston sealing ring has small structure, stable operation, low dynamic friction and static friction resistance;
5. There is a fixed anti-collision pad inside the CG1 Mini Air Cylinder to reduce the reversing impact.

Technical Parameters for CDG1 Pneumatic Cylinder

Standard CDG1-Z single-rod double-acting (new) 20,25,32,40,50,63,80,100
Single-acting (telescopic) 20, 25, 32, 40; CG1W-Z double-rod double-acting 20, 25, 32, 40, 50, 63, 80, 100
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,110,120,130mm
Operating Pressure: 0.05-1.0 MPa
Speed:30~700mm/s；50~1000mm/s；
Working Environment Temperature: -10 to 60°C

Specification for CDG1 Pneumatic Cylinder

Bore (mm) 20 25 32 40 50 63 80 100
Working Medium Air
Motion Pattern Double-acting
Maximum Operating Pressure 1.0MPa
Minimum Operating Pressure 0.05MPa
Environment and fluid temp Switch without magent: -10℃~+70℃, Switch with magent: -10℃~+60℃
Piston velocity 50~1000mm/s 50~700mm/s
Buffer Air Buffer / Rubber Buffer
Stroke Tolerance mm ~1000: +1.4/0; ~1200: +1.8/0 ~1000: +1.4/0; ~1500: +1.8/0
Lubrication Non-lube
Port Size Rc 1/8 1/4 3/8 1/2

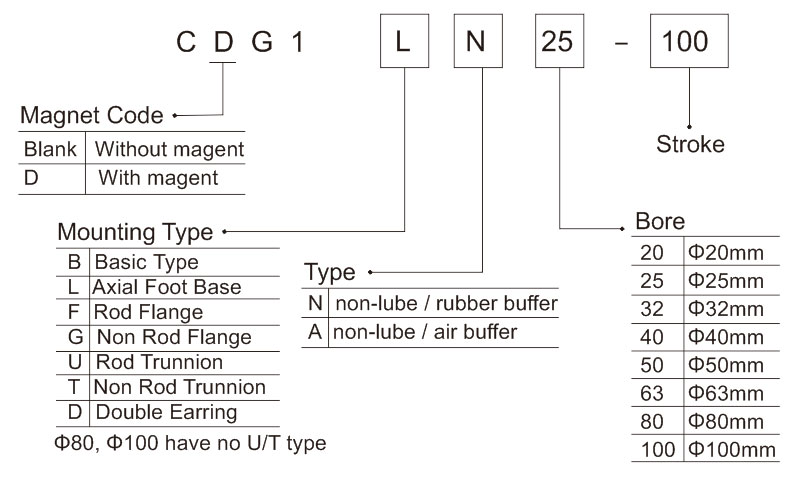

Ordering Code for CDG1 Pneumatic Cylinder

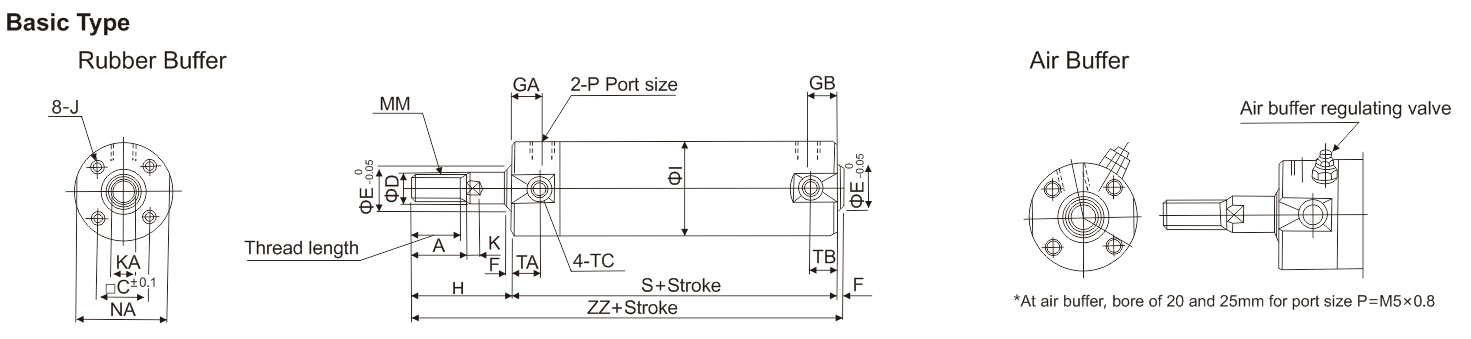

Dimension (mm) for CDG1 Pneumatic Cylinder

Bore Stroke Thread length A □C ΦD ΦE F GA GB ΦI J K KA MM NA P S TA TB TC H ZZ
20 ~200 19.5 18 14 8 12 2 12 10 26 M4×0.7, depth 7 4 6 M8×1.25 24 1/8 69 11 11 M5×0.8 35 106
25 ~300 19.5 22 16.5 10 14 2 12 10 31 M5×0.8, depth 7.5 5.5 8 M10×1.25 29 1/8 69 11 11 M6×0.75 40 111
32 ~300 19.5 22 20 12 18 2 12 10 38 M5×0.8, depth 8 5.5 10 M10×1.25 35.5 1/8 71 11 10 M8×1.0 40 113
40 ~300 27 30 26 16 25 2 13 10 47 M6×1, depth 12 6 14 M14×1.5 44 1/8 78 12 10 M10×1.25 50 130
50 ~300 32 35 32 20 30 2 14 12 58 M8×1.25, depth 16 7 18 M18×1.5 55 1/4 90 13 12 M12×1.25 58 150
63 ~300 32 35 38 20 32 2 14 12 72 M10×1.25, depth 16 7 18 M18×1.5 69 1/4 90 13 12 M14×1.5 58 150
80 ~300 37 40 50 25 40 3 20 16 89 M10×1.25, depth 22 10 22 M22×1.5 80 3/8 108 - - - 71 182
100 ~300 37 40 60 30 50 3 20 16 110 M12×1.75, depth 22 10 26 M26×1.5 100 1/2 108 - - - 71 180
