Pneumatic Rotary Actuator CRB2

CRB2 Cylinder is Rotary Air Cylinder, which have no clearance, swing smoothly; The swing angle of Rotary Actuator CRB2 is adjustable; Shape size of double blade is the same as single blade type and provides double torque.

Bore: 10, 15, 20, 30, 40mm
Working Medium: Air (No Lubrication)
Operating pressure: 0.15~1.0MPa
Ambient and fluid temperature: 5~60°C

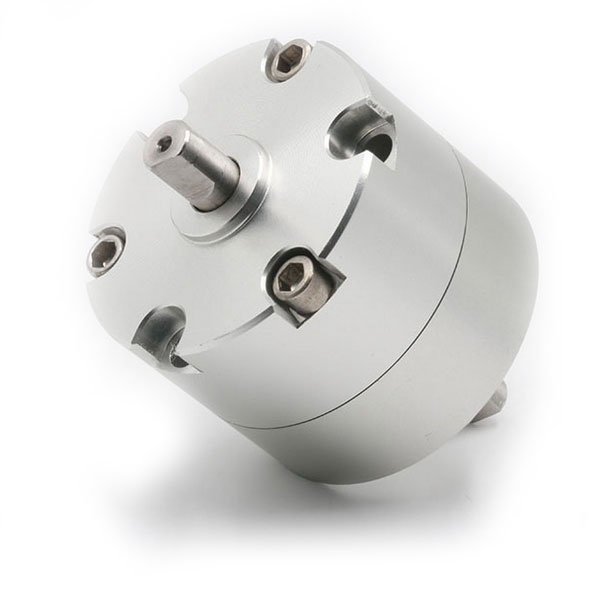

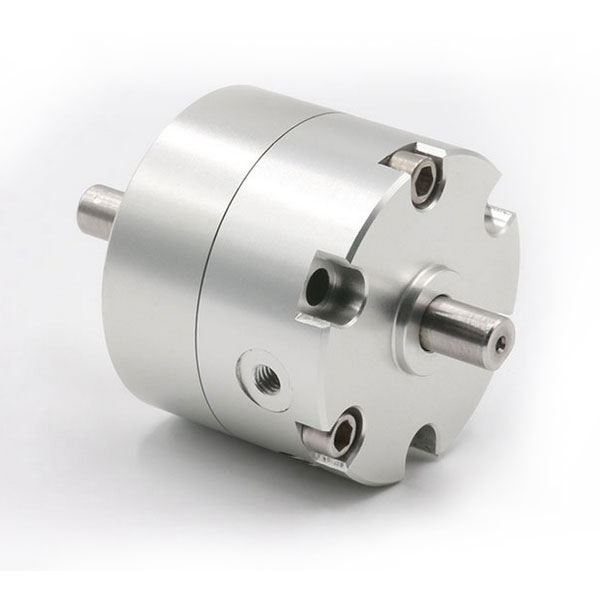

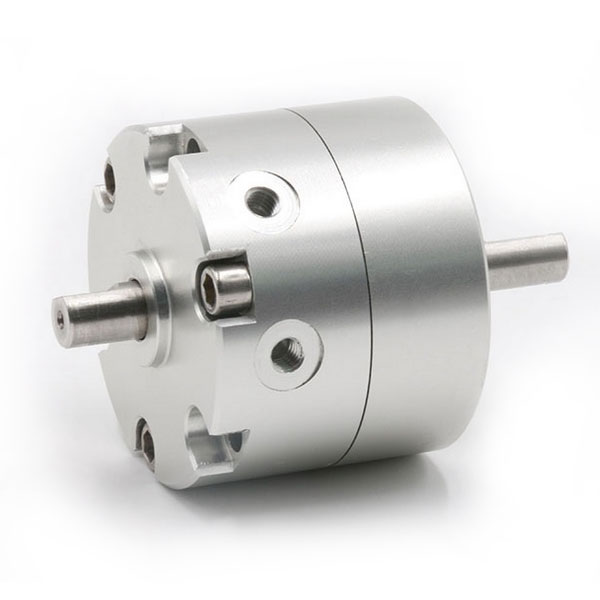

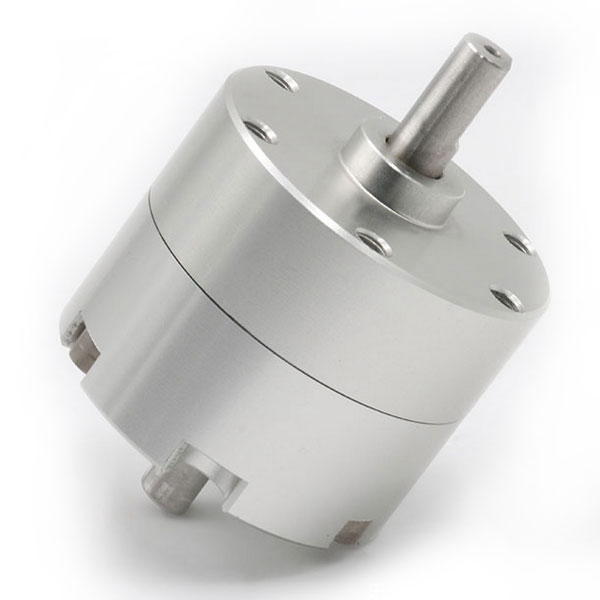

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CRB2 Cylinder

CRB2 Cylinder is Rotary Air Cylinder, which have no clearance, swing smoothly; The swing angle of Rotary Actuator CRB2 is adjustable; Shape size of double blade is the same as single blade type and provides double torque; Rotary Actuator CRB2 adopts special sealing structure, has low leakage; CRB2 Cylinder can be installed directly.

Symbol for CRB2 Cylinder

Specification for Rotary Actuator CRB2

Bore (mm) 10 15 20 30 40
Working Medium Air (No Lubrication)
Max. Operating Pressure (MPa) 0.7 1.0
Min. Operating Pressure (MPa) 0.2 0.15
Ambient and fluid temperature (℃) 5~60
Adjustable speed range (s/90°) 0.03~0.3 0.04~0.3 0.07~0.5
Allowable kinetic energy
(J) 		Single-blade No cushion 0.00015 0.00025 0.0004 0.015 0.03
With cushion 0.001 0.003 0.02 0.04
Double-blades
0.0003 0.0012 0.0033 0.02 0.04
Allowable axle load
(N) 		Transverse 15 15 25 30 60
Axial 10 10 20 25 40
Connection size Side M3x0.5(Swing angle for side of single blade cylinder of 90°, 180° is M5 x 0.8) M5 x 0.8
Axial
Angle adjustable range of angle adjustment unit Single-blade 0~230° 0~240° 0~230°
Double-blades 0~90°

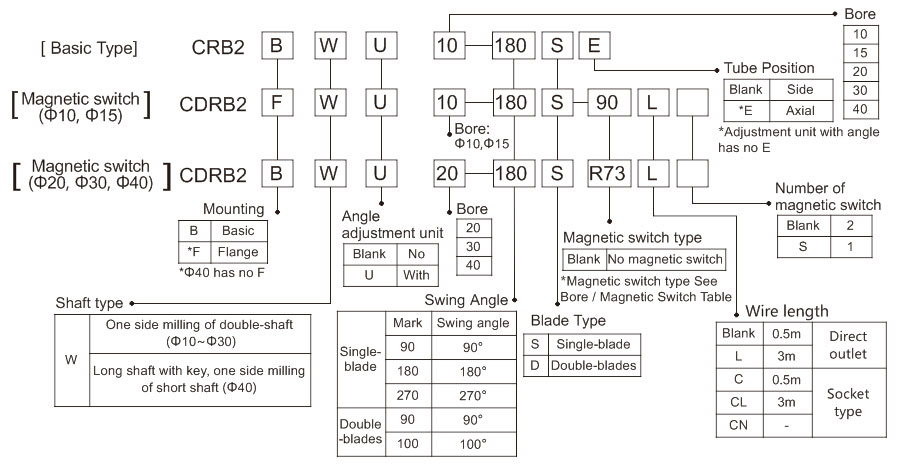

Ordering Code for Rotary Actuator CRB2

片

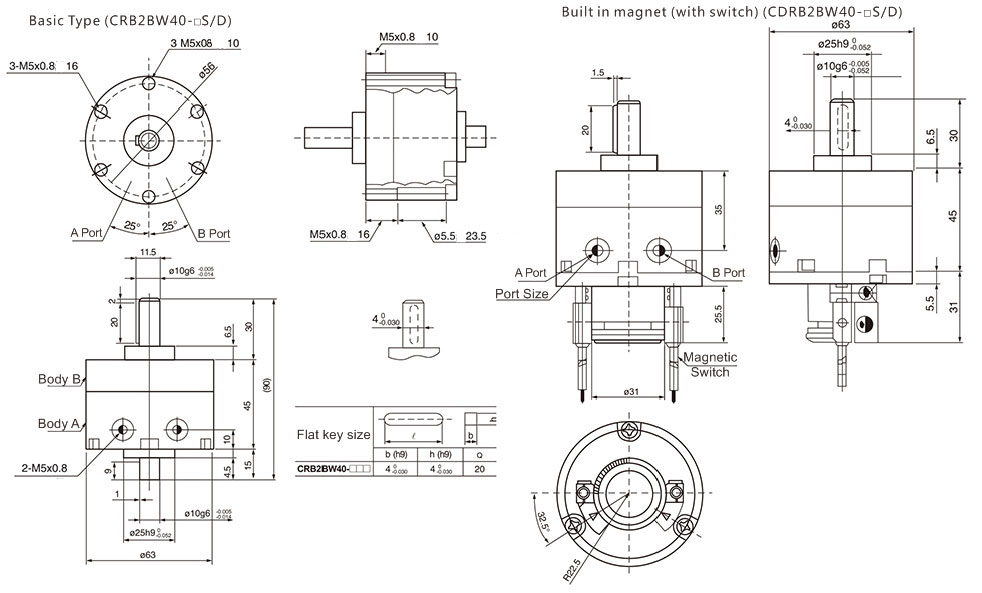

Dimension (mm)

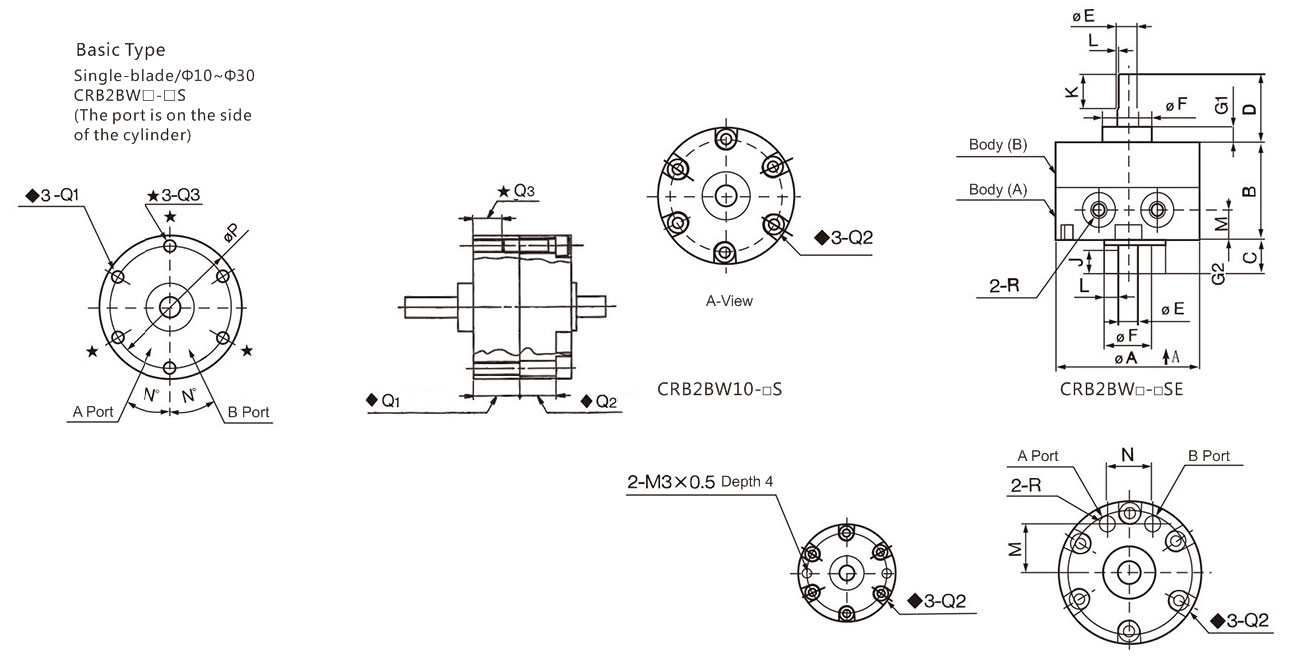

Basic Type

Model A B C D E(g6) F(h9) G1 G2 J K L M N P ◆Q1 ◆Q2 ★Q3 R
90° 180° 270°
CRB2BW10-□ S 29 15 8 14 4(-0.004/-0.012) 9(0/-0.036) 3 1 5 9 0.5 5 2.5 24 M3
(6)		 3.4
(5.5)		 - M5 M3
CRB2BW10-□ SE 8.5 2.5 M3
CRB2BW15-□ S 34 20 9 18 5(-0.004/-0.012) 12(0/-0.043) 4 1.5 6 10 0.5 5 25 29 M3
(10)		 3.4
(6)		 M3
(5)		 M5 M3
CRB2BW15-□ SE 11 10 M3
CRB2BW20-□ S 42 29 10 20 6(-0.004/-0.012) 14(0/-0.043) 4.5 1.5 7 10 0.5 9 25 36 M4
(13.5)		 4.5
(11)		 M4
(7.5)		 M5
CRB2BW20-□ SE 14 13
CRB2BW30-□ S 50 40 13 22 8(-0.005/-0.014) 16(0/-0.043) 5 2 8 12 1.0 10 25 43 M5
(18)		 5.5
(16.5)		 M5
(10)		 M5
CRB2BW30-□ SE 15.5 14

With Magnetic Switch

Model A B C D E(g6) F(H9) G K L M N P Q R Y
90° 180° 270°
CDRB2BW10-□S 29 15 29 14 4 9 3 9 0.5 10 25 24 M3×0.5 D5 M5×0.8 M3×0.5 18.5
CDRB2BW15-□S 34 20 29 18 5 12 4 10 0.5 15 25 29 M3×0.5 D5 M5×0.8 M3×0.5 18.5
CDRB2BW20-□S 42 29 30 20 6 14 4.5 10 0.5 20 25 36 M4×0.7 D7 M5×0.8 25
CDRB2BW30-□S 50 40 31 22 8 16 5 12 1 30 25 43 M5×0.8 D10 M5×0.8 25

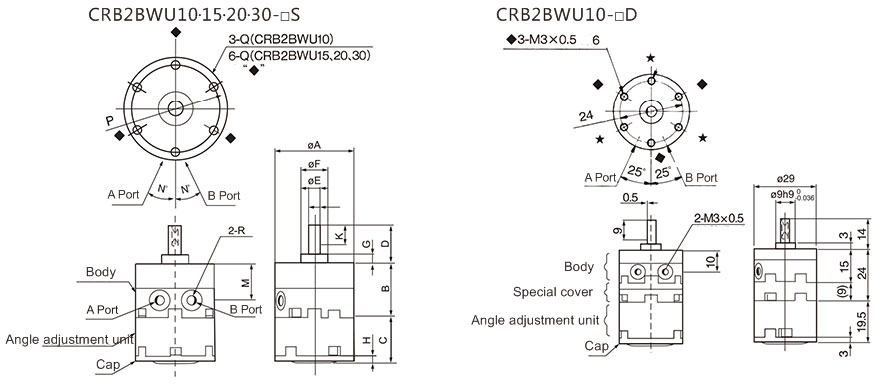

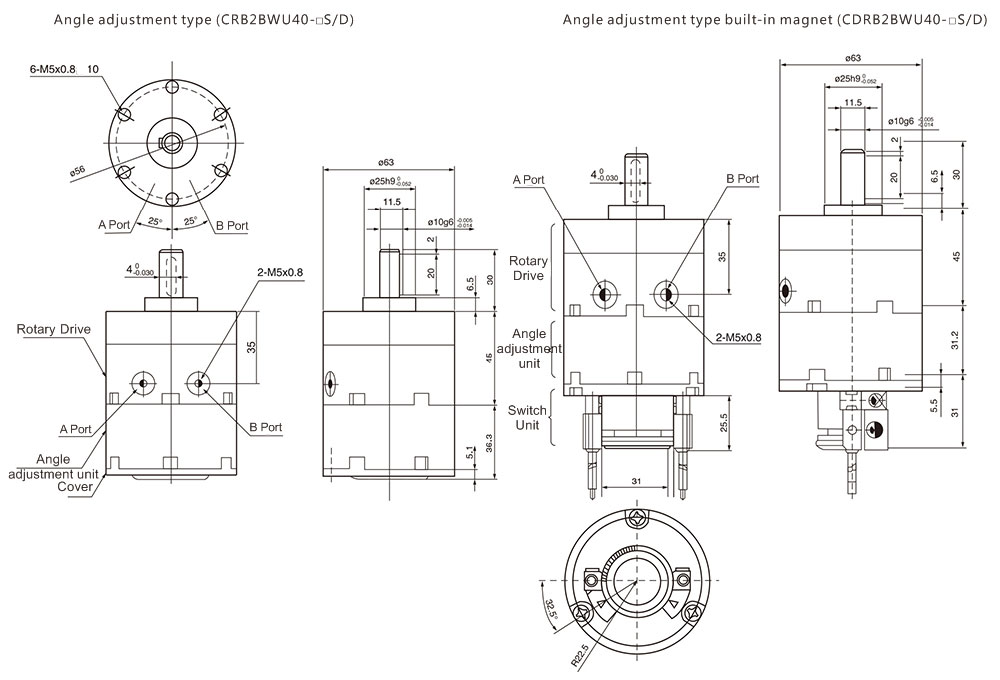

With Angle adjustment

Model A B C D E(g6) F(H9) G K L M N P Q R
90° 100° 180° 270°
CRB2BWU10-□S 29 15 19.5 14 4 9 3 9 0.5 10 25 24 M3×0.5 D5 M5×0.8 - M5×0.8 M3×0.5
*See the picture -
CRB2BWU15-□S 34 20 21.2 18 5 12 4 10 0.5 15 25 29 M3×0.5 D5 M5×0.8 - M5×0.8 M3×0.5
CRB2BWU15-□D M3×0.5 -
CRB2BWU20-□S 42 29 25 20 6 14 4.5 10 0.5 20 25 36 M4×0.7 D7 M5×0.8 - M5×0.8
CRB2BWU20-□D M5×0.8 -
CRB2BWU30-□S 50 40 29 22 8 16 5 12 1 30 25 43 M5×0.8 D10 M5×0.8 - M5×0.8
CRB2BWU30-□D M5×0.8 -

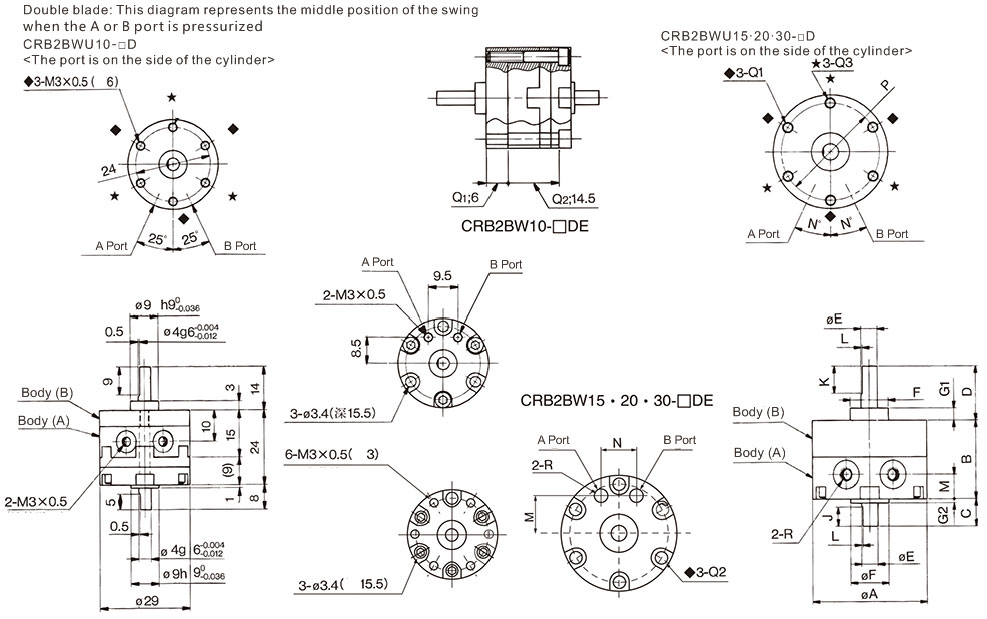

Basic Type

Model A B C D E(g6) F(h9) G1 G2 J K L M N P Q R
◆Q1 ◆Q2 ◆Q3 90° 100°
CRB2BW15-□D 34 20 9 18 5(-0.004/-0.012) 12(0/-0.043) 4 1.5 6 10 0.5 5 25 29 M3
(10)		 3.4
(6)		 M3
(5)		 M3
CRB2BW15-□DE 11 10
CRB2BW20-□D 42 29 10 20 6(-0.004/-0.012) 14(0/-0.043) 4.5 1.5 7 10 0.5 9 25 36 M4
(13.5)		 4.5
(11)		 M4
(7.5)		 M5
CRB2BW20-□DE 14 13
CRB2BW30-□D 50 40 13 22 8(-0.005/-0.014) 16(0/-0.043) 5 2 8 12 1.0 10 25 43 5.5
(16.5)		 5.5
(16.5)		 M3
(10)		 M5
CRB2BW30-□DE 15.5 14

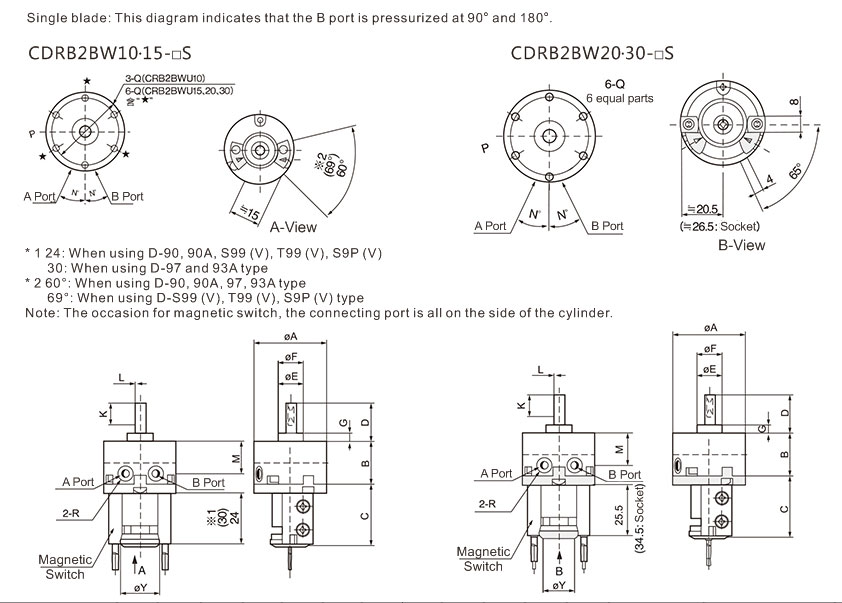

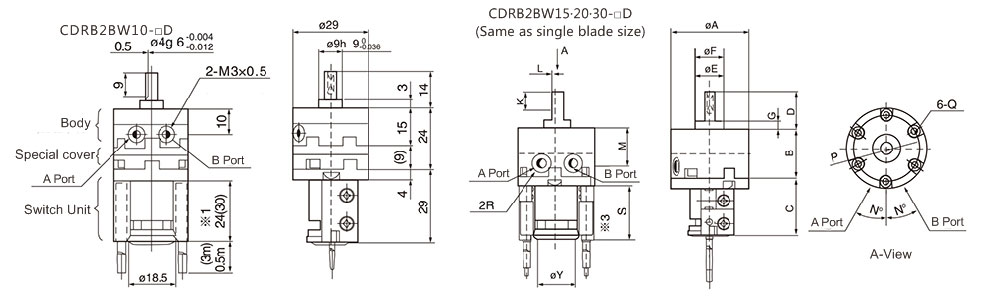

With Magnetic Switch

* 1. 24: When using D-90, 90A, S99 (V), T99 (V), S9P (V) type.
30: When using D-97 and 93A type.
* 2. 60 °: When using D-90, 90A, 97, 93A type.
69 °: When using D-S99 (V), T99 (V), S9P (V) type.
* 3. 25.5: When using D-R73, R80, S79, T79, S7P type magnetic switches, straight line type.
34.5: When using D-R73, R80, T79 type magnetic switch, socket type.

Model A B C D E(g6) F(H9) G K L M N P Q R S Y
90° 100°
CDRB2BW15-□S 34 20 29 18 5 12 4 10 0.5 15 25 29 M3×0.5 D5 M3×0.5 24 30 18.5
CDRB2BW20-□S 42 29 30 20 6 14 4.5 10 0.5 20 25 36 M4×0.7 D7 M5×0.8 25.5 34.5 25
CDRB2BW30-□S 50 40 31 22 8 16 5 12 1 30 25 43 M5×0.8 D10 M5×0.8 25
