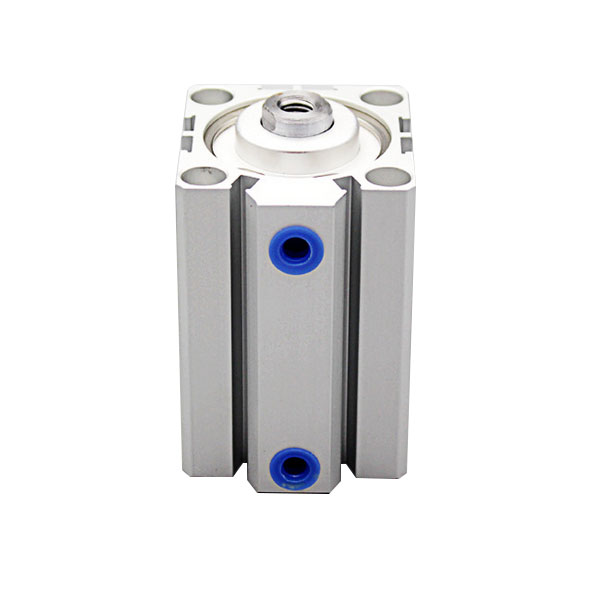

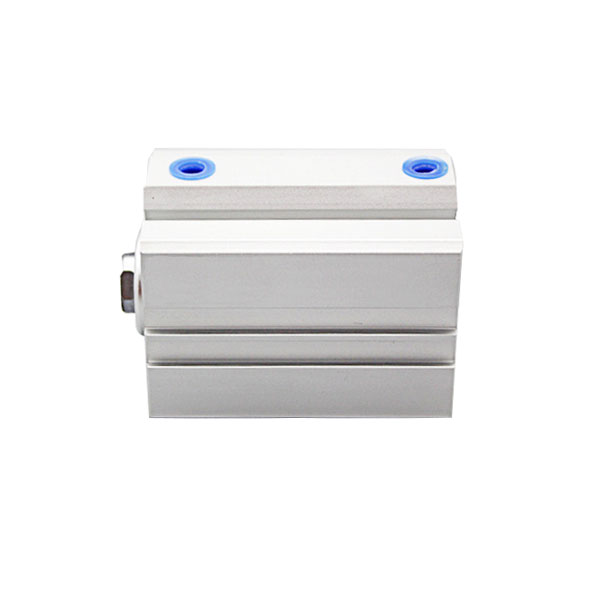

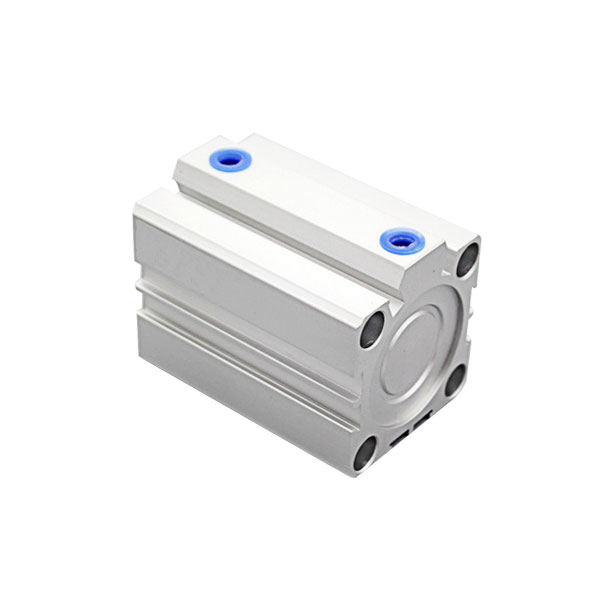

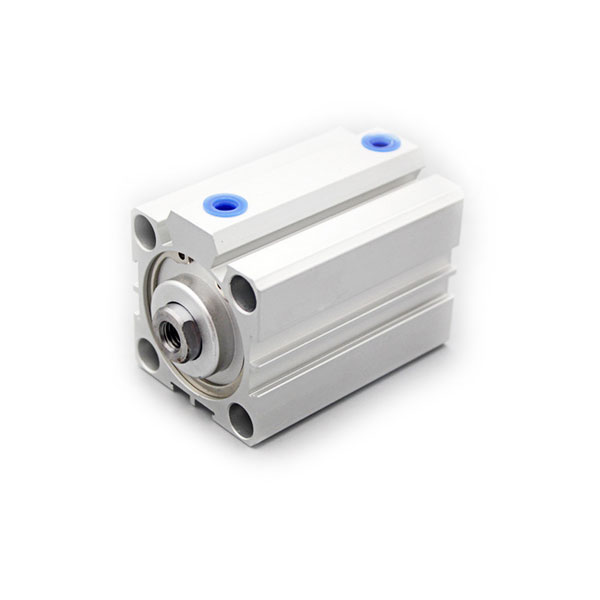

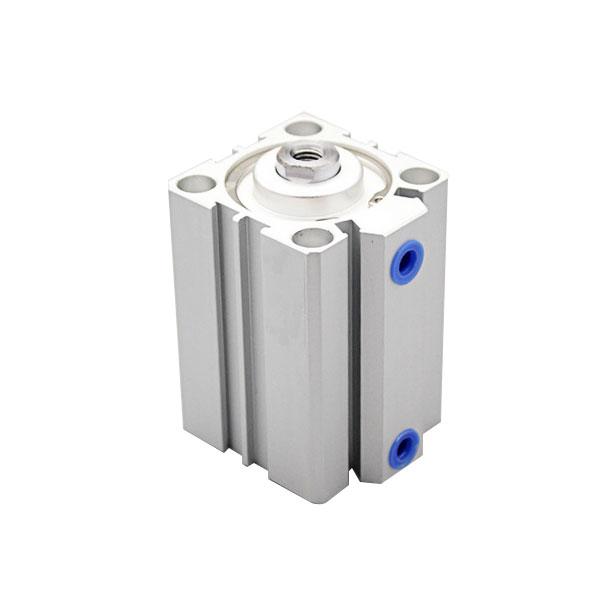

Overview for SDAW Ultra-thin Air Cylinder
SDAW Ultra-thin Air Cylinde end cover is provided with an intake and exhaust ports, and some are provided with a buffer mechanism in the end cover. The seal ring and the dust-proof ring are arranged on the end cover of the rod side to prevent air leakage from the piston rod and prevent external dust from entering the cylinder. A guide sleeve is arranged on the end cover of the rod side to improve the guiding accuracy of the SDAW cylinder, withstand a small amount of transverse load on the piston rod, reduce the downward bending of the piston rod when extending, and prolong the service life of the cylinder. The guide sleeve is made of sintered oil alloy and anteversion copper castings. The SDAW cylinder end cover is die-cast from aluminum alloy, and some mini cylinders are made of brass material.
Features for SDAW Ultra-thin Air Cylinder
Thin and light: The total length is only 1/2-1/3 of the general cylinder while maintaining the existing operation accuracy and the service life of the product. Show the characteristics of the thin and light;
SDAW Compact Pneumatic Cylinder Easy to install: Use the embedded installation method, no need for any accessories to achieve space-saving requirements;
SDAW Compact Pneumatic Cylinder Easy to maintain: Use simple assembly method to design, easy to install and disassemble and repair;
Magnetic switch: The assembly groove is reserved around the body, which makes the magnetic switch very simple in installation and position adjustment.
Technical Parameters for SDAW Ultra-thin Air Cylinder
Bore Sizes: 2.5,4mm
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.3-0.7 MPa
Speed:50~500mm/s；
Working Environment Temperature: -10 to 80°C

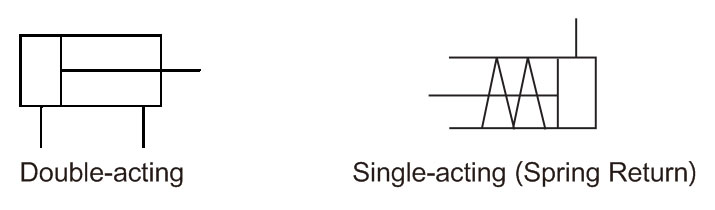

Symbol for SDAW Compact Pneumatic Cylinder

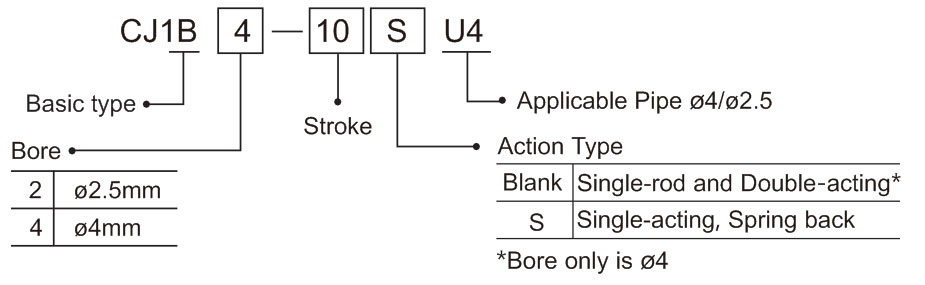

Ordering Code for Micro Pneumatic Cylinder CJ1 Series
Specification for Micro Pneumatic Cylinder CJ1 Series
| Bore (mm) |
2.5 |
4 |
| Working Medium |
Air |
| Maximum Operating Pressure |
0.7MPa |
| Minimum Operating Pressure |
0.3MPa (Double-acting: 0.2MPa) |
| Ambient and fluid temperature |
-10~70°C (No Freezing) |
| Piston velocity |
50~500mm/s |
| Buffer |
No |
| Stroke Tolerance (mm) |
+0.5/0 |
Stroke /Applicable Pipe SDAW Compact Pneumatic Cylinder
| Bore (mm) |
Standard Stroke (mm) |
Size of Applicable Pipe (mm) |
Pipe Material |
| Outer Diameter |
Inner Diameter |
| 2.5 |
5,10 |
4 |
2.5 |
Soft Nylon or Polyurethane |
| 4 |
5,10,15,20 |
Dimension (mm) SDAW Compact Pneumatic Cylinder

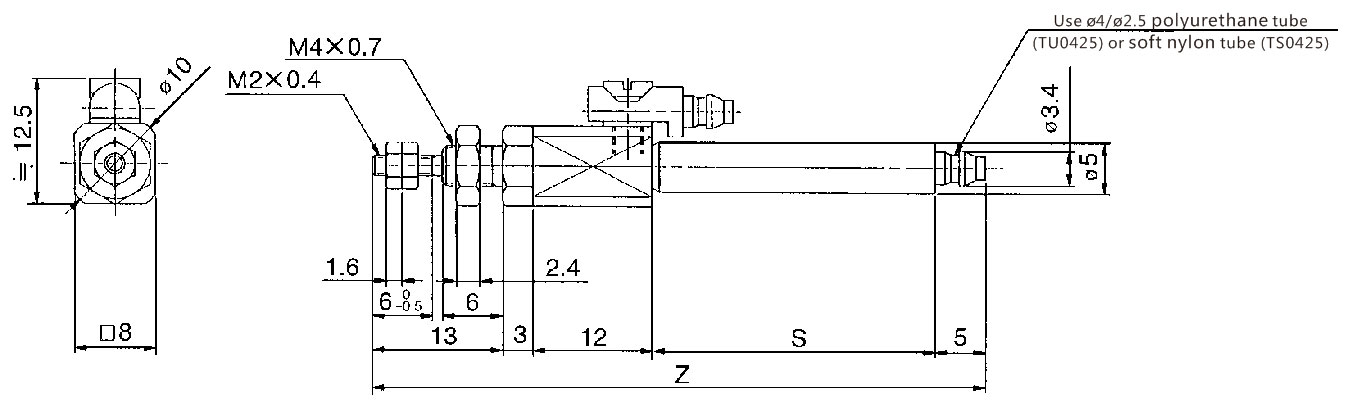

CJ1B4-□U4
| Bore / Stroke |
S |
Z |
| 5 |
10 |
15 |
20 |
5 |
10 |
15 |
20 |
| 4 |
18 |
23 |
28 |
33 |
51 |
56 |
61 |
66 |

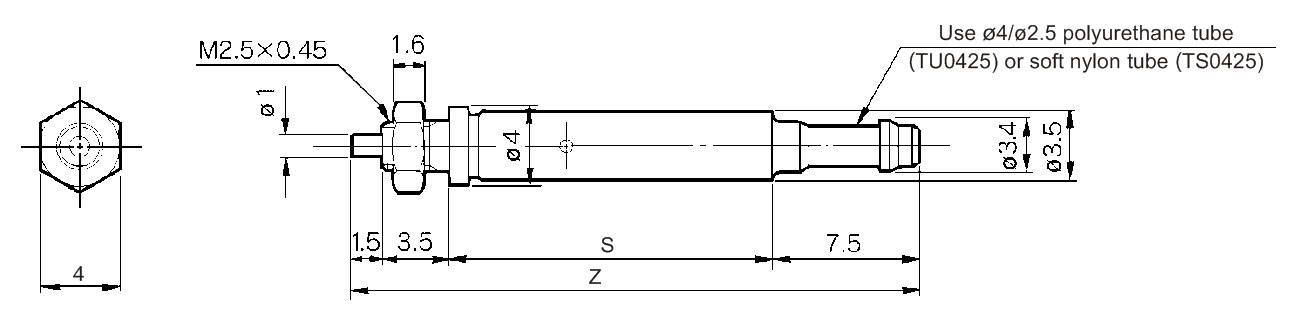

CJ1B2-□SU4
| Bore / Stroke |
S |
Z |
| 5 |
10 |
5 |
10 |
| 4 |
16.5 |
25.5 |
29 |
38 |

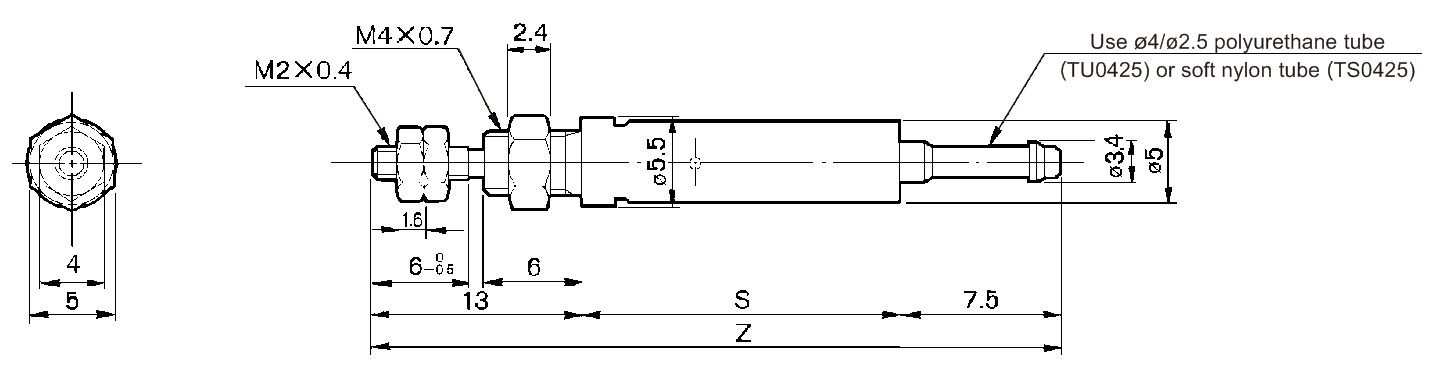

CJ1B4-□SU4
| Bore / Stroke |
S |
Z |
| 5 |
10 |
15 |
20 |
5 |
10 |
15 |
20 |
| 4 |
19.5 |
28.5 |
37.5 |
46.5 |
40 |
49 |
58 |
67 |
