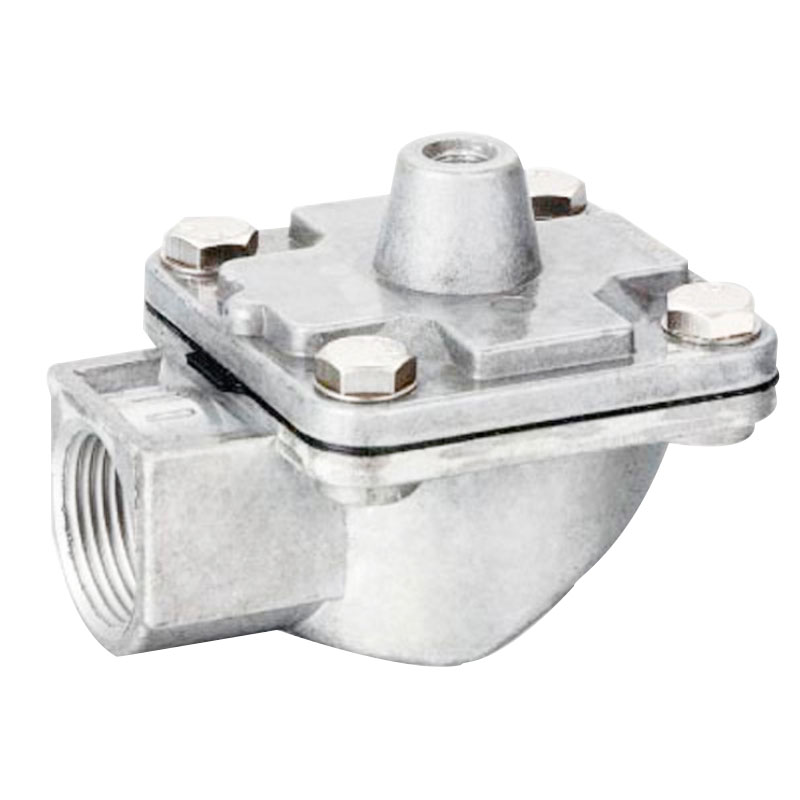

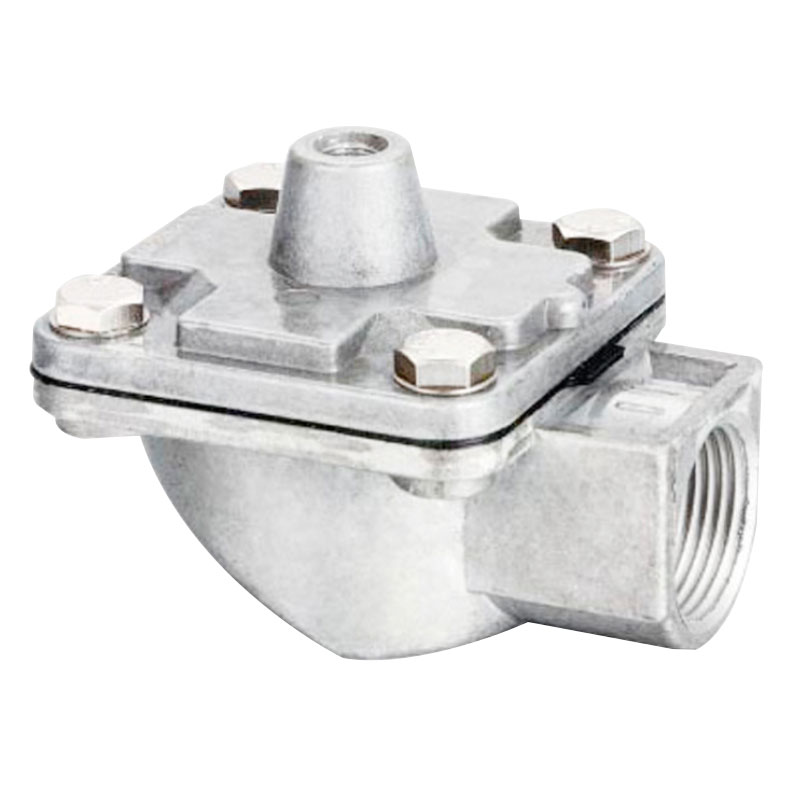

Right Angle Pulse Valve SMF-Q

Overview for Right Angle Pulse Valve SMF-Q

The electromagnetic pulse valve is imported from abroad (also known as diaphragm valve). It is the compressed air "switch" of the dust cleaning and injection system of the pulse bag filter. Controlled by the output signal of the pulse injection controller, the filter bag is injected one by one (chamber) to remove dust, so that the resistance of the dust remover is kept within a set range, so as to ensure the processing capacity and dust collection efficiency of the dust remover.
Technical indicators:
Working pressure: 0.4～0.7; Ambient temperature: -10～55°C; Working medium: clean air; Diaphragm life: spray more than 1 million times.
Connecting thread: ZG11/2", Length: 140mm, Width: 125mm, Height: 170mm, Weight: 1.6kg
Installation method:
The electromagnetic pulse valve input end (IN) is connected with the metal tube of the gas storage cylinder, and the output end is connected with the spray tube of the dust removal box, and the connecting thread is filled with the tetrafluoroethylene raw material tape to be tightly sealed.

Technical Parameters for Right Angle Pulse Valve SMF-Q

Port Size: G1/2,G3/4,G1
Operating Pressure: 0.3~0.8MPa
Working Environment Temperature: -5~60℃
Material: Aluminium Alloy,NBR

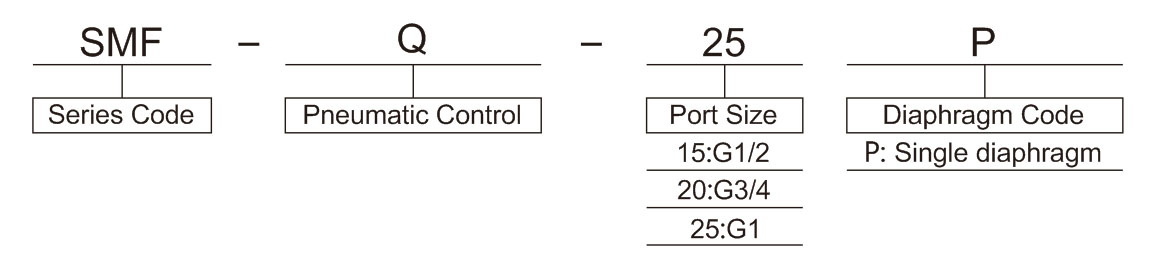

Ordering Code for Right Angle Pulse Valve SMF-Q Series

Technical Parameter for Right Angle Pulse Valve SMF-Q

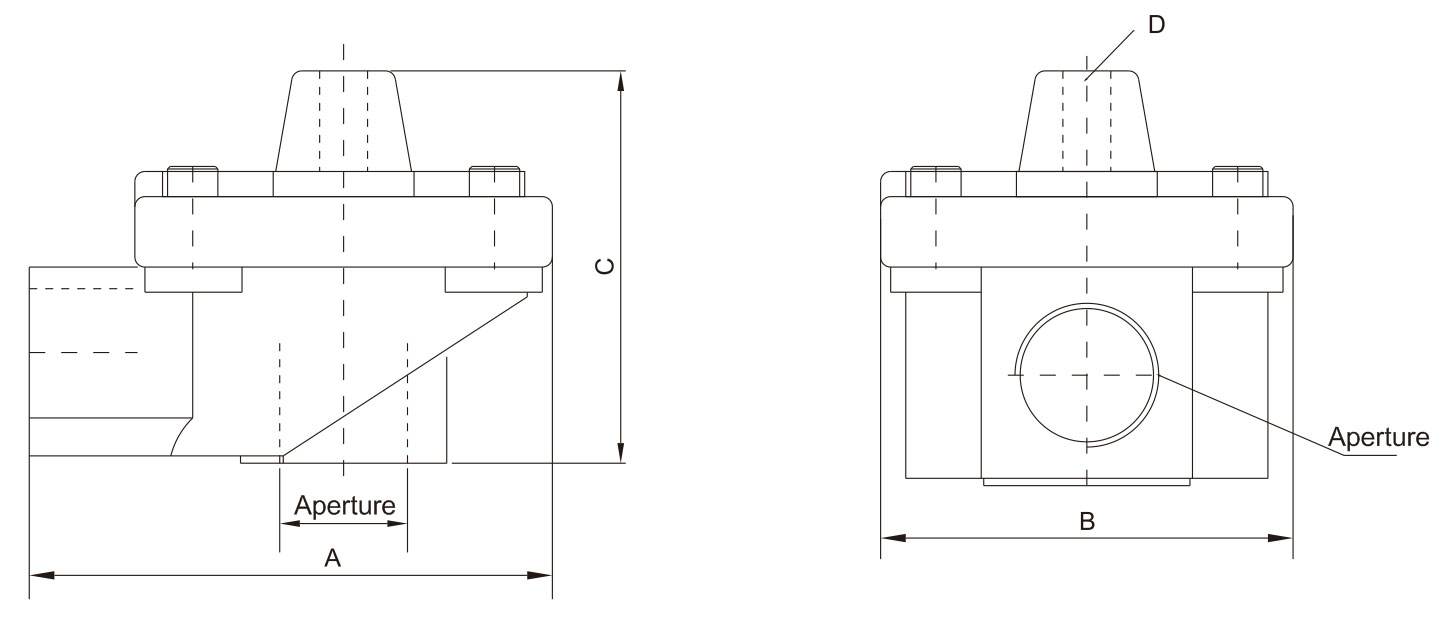

Overall Dimension for Right Angle Pulse Valve SMF-Q
