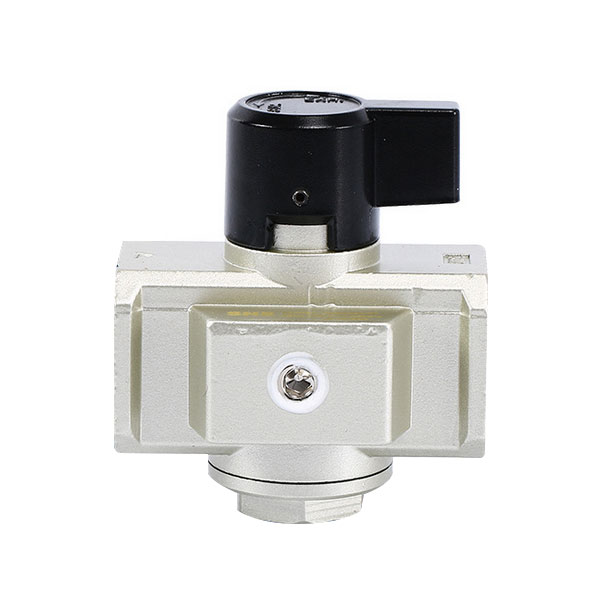

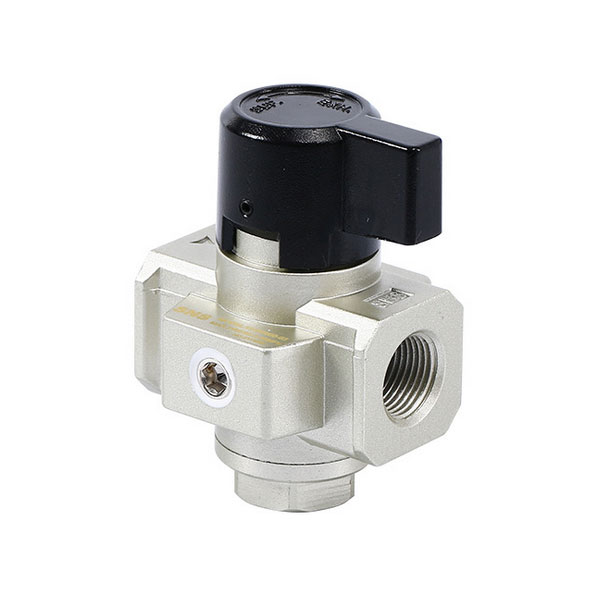

Residual Pressure Relief Valve VHS

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

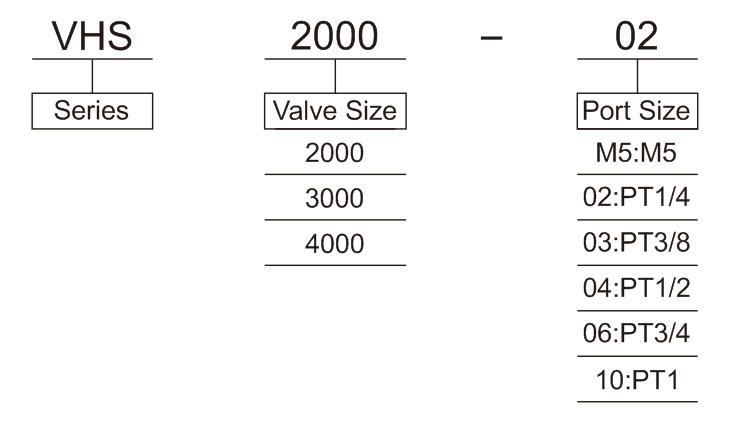

Ordering Code for Residual Pressure Relief Valve VHS Series

Symbol for Residual Pressure Relief Valve VHS Series

Technical Parameter for Residual Pressure Relief Valve VHS Series

Model VHS2000~4000
Working Medium Compressed air
Operating pressure range 0.1~1.0MPa
Ambient and fluid temperature -5~60℃(No Freezing)
Handwheel switching angle 90°
Appearance and color (standard) Handwheel: black; Valve: pale yellow
Body Material Aluminium Alloy

Specification

Model Pipe Size Active area (mm²), Cv value in the ()
Air inlet→Air outlet Vent Air inlet→Air outlet Air outlet→Venting
VHS2000 PT1/8 PT1/8 10(0.54) 11(0.60)
PT1/4 14(0.76) 16(0.87)
VHS3000 PT1/4 PT1/4 16(0.87) 14(0.76)
PT3/8 31(1.68) 29(1.57)
VHS4000 PT1/4 PT3/8 27(1.46) 36(1.95)
PT3/8 38(2.06) 40(2.17)
PT1/2 55(2.98) 43(2.28)

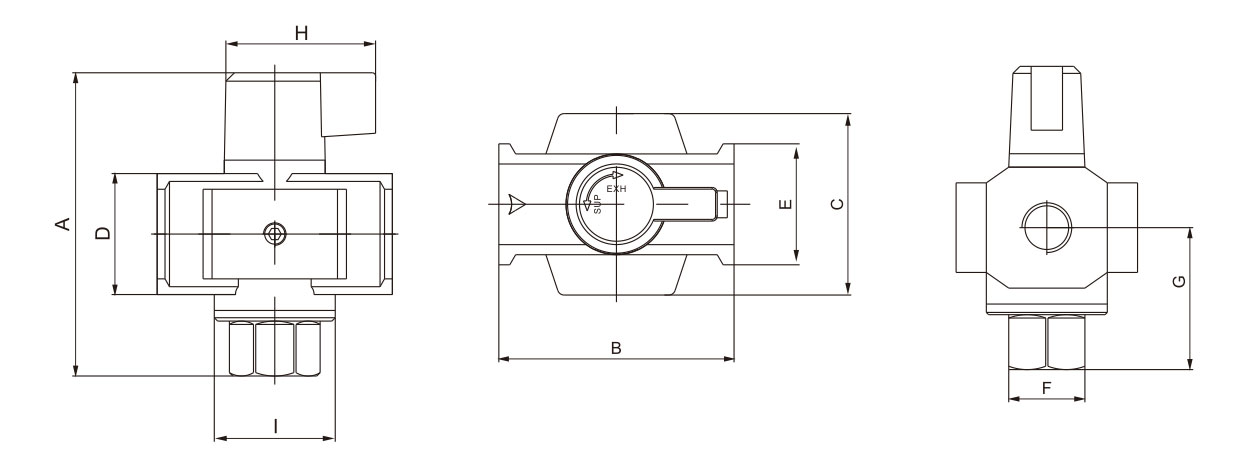

Overall Dimension

Model A B C D E F G H I J
VHS2000 57 40 - 23 28 19 20 36 22 10
VHS3000 74 54 48 28 29 22 29 44 30 15
VHS4000 80 70 54 36 36 24 33 45 36 15
