Quick Twist Fittings KG

* Can be used on vacuum systems.* The metal part is made of stainless steel (SUS303) instead of the traditional brass.* Suitable for the following purposes


Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

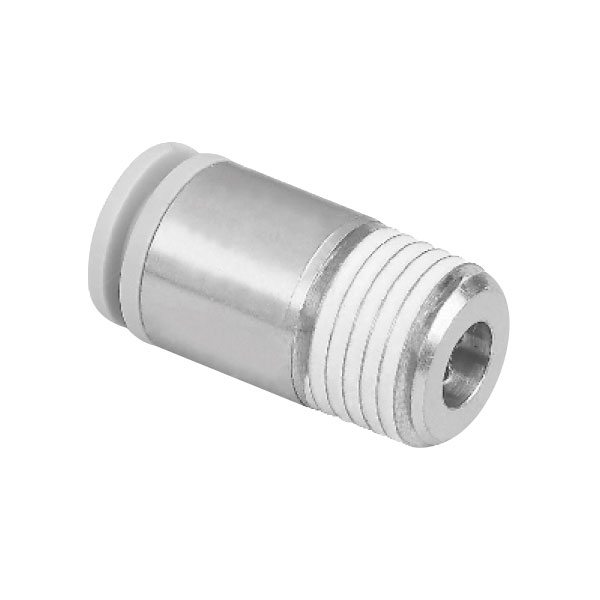

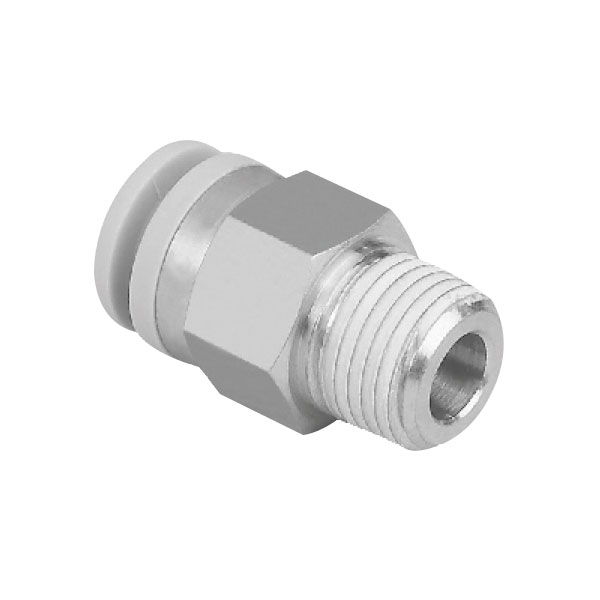

Male Straight Joint for Quick Twist Fittings KG

* Can be used on vacuum systems.
* The metal part is made of stainless steel (SUS303) instead of the traditional brass.
* Suitable for the following purposes:
- food processing machinery and equipment, where it may be exposed to wash water or salt water.
- no copper equipment, such as CRT production line and so on.
- clean room
* White body is easy to distinguish.
* Standard thread with sealant.
Special environment Quick Twist Joint KL
Material: metal part - SUS316; Seals - special FKM
The maximum operating temperature is 150℃.
Used in the food and electronics industries that is heat-resistant, acid-resistant and alkali-resistant.
No lubrication specification
Suitable for fluorocarbon resin, nylon, soft nylon and PU hose.

Connection
T
Uni Thread
Suitable hose O.D mm
Φ4 Φ6 Φ8 Φ10 Φ12 Φ16
M3×0.5 KG2H04-M3




M5×0.8 KG2H04-M5 KG2H06-M5



M6×1.0 KG2H04-M6 KG2H06-M6



1/8" KG2H04-01S KG2H06-01S KG2H08-01S KG2H10-01S KG2H12-01S
1/4" KG2H04-02S KG2H06-02S KG2H08-02S KG2H10-02S KG2H12-02S
3/8"
KG2H06-03S KG2H08-03S KG2H10-03S KG2H12-03S KG2H16-03S
1/2"

KG2H08-04S KG2H10-04S KG2H12-04S KG2H16-04S

* Optional color of separation ring : gray, orange, black. For detailed product sizes, refer to the Quick Twist Joint KL dimensional drawing.
