Quick Exhaust Air Valve QE/VQE

QE Quick Exhaust Air Valve(Pneumatic Check Valve) is a single-phase auxiliary component, which can quickly discharge the compressed air that has been used in the system. Generally arranged between the cylinder and the reversing valve, so that the gas in the cylinder is not discharged quickly through the reversing valve.

Port Size: G1/8,G1/4,G3/8,G1/2
Proof Pressure: 0.8~1.0MPa
Working Environment Temperature: 0~70℃
Material: Aluminum Alloy

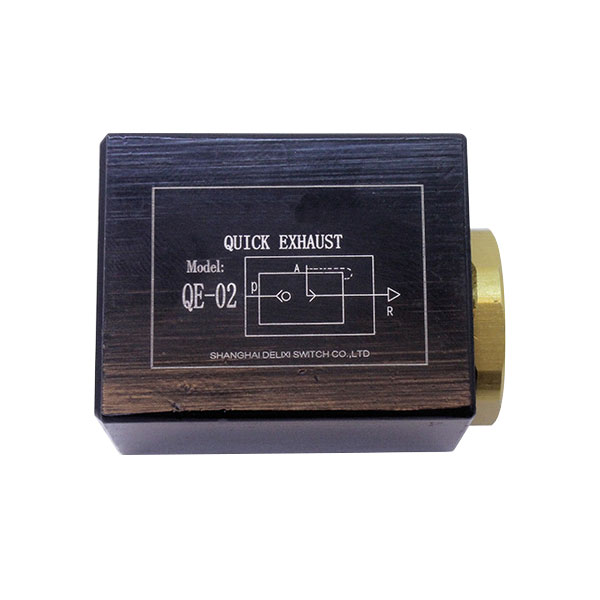

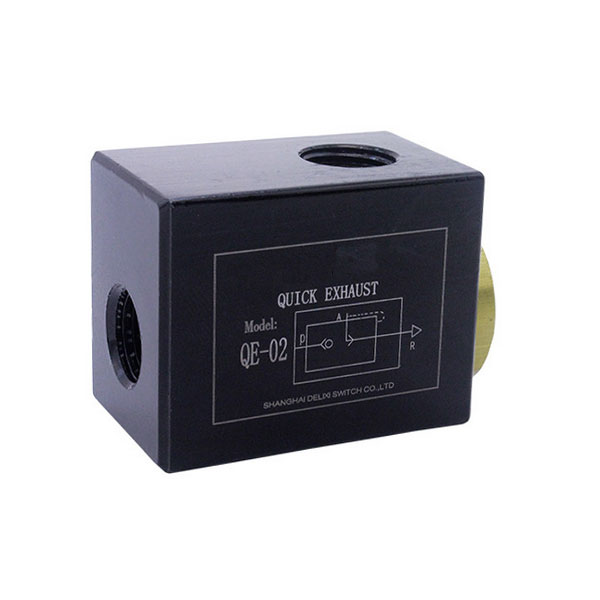

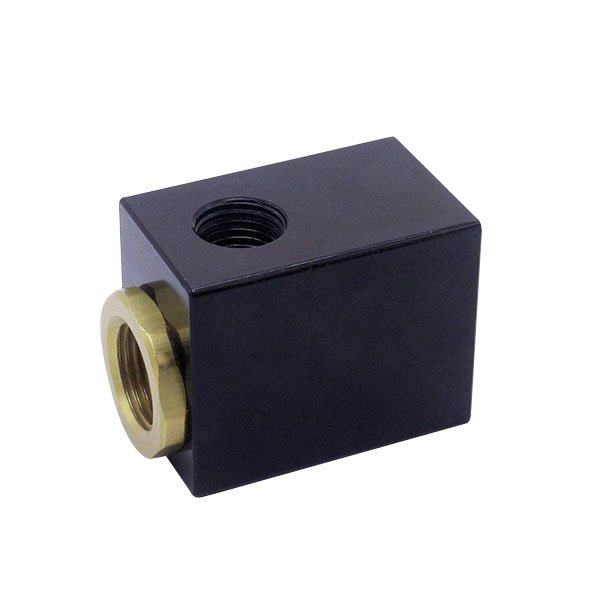

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Quick Exhaust Air Valve QE

QE Quick Exhaust Air Valve(Pneumatic Check Valve) is a single-phase auxiliary component, which can quickly discharge the compressed air that has been used in the system. Generally arranged between the cylinder and the reversing valve, so that the gas in the cylinder is not discharged quickly through the reversing valve. Quick Exhaust Air Valve is used for quick exhaust of pneumatic components.

Technical Parameters for Quick Exhaust Air Valve QE

Port Size: G1/8,G1/4,G3/8,G1/2
Proof Pressure: 0.8~1.0MPa
Working Environment Temperature: 0~70℃
Material: Aluminum Alloy

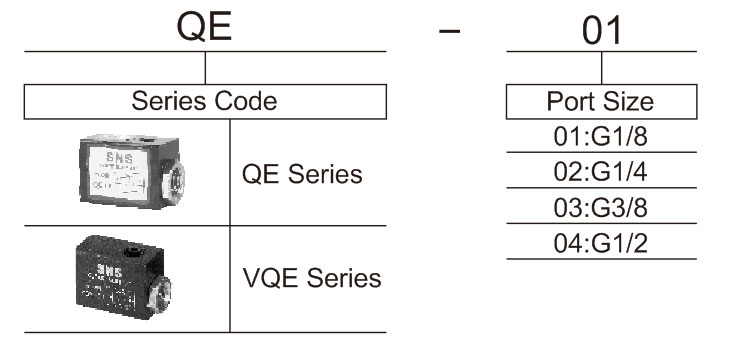

Ordering Code for Quick Exhaust Air Valve QE

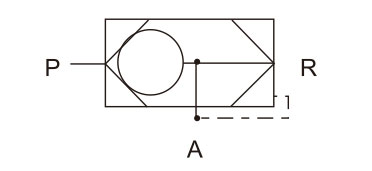

Symbol for Quick Exhaust Air Valve QE

Technical Parameter for Quick Exhaust Air Valve QE

Model QE-01 QE-02 QE-03 QE-04
Working Medium Compressed Air
Port Size G1/8 G1/4 G3/8 G1/2
Max. Operating Pressure 0.8MPa
Proof Pressure 1.0MPa
Operating temp. range 0~70℃
Main parts material Body Aluminium Alloy
Sealing element NBR

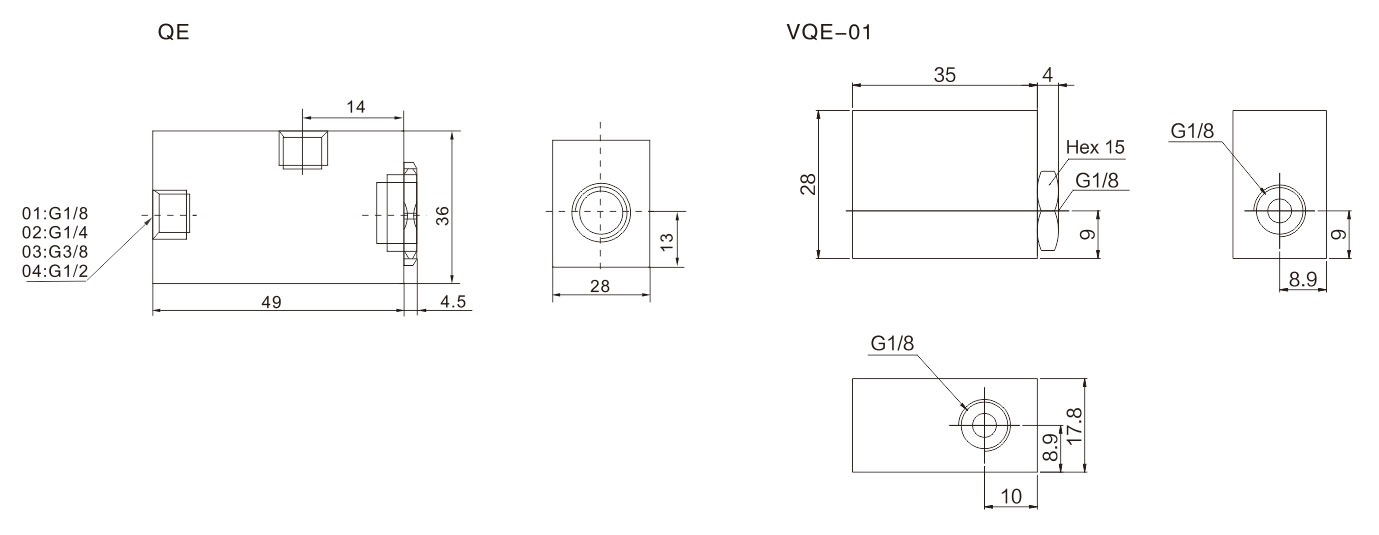

Overall Dimension
