Pressure Switch YS1000M

Max. Operating Pressure: 0.7MPa
Range of pressure regulation: 0.1~0.4MPa
Ambient and fluid temperature: 5~60℃
Working voltage: ≌24~220V

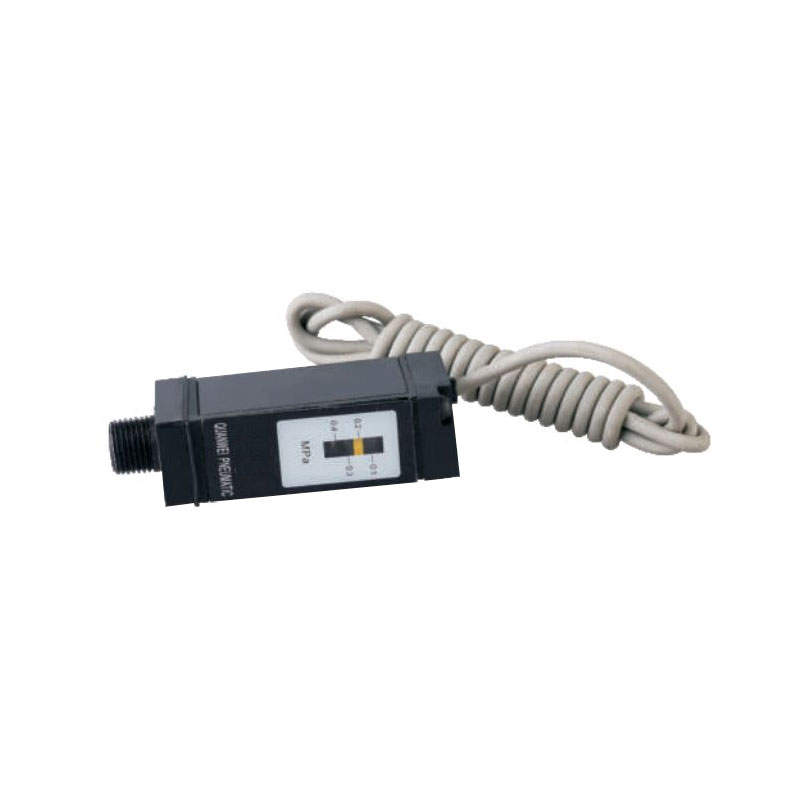

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pressure Switch YS1000M

Max. Operating Pressure: 0.7MPa
Range of pressure regulation: 0.1~0.4MPa
Ambient and fluid temperature: 5~60℃
Working voltage: ≌24~220V

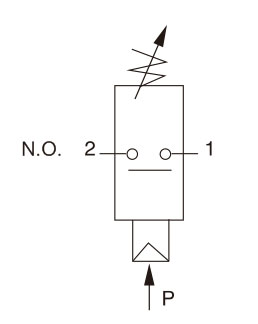

Symbol for Pressure Switch YS1000M Series

Technical Parameter for Pressure Switch YS1000M Series

Working Medium Filtered compressed air
Max. Operating Pressure 0.7MPa
Range of pressure regulation 0.1~0.4MPa
Pressure difference <0.08MPa
Ambient and fluid temperature 5~60℃
Switch Type N.O.
Working voltage ≌24~220V
Maximum operating current 1000mA
Maximum switching power 10W(VA)
Conversion time <1.0ms

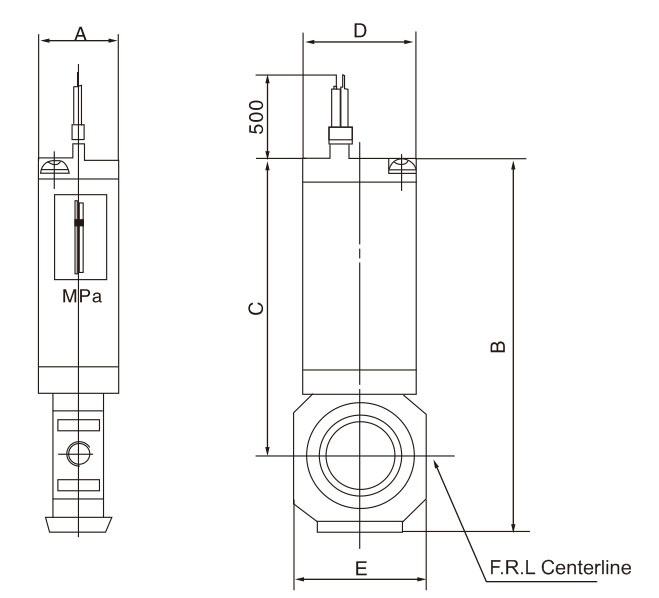

Overall Dimension for Pressure Switch YS1000M Series

Model A B C D E Applicable Model
YS1000M-2Y 15 73.5 62.5 23 28 QAC2000
YS1000M-2Y 15 82 64.9 23 29 QAC2500/QAC3000
YS1000M-2Y 15 88.7 67.9 23 35 QAC4000
YS1000M-2Y 15 91 71 23 44 QAC4000-06
YS1000M-2Y 15 100 72.5 23 54 QAC5000
