Pressure Regulating Valve R200A Mini

Port Size:G1/4
Proof Pressure:1.0MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: -10 to 60°C

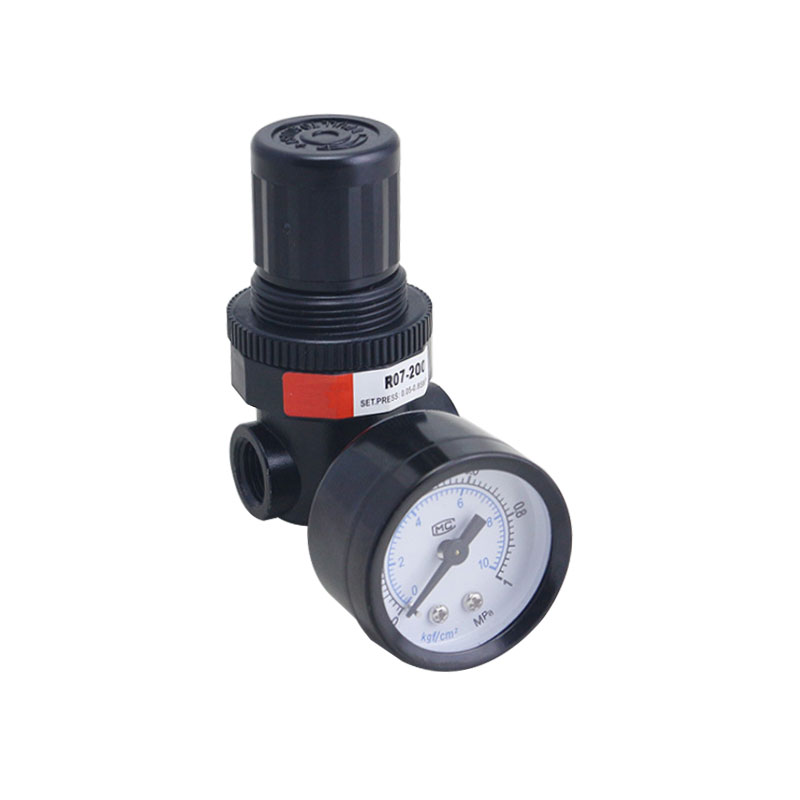

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pressure Regulating Valve AR

Port Size:G1/4
Proof Pressure:1.0MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: -10 to 60°C

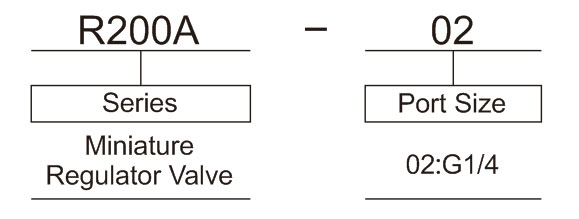

Ordering Code for Pressure Regulating Valve R200A

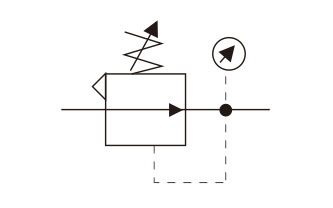

Symbol for Pressure Regulating Valve R200A

Technical Parameter for Pressure Regulating Valve R200A

Model R200A-02
Port Size G1/4
Working Medium Compressed Air
Range of pressure regulation 0.05~0.8MPa
Max. Proof Pressure 1.0MPa
Max. Flow 1546 L/min
Ambient Temperature -10~60℃
Main material Body: Engineering rubber; Bowl: PC

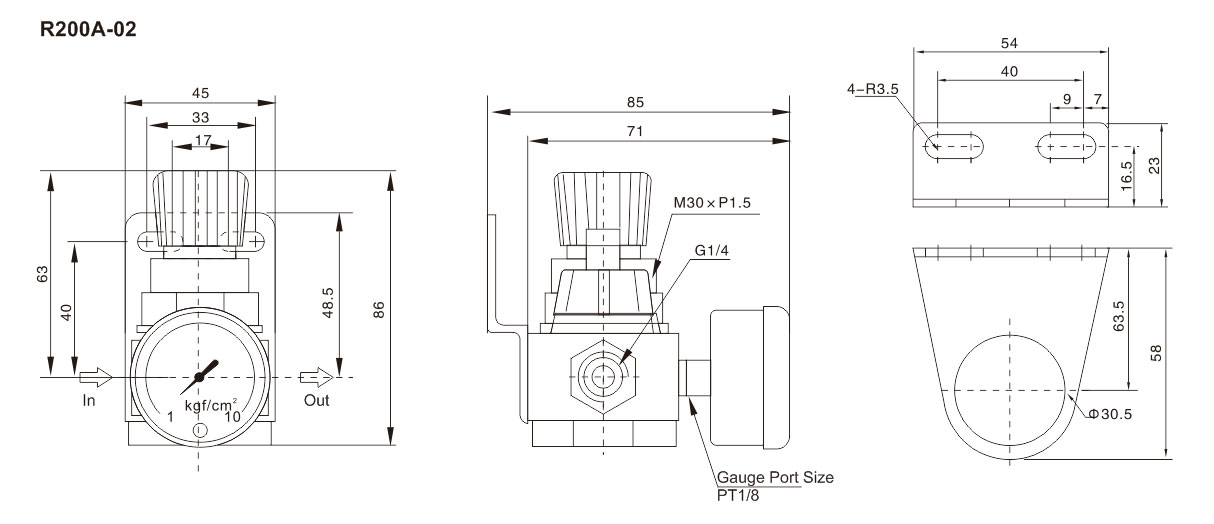

Overall Dimension

Keywords:

Pressure Regulating Valve R200A | Mini Pressure Regulating Valve
