Pressure Regulating Valve R

Port Size: G1/4,G3/8,G1/2
Proof Pressure: 0.05~1.2 MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

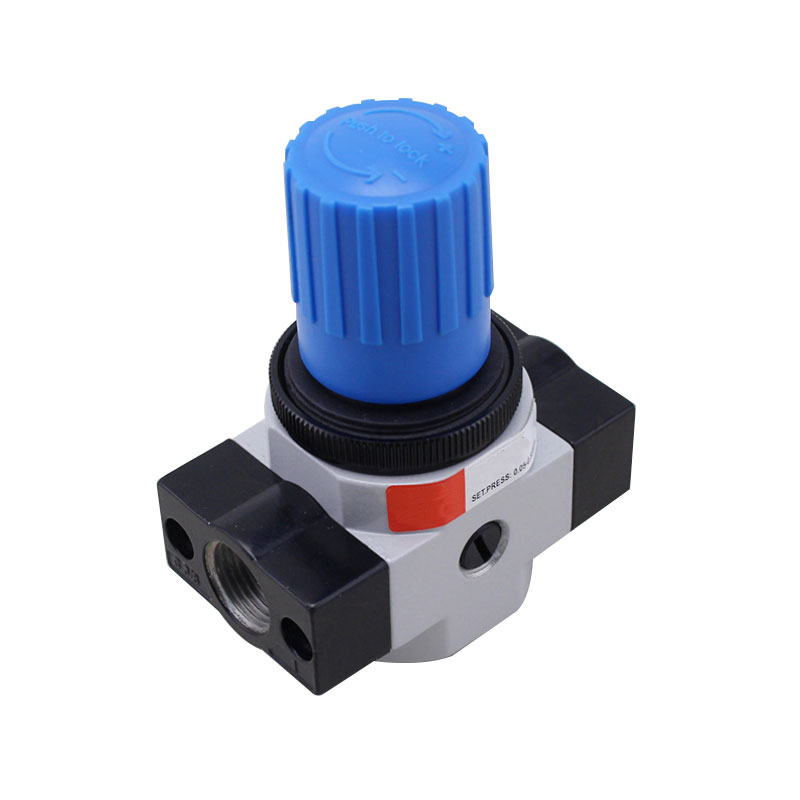

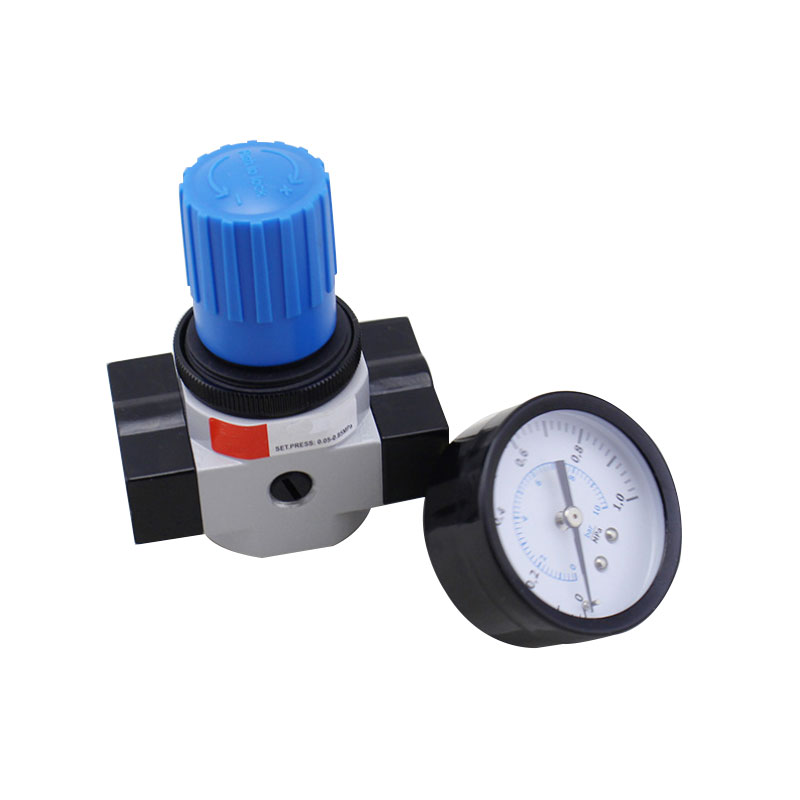

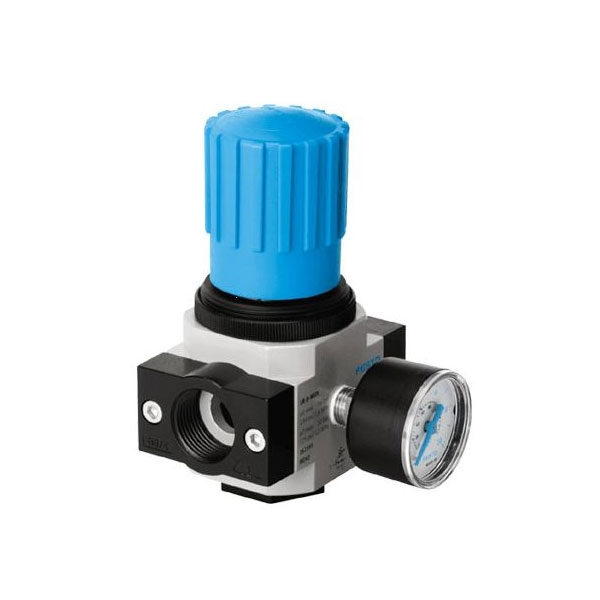

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for High Pressure Regulating Valve QTYH

Port Size: G1/4,G3/8,G1/2
Proof Pressure: 0.05~1.2MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

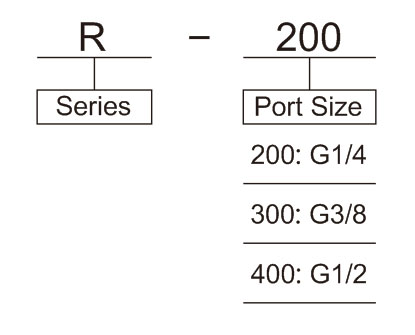

Ordering Code for Pressure Regulating Valve R Series

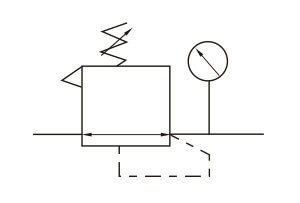

Symbol for Pressure Regulating Valve R Series

Technical Parameter for Pressure Regulating Valve R Series

Model R-200 R-300 R-400
Port Size G1/4 G3/8 G1/2
Working Medium Compressed Air
Range of pressure regulation 0.05~1.2MPa
Max. Proof Pressure 1.6MPa
Rated Flow 1500L/min 3200L/min 3500L/min
Ambient Temperature 5~60℃
Installation method Tube mounting or bracket mounting
Main material Body: Zinc alloy

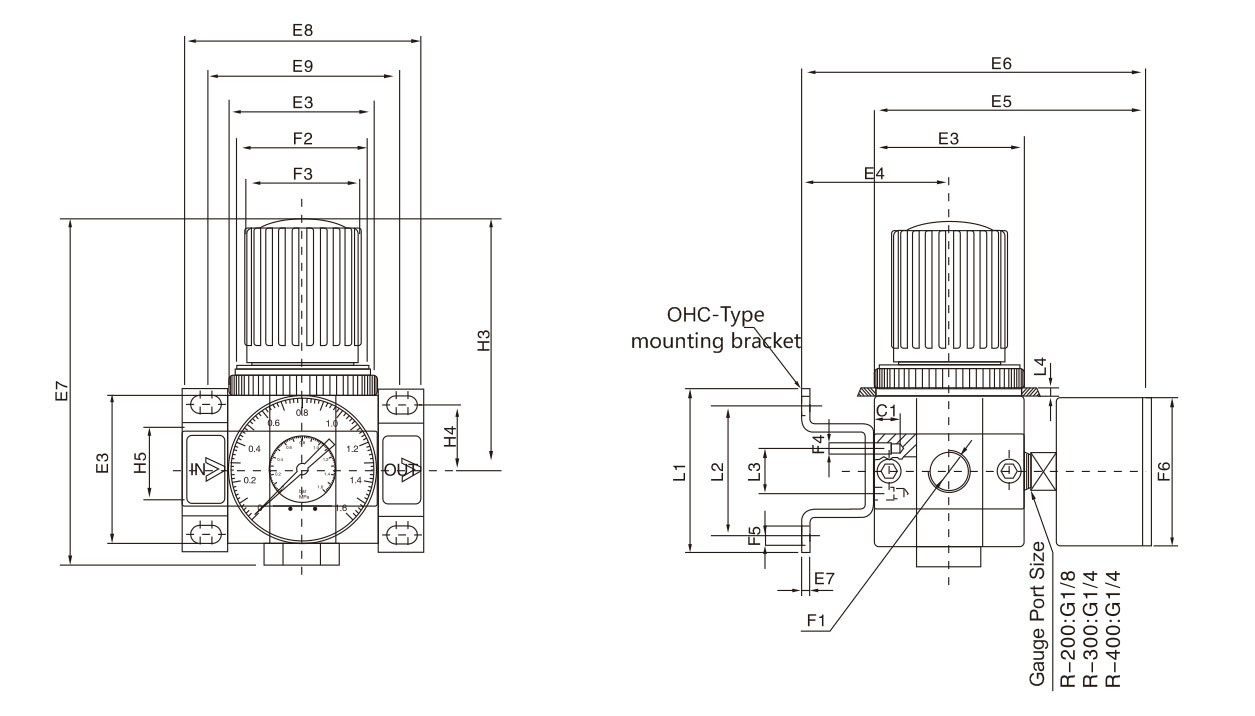

Overall Dimension

Model E3 E4 E5 E6 E8 E9 F1 F2 F3Φ F4 F5Φ F6Φ L1 L2 L3 L4 H3 H4 H7
R-200 40 39 76 95 64 52 G1/4 M36×1.5 31 M4 4.5 40 44 35 11 Max.3 69 17.5 96
R-300 55 47 93 112 85 70 G3/8 M52×1.5 50 M5 5.5 52 71 60 22 Max.5 98 24.5 96
R-400 55 47 93 112 85 70 G1/2 M52×1.5 50 M5 5.5 52 71 60 22 Max.5 98 24.5 96
