Pressure Regulating Valve NR

Port Size: R1/4
Proof Pressure: 0.5MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

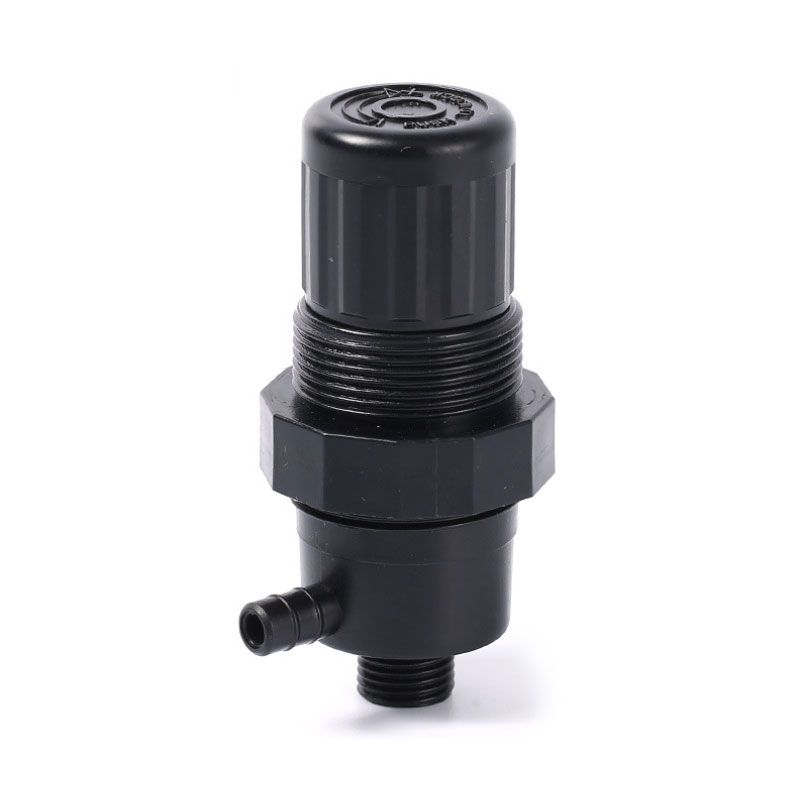

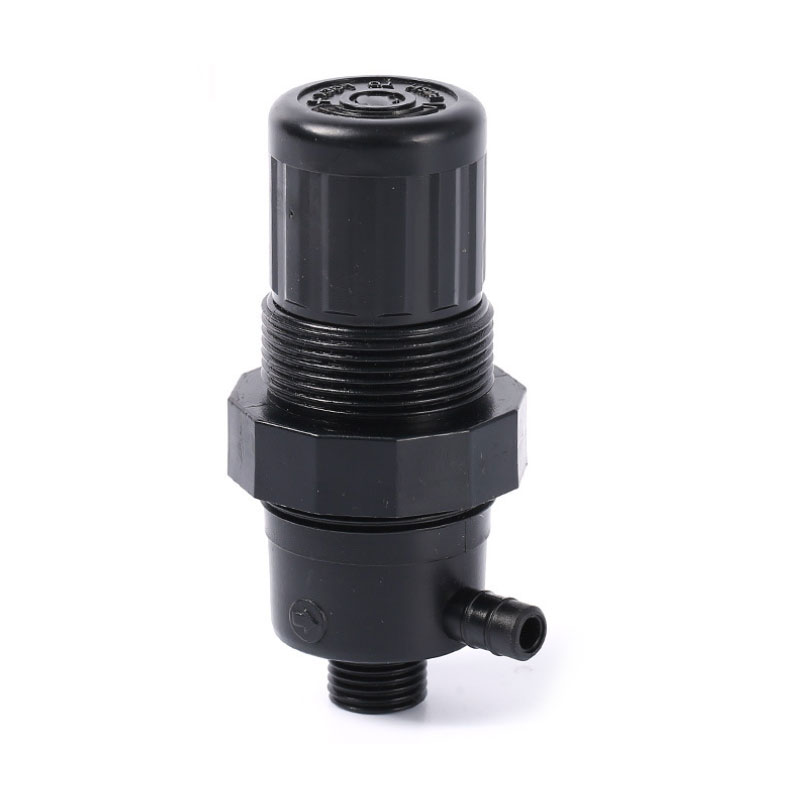

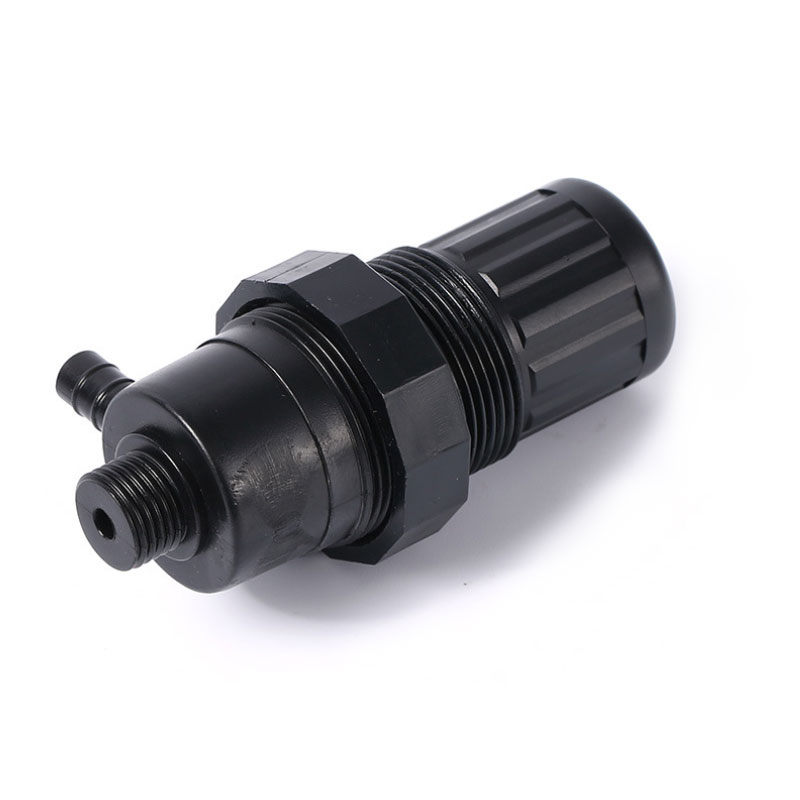

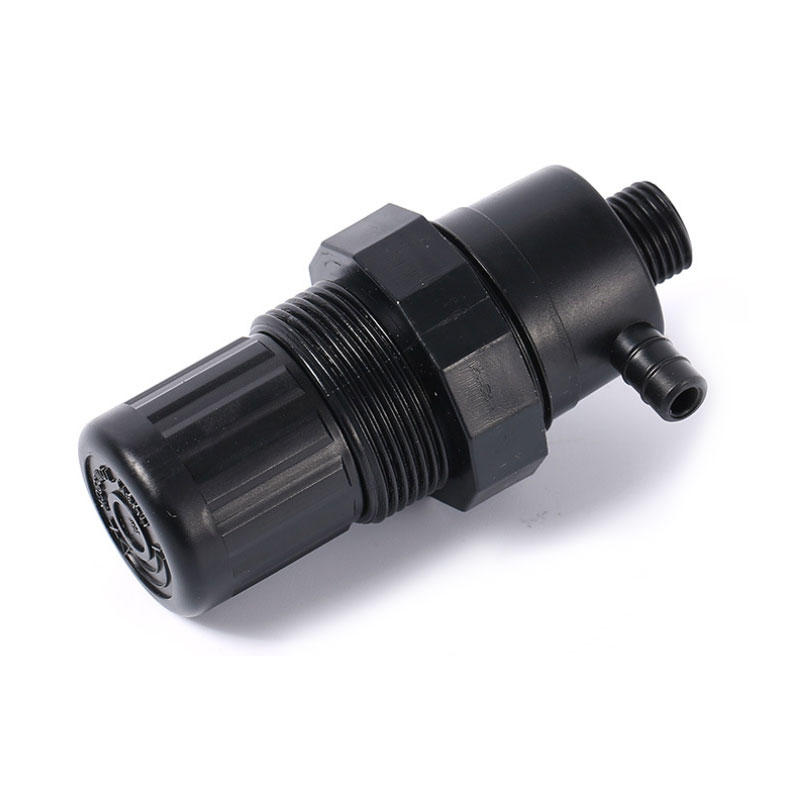

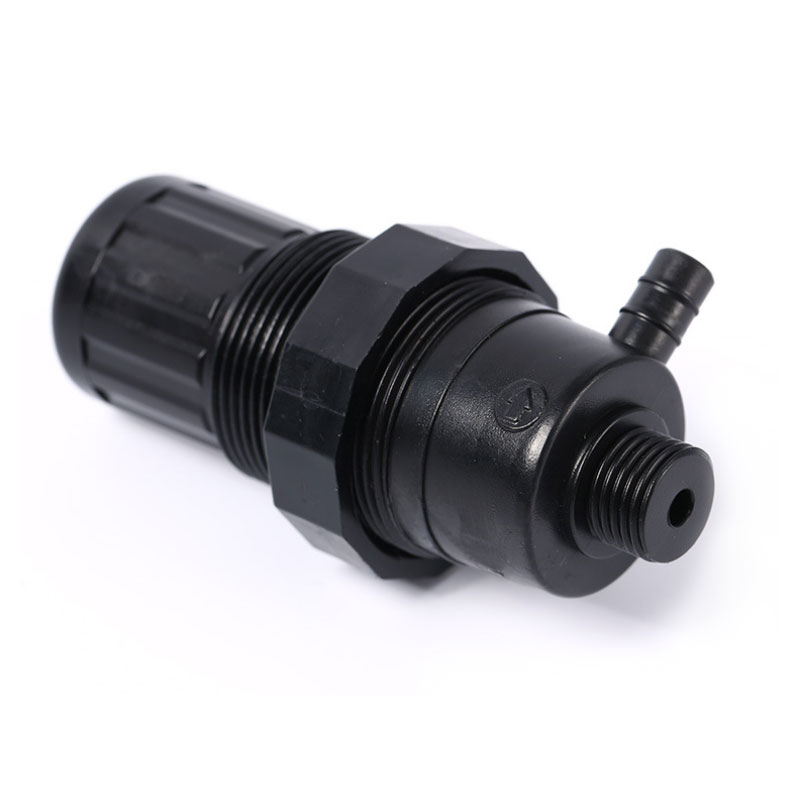

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for High Pressure Regulating Valve NR

Port Size: R1/4
Proof Pressure: 0.5MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

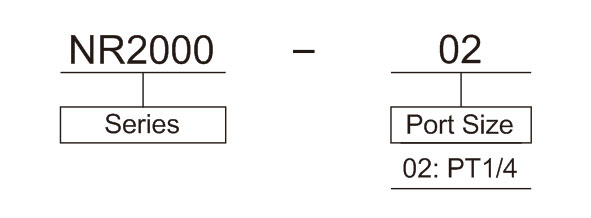

Ordering Code for Pressure Regulating Valve NR

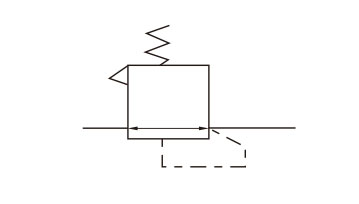

Symbol for Pressure Regulating Valve NR Series

Technical Parameter for Pressure Regulating Valve NR Series

Model NR2000-02
Port Size R1/4
Working Medium Compressed Air
Proof Pressure 0.5MPa
Range of pressure regulation 0~0.3MPa
Operating temperature range 5~60℃
Main parts material Plastics

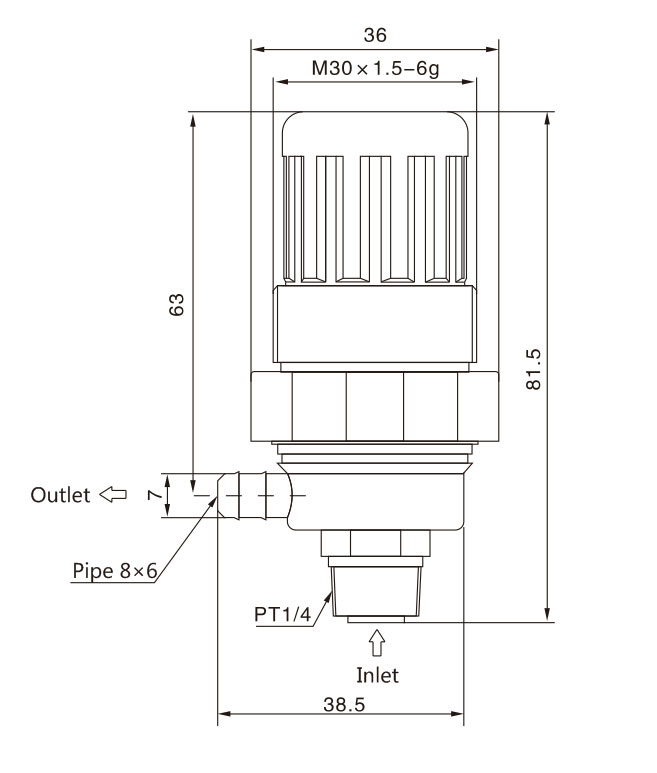

Overall Dimension
