Pressure Regulating Valve AR (Overflow Type)

Port Size:PT1/8,PT1/4,PT1/4,PT3/8,PT3/8,PT1/2,G3/4,G1
Proof Pressure:1.0MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: 5 to 60°C

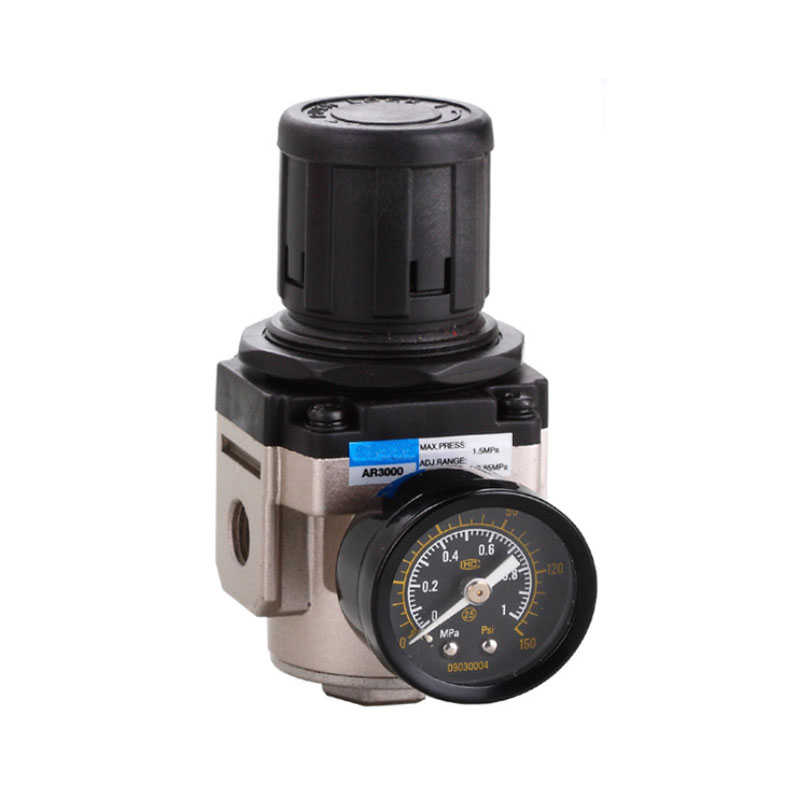

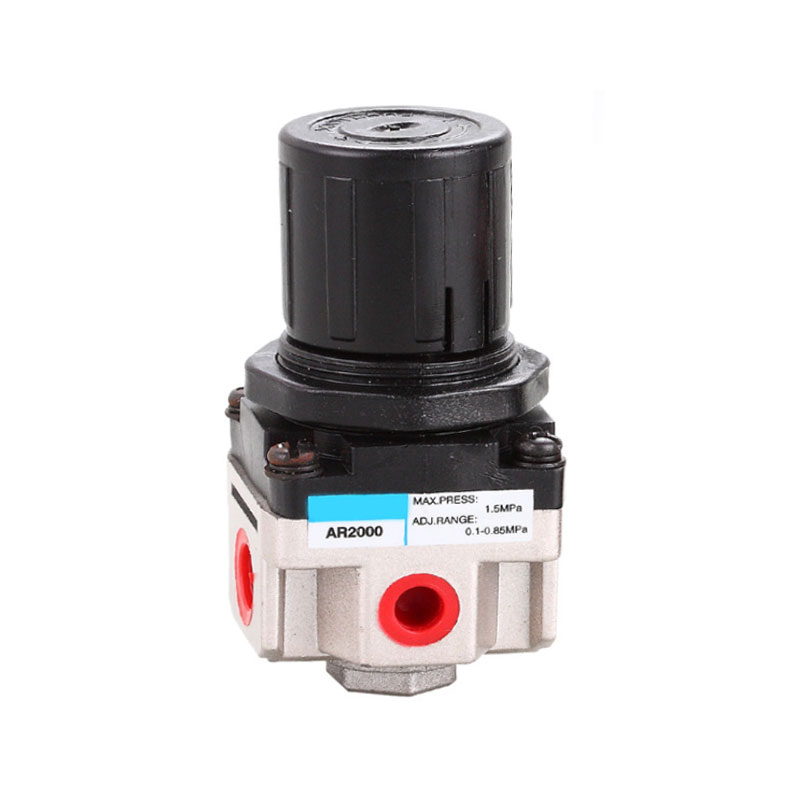

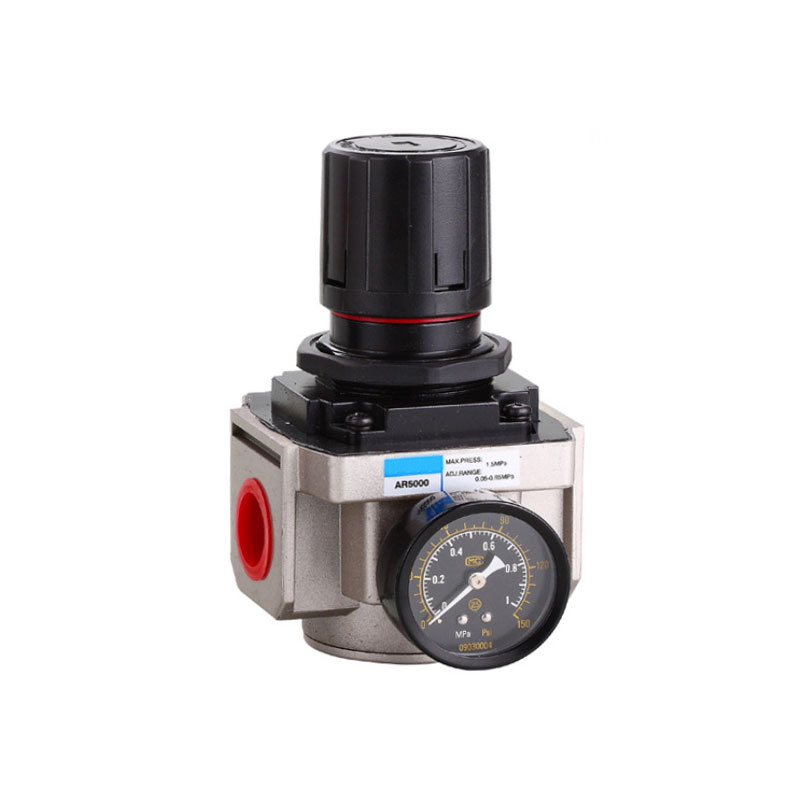

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Technical Parameters for Pressure Regulating Valve AR

Port Size:PT1/8,PT1/4,PT1/4,PT3/8,PT3/8,PT1/2,G3/4,G1
Proof Pressure:1.0MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: 5 to 60°C

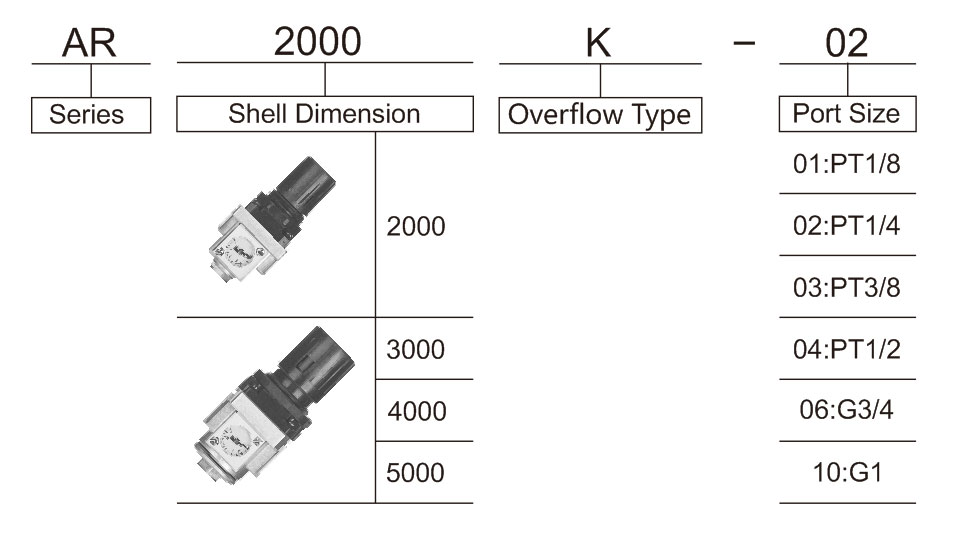

Ordering Code for Pressure Regulating Valve With Overflow

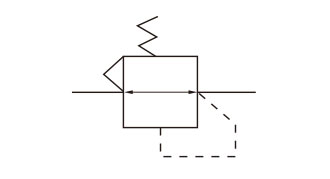

Symbol for Pressure Regulating Valve With Overflow

Technical Parameter for Pressure Regulating Valve With Overflow

Model	AR2000K-01	AR2000K-02	AR3000K-02	AR3000K-03	AR4000K-03	AR4000K-04	AR5000K-06	AR5000K-10
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT1/2	G3/4	G1
Rated Flow (L/min)	550	550	2500	2500	6000	6000	8000	8000
Pressure gauge	Square embedded pressure gauge
Working Medium	Compressed Air
Max. Operating Pressure	1.0MPa
Range of pressure regulation	0.05~0.85MPa
Overflow pressure	Setting pressure [ When overflow is 0.1L/min (ANR) ]
Ambient temperature	5~60℃ (No Freezing)
Filtration aperture	40μm(routine) or 5μm(customized)
Bracket (1)	B220	B320	B320	B320	B420	B420	B640	B640
Structure	Overflow Type
Body material	Aluminium Alloy

Note: The rated flow is at the supply pressure of 0.7MPa.

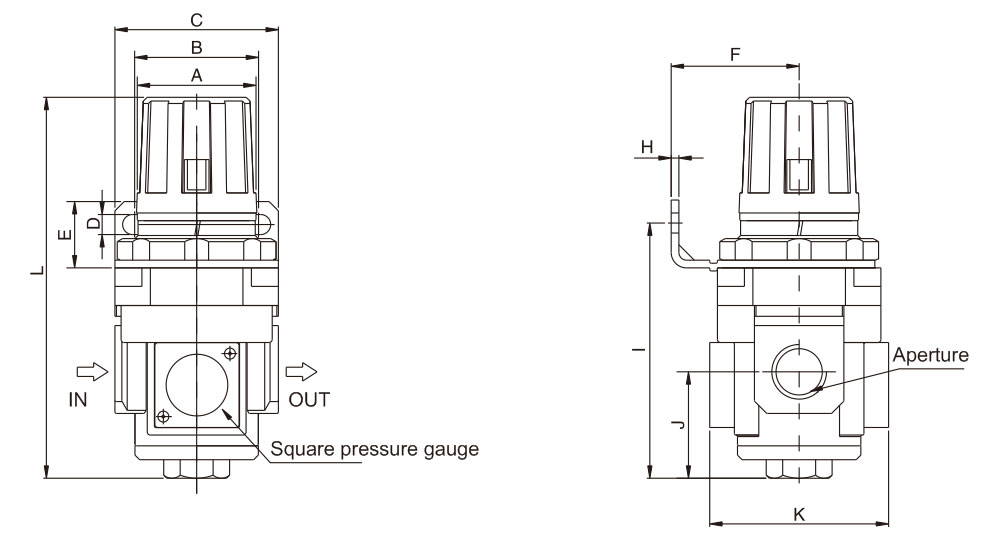

Overall Dimension

Model	Aperture	A	B	C	D	E	F	H	I	J	K	L
AR2000K	PT1/8,PT1/4	30	34	55	5.4	24.5	31	2	85	42	50	115.5
AR3000K	PT1/4,PT3/8	39	40	53	6.5	21.5	41.5	2.5	81.5	34.5	58	123
AR4000K	PT3/8,PT1/2	49.5	54	70.5	8.5	27.5	50.5	2.5	90	37	80	144
AR5000K	G3/4,G1	49.5	54	70.5	8.5	27.5	50.5	2.5	109	36.5	90	163

Keywords:

Pressure Regulating Valve With Overflow
