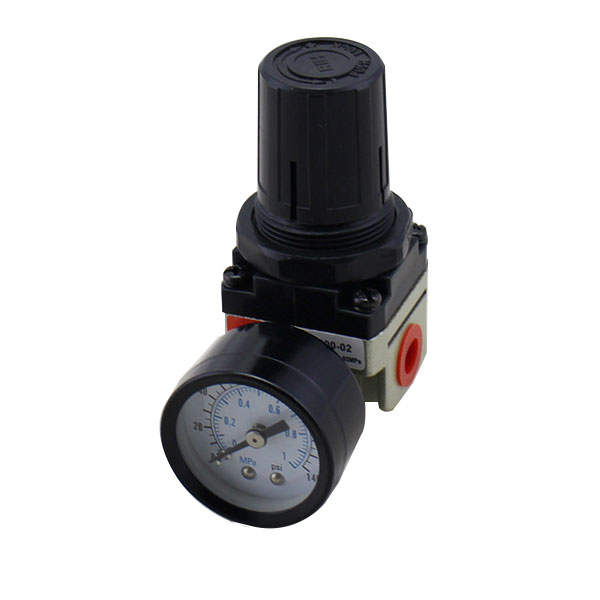

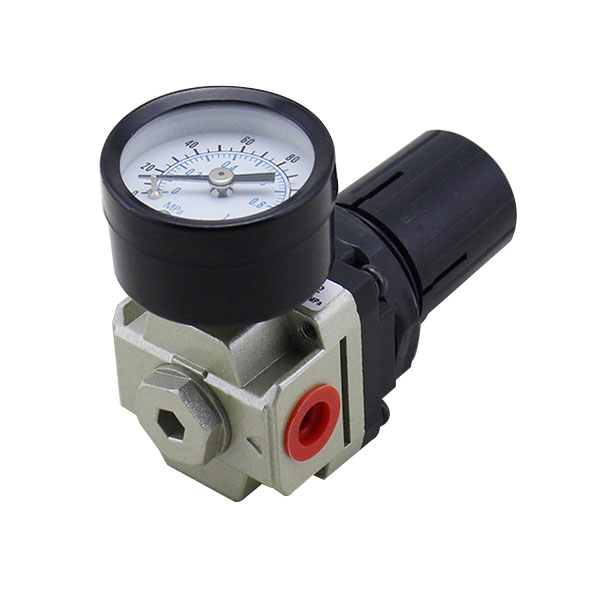

Overview for Pressure Regulating Valve AR
AR Series Pressure Regulating Valve: AR2000-01; AR2000-02; AR3000-02; AR3000-03; AR4000-03; AR4000-03; AR4000-04; AR4000-06; AR5000-06; AR5000-10. AR Pressure Regulating Valve is one of the pneumatic processing component, the compressed air delivered from the air compressor or air station is adjusted to the pressure required by the equipment. AR Pressure Regulating Valve reducing valve is also known as: air pressure reducing valve, air pressure reducer, pressure reducer, compressed air pressure reducing valve, compressed air regulator, instrument air regulator, instrument air pressure reducing valve, pressure regulator.
Product Features for Pressure Regulating Valve AR
The structure is light and compact, easy to install and use.
Push-in self-locking mechanism, can prevent setting pressure from being disturbed by external disturbances.
In addition to standard type, there is also a low pressure type to choose (adjustable pressure should be less than 0.4MPa).
Technical Parameters for Pressure Regulating Valve AR
Port Size:M5×0.8,PT1/8,PT1/4,PT1/4,PT3/8,PT1/4,PT3/8,PT3/8,PT1/2,G3/4,G3/4,G1
Proof Pressure:1.5MPa
Operating Pressure: 0.05-0.7 MPa; 0.05-0.85 MPa
Working Environment Temperature: 5 to 60°C

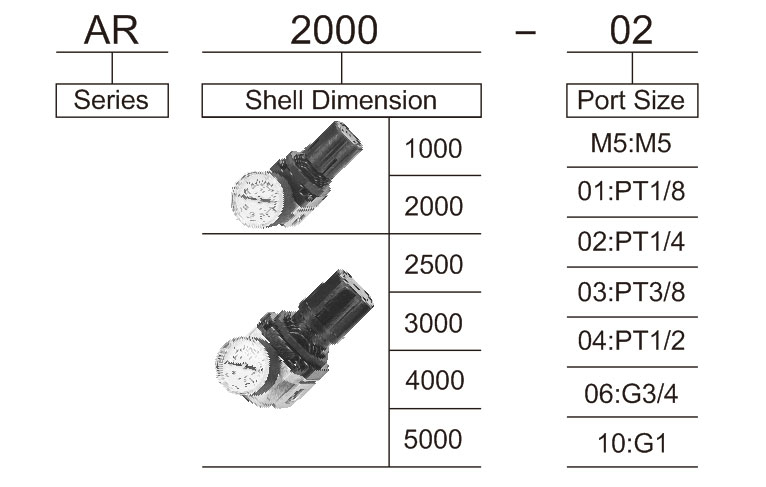

Ordering Code for Pressure Regulating Valve AR Series

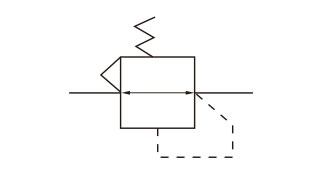

Symbol for Pressure Regulating Valve AR Series
Technical Parameter for Pressure Regulating Valve AR Series
| Model |
AR1000-02 |
AR2000-01 |
AR2000-02 |
AR2500-02 |
AR2500-03 |
AR3000-02 |
AR3000-03 |
AR4000-03 |
AR4000-04 |
AR4000-06 |
AR5000-06 |
AR5000-10 |
| Port Size |
M5×0.8 |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT1/4 |
PT3/8 |
PT3/8 |
PT1/2 |
G3/4 |
G3/4 |
G1 |
| Gauge Port Size |
M5×0.8 |
PT1/8 |
PT1/8 |
PT1/8 |
PT1/8 |
PT1/8 |
PT1/8 |
PT1/4 |
PT1/4 |
PT1/4 |
PT1/4 |
PT1/4 |
| Rated Flow (L/min) |
100 |
550 |
550 |
2000 |
2000 |
2500 |
2500 |
6000 |
6000 |
6000 |
8000 |
8000 |
| Working Medium |
Compressed Air |
| Proof Pressure |
1.5MPa |
| Ambient temperature |
5~60℃ |
| Range of pressure regulation |
0.05~0.7MPa |
0.05~0.85MPa |
| Bracket (1) |
B120 |
B220 |
B320 |
B420 |
B640 |
| Pressure Gauge |
Y25-M5 |
Y40-01 |
Y50-02 |
| Body material |
Aluminium Alloy |
Note: The rated flow is at the supply pressure of 0.7MPa.

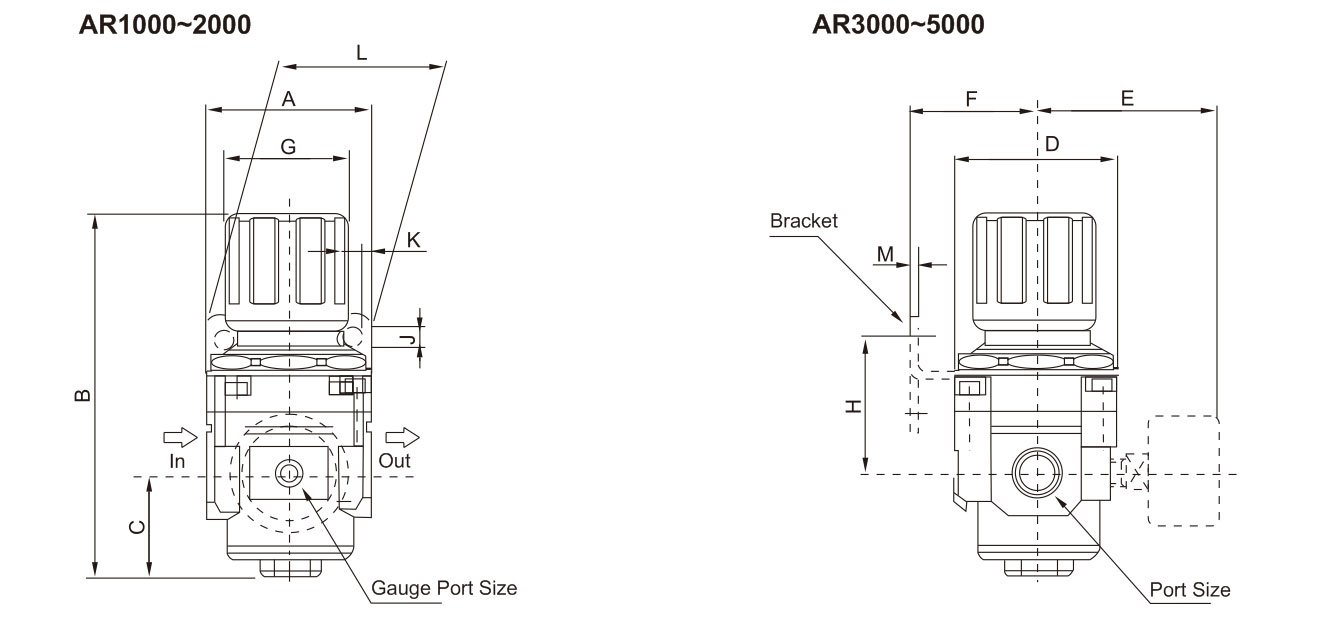

Overall Dimension
| Model |
Aperture |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
| AR1000 |
M5×0.8 |
30 |
61.5 |
11 |
25 |
26 |
25 |
28 |
30 |
4.5 |
6.5 |
40 |
2 |
| AR2000 |
PT1/8,PT1/4 |
40 |
95 |
17 |
40 |
56.8 |
30 |
34 |
45 |
5.4 |
15.4 |
55 |
2.3 |
| AR2500 |
PT1/4,PT3/8 |
53 |
102.5 |
25 |
48 |
60.8 |
30 |
34 |
44 |
5.4 |
15.4 |
55 |
2.3 |
| AR3000 |
PT1/4,PT3/8 |
53 |
127.5 |
35 |
53 |
60.8 |
41 |
40 |
46 |
6.5 |
8 |
53 |
2.3 |
| AR4000 |
PT3/8,PT1/2 |
70 |
149.5 |
37.5 |
70 |
65.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
2.3 |
| AR4000-06 |
G3/4 |
75 |
154.5 |
40.5 |
70 |
69.5 |
50 |
56 |
56 |
8.5 |
10.5 |
70 |
2.3 |
| AR5000 |
G3/4,G1 |
95 |
168 |
48 |
90 |
75.5 |
70 |
65.8 |
65.8 |
11 |
13 |
90 |
3.2 |
