Pneumatic Pressure Gauge

Port Size: M5,PT1/8,PT1/4
Dial diameter: 25,40,50mm
Max. Pressure: 1MPa,0.25MPa,0.5MPa

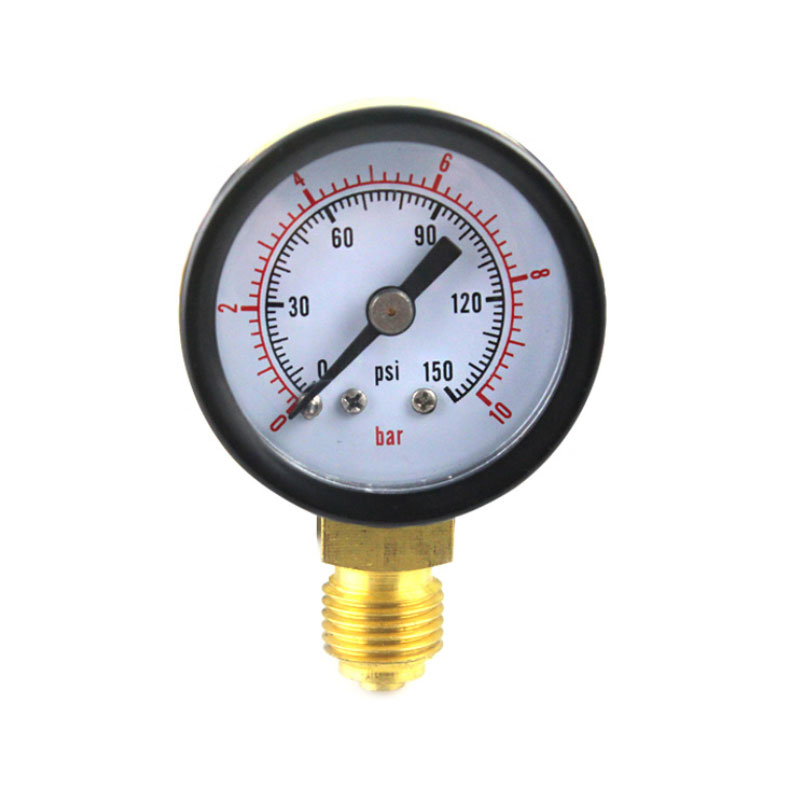

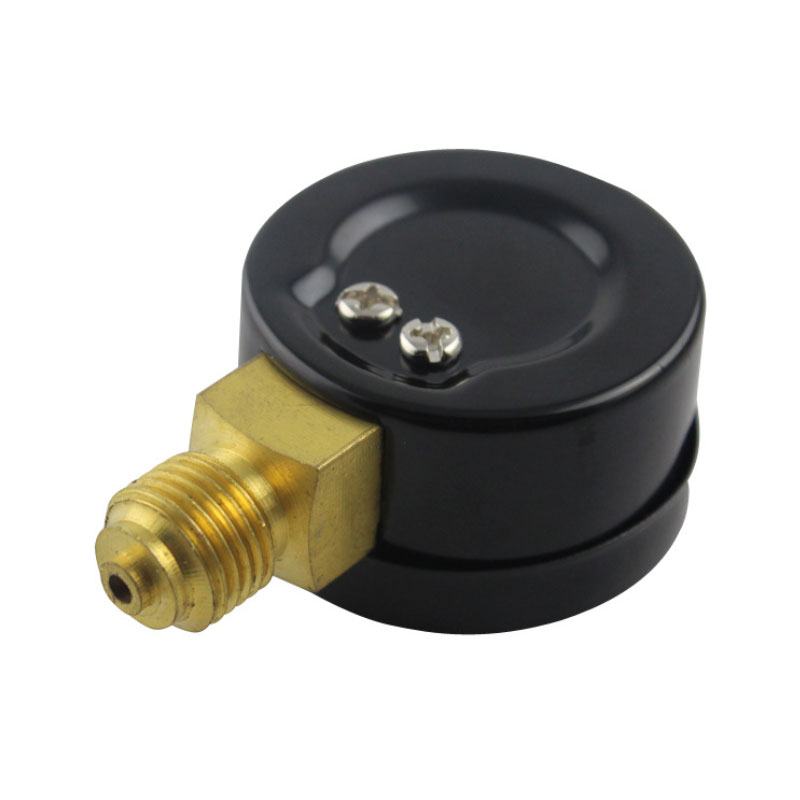

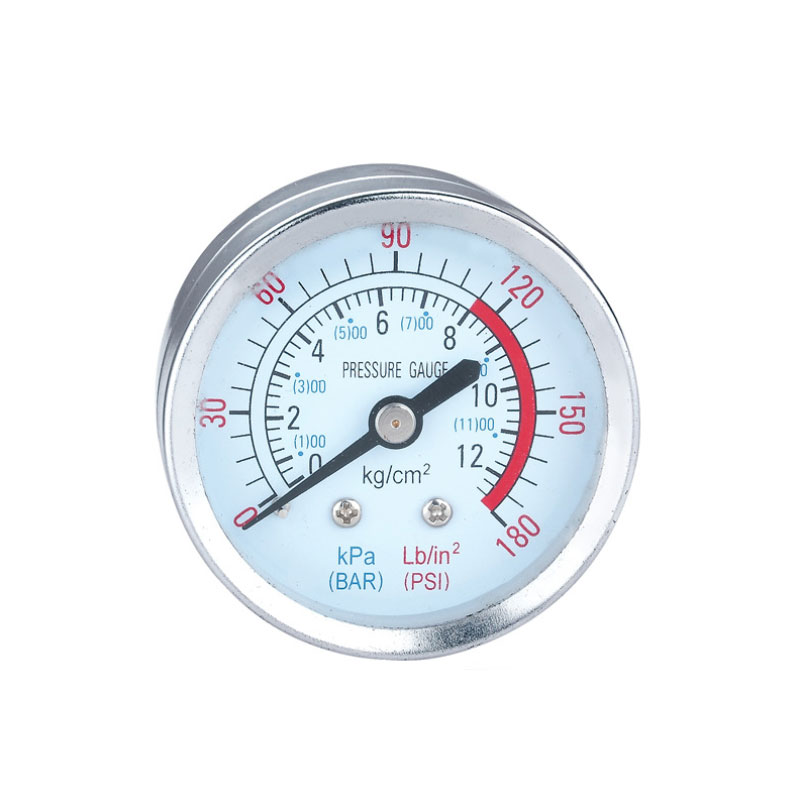

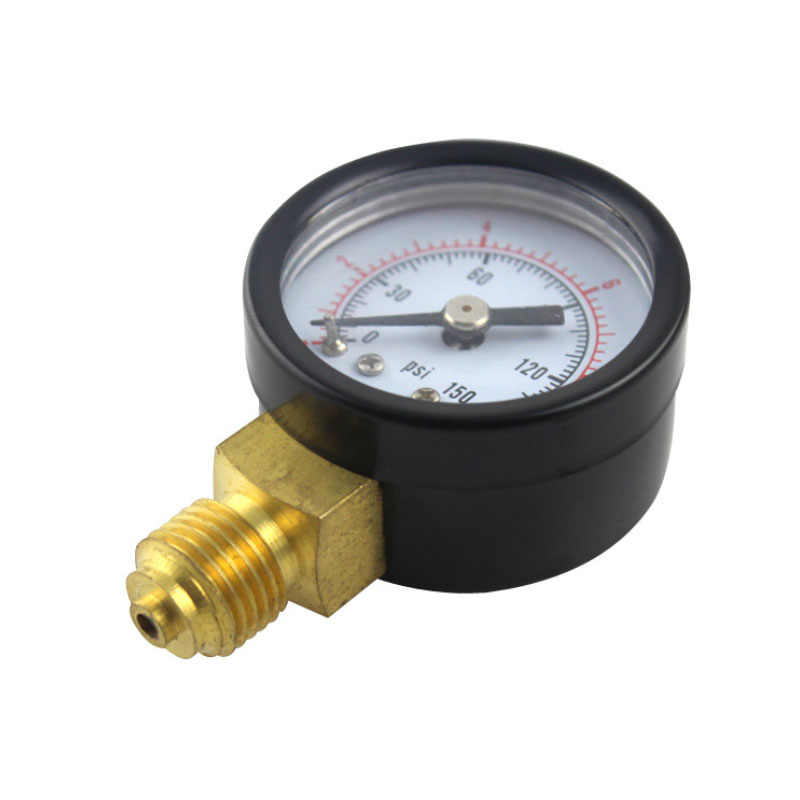

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pneumatic Pressure Gauge

Port Size: M5,PT1/8,PT1/4
Dial diameter: 25,40,50mm
Max. Pressure: 1MPa,0.25MPa,0.5MPa

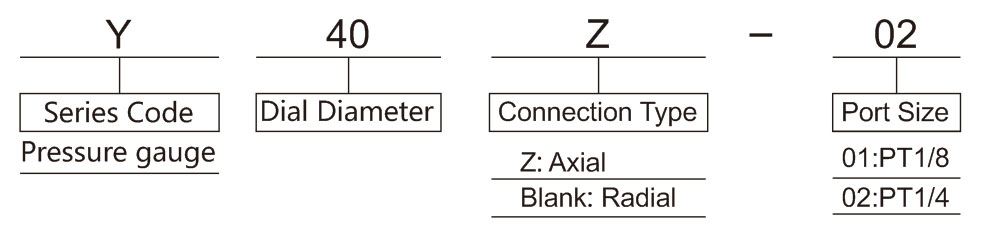

Ordering Code for Pneumatic Pressure Gauge

Technical Parameter for Pneumatic Pressure Gauge

Model Y25-M5 Y40-01 Y40-Z-01 Y50-01 Y50-02
Port Size M5 PT1/8 PT1/8 PT1/8 PT1/4
Dial diameter (mm) 25 40 40 50 50
Max. Pressure (MPa) 1 0.25 0.5 1 1 1 1
Shell Plastics (transparent) Iron
(nickelage)		 Iron
(nickelage)		 Iron (nickelage)
Plastic (frosted)
Iron (dull black)		 Plastic (frosted)
Iron (dull black)		 Iron (dull black) Plastic (frosted)
Iron (dull black)
Applicable model AR1000/AW1000 IR1000-3000 IR1010-3010 IR1020-3020
AC2000-3000
AR2000-3000
AW2000-3000
AC2010-3010
AC1500-2000
AFC1500-2000
AFR1500-2000
AR1500-2000		 WFS4R SFC Series
SFR Series		 AC4000-5000
AR4000-5000
AW4000-5000
AC4010-5010
BC2000-4000
BFC2000-4000
BFR2000-4000
BR2000-2000
