TAIXI Pneumatic Hydraulic Co.,Ltd. Are Professional Pneumatic Air Cylinder Actuator Manufacturers And Suppliers. Contact Us
HOME / ALL PRODUCTS / Pneumatic Valve / Hand Operated Valve / Pneumatics Hand Operated Valve VH

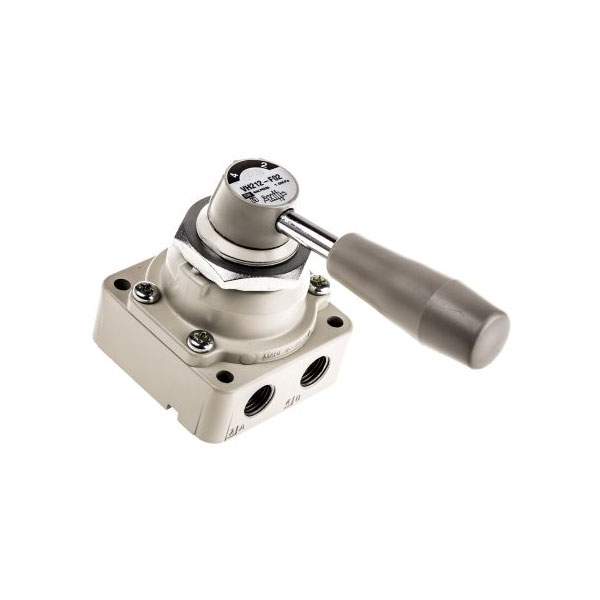

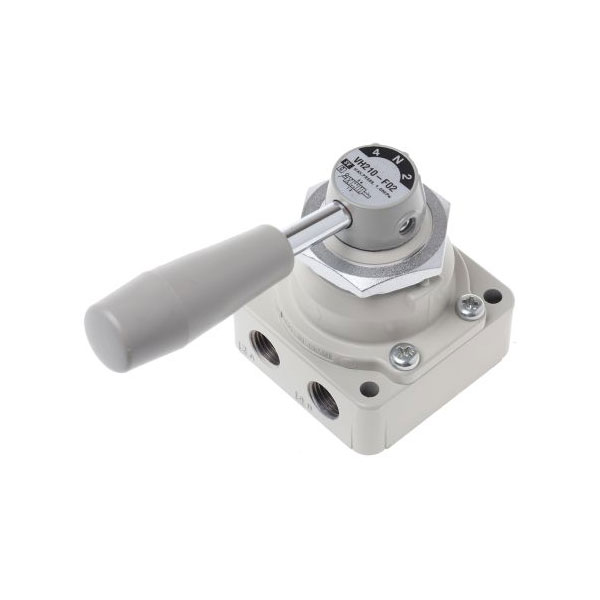

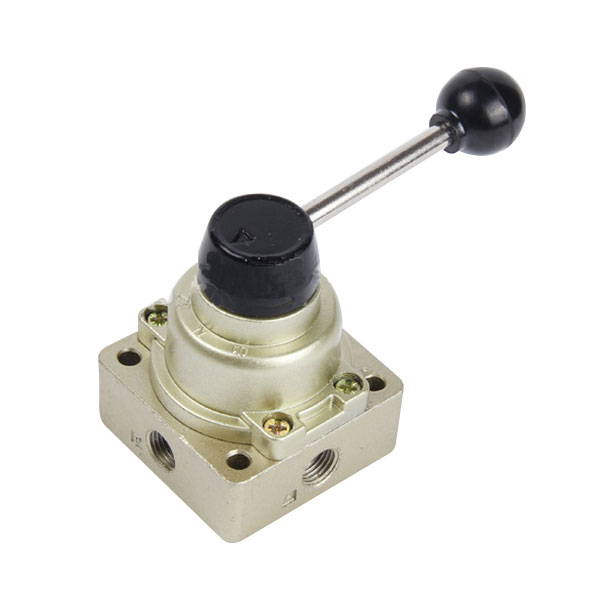

Pneumatics Hand Operated Valve VH

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: 5~60℃
Material: Aluminium Alloy,NBR

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pneumatics Hand Valves VH

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: 5~60℃
Material: Aluminium Alloy,NBR

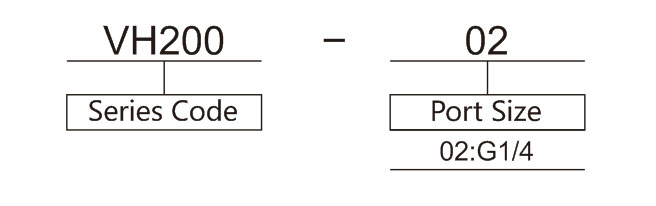

Ordering Code for Pneumatics Hand Valves VH

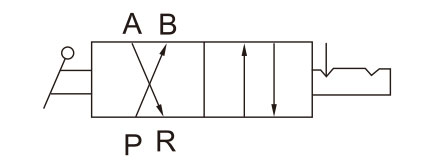

Symbol for Pneumatics Hand Valves VH

Technical Parameter for Pneumatics Hand Valves VH

Model VH200-02
Working Medium Compressed Air
Motion Pattern Manual Control
Port Size G1/4
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 5~60℃
Lubrication Non-lube
Main parts material Body Aluminium Alloy
Sealing element NBR

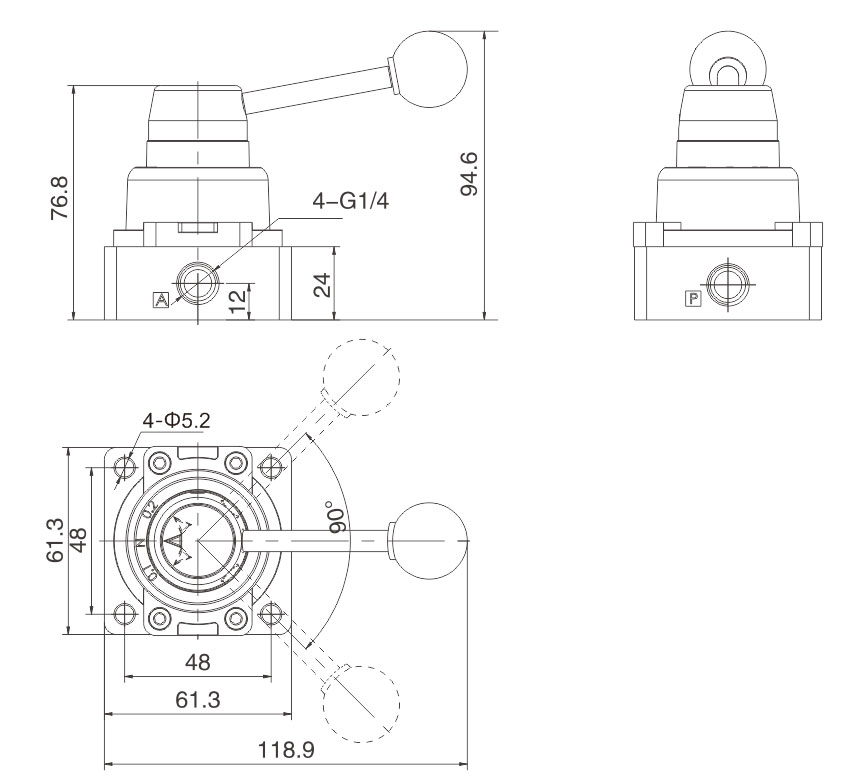

Overall Dimension

Keywords:

Pneumatics Hand Valves | SMC VH | Hand Operated Valve
