Pneumatic Toggle Control Switch HL

Port Size: G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

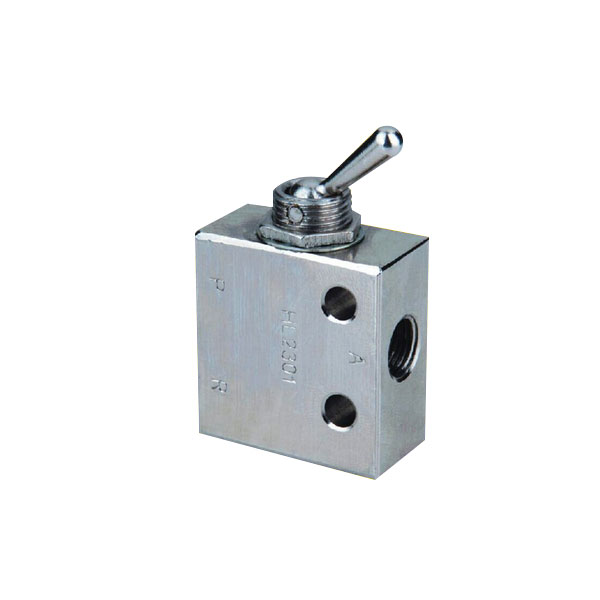

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pneumatic Toggle Switch HL

Port Size: G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

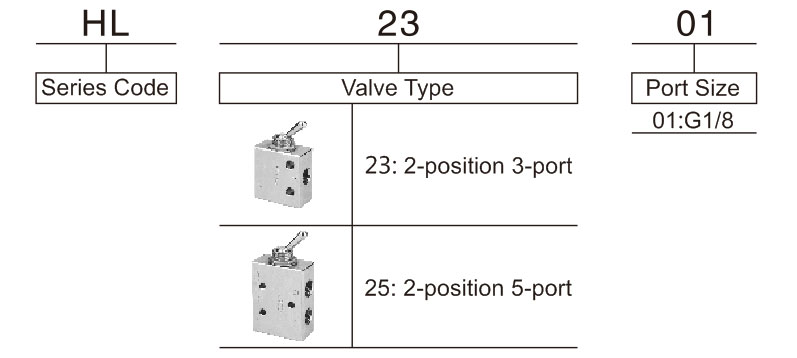

Ordering Code for Pneumatic Toggle Switch HL

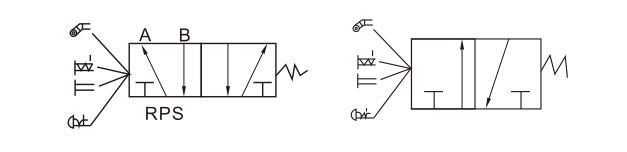

Symbol for Pneumatic Toggle Switch HL

Technical Parameter for Pneumatic Toggle Switch HL

Model HL2301 HL2501
Working Medium Compressed Air
Motion Pattern Manual Control
Port Size G1/8
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 0~60℃
Lubrication Non-lube
Main parts material Body Aluminium Alloy
Sealing element NBR

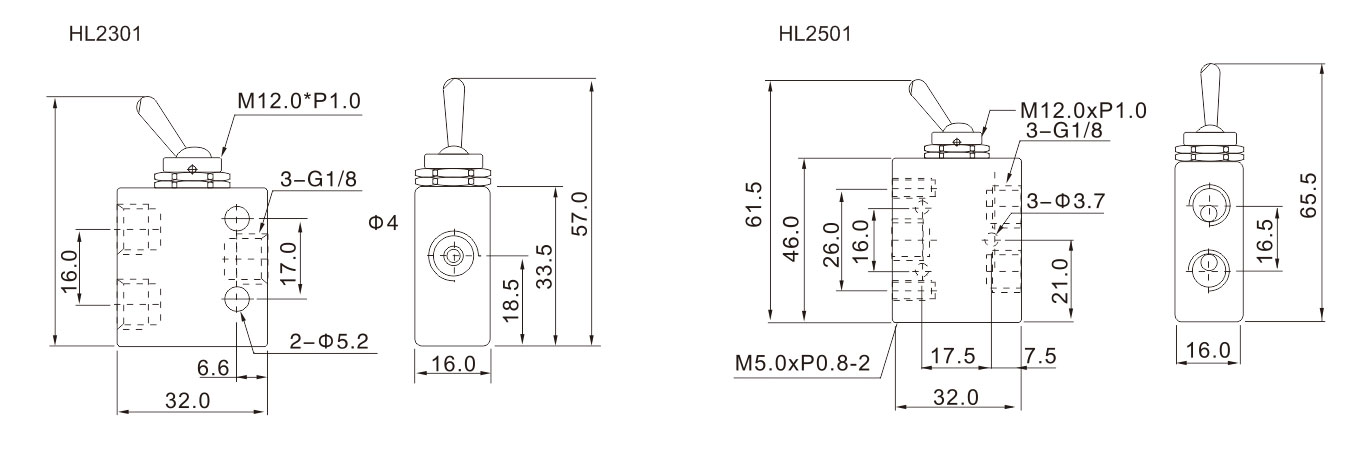

Overall Dimension
